Vare nr.: F032115753

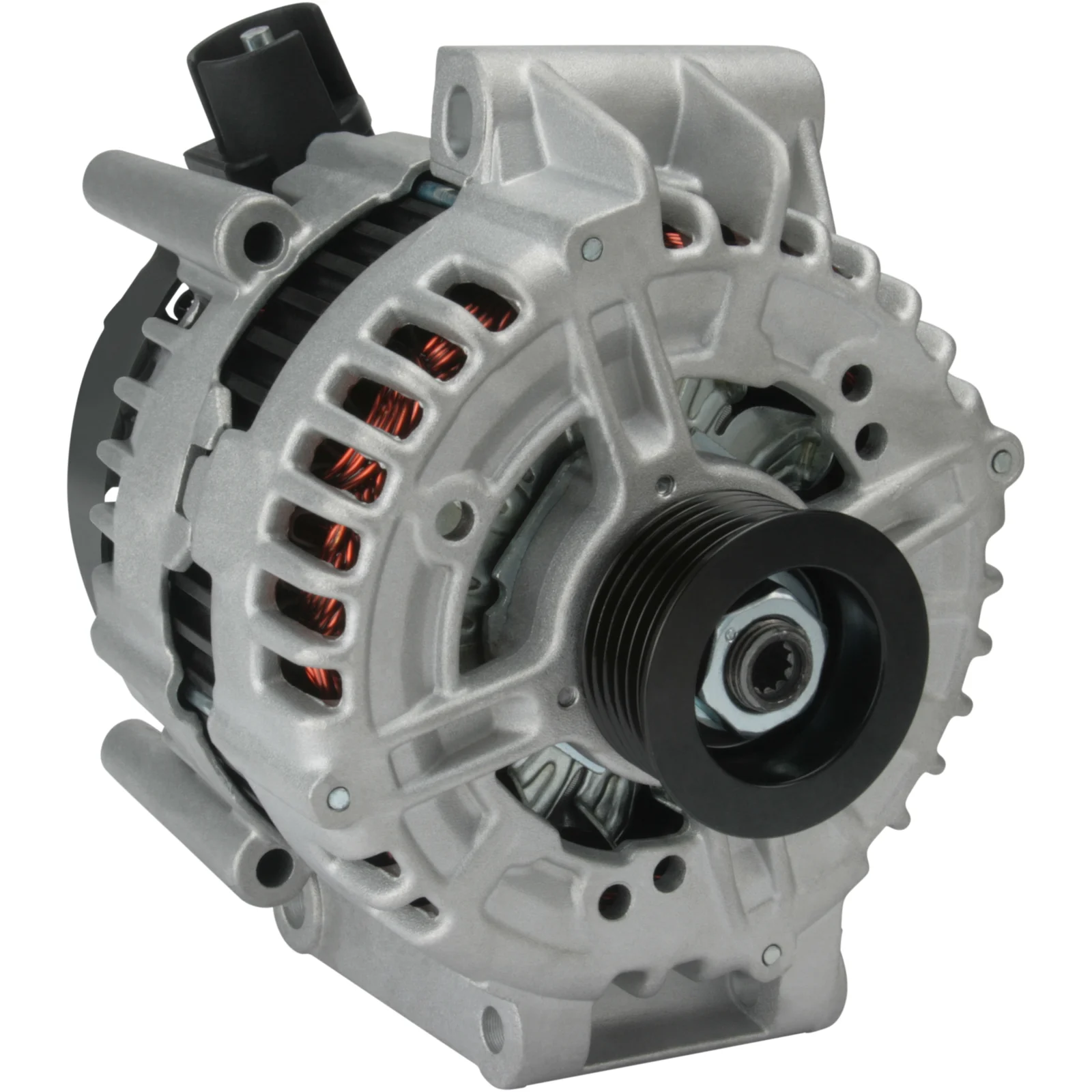

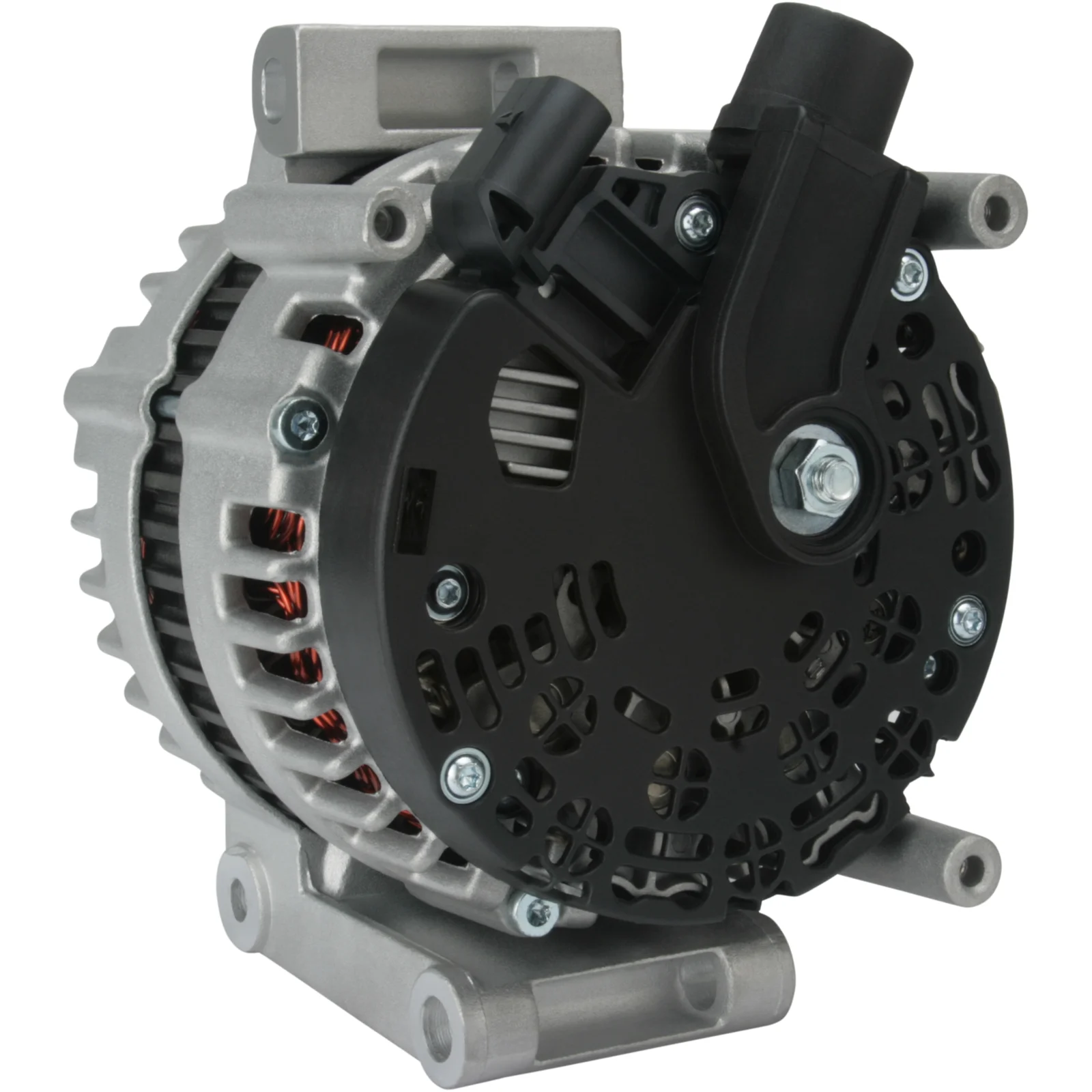

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 180, Rotation: CW, Monteringsbeslag afstanden: 85,00

Beskrivelse

Voltage: 14
Amp: 180
Pulley dist.: 23,50
Width/holder arm: 70,70
Mount. bracket dist.: 85,00
Bracket hole: 8,50
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: 9,50/12,20
Pulley dia.: 52,00
Grooves/drev: 6
B+: M8
Position/B+ in min.: 4
Rotation: med uret
Plug no.: PL137
Total length mm: 170,00
Terminal type: COM
Communication: LIN
Drev: SP
Regulator type: IR
Prod. info: BN
Remarks: Denne Generator har en COM terminal på regulatoren. Det anbefales at bruge OEM-nummeret til at tjekke egnethed, før der bestilles.

Specifikation

B+ M8
Communication LIN
Mount. bracket dist. 85.00
Belt. adj. bracket hole 1 9.50/12.20
Belt. adj. brackethole pos. 60
Plug no. PL137
Bracket hole 8.50
Position/B+ in min. 4
Prod. info BN
Pulley SP
Pulley dia. 52.00
Pulley dist. 23.50
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Grooves/pulley 6
Terminal type COM
Voltage 14
Total length 170.00 mm
Width/holder arm 70.70
Amp 180
  • OEM

    F032115753, 8603388, 8603605, 8603898, 30667018, 30667524, 30667525, 30667896, 30782032, 30795210, 36000791, 36002176, 86036050, 86038980, 0121715002, 0121715032, 0121715102, 0121715132, 307820320, 360007910, 360021760
  • Konkurrentreferens

    A0285, A0705S, CAL10370, CAL10396, DRA0477, LRA03368, 28-5980, 238.154.1802, 815.516.172, 815.516.180, 815.525.180, 11223R, 12090711, 0986080157
  • NormaliseratArtNr

    a0285, a0705s, cal10370, cal10396, dra0477, f032115753, lra03368, 11223r, 285980, 8603388, 8603605, 8603898, 12090711, 30667018, 30667524, 30667525, 30667896, 30782032, 30795210, 36000791, 36002176, 86036050, 86038980, 0121715002, 0121715032, 0121715102, 0121715132, 307820320, 360007910, 360021760, 815516172, 815516180, 815525180, 0986080157, 2381541802
  • Passar modeller

    Volvo Model: S80 Model series: S80 Model type: AWD Type of engine: V8 Size of motor: 4.4 Brand of engine: B8444S From date: 01-03-2006 To date: 01-03-2012 Fuel: Gasoline Approved: Yes
    Volvo Model: XC90 Model series: XC90 Model type: V8 AWD Size of motor: 4.4 Brand of engine: B8444S Type description: 275 Body: SUV From date: 01-09-2004 To date: 01-12-2005 Fuel: Petrol Approved: Yes
    Volvo Model: XC90 Model series: XC90 Size of motor: 4.4 Brand of engine: B8444S Body: SUV From date: 01-01-2005 To date: 01-12-2010 Fuel: Gasoline Approved: Yes
  • Beskrivelse
    Voltage: 14
    Amp: 180
    Pulley dist.: 23,50
    Width/holder arm: 70,70
    Mount. bracket dist.: 85,00
    Bracket hole: 8,50
    Belt. adj. brackethole pos.: 60
    Belt. adj. bracket hole 1: 9,50/12,20
    Pulley dia.: 52,00
    Grooves/drev: 6
    B+: M8
    Position/B+ in min.: 4
    Rotation: med uret
    Plug no.: PL137
    Total length mm: 170,00
    Terminal type: COM
    Communication: LIN
    Drev: SP
    Regulator type: IR
    Prod. info: BN
    Remarks: Denne Generator har en COM terminal på regulatoren. Det anbefales at bruge OEM-nummeret til at tjekke egnethed, før der bestilles.
  • Specifikation
    B+ M8
    Communication LIN
    Mount. bracket dist. 85.00
    Belt. adj. bracket hole 1 9.50/12.20
    Belt. adj. brackethole pos. 60
    Plug no. PL137
    Bracket hole 8.50
    Position/B+ in min. 4
    Prod. info BN
    Pulley SP
    Pulley dia. 52.00
    Pulley dist. 23.50
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Grooves/pulley 6
    Terminal type COM
    Voltage 14
    Total length 170.00 mm
    Width/holder arm 70.70
    Amp 180
  • Køretøjsmatchning
    • OEM

      F032115753, 8603388, 8603605, 8603898, 30667018, 30667524, 30667525, 30667896, 30782032, 30795210, 36000791, 36002176, 86036050, 86038980, 0121715002, 0121715032, 0121715102, 0121715132, 307820320, 360007910, 360021760
    • Konkurrentreferens

      A0285, A0705S, CAL10370, CAL10396, DRA0477, LRA03368, 28-5980, 238.154.1802, 815.516.172, 815.516.180, 815.525.180, 11223R, 12090711, 0986080157
    • NormaliseratArtNr

      a0285, a0705s, cal10370, cal10396, dra0477, f032115753, lra03368, 11223r, 285980, 8603388, 8603605, 8603898, 12090711, 30667018, 30667524, 30667525, 30667896, 30782032, 30795210, 36000791, 36002176, 86036050, 86038980, 0121715002, 0121715032, 0121715102, 0121715132, 307820320, 360007910, 360021760, 815516172, 815516180, 815525180, 0986080157, 2381541802
    • Passar modeller

      Volvo Model: S80 Model series: S80 Model type: AWD Type of engine: V8 Size of motor: 4.4 Brand of engine: B8444S From date: 01-03-2006 To date: 01-03-2012 Fuel: Gasoline Approved: Yes
      Volvo Model: XC90 Model series: XC90 Model type: V8 AWD Size of motor: 4.4 Brand of engine: B8444S Type description: 275 Body: SUV From date: 01-09-2004 To date: 01-12-2005 Fuel: Petrol Approved: Yes
      Volvo Model: XC90 Model series: XC90 Size of motor: 4.4 Brand of engine: B8444S Body: SUV From date: 01-01-2005 To date: 01-12-2010 Fuel: Gasoline Approved: Yes
