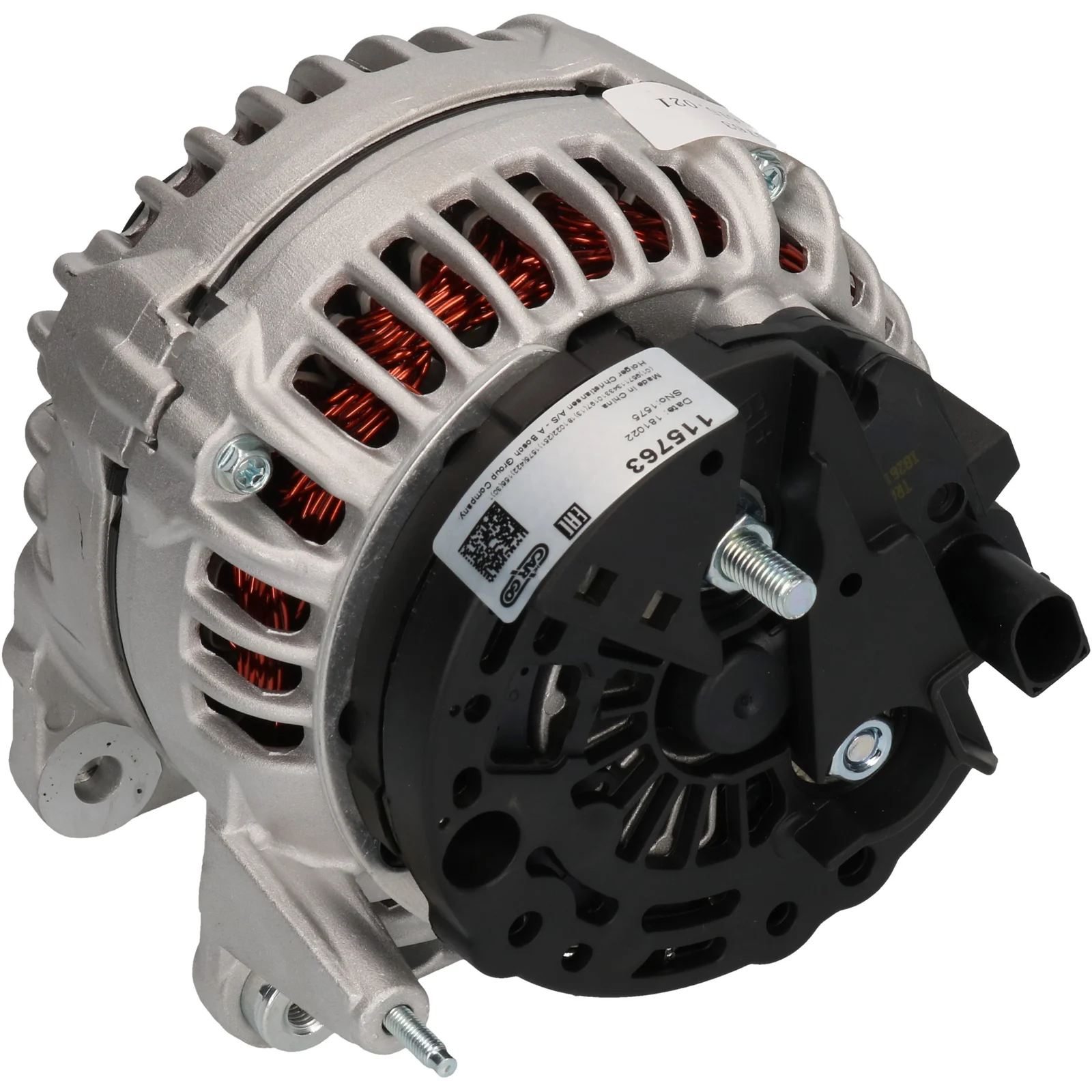

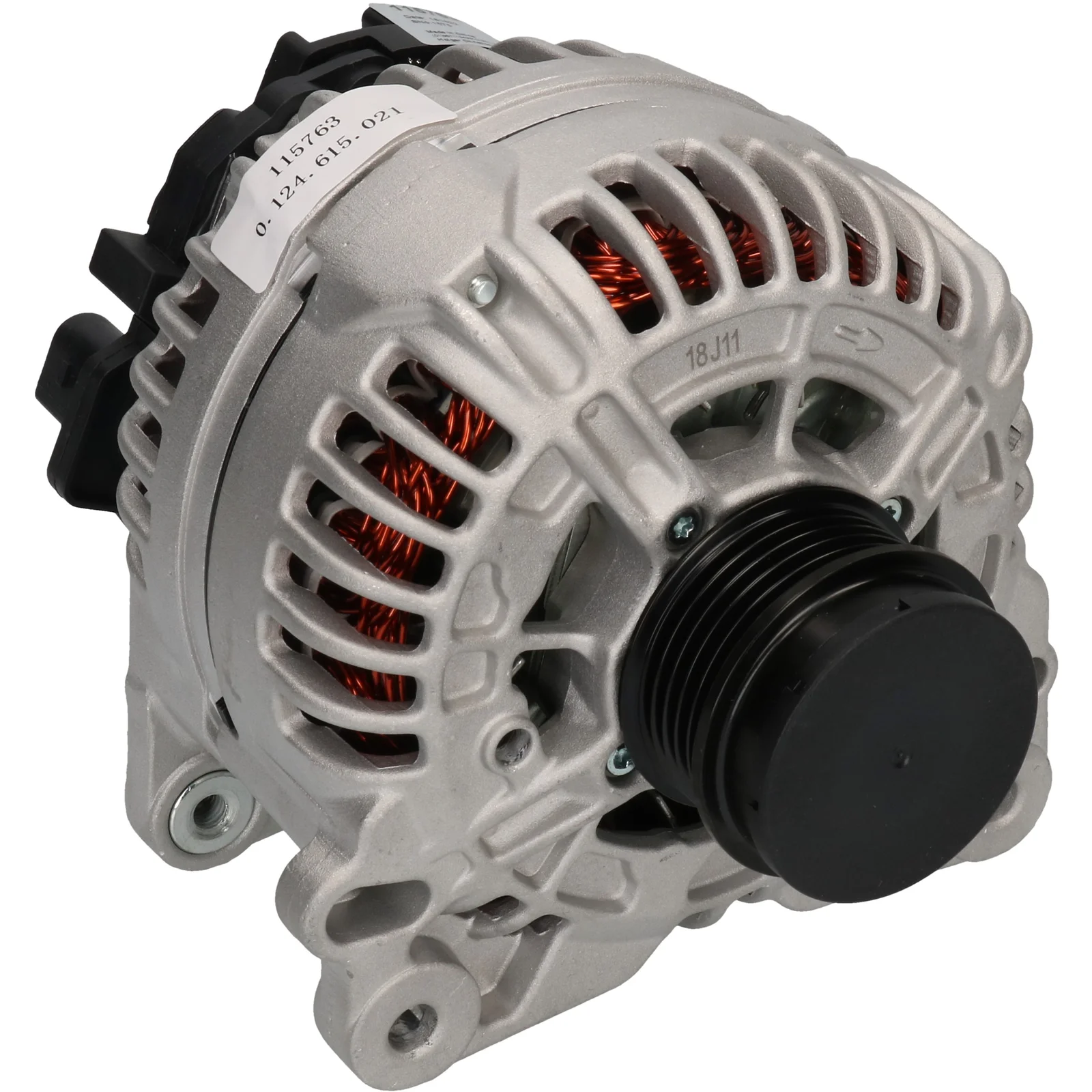

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032115763

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 150, Rotation: CW, Monteringsbeslag afstand.: 60,70

Beskrivelse

Spænding: 14
Ampere: 150
Remskive fordeling: 30.20
Bredde/holder arm: 14.20
Montering beslaget afstand: 60.70
Beslag hul: 8.50
Bælte justering beslag hul pos.: 15
Bælte justering beslag hul 1: 8.50
Remskive dia.: 56.00
Riller/remskive: 5
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ i min.: 5
Rotation: med uret
Stik nr.: PL61
Samlet længde mm: 199.50
Terminaltype: L-DFM
Remskive: SP/FW
Regulator type: IR

Filer

Specifikation

B+ M8
Mount. bracket dist. 60.70
Belt. adj. bracket hole 1 8.50
Belt. adj. brackethole pos. 15
Plug no. PL61
Bracket hole 8.50
Position/B+ in min. 5
Pulley SP/FW
Pulley dia. 56.00
Pulley dist. 30.20
Radius 90.00
Radius 2 90.00
Regulator type IR
Rotation CW
Grooves/pulley 5
Terminal type L-DFM
Voltage 14
Total length 199.50 mm
Width/holder arm 14.20
Amp 150

  • OEM
    F032115763, 06B903019X, 028903029N, 028903029NX, 0124615021

  • Konkurrentreferens
    A0495, DRA0753, LRA03158, 28-5770, 211.197.1502, 305.525.150, 112552, 12090472

  • NormaliseratArtNr
    a0495, dra0753, f032115763, lra03158, 06b903019x, 112552, 285770, 12090472, 028903029n, 028903029nx, 0124615021, 305525150, 2111971502

  • Passar modeller
    Audi Model: A4 Model series: A4 Model type: Quattro Type of engine: TDi Size of motor: 1.9 Brand of engine: AVF Type description: 8E2 From date: 01-11-2001 To date: 01-12-2004 Fuel: Diesel Approved: Yes
    Audi Model: A4 Model series: A4 Model type: Quattro Type of engine: TDi Size of motor: 1.9 Brand of engine: AVF Type description: 8E5 Body: Estate From date: 01-11-2001 To date: 01-12-2004 Fuel: Diesel Approved: Yes Manufacture type: AVANT
    Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 1.9 Brand of engine: AVB Type description: 8E2,B6 From date: 01-05-2001 To date: 01-12-2004 Fuel: Diesel Approved: Yes
    Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 1.9 Brand of engine: AVB Type description: 8E5 Body: Estate From date: 01-11-2001 To date: 01-12-2004 Fuel: Diesel Approved: Yes Manufacture type: AVANT
    Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 1.9 Brand of engine: AVF Type description: 8E2,B6 From date: 01-11-2000 To date: 01-12-2004 Fuel: Diesel Approved: Yes
    Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 1.9 Brand of engine: AVF Type description: 8E5 Body: Estate From date: 01-09-2001 To date: 01-12-2004 Fuel: Diesel Approved: Yes Manufacture type: AVANT
    Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 1.9 Brand of engine: AWX Type description: 8E2,B6 From date: 01-11-2000 To date: 01-12-2004 Fuel: Diesel Approved: Yes
    Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 1.9 Brand of engine: AWX Type description: 8E5, B6 Body: Estate From date: 01-09-2001 To date: 01-12-2004 Fuel: Diesel Approved: Yes Manufacture type: AVANT
    Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 1.9 Brand of engine: BKE Type description: 8EC From date: 01-11-2004 To date: 01-06-2008 Fuel: Diesel Approved: Yes
    Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 1.9 Brand of engine: BKE Type description: 8ED Body: Estate From date: 01-11-2004 To date: 01-06-2008 Fuel: Diesel Approved: Yes Manufacture type: AVANT
    Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 1.9 Brand of engine: BRB Type description: 8EC From date: 01-11-2004 To date: 01-06-2008 Fuel: Diesel Approved: Yes
    Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 1.9 Brand of engine: BRB Type description: 8ED Body: Estate From date: 01-11-2004 To date: 01-06-2008 Fuel: Diesel Approved: Yes Manufacture type: AVANT
    VW Model: Passat Model series: Passat Model type: 4 Motion Type of engine: TDi Size of motor: 1.9 Brand of engine: AVF Type description: 3B3 From date: 01-11-2000 To date: 01-05-2005 Fuel: Diesel Approved: Yes
    VW Model: Passat Model series: Passat Model type: 4 Motion Type of engine: TDi Size of motor: 1.9 Brand of engine: AVF Type description: 3B6 Body: Estate From date: 01-11-2000 To date: 01-05-2005 Fuel: Diesel Approved: Yes Manufacture type: variant
    VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 1.9 Brand of engine: AVF Type description: 3B3 From date: 01-11-2000 To date: 01-05-2005 Fuel: Diesel Approved: Yes
    VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 1.9 Brand of engine: AVF Type description: 3B6 Body: Estate From date: 01-11-2000 To date: 01-05-2005 Fuel: Diesel Approved: Yes Manufacture type: variant
    VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 1.9 Brand of engine: AWX Type description: 3B3 From date: 01-11-2000 To date: 01-05-2005 Fuel: Diesel Approved: Yes
    VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 1.9 Brand of engine: AWX Type description: 3B6 Body: Estate From date: 01-11-2000 To date: 01-05-2005 Fuel: Diesel Approved: Yes Manufacture type: variant
    1 / 4
  • Beskrivelse
    Spænding: 14
    Ampere: 150
    Remskive fordeling: 30.20
    Bredde/holder arm: 14.20
    Montering beslaget afstand: 60.70
    Beslag hul: 8.50
    Bælte justering beslag hul pos.: 15
    Bælte justering beslag hul 1: 8.50
    Remskive dia.: 56.00
    Riller/remskive: 5
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ i min.: 5
    Rotation: med uret
    Stik nr.: PL61
    Samlet længde mm: 199.50
    Terminaltype: L-DFM
    Remskive: SP/FW
    Regulator type: IR

    Filer

  • Specifikation
    B+ M8
    Mount. bracket dist. 60.70
    Belt. adj. bracket hole 1 8.50
    Belt. adj. brackethole pos. 15
    Plug no. PL61
    Bracket hole 8.50
    Position/B+ in min. 5
    Pulley SP/FW
    Pulley dia. 56.00
    Pulley dist. 30.20
    Radius 90.00
    Radius 2 90.00
    Regulator type IR
    Rotation CW
    Grooves/pulley 5
    Terminal type L-DFM
    Voltage 14
    Total length 199.50 mm
    Width/holder arm 14.20
    Amp 150
  • Køretøjsmatchning

    • OEM
      F032115763, 06B903019X, 028903029N, 028903029NX, 0124615021

    • Konkurrentreferens
      A0495, DRA0753, LRA03158, 28-5770, 211.197.1502, 305.525.150, 112552, 12090472

    • NormaliseratArtNr
      a0495, dra0753, f032115763, lra03158, 06b903019x, 112552, 285770, 12090472, 028903029n, 028903029nx, 0124615021, 305525150, 2111971502

    • Passar modeller
      Audi Model: A4 Model series: A4 Model type: Quattro Type of engine: TDi Size of motor: 1.9 Brand of engine: AVF Type description: 8E2 From date: 01-11-2001 To date: 01-12-2004 Fuel: Diesel Approved: Yes
      Audi Model: A4 Model series: A4 Model type: Quattro Type of engine: TDi Size of motor: 1.9 Brand of engine: AVF Type description: 8E5 Body: Estate From date: 01-11-2001 To date: 01-12-2004 Fuel: Diesel Approved: Yes Manufacture type: AVANT
      Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 1.9 Brand of engine: AVB Type description: 8E2,B6 From date: 01-05-2001 To date: 01-12-2004 Fuel: Diesel Approved: Yes
      Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 1.9 Brand of engine: AVB Type description: 8E5 Body: Estate From date: 01-11-2001 To date: 01-12-2004 Fuel: Diesel Approved: Yes Manufacture type: AVANT
      Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 1.9 Brand of engine: AVF Type description: 8E2,B6 From date: 01-11-2000 To date: 01-12-2004 Fuel: Diesel Approved: Yes
      Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 1.9 Brand of engine: AVF Type description: 8E5 Body: Estate From date: 01-09-2001 To date: 01-12-2004 Fuel: Diesel Approved: Yes Manufacture type: AVANT
      Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 1.9 Brand of engine: AWX Type description: 8E2,B6 From date: 01-11-2000 To date: 01-12-2004 Fuel: Diesel Approved: Yes
      Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 1.9 Brand of engine: AWX Type description: 8E5, B6 Body: Estate From date: 01-09-2001 To date: 01-12-2004 Fuel: Diesel Approved: Yes Manufacture type: AVANT
      Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 1.9 Brand of engine: BKE Type description: 8EC From date: 01-11-2004 To date: 01-06-2008 Fuel: Diesel Approved: Yes
      Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 1.9 Brand of engine: BKE Type description: 8ED Body: Estate From date: 01-11-2004 To date: 01-06-2008 Fuel: Diesel Approved: Yes Manufacture type: AVANT
      Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 1.9 Brand of engine: BRB Type description: 8EC From date: 01-11-2004 To date: 01-06-2008 Fuel: Diesel Approved: Yes
      Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 1.9 Brand of engine: BRB Type description: 8ED Body: Estate From date: 01-11-2004 To date: 01-06-2008 Fuel: Diesel Approved: Yes Manufacture type: AVANT
      VW Model: Passat Model series: Passat Model type: 4 Motion Type of engine: TDi Size of motor: 1.9 Brand of engine: AVF Type description: 3B3 From date: 01-11-2000 To date: 01-05-2005 Fuel: Diesel Approved: Yes
      VW Model: Passat Model series: Passat Model type: 4 Motion Type of engine: TDi Size of motor: 1.9 Brand of engine: AVF Type description: 3B6 Body: Estate From date: 01-11-2000 To date: 01-05-2005 Fuel: Diesel Approved: Yes Manufacture type: variant
      VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 1.9 Brand of engine: AVF Type description: 3B3 From date: 01-11-2000 To date: 01-05-2005 Fuel: Diesel Approved: Yes
      VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 1.9 Brand of engine: AVF Type description: 3B6 Body: Estate From date: 01-11-2000 To date: 01-05-2005 Fuel: Diesel Approved: Yes Manufacture type: variant
      VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 1.9 Brand of engine: AWX Type description: 3B3 From date: 01-11-2000 To date: 01-05-2005 Fuel: Diesel Approved: Yes
      VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 1.9 Brand of engine: AWX Type description: 3B6 Body: Estate From date: 01-11-2000 To date: 01-05-2005 Fuel: Diesel Approved: Yes Manufacture type: variant
