HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032115764

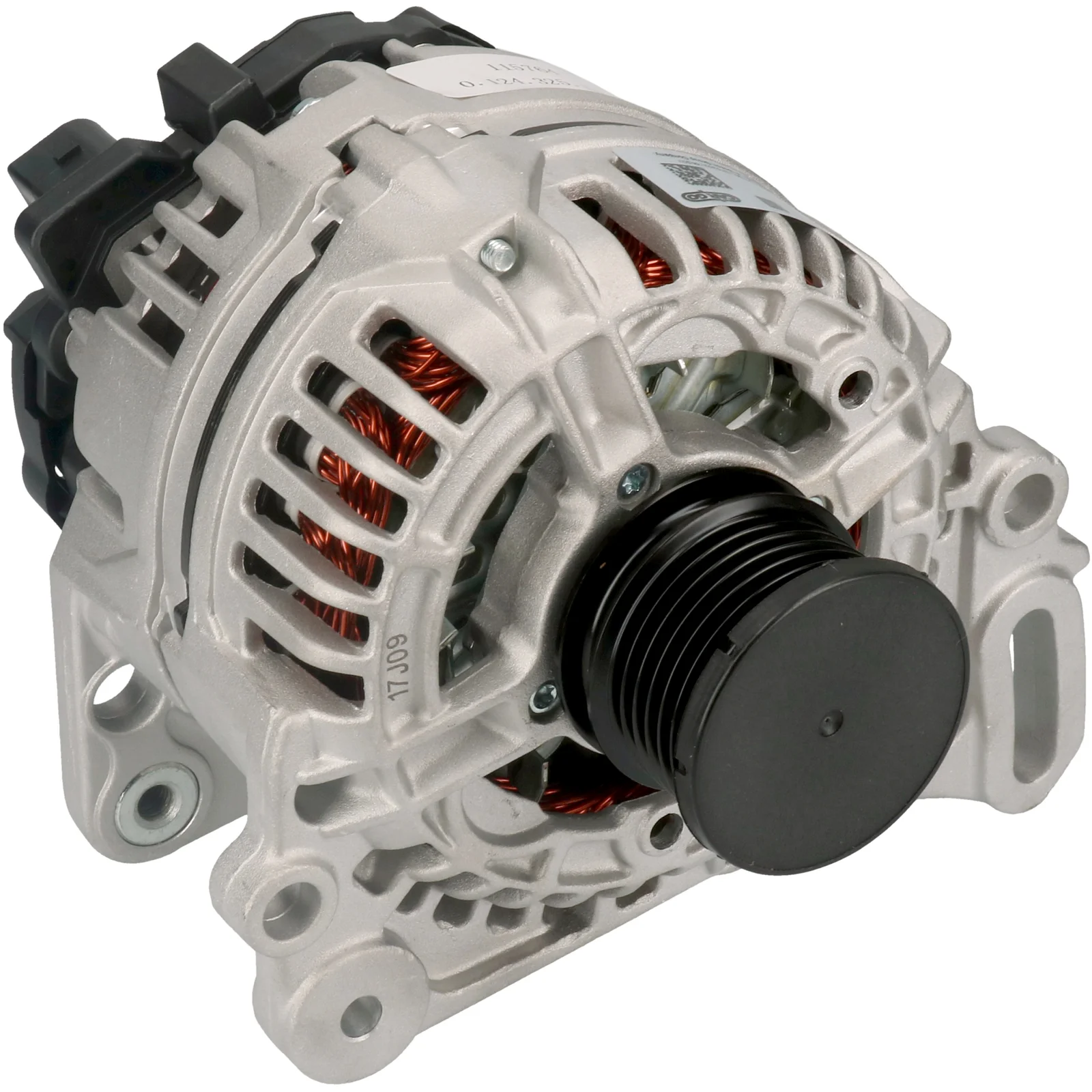

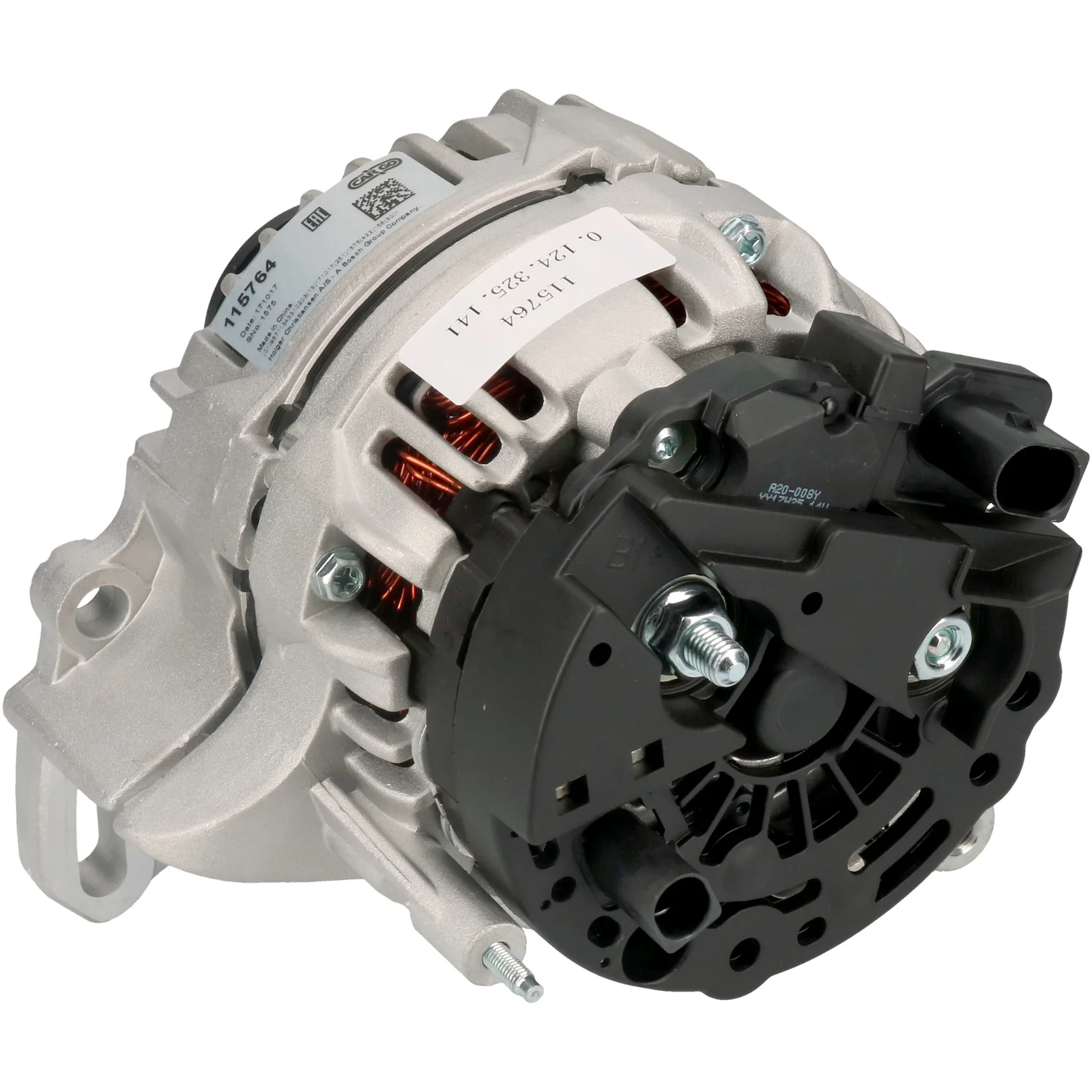

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 90, Rotation: CW, Monteringsbeslag afstand: 62,00

Beskrivelse

Spænding: 14
Amp: 90
Remskive dist.: 40,00
Bredde/bøjlearm: 14,00
Monteringsbeslag dist.: 62,00
Beslagshul: 8,20
Bælte. justeringsbeslags hulpos.: 13
Bælte. justeringsbeslags hul 1: 10,00x39,00
Remskive dia.: 50,00
Riller/remskive: 6
Radius: 90,00
B+: M8
Position/B+ i min.: 1
D+ Størrelse: Stik
Rotation: CW
Stik nr.: PL61
W stik-typ: Stik
Total længde mm: 194,00
Terminaltype: L-DFM
Remskive: SP/FW
Regulator type: IR
Prod. info: BN

Filer

Specifikation

B+ M8
Mount. bracket dist. 62.00
Belt. adj. bracket hole 1 10.00x39.00
Belt. adj. brackethole pos. 13
Plug no. PL61
Bracket hole 8.20
Position/B+ in min. 1
Prod. info BN
Pulley SP/FW
Pulley dia. 50.00
Pulley dist. 40.00
Radius 90.00
D+ Size Plug
Regulator type IR
Rotation CW
Grooves/pulley 6
Terminal type L-DFM
Voltage 14
W plug type Plug
Total length 194.00 mm
Width/holder arm 14.00
Amp 90

  • OEM
    F032115764, 2064ir, 045903023c, 045903023CX, 045903023d, 045903023DX, 0124315037, 0124325047, 0124325141, 0124515067

  • Konkurrentreferens
    A0500, A0507, A0719S, DRA0941, LRA03451, LRA03674, 8EL011713-151, 28-6559, 28-6814, 211.380.902, 305.553.070, 305.921.090, 209379, 209379A, 440883, 440887, 443051, 443256, 443261, 12090625, 12091036, 32443256, 0986084320, 0986086660

  • NormaliseratArtNr
    a0500, a0507, a0719s, dra0941, f032115764, lra03451, lra03674, 8el011713151, 2064ir, 209379, 209379a, 286559, 286814, 440883, 440887, 443051, 443256, 443261, 12090625, 12091036, 32443256, 045903023c, 045903023cx, 045903023d, 045903023dx, 0124315037, 0124325047, 0124325141, 0124515067, 211380902, 305553070, 305921090, 0986084320, 0986086660

  • Passar modeller
    Seat Model: Cordoba Model series: Cordoba Type of engine: TDi Size of motor: 1.4 Brand of engine: BNM Type description: 6L2 From date: 01-05-2005 To date: 01-11-2009 Fuel: Diesel Approved: Yes
    Seat Model: Cordoba Model series: Cordoba Type of engine: TDi Size of motor: 1.4 Brand of engine: BNV Type description: 6L2 From date: 01-06-2005 To date: 01-11-2009 Fuel: Diesel Approved: Yes
    Seat Model: Ibiza Model series: Ibiza Sportscoupe Type of engine: TDi Size of motor: 1.9 Brand of engine: BLS Type description: 6J1 Body: Coupe From date: 01-07-2008 To date: 01-06-2010 Fuel: Diesel Approved: Yes
    Seat Model: Ibiza Model series: Ibiza Type of engine: TDi Size of motor: 1.4 Brand of engine: BMS Type description: 6J1 Body: Coupe From date: 01-07-2008 To date: 01-06-2010 Fuel: Diesel Approved: Yes
    Seat Model: Ibiza Model series: Ibiza Type of engine: TDi Size of motor: 1.4 Brand of engine: BMS Type description: 6J5 Body: Hatchback From date: 01-07-2008 To date: 01-06-2010 Fuel: Diesel Approved: Yes
    Seat Model: Ibiza Model series: Ibiza Type of engine: TDi Size of motor: 1.4 Brand of engine: BMS Type description: 6L1 Body: Hatchback From date: 01-06-2005 To date: 01-11-2009 Fuel: Diesel Approved: Yes
    Seat Model: Ibiza Model series: Ibiza Type of engine: TDi Size of motor: 1.4 Brand of engine: BNM Type description: 6L1 Body: Hatchback From date: 01-05-2005 To date: 01-11-2009 Fuel: Diesel Approved: Yes
    Seat Model: Ibiza Model series: Ibiza Type of engine: TDi Size of motor: 1.9 Brand of engine: BLS Type description: 6J5 Body: Hatchback From date: 01-03-2008 To date: 01-06-2010 Fuel: Diesel Approved: Yes
    Seat Model: Ibiza Model series: Ibiza Type of engine: TDi Size of motor: 1.9 Brand of engine: BXJ Type description: 6J1 Body: Coupe From date: 01-06-2008 To date: 01-06-2010 Fuel: Diesel Approved: Yes
    Seat Model: Ibiza Model series: Ibiza Type of engine: TDi Size of motor: 1.9 Brand of engine: BXJ Type description: 6J5 Body: Hatchback From date: 01-07-2008 To date: 01-06-2010 Fuel: Diesel Approved: Yes
    Skoda Model: Fabia Model series: Fabia Model type: Praktik Type of engine: TDi Size of motor: 1.4 Brand of engine: BNM Body: Van From date: 01-10-2005 To date: 01-12-2007 Fuel: Diesel Approved: Yes Manufacture type: PRAKTIK
    Skoda Model: Fabia Model series: Fabia Type of engine: TDi Size of motor: 1.4 Brand of engine: BMS Body: Estate From date: 01-10-2007 To date: 01-03-2010 Fuel: Diesel Approved: Yes
    Skoda Model: Fabia Model series: Fabia Type of engine: TDi Size of motor: 1.4 Brand of engine: BMS Body: Van From date: 01-03-2007 To date: 01-03-2010 Fuel: Diesel Approved: Yes
    Skoda Model: Fabia Model series: Fabia Type of engine: TDi Size of motor: 1.4 Brand of engine: BMS Type description: 5J7 Body: Hatchback From date: 01-01-2007 To date: 01-03-2010 Fuel: Diesel Approved: Yes
    Skoda Model: Fabia Model series: Fabia Type of engine: TDi Size of motor: 1.4 Brand of engine: BNM Body: Estate From date: 01-10-2007 To date: 01-03-2010 Fuel: Diesel Approved: Yes
    Skoda Model: Fabia Model series: Fabia Type of engine: TDi Size of motor: 1.4 Brand of engine: BNM Body: Van From date: 01-03-2007 To date: 01-03-2010 Fuel: Diesel Approved: Yes
    Skoda Model: Fabia Model series: Fabia Type of engine: TDi Size of motor: 1.4 Brand of engine: BNM Type description: 5J7 Body: Hatchback From date: 01-02-2007 To date: 01-03-2010 Fuel: Diesel Approved: Yes
    Skoda Model: Fabia Model series: Fabia Type of engine: TDi Size of motor: 1.4 Brand of engine: BNM Type description: 6Y2 Body: Hatchback From date: 01-10-2005 To date: 01-03-2008 Fuel: Diesel Approved: Yes
    Skoda Model: Fabia Model series: Fabia Type of engine: TDi Size of motor: 1.4 Brand of engine: BNM Type description: 6Y3 From date: 01-10-2005 To date: 01-12-2007 Fuel: Diesel Approved: Yes
    Skoda Model: Fabia Model series: Fabia Type of engine: TDi Size of motor: 1.4 Brand of engine: BNM Type description: 6Y5 Body: Estate From date: 01-10-2005 To date: 01-12-2007 Fuel: Diesel Approved: Yes
    Skoda Model: Fabia Model series: Fabia Type of engine: TDi Size of motor: 1.4 Brand of engine: BNV Body: Estate From date: 01-10-2007 To date: 01-03-2010 Fuel: Diesel Approved: Yes
    Skoda Model: Fabia Model series: Fabia Type of engine: TDi Size of motor: 1.4 Brand of engine: BNV Body: Van From date: 01-03-2007 To date: 01-03-2010 Fuel: Diesel Approved: Yes
    Skoda Model: Fabia Model series: Fabia Type of engine: TDi Size of motor: 1.4 Brand of engine: BNV Type description: 5J7 Body: Hatchback From date: 01-01-2007 To date: 01-03-2010 Fuel: Diesel Approved: Yes
    Skoda Model: Fabia Model series: Fabia Type of engine: TDi Size of motor: 1.4 Brand of engine: BNV Type description: 6Y2 Body: Hatchback From date: 01-10-2005 To date: 01-03-2008 Fuel: Diesel Approved: Yes
    Skoda Model: Fabia Model series: Fabia Type of engine: TDi Size of motor: 1.4 Brand of engine: BNV Type description: 6Y3 From date: 01-10-2005 To date: 01-12-2007 Fuel: Diesel Approved: Yes
    Skoda Model: Fabia Model series: Fabia Type of engine: TDi Size of motor: 1.4 Brand of engine: BNV Type description: 6Y5 Body: Estate From date: 01-10-2005 To date: 01-12-2007 Fuel: Diesel Approved: Yes
    Skoda Model: Roomster Model series: Roomster Type of engine: TDi Size of motor: 1.4 Brand of engine: BMS Body: MPV From date: 01-09-2006 To date: 01-03-2010 Fuel: Diesel Approved: Yes
    Skoda Model: Roomster Model series: Roomster Type of engine: TDi Size of motor: 1.4 Brand of engine: BNM Body: MPV From date: 01-07-2006 To date: 01-03-2010 Fuel: Diesel Approved: Yes
    Skoda Model: Roomster Model series: Roomster Type of engine: TDi Size of motor: 1.4 Brand of engine: BNV Body: MPV From date: 01-09-2006 To date: 01-03-2010 Fuel: Diesel Approved: Yes
    Skoda Model: Roomster Model series: Roomster Type of engine: TDi Size of motor: 1.9 Brand of engine: BLS Body: MPV From date: 01-09-2006 To date: 01-03-2010 Fuel: Diesel Approved: Yes
    Skoda Model: Roomster Model series: Roomster Type of engine: TDi Size of motor: 1.9 Brand of engine: BSW Body: MPV From date: 01-09-2006 To date: 01-03-2010 Fuel: Diesel Approved: Yes
    VW Model: Fox Model series: Fox Type of engine: TDi Size of motor: 1.4 Brand of engine: BNM Type description: 5Z1 Body: Hatchback From date: 01-04-2005 To date: 01-12-2009 Fuel: Diesel Approved: Yes
    VW Model: Polo Model series: Polo Saloon Size of motor: 1.6 Brand of engine: BCD Type description: 9N4 Body: Saloon From date: 01-09-2004 To date: 01-12-2006 Fuel: Petrol Approved: Yes
    VW Model: Polo Model series: Polo Type of engine: TDi Size of motor: 1.4 Brand of engine: BMS Type description: 9N_ Body: Hatchback From date: 01-04-2005 To date: 01-11-2009 Fuel: Diesel Approved: Yes
    VW Model: Polo Model series: Polo Type of engine: TDi Size of motor: 1.4 Brand of engine: BNM Type description: 9N_ Body: Hatchback From date: 01-04-2005 To date: 01-11-2009 Fuel: Diesel Approved: Yes
    VW Model: Polo Model series: Polo Type of engine: TDi Size of motor: 1.4 Brand of engine: BNV Type description: 9N_ Body: Hatchback From date: 01-04-2005 To date: 01-11-2009 Fuel: Diesel Approved: Yes
    VW Model: Polo Model series: Polo Type of engine: TDi Size of motor: 1.4 Brand of engine: BWB Type description: 9N_ Body: Hatchback From date: 01-04-2005 To date: 01-11-2009 Fuel: Diesel Approved: Yes
    VW Model: Polo Model series: Polo Type of engine: TDi Size of motor: 1.9 Brand of engine: BMT Type description: 6N_ Body: Hatchback From date: 01-10-2001 To date: 01-11-2009 Fuel: Diesel Approved: Yes
    1 / 8
  • Beskrivelse
    Spænding: 14
    Amp: 90
    Remskive dist.: 40,00
    Bredde/bøjlearm: 14,00
    Monteringsbeslag dist.: 62,00
    Beslagshul: 8,20
    Bælte. justeringsbeslags hulpos.: 13
    Bælte. justeringsbeslags hul 1: 10,00x39,00
    Remskive dia.: 50,00
    Riller/remskive: 6
    Radius: 90,00
    B+: M8
    Position/B+ i min.: 1
    D+ Størrelse: Stik
    Rotation: CW
    Stik nr.: PL61
    W stik-typ: Stik
    Total længde mm: 194,00
    Terminaltype: L-DFM
    Remskive: SP/FW
    Regulator type: IR
    Prod. info: BN

    Filer

  • Specifikation
    B+ M8
    Mount. bracket dist. 62.00
    Belt. adj. bracket hole 1 10.00x39.00
    Belt. adj. brackethole pos. 13
    Plug no. PL61
    Bracket hole 8.20
    Position/B+ in min. 1
    Prod. info BN
    Pulley SP/FW
    Pulley dia. 50.00
    Pulley dist. 40.00
    Radius 90.00
    D+ Size Plug
    Regulator type IR
    Rotation CW
    Grooves/pulley 6
    Terminal type L-DFM
    Voltage 14
    W plug type Plug
    Total length 194.00 mm
    Width/holder arm 14.00
    Amp 90
  • Køretøjsmatchning

    • OEM
      F032115764, 2064ir, 045903023c, 045903023CX, 045903023d, 045903023DX, 0124315037, 0124325047, 0124325141, 0124515067

    • Konkurrentreferens
      A0500, A0507, A0719S, DRA0941, LRA03451, LRA03674, 8EL011713-151, 28-6559, 28-6814, 211.380.902, 305.553.070, 305.921.090, 209379, 209379A, 440883, 440887, 443051, 443256, 443261, 12090625, 12091036, 32443256, 0986084320, 0986086660

    • NormaliseratArtNr
      a0500, a0507, a0719s, dra0941, f032115764, lra03451, lra03674, 8el011713151, 2064ir, 209379, 209379a, 286559, 286814, 440883, 440887, 443051, 443256, 443261, 12090625, 12091036, 32443256, 045903023c, 045903023cx, 045903023d, 045903023dx, 0124315037, 0124325047, 0124325141, 0124515067, 211380902, 305553070, 305921090, 0986084320, 0986086660

    • Passar modeller
      Seat Model: Cordoba Model series: Cordoba Type of engine: TDi Size of motor: 1.4 Brand of engine: BNM Type description: 6L2 From date: 01-05-2005 To date: 01-11-2009 Fuel: Diesel Approved: Yes
      Seat Model: Cordoba Model series: Cordoba Type of engine: TDi Size of motor: 1.4 Brand of engine: BNV Type description: 6L2 From date: 01-06-2005 To date: 01-11-2009 Fuel: Diesel Approved: Yes
      Seat Model: Ibiza Model series: Ibiza Sportscoupe Type of engine: TDi Size of motor: 1.9 Brand of engine: BLS Type description: 6J1 Body: Coupe From date: 01-07-2008 To date: 01-06-2010 Fuel: Diesel Approved: Yes
      Seat Model: Ibiza Model series: Ibiza Type of engine: TDi Size of motor: 1.4 Brand of engine: BMS Type description: 6J1 Body: Coupe From date: 01-07-2008 To date: 01-06-2010 Fuel: Diesel Approved: Yes
      Seat Model: Ibiza Model series: Ibiza Type of engine: TDi Size of motor: 1.4 Brand of engine: BMS Type description: 6J5 Body: Hatchback From date: 01-07-2008 To date: 01-06-2010 Fuel: Diesel Approved: Yes
      Seat Model: Ibiza Model series: Ibiza Type of engine: TDi Size of motor: 1.4 Brand of engine: BMS Type description: 6L1 Body: Hatchback From date: 01-06-2005 To date: 01-11-2009 Fuel: Diesel Approved: Yes
      Seat Model: Ibiza Model series: Ibiza Type of engine: TDi Size of motor: 1.4 Brand of engine: BNM Type description: 6L1 Body: Hatchback From date: 01-05-2005 To date: 01-11-2009 Fuel: Diesel Approved: Yes
      Seat Model: Ibiza Model series: Ibiza Type of engine: TDi Size of motor: 1.9 Brand of engine: BLS Type description: 6J5 Body: Hatchback From date: 01-03-2008 To date: 01-06-2010 Fuel: Diesel Approved: Yes
      Seat Model: Ibiza Model series: Ibiza Type of engine: TDi Size of motor: 1.9 Brand of engine: BXJ Type description: 6J1 Body: Coupe From date: 01-06-2008 To date: 01-06-2010 Fuel: Diesel Approved: Yes
      Seat Model: Ibiza Model series: Ibiza Type of engine: TDi Size of motor: 1.9 Brand of engine: BXJ Type description: 6J5 Body: Hatchback From date: 01-07-2008 To date: 01-06-2010 Fuel: Diesel Approved: Yes
      Skoda Model: Fabia Model series: Fabia Model type: Praktik Type of engine: TDi Size of motor: 1.4 Brand of engine: BNM Body: Van From date: 01-10-2005 To date: 01-12-2007 Fuel: Diesel Approved: Yes Manufacture type: PRAKTIK
      Skoda Model: Fabia Model series: Fabia Type of engine: TDi Size of motor: 1.4 Brand of engine: BMS Body: Estate From date: 01-10-2007 To date: 01-03-2010 Fuel: Diesel Approved: Yes
      Skoda Model: Fabia Model series: Fabia Type of engine: TDi Size of motor: 1.4 Brand of engine: BMS Body: Van From date: 01-03-2007 To date: 01-03-2010 Fuel: Diesel Approved: Yes
      Skoda Model: Fabia Model series: Fabia Type of engine: TDi Size of motor: 1.4 Brand of engine: BMS Type description: 5J7 Body: Hatchback From date: 01-01-2007 To date: 01-03-2010 Fuel: Diesel Approved: Yes
      Skoda Model: Fabia Model series: Fabia Type of engine: TDi Size of motor: 1.4 Brand of engine: BNM Body: Estate From date: 01-10-2007 To date: 01-03-2010 Fuel: Diesel Approved: Yes
      Skoda Model: Fabia Model series: Fabia Type of engine: TDi Size of motor: 1.4 Brand of engine: BNM Body: Van From date: 01-03-2007 To date: 01-03-2010 Fuel: Diesel Approved: Yes
      Skoda Model: Fabia Model series: Fabia Type of engine: TDi Size of motor: 1.4 Brand of engine: BNM Type description: 5J7 Body: Hatchback From date: 01-02-2007 To date: 01-03-2010 Fuel: Diesel Approved: Yes
      Skoda Model: Fabia Model series: Fabia Type of engine: TDi Size of motor: 1.4 Brand of engine: BNM Type description: 6Y2 Body: Hatchback From date: 01-10-2005 To date: 01-03-2008 Fuel: Diesel Approved: Yes
      Skoda Model: Fabia Model series: Fabia Type of engine: TDi Size of motor: 1.4 Brand of engine: BNM Type description: 6Y3 From date: 01-10-2005 To date: 01-12-2007 Fuel: Diesel Approved: Yes
      Skoda Model: Fabia Model series: Fabia Type of engine: TDi Size of motor: 1.4 Brand of engine: BNM Type description: 6Y5 Body: Estate From date: 01-10-2005 To date: 01-12-2007 Fuel: Diesel Approved: Yes
      Skoda Model: Fabia Model series: Fabia Type of engine: TDi Size of motor: 1.4 Brand of engine: BNV Body: Estate From date: 01-10-2007 To date: 01-03-2010 Fuel: Diesel Approved: Yes
      Skoda Model: Fabia Model series: Fabia Type of engine: TDi Size of motor: 1.4 Brand of engine: BNV Body: Van From date: 01-03-2007 To date: 01-03-2010 Fuel: Diesel Approved: Yes
      Skoda Model: Fabia Model series: Fabia Type of engine: TDi Size of motor: 1.4 Brand of engine: BNV Type description: 5J7 Body: Hatchback From date: 01-01-2007 To date: 01-03-2010 Fuel: Diesel Approved: Yes
      Skoda Model: Fabia Model series: Fabia Type of engine: TDi Size of motor: 1.4 Brand of engine: BNV Type description: 6Y2 Body: Hatchback From date: 01-10-2005 To date: 01-03-2008 Fuel: Diesel Approved: Yes
      Skoda Model: Fabia Model series: Fabia Type of engine: TDi Size of motor: 1.4 Brand of engine: BNV Type description: 6Y3 From date: 01-10-2005 To date: 01-12-2007 Fuel: Diesel Approved: Yes
      Skoda Model: Fabia Model series: Fabia Type of engine: TDi Size of motor: 1.4 Brand of engine: BNV Type description: 6Y5 Body: Estate From date: 01-10-2005 To date: 01-12-2007 Fuel: Diesel Approved: Yes
      Skoda Model: Roomster Model series: Roomster Type of engine: TDi Size of motor: 1.4 Brand of engine: BMS Body: MPV From date: 01-09-2006 To date: 01-03-2010 Fuel: Diesel Approved: Yes
      Skoda Model: Roomster Model series: Roomster Type of engine: TDi Size of motor: 1.4 Brand of engine: BNM Body: MPV From date: 01-07-2006 To date: 01-03-2010 Fuel: Diesel Approved: Yes
      Skoda Model: Roomster Model series: Roomster Type of engine: TDi Size of motor: 1.4 Brand of engine: BNV Body: MPV From date: 01-09-2006 To date: 01-03-2010 Fuel: Diesel Approved: Yes
      Skoda Model: Roomster Model series: Roomster Type of engine: TDi Size of motor: 1.9 Brand of engine: BLS Body: MPV From date: 01-09-2006 To date: 01-03-2010 Fuel: Diesel Approved: Yes
      Skoda Model: Roomster Model series: Roomster Type of engine: TDi Size of motor: 1.9 Brand of engine: BSW Body: MPV From date: 01-09-2006 To date: 01-03-2010 Fuel: Diesel Approved: Yes
      VW Model: Fox Model series: Fox Type of engine: TDi Size of motor: 1.4 Brand of engine: BNM Type description: 5Z1 Body: Hatchback From date: 01-04-2005 To date: 01-12-2009 Fuel: Diesel Approved: Yes
      VW Model: Polo Model series: Polo Saloon Size of motor: 1.6 Brand of engine: BCD Type description: 9N4 Body: Saloon From date: 01-09-2004 To date: 01-12-2006 Fuel: Petrol Approved: Yes
      VW Model: Polo Model series: Polo Type of engine: TDi Size of motor: 1.4 Brand of engine: BMS Type description: 9N_ Body: Hatchback From date: 01-04-2005 To date: 01-11-2009 Fuel: Diesel Approved: Yes
      VW Model: Polo Model series: Polo Type of engine: TDi Size of motor: 1.4 Brand of engine: BNM Type description: 9N_ Body: Hatchback From date: 01-04-2005 To date: 01-11-2009 Fuel: Diesel Approved: Yes
      VW Model: Polo Model series: Polo Type of engine: TDi Size of motor: 1.4 Brand of engine: BNV Type description: 9N_ Body: Hatchback From date: 01-04-2005 To date: 01-11-2009 Fuel: Diesel Approved: Yes
      VW Model: Polo Model series: Polo Type of engine: TDi Size of motor: 1.4 Brand of engine: BWB Type description: 9N_ Body: Hatchback From date: 01-04-2005 To date: 01-11-2009 Fuel: Diesel Approved: Yes
      VW Model: Polo Model series: Polo Type of engine: TDi Size of motor: 1.9 Brand of engine: BMT Type description: 6N_ Body: Hatchback From date: 01-10-2001 To date: 01-11-2009 Fuel: Diesel Approved: Yes
      1 / 8
