Vare nr.: F032115785

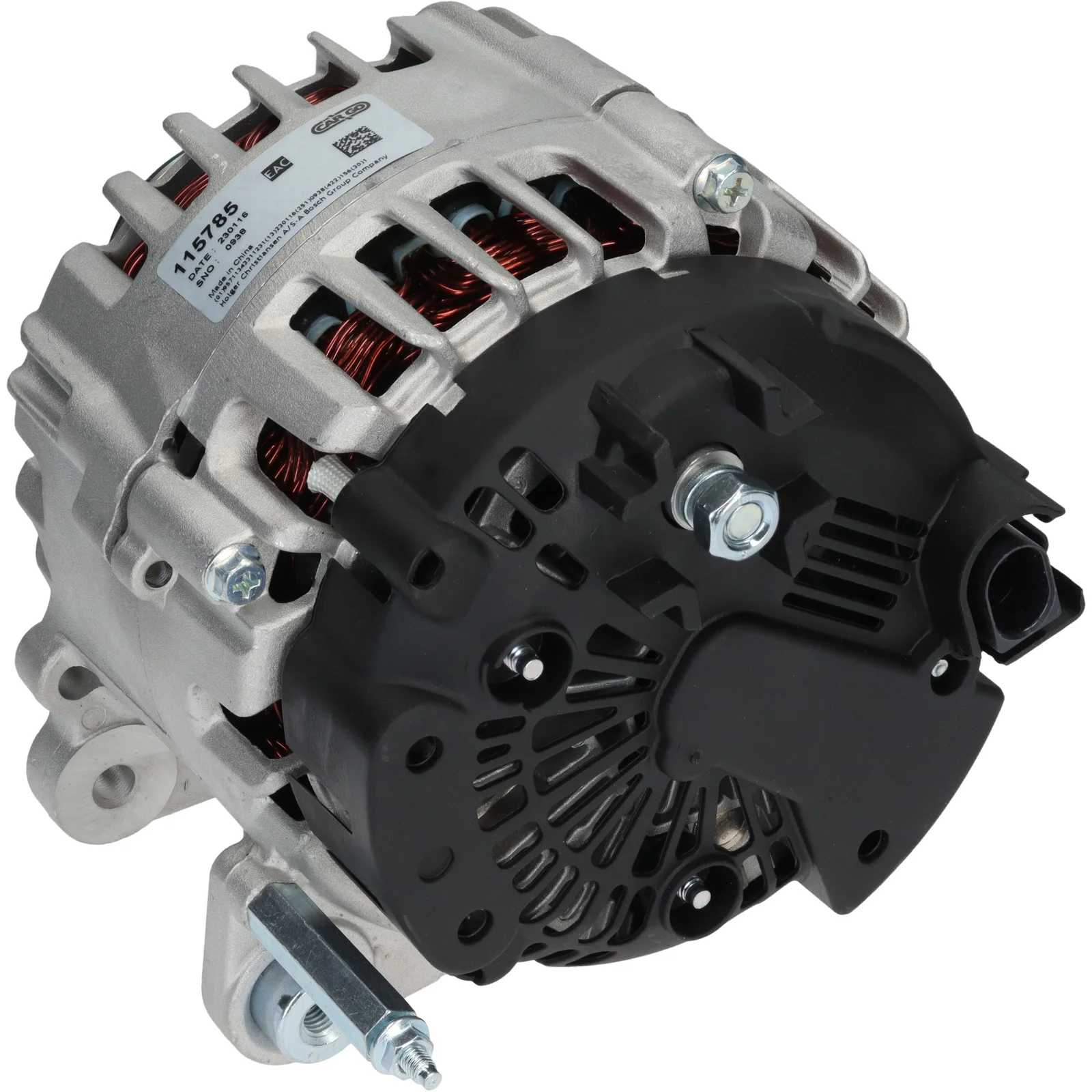

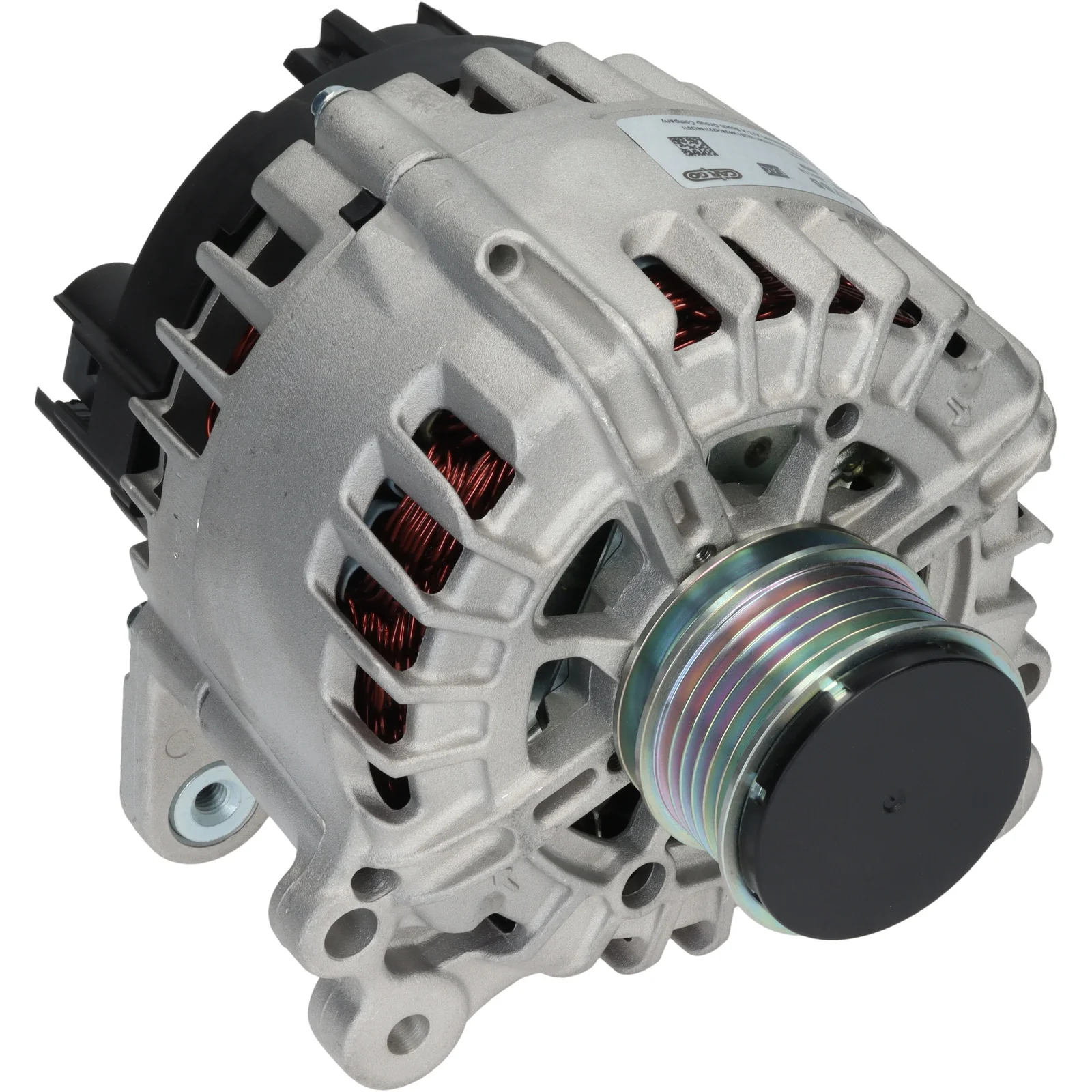

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 140, Rotation: CW, Monteringsbeslag dist.: 61.00

Beskrivelse

Spænding: 14
Amp: 140
Hjuldist.: 39,50
Bredde/bøjlestang: 14,00
Montagebeslaget dist.: 61,00
Bøjlehull: 8,50
Bæltejustering min. pos.: 45
Bæltejustering hul 1: 8,50
Hjul diam.: 56,00
Riller/hjul: 6
Radius: 90,00
Radius 2: 90,00
B+: M8
Position/B+ i min.: 53
Rotation: med uret
Stik no.: PL166
Samlet længde mm: 196,00
Terminaltype: COM
ID-kode: 25
Kommunikation: LIN
Hjul: SP/FW
Regulator type: IR
Bemærkninger: Denne Generator har en COM terminal på regulatoren. Det anbefales at bruge OEM-nummeret til at kontrollere egnethed, inden der bestilles.

Specifikation

B+ M8
Communication LIN
Mount. bracket dist. 61.00
Belt. adj. bracket hole 1 8.50
Belt. adj. brackethole pos. 45
Plug no. PL166
Bracket hole 8.50
Position/B+ in min. 53
Pulley SP/FW
Pulley dia. 56.00
Pulley dist. 39.50
Radius 90.00
Radius 2 90.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Grooves/pulley 6
ID Code 25
Terminal type COM
Voltage 14
Total length 196.00 mm
Width/holder arm 14.00
Amp 140
  • OEM

    F032115785, TG14C035, 03P903023A, 03p903023b, 2139ir, 2609874, 2609874A
  • Konkurrentreferens

    A3286, A3286PR, CAL15459, DRA0809, LRA03319, 8EL015630-061, 28-5931, 211.372.1402, 305.590.140, 20350, 20350N, 20350N-OS, 210732, 210732A, 440311, 553484RI, 12090610, 32082840, 0986082840
  • NormaliseratArtNr

    a3286, a3286pr, cal15459, dra0809, f032115785, lra03319, tg14c035, 03p903023a, 03p903023b, 8el015630061, 2139ir, 20350, 20350n, 20350nos, 210732, 210732a, 285931, 440311, 553484ri, 2609874, 2609874a, 12090610, 32082840, 305590140, 0986082840, 2113721402
  • Passar modeller

    Seat Model: Ibiza Model series: Ibiza Type of engine: TDI Size of motor: 1.2 Brand of engine: CFWA Type description: 6J1 Body: Box Body / Hatchback From date: 01-05-2010 To date: 01-05-2015 Fuel: Diesel Approved: Yes
    VW Model: Polo Model series: Polo Cityvan Model type: BlueMotion Type of engine: TDi Size of motor: 1.2 Brand of engine: CFWA Type description: 6R Body: Box Body / Hatchback From date: 01-10-2009 To date: 01-05-2014 Fuel: Diesel Approved: Yes
  • Beskrivelse
    Spænding: 14
    Amp: 140
    Hjuldist.: 39,50
    Bredde/bøjlestang: 14,00
    Montagebeslaget dist.: 61,00
    Bøjlehull: 8,50
    Bæltejustering min. pos.: 45
    Bæltejustering hul 1: 8,50
    Hjul diam.: 56,00
    Riller/hjul: 6
    Radius: 90,00
    Radius 2: 90,00
    B+: M8
    Position/B+ i min.: 53
    Rotation: med uret
    Stik no.: PL166
    Samlet længde mm: 196,00
    Terminaltype: COM
    ID-kode: 25
    Kommunikation: LIN
    Hjul: SP/FW
    Regulator type: IR
    Bemærkninger: Denne Generator har en COM terminal på regulatoren. Det anbefales at bruge OEM-nummeret til at kontrollere egnethed, inden der bestilles.
  • Specifikation
    B+ M8
    Communication LIN
    Mount. bracket dist. 61.00
    Belt. adj. bracket hole 1 8.50
    Belt. adj. brackethole pos. 45
    Plug no. PL166
    Bracket hole 8.50
    Position/B+ in min. 53
    Pulley SP/FW
    Pulley dia. 56.00
    Pulley dist. 39.50
    Radius 90.00
    Radius 2 90.00
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Grooves/pulley 6
    ID Code 25
    Terminal type COM
    Voltage 14
    Total length 196.00 mm
    Width/holder arm 14.00
    Amp 140
  • Køretøjsmatchning
    • OEM

      F032115785, TG14C035, 03P903023A, 03p903023b, 2139ir, 2609874, 2609874A
    • Konkurrentreferens

      A3286, A3286PR, CAL15459, DRA0809, LRA03319, 8EL015630-061, 28-5931, 211.372.1402, 305.590.140, 20350, 20350N, 20350N-OS, 210732, 210732A, 440311, 553484RI, 12090610, 32082840, 0986082840
    • NormaliseratArtNr

      a3286, a3286pr, cal15459, dra0809, f032115785, lra03319, tg14c035, 03p903023a, 03p903023b, 8el015630061, 2139ir, 20350, 20350n, 20350nos, 210732, 210732a, 285931, 440311, 553484ri, 2609874, 2609874a, 12090610, 32082840, 305590140, 0986082840, 2113721402
    • Passar modeller

      Seat Model: Ibiza Model series: Ibiza Type of engine: TDI Size of motor: 1.2 Brand of engine: CFWA Type description: 6J1 Body: Box Body / Hatchback From date: 01-05-2010 To date: 01-05-2015 Fuel: Diesel Approved: Yes
      VW Model: Polo Model series: Polo Cityvan Model type: BlueMotion Type of engine: TDi Size of motor: 1.2 Brand of engine: CFWA Type description: 6R Body: Box Body / Hatchback From date: 01-10-2009 To date: 01-05-2014 Fuel: Diesel Approved: Yes
