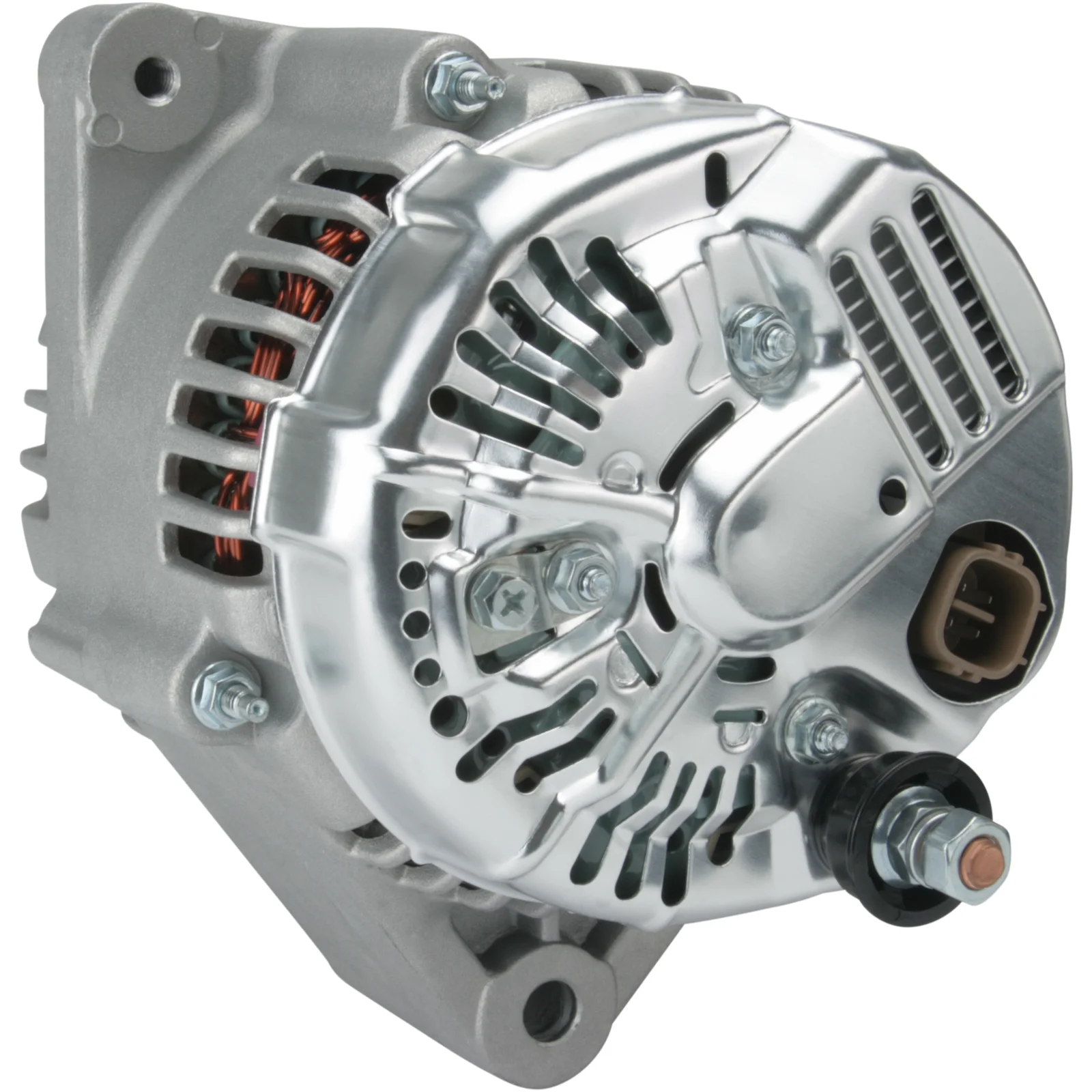

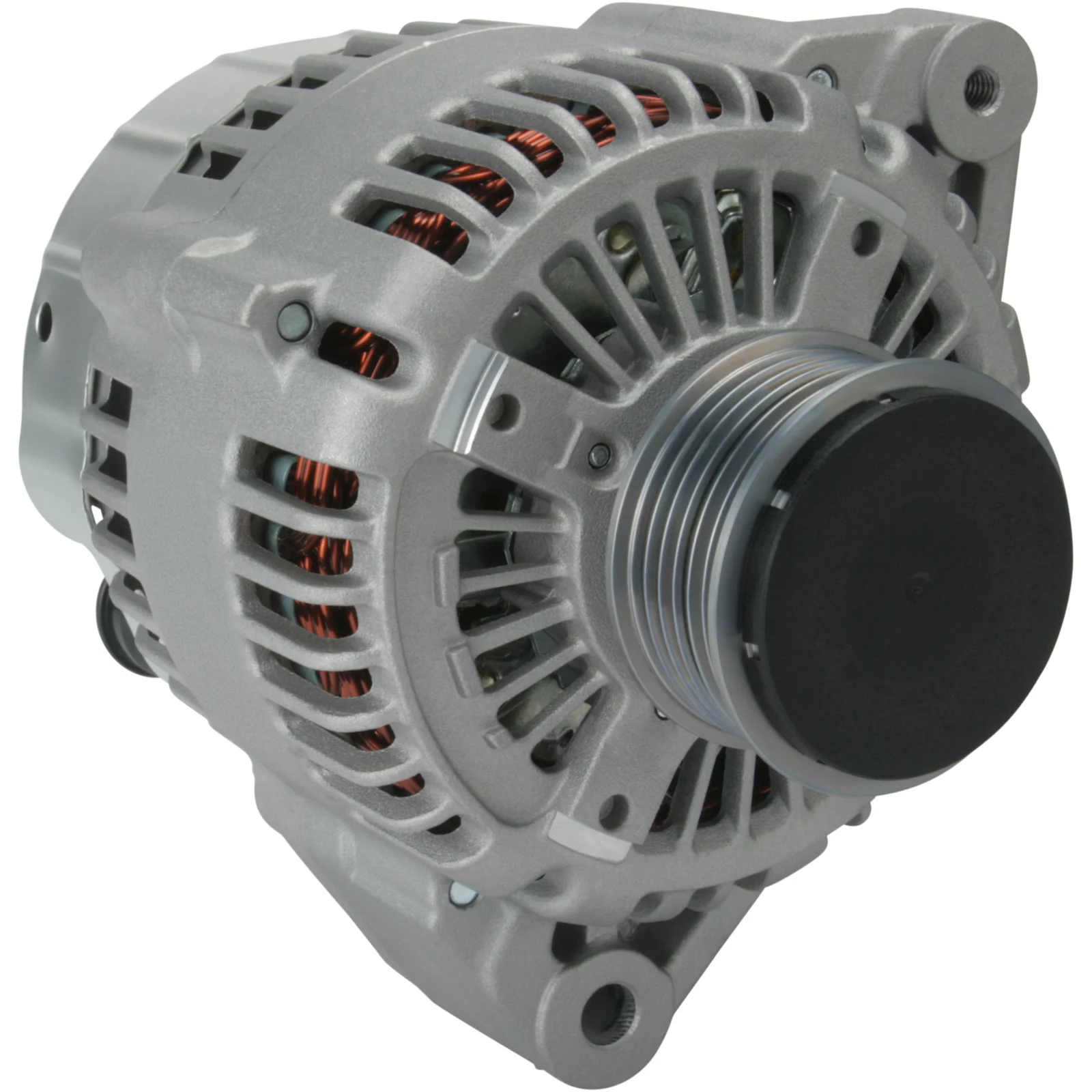

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032115787

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 120, Rotation: CW, Remskive dia.: 58,00

Beskrivelse

Spænding: 14
Amp: 120
Remskive dist.: 97.00
Bredde/hængerarm: 58.00
Støttebeslaghul: 10.50
Bælte. just. støttebeslagpos.: 7
Bælte. just. støttebeslags hul 1: M8
Remskive dia.: 58.00
Riller/remskive: 6
Radius: 86.00
Radius 2: 86.00
B+: M8
Position/B+ i min.: 25
D+ Størrelse: Stik
Rotation: CW
Stik nr.: PL60
Samlet længde mm: 202.00
Remskive: SP/FW
Regulator type: IR
Produktoplysninger: BN

Filer

Specifikation

B+ M8
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 7
Plug no. PL60
Bracket hole 10.50
Position/B+ in min. 25
Prod. info BN
Pulley SP/FW
Pulley dia. 58.00
Pulley dist. 97.00
Radius 86.00
D+ Size Plug
Radius 2 86.00
Regulator type IR
Rotation CW
Grooves/pulley 6
Voltage 14
Total length 202.00 mm
Width/holder arm 58.00
Amp 120

  • OEM
    C2S3710, F032115787, 1X4310300CB, 1X4310300CC, 102211-0870

  • Konkurrentreferens
    A6030, ALT30177, CAL40271, DAN1409, DRA0731, LRA03196, 28-5808, 214.168.1202, 845.504.120, 13926, 13926N, 13926R, 112995, 9090639, 12090542

  • NormaliseratArtNr
    a6030, alt30177, c2s3710, cal40271, dan1409, dra0731, f032115787, lra03196, 1x4310300cb, 1x4310300cc, 13926, 13926n, 13926r, 112995, 285808, 9090639, 12090542, 845504120, 1022110870, 2141681202

  • Passar modeller
    Jaguar Model: X-type Model series: X-type Type of engine: V6 Size of motor: 2.5 Brand of engine: XB Body: Estate From date: 01-02-2004 To date: 01-12-2009 Fuel: Gasoline Approved: Yes Manufacture type: estate
    Jaguar Model: X-type Model series: X-type Type of engine: V6 Size of motor: 2.5 Brand of engine: XB Type description: CF1 From date: 01-06-2001 To date: 01-11-2009 Fuel: Gasoline Approved: Yes
    Jaguar Model: X-type Model series: X-type Type of engine: V6 Size of motor: 3.0 Brand of engine: AJ-V6 Body: Estate From date: 01-02-2004 To date: 01-12-2009 Fuel: Gasoline Approved: Yes Manufacture type: estate
    Jaguar Model: X-type Model series: X-type Type of engine: V6 Size of motor: 3.0 Brand of engine: AJ-V6 From date: 01-06-2001 To date: 01-12-2008 Fuel: Gasoline Approved: Yes
  • Beskrivelse
    Spænding: 14
    Amp: 120
    Remskive dist.: 97.00
    Bredde/hængerarm: 58.00
    Støttebeslaghul: 10.50
    Bælte. just. støttebeslagpos.: 7
    Bælte. just. støttebeslags hul 1: M8
    Remskive dia.: 58.00
    Riller/remskive: 6
    Radius: 86.00
    Radius 2: 86.00
    B+: M8
    Position/B+ i min.: 25
    D+ Størrelse: Stik
    Rotation: CW
    Stik nr.: PL60
    Samlet længde mm: 202.00
    Remskive: SP/FW
    Regulator type: IR
    Produktoplysninger: BN

    Filer

  • Specifikation
    B+ M8
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 7
    Plug no. PL60
    Bracket hole 10.50
    Position/B+ in min. 25
    Prod. info BN
    Pulley SP/FW
    Pulley dia. 58.00
    Pulley dist. 97.00
    Radius 86.00
    D+ Size Plug
    Radius 2 86.00
    Regulator type IR
    Rotation CW
    Grooves/pulley 6
    Voltage 14
    Total length 202.00 mm
    Width/holder arm 58.00
    Amp 120
  • Køretøjsmatchning

    • OEM
      C2S3710, F032115787, 1X4310300CB, 1X4310300CC, 102211-0870

    • Konkurrentreferens
      A6030, ALT30177, CAL40271, DAN1409, DRA0731, LRA03196, 28-5808, 214.168.1202, 845.504.120, 13926, 13926N, 13926R, 112995, 9090639, 12090542

    • NormaliseratArtNr
      a6030, alt30177, c2s3710, cal40271, dan1409, dra0731, f032115787, lra03196, 1x4310300cb, 1x4310300cc, 13926, 13926n, 13926r, 112995, 285808, 9090639, 12090542, 845504120, 1022110870, 2141681202

    • Passar modeller
      Jaguar Model: X-type Model series: X-type Type of engine: V6 Size of motor: 2.5 Brand of engine: XB Body: Estate From date: 01-02-2004 To date: 01-12-2009 Fuel: Gasoline Approved: Yes Manufacture type: estate
      Jaguar Model: X-type Model series: X-type Type of engine: V6 Size of motor: 2.5 Brand of engine: XB Type description: CF1 From date: 01-06-2001 To date: 01-11-2009 Fuel: Gasoline Approved: Yes
      Jaguar Model: X-type Model series: X-type Type of engine: V6 Size of motor: 3.0 Brand of engine: AJ-V6 Body: Estate From date: 01-02-2004 To date: 01-12-2009 Fuel: Gasoline Approved: Yes Manufacture type: estate
      Jaguar Model: X-type Model series: X-type Type of engine: V6 Size of motor: 3.0 Brand of engine: AJ-V6 From date: 01-06-2001 To date: 01-12-2008 Fuel: Gasoline Approved: Yes
