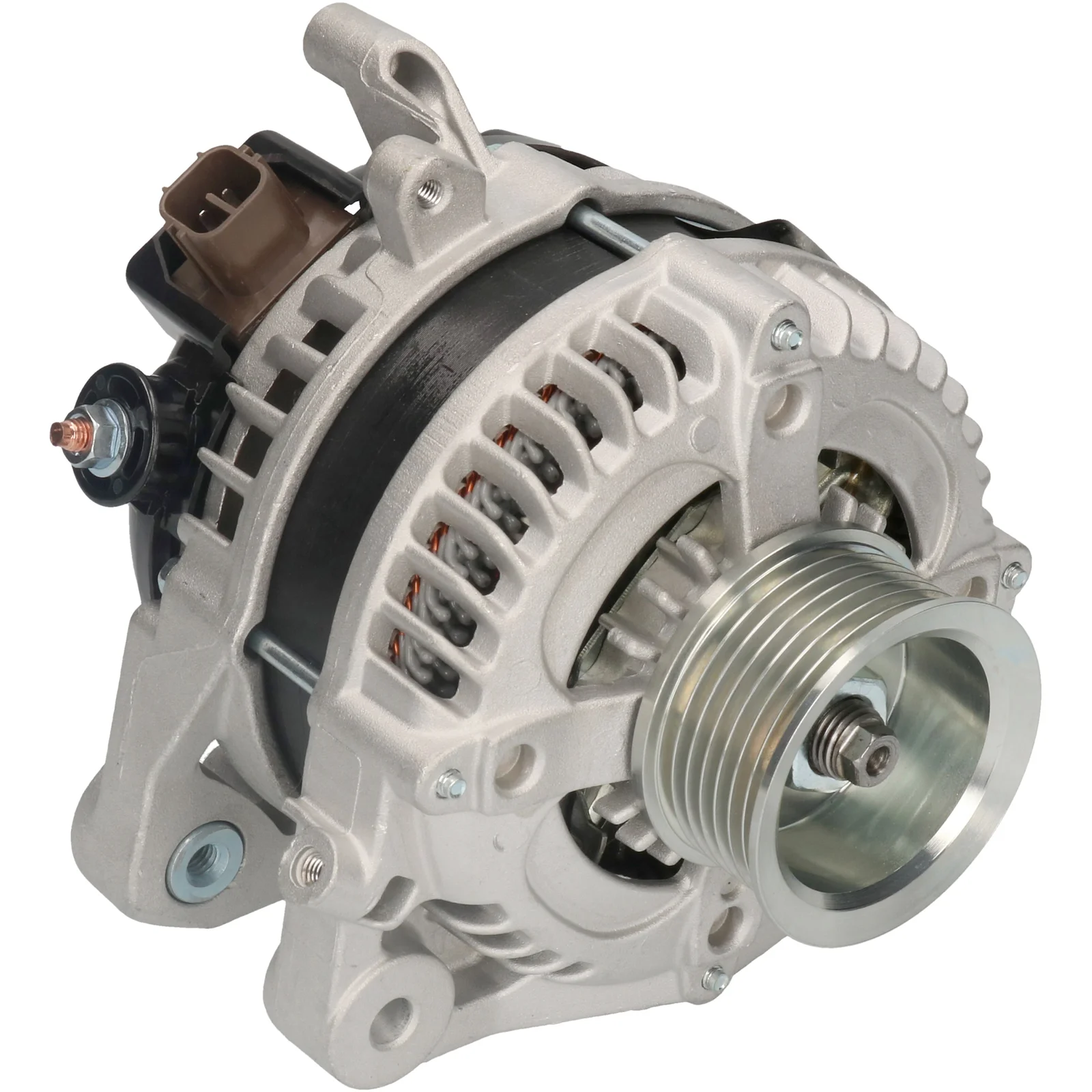

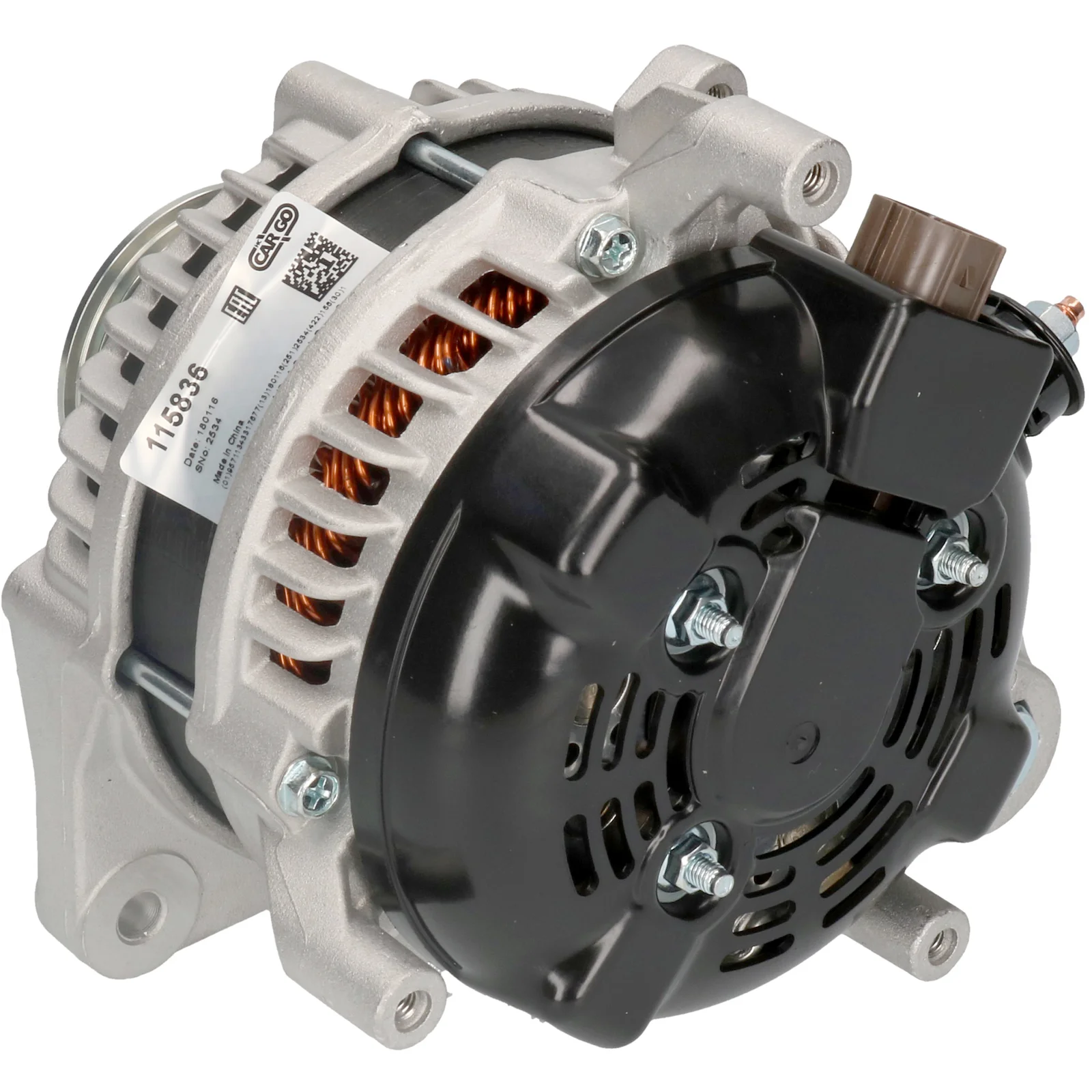

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032115836

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 105, Rotation: CW, Mount. bøjle for fordeling: 38,00

Beskrivelse

Honda CR-V Generator 12V-100A 12V - 100A, 7gr, (L, IG, FR, C) Til Yourex produktordre 90-222-4537

Voltage: 14
Amp: 105
Remskive afstand: 45,00
Bredde/beslag arm: 20,00
Monteringsbeslag afstand: 38,00
Beslagshulder: 9,00
Bæltejustering beslagshul position: 13
Bæltejustering beslagshul 1: 8,50
Remskivedi.: 60,00
Riller/remskive: 7
Radius: 85,00
Radius 2: 86,50
B+: M6
Position/B+ i min.: 20
D+ Størrelse: Stik
Rotation: CW
Stik nr.: PL60
Total længde mm: 160,00
Remskive: SP
Regulator type: IR
Produktinfo: BN

Filer

Specifikation

B+ M6
Mount. bracket dist. 38.00
Belt. adj. bracket hole 1 8.50
Belt. adj. brackethole pos. 13
Plug no. PL60
Bracket hole 9.00
Position/B+ in min. 20
Prod. info BN
Pulley SP
Pulley dia. 60.00
Pulley dist. 45.00
Radius 85.00
D+ Size Plug
Radius 2 86.50
Regulator type IR
Rotation CW
Grooves/pulley 7
Voltage 14
Total length 160.00 mm
Width/holder arm 20.00
Amp 105

  • OEM
    CSF 37, CSF37, F032115836, 1986A00580, 2078ir, 021080-1610, 31100-RZP-G01, 31100-RZPG01, 104210-5370

  • Konkurrentreferens
    A6172, A6483(DENSO), CAL40349, DAN1148, DRA0887, F042302178, LRA03491, 28-6601, 125.556.130, 222.161.1002, 20493R, 113420, 209412, 209412A, 440553, 440977, 553677RI, 9090685, 12060977, 32082410, 0986082410

  • Bilmärken
    Honda

  • NormaliseratArtNr
    a6172, a6483denso, cal40349, csf37, dan1148, dra0887, f032115836, f042302178, lra03491, 1986a00580, 2078ir, 20493r, 31100rzpg01, 113420, 209412, 209412a, 286601, 440553, 440977, 553677ri, 9090685, 12060977, 32082410, 125556130, 0210801610, 0986082410, 1042105370, 2221611002

  • Passar modeller
    Honda Model: Accord Model series: Accord Size of motor: 2.0 Brand of engine: R20A3 Body: Estate From date: 01-07-2008 Fuel: Gasoline Approved: Yes Manufacture type: kombi
    Honda Model: Accord Model series: Accord Size of motor: 2.0 Brand of engine: R20A3 From date: 01-06-2008 To date: 01-06-2015 Fuel: Gasoline Approved: Yes
    Honda Model: Accord Model series: Accordi Model type: i-VTEC (CP1) Size of motor: 2.0 Brand of engine: R20A3 Type description: CP Body: Saloon From date: 01-07-2008 To date: 01-09-2012 Fuel: Petrol Approved: Yes
    Honda Model: CR-V Model series: CR-V Model type: Flex (RE5) Size of motor: 2.0 Brand of engine: R20A1 Type description: RM_ Body: SUV From date: 01-01-2013 Fuel: Petrol/Ethanol Approved: Yes
    Honda Model: CR-V Model series: CR-V Type of engine: i-VTEC Size of motor: 2.0 Brand of engine: R20A2 Body: SUV From date: 01-10-2006 To date: 01-06-2012 Fuel: Gasoline Approved: Yes
    Honda Model: Crossroad Model series: Crossroad Size of motor: 2.0 Brand of engine: R20A Type description: RT_ Body: SUV From date: 01-02-2007 To date: 01-08-2010 Fuel: Petrol Approved: Yes
    Honda Model: Stream Model series: Stream Model type: Vtec AWD (RN9) Size of motor: 2.0 Brand of engine: R20A4 Type description: RN Body: MPV Fuel: Petrol Approved: Yes
    Honda Series: Accord VIII Kombi Model: 2.0i Engine volume: 2.0 Engine type: R20 A3 Year: 07.08-
    Honda Series: Accord VIII Model: 2.0i Engine volume: 2.0 Engine type: R20 A3 Year: 07.08-
    Honda Series: CR-V III Model: 2.0 i 4WD Engine volume: 2.0 Engine type: R20 A2 Year: 01.07-
    1 / 2
  • Beskrivelse
    Honda CR-V Generator 12V-100A 12V - 100A, 7gr, (L, IG, FR, C) Til Yourex produktordre 90-222-4537

    Voltage: 14
    Amp: 105
    Remskive afstand: 45,00
    Bredde/beslag arm: 20,00
    Monteringsbeslag afstand: 38,00
    Beslagshulder: 9,00
    Bæltejustering beslagshul position: 13
    Bæltejustering beslagshul 1: 8,50
    Remskivedi.: 60,00
    Riller/remskive: 7
    Radius: 85,00
    Radius 2: 86,50
    B+: M6
    Position/B+ i min.: 20
    D+ Størrelse: Stik
    Rotation: CW
    Stik nr.: PL60
    Total længde mm: 160,00
    Remskive: SP
    Regulator type: IR
    Produktinfo: BN

    Filer

  • Specifikation
    B+ M6
    Mount. bracket dist. 38.00
    Belt. adj. bracket hole 1 8.50
    Belt. adj. brackethole pos. 13
    Plug no. PL60
    Bracket hole 9.00
    Position/B+ in min. 20
    Prod. info BN
    Pulley SP
    Pulley dia. 60.00
    Pulley dist. 45.00
    Radius 85.00
    D+ Size Plug
    Radius 2 86.50
    Regulator type IR
    Rotation CW
    Grooves/pulley 7
    Voltage 14
    Total length 160.00 mm
    Width/holder arm 20.00
    Amp 105
  • Køretøjsmatchning

    • OEM
      CSF 37, CSF37, F032115836, 1986A00580, 2078ir, 021080-1610, 31100-RZP-G01, 31100-RZPG01, 104210-5370

    • Konkurrentreferens
      A6172, A6483(DENSO), CAL40349, DAN1148, DRA0887, F042302178, LRA03491, 28-6601, 125.556.130, 222.161.1002, 20493R, 113420, 209412, 209412A, 440553, 440977, 553677RI, 9090685, 12060977, 32082410, 0986082410

    • Bilmärken
      Honda

    • NormaliseratArtNr
      a6172, a6483denso, cal40349, csf37, dan1148, dra0887, f032115836, f042302178, lra03491, 1986a00580, 2078ir, 20493r, 31100rzpg01, 113420, 209412, 209412a, 286601, 440553, 440977, 553677ri, 9090685, 12060977, 32082410, 125556130, 0210801610, 0986082410, 1042105370, 2221611002

    • Passar modeller
      Honda Model: Accord Model series: Accord Size of motor: 2.0 Brand of engine: R20A3 Body: Estate From date: 01-07-2008 Fuel: Gasoline Approved: Yes Manufacture type: kombi
      Honda Model: Accord Model series: Accord Size of motor: 2.0 Brand of engine: R20A3 From date: 01-06-2008 To date: 01-06-2015 Fuel: Gasoline Approved: Yes
      Honda Model: Accord Model series: Accordi Model type: i-VTEC (CP1) Size of motor: 2.0 Brand of engine: R20A3 Type description: CP Body: Saloon From date: 01-07-2008 To date: 01-09-2012 Fuel: Petrol Approved: Yes
      Honda Model: CR-V Model series: CR-V Model type: Flex (RE5) Size of motor: 2.0 Brand of engine: R20A1 Type description: RM_ Body: SUV From date: 01-01-2013 Fuel: Petrol/Ethanol Approved: Yes
      Honda Model: CR-V Model series: CR-V Type of engine: i-VTEC Size of motor: 2.0 Brand of engine: R20A2 Body: SUV From date: 01-10-2006 To date: 01-06-2012 Fuel: Gasoline Approved: Yes
      Honda Model: Crossroad Model series: Crossroad Size of motor: 2.0 Brand of engine: R20A Type description: RT_ Body: SUV From date: 01-02-2007 To date: 01-08-2010 Fuel: Petrol Approved: Yes
      Honda Model: Stream Model series: Stream Model type: Vtec AWD (RN9) Size of motor: 2.0 Brand of engine: R20A4 Type description: RN Body: MPV Fuel: Petrol Approved: Yes
      Honda Series: Accord VIII Kombi Model: 2.0i Engine volume: 2.0 Engine type: R20 A3 Year: 07.08-
      Honda Series: Accord VIII Model: 2.0i Engine volume: 2.0 Engine type: R20 A3 Year: 07.08-
      Honda Series: CR-V III Model: 2.0 i 4WD Engine volume: 2.0 Engine type: R20 A2 Year: 01.07-
      1 / 2
