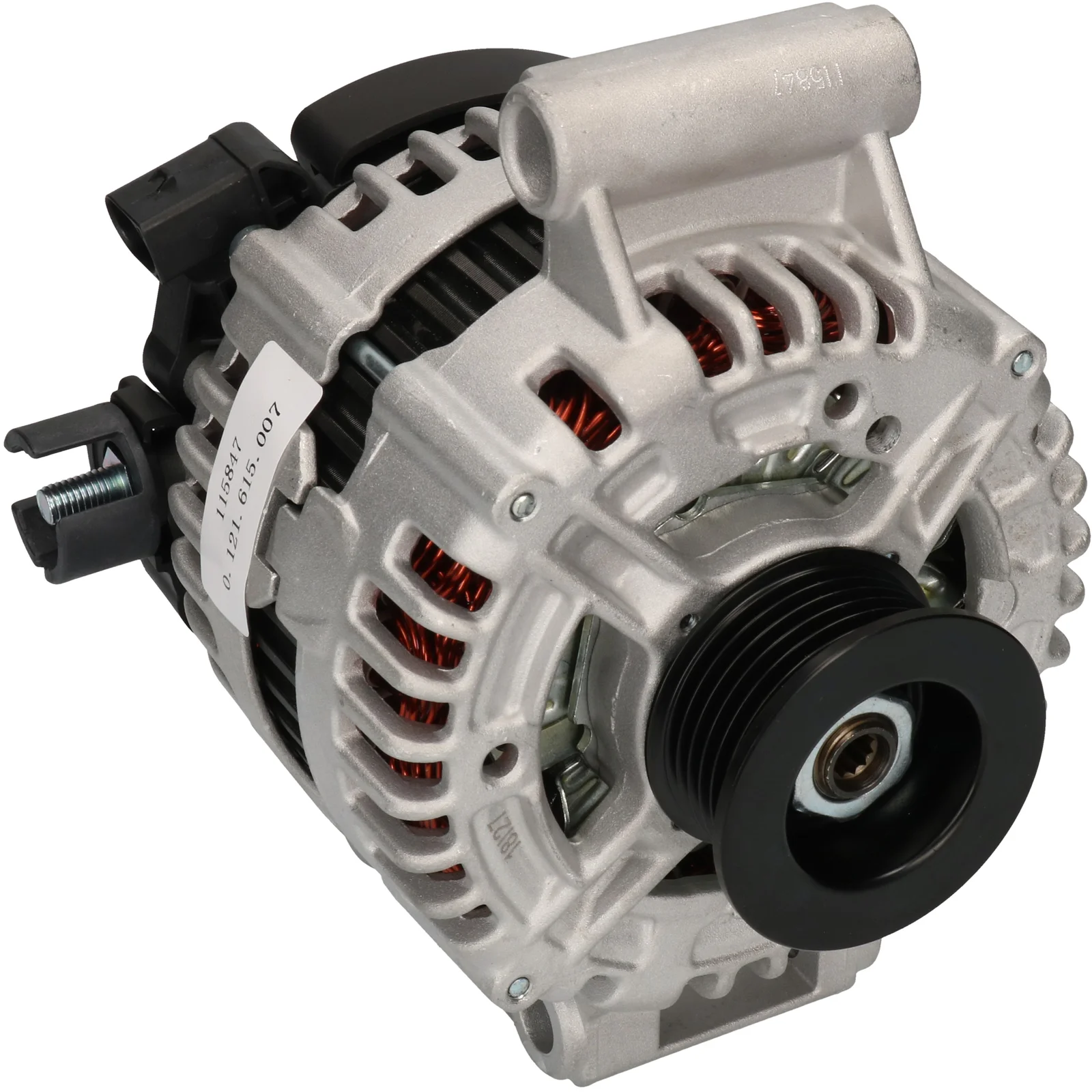

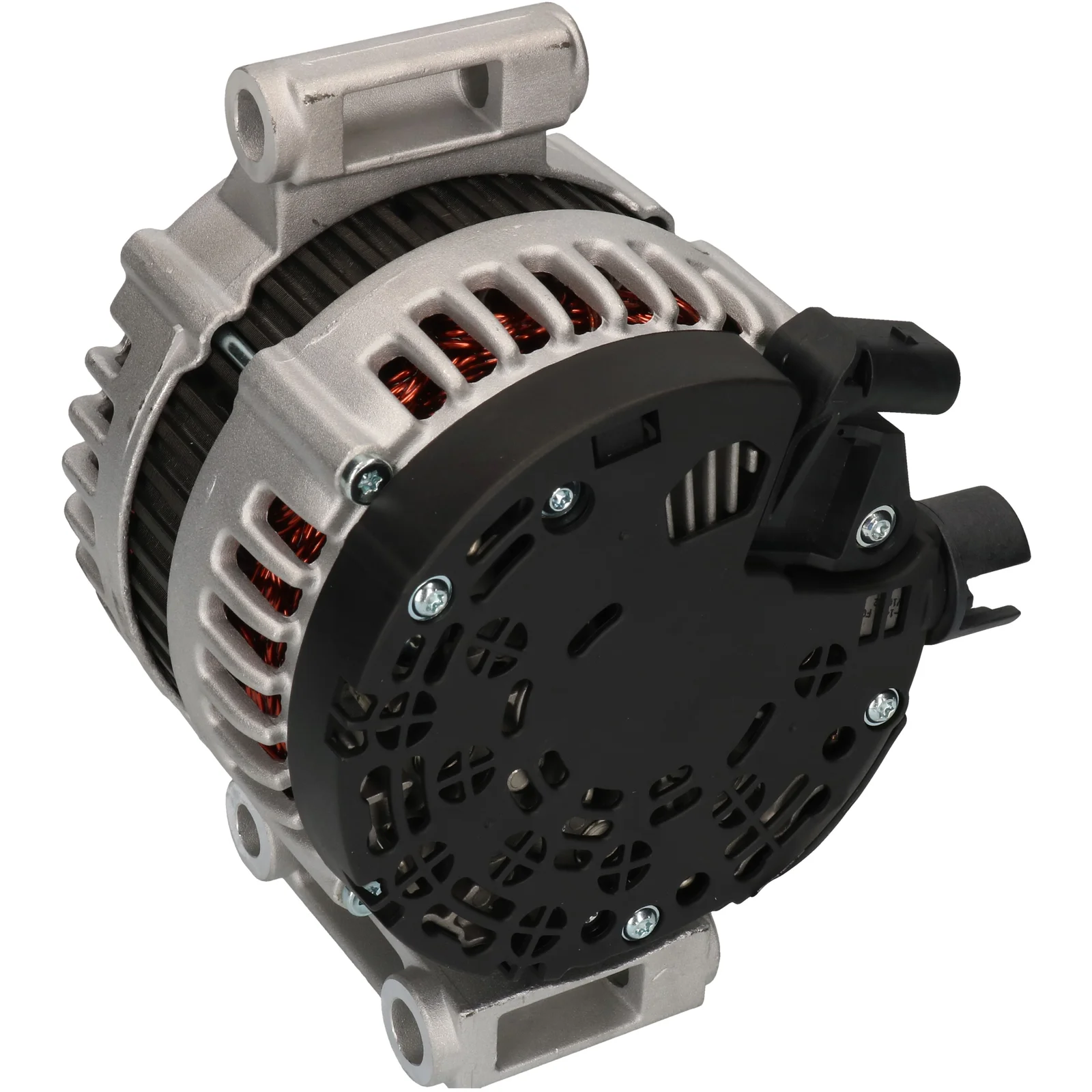

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032115847

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 150, Rotation: CW, Monteringsbeslag forfordeler: 74.00

Beskrivelse

Spænding: 14
Amp.: 150
Remskive afstand: 40,80
Bredde/holder arm: 70,00
Monteringsbeslag afstand: 74,00
Beslaghul: 14,50
Beslaghul 2: 12,50
Bælte justering beslag hul pos.: 60
Bælte justering beslag hul 1: 12,50
Remskive dia.: 53,00
Riller/remskive: 6
Radius: 91,00
Radius 2: 85,00
B+: M8
Position/B+ i min.: 15
Rotation: CW
Stik nr.: PL137
Total længde mm: 164,00
Terminaltype: COM
Kommunikation: LIN
Remskive: SP
Regulator type: IR
Bemærkninger: Denne Generator har en COM terminal på regulatoren. Det anbefales, at OEM-nummeret bruges til at kontrollere egnethed før bestilling.

Filer

Specifikation

B+ M8
Communication LIN
Mount. bracket dist. 74.00
Belt. adj. bracket hole 1 12.50
Belt. adj. brackethole pos. 60
Plug no. PL137
Bracket hole 14.50
Bracket hole 2 12.50
Position/B+ in min. 15
Pulley SP
Pulley dia. 53.00
Pulley dist. 40.80
Radius 91.00
Radius 2 85.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Grooves/pulley 6
Terminal type COM
Voltage 14
Total length 164.00 mm
Width/holder arm 70.00
Amp 150

  • OEM
    F032115847, 6G9J10300DA, 6G9N10300DA, 6g9n10300db, 6G9N10300DC, 6G9N10300DD, 1379700, 1388003, 1469400, 2099437, 0121615007, 0121615107

  • Konkurrentreferens
    A0282, CAL10002, DRA0056, LRA03144, 28-5756, 595.567.150, 20010N, 20010R, 210429, 210429A, 440481, 9090483, 12090250, 0986047950

  • NormaliseratArtNr
    a0282, cal10002, dra0056, f032115847, lra03144, 6g9j10300da, 6g9n10300da, 6g9n10300db, 6g9n10300dc, 6g9n10300dd, 20010n, 20010r, 210429, 210429a, 285756, 440481, 1379700, 1388003, 1469400, 2099437, 9090483, 12090250, 0121615007, 0121615107, 595567150, 0986047950

  • Passar modeller
    Ford Model: Galaxy Model series: Galaxy Size of motor: 2.0 Brand of engine: AOWA Body: MPV From date: 01-05-2006 To date: 01-06-2015 Fuel: Gasoline Approved: Yes
    Ford Model: Galaxy Model series: Galaxy Size of motor: 2.0 Brand of engine: AOWA Type description: WA6 Body: Van From date: 01-05-2006 To date: 01-06-2015 Fuel: Petrol Approved: Yes
    Ford Model: Galaxy Model series: Galaxy Size of motor: 2.0 Brand of engine: AOWB Body: MPV From date: 01-05-2006 To date: 01-06-2015 Fuel: Gasoline Approved: Yes
    Ford Model: Galaxy Model series: Galaxy Size of motor: 2.3 Brand of engine: SEWA Body: MPV From date: 01-09-2007 To date: 01-06-2015 Fuel: Gasoline Approved: Yes
    Ford Model: Galaxy Model series: Galaxy Type of engine: FlexFuel Size of motor: 2.0 Brand of engine: TBWA Type description: WA6 Body: MPV From date: 01-05-2006 To date: 01-06-2015 Fuel: Bi-Fuel Approved: Yes
    Ford Model: Galaxy Model series: Galaxy Type of engine: FlexFuel Size of motor: 2.0 Brand of engine: TBWB Type description: WA6 Body: MPV From date: 01-05-2006 To date: 01-06-2015 Fuel: Bi-Fuel Approved: Yes
    Ford Model: Mondeo Model series: Mondeo Size of motor: 2.3 Brand of engine: SEBA Body: Estate From date: 01-07-2007 To date: 01-01-2015 Fuel: Gasoline Approved: Yes Manufacture type: turnier
    Ford Model: Mondeo Model series: Mondeo Size of motor: 2.3 Brand of engine: SEBA Body: Hatchback From date: 01-07-2007 To date: 01-01-2015 Fuel: Gasoline Approved: Yes
    Ford Model: Mondeo Model series: Mondeo Size of motor: 2.3 Brand of engine: SEBA From date: 01-07-2007 To date: 01-01-2015 Fuel: Gasoline Approved: Yes
    Ford Model: S-Max Model series: S-Max Size of motor: 2.0 Brand of engine: AOWA Body: MPV From date: 01-05-2006 To date: 01-12-2014 Fuel: Gasoline Approved: Yes
    Ford Model: S-Max Model series: S-Max Size of motor: 2.0 Brand of engine: AOWB Body: MPV From date: 01-05-2006 To date: 01-12-2014 Fuel: Gasoline Approved: Yes
    Ford Model: S-Max Model series: S-Max Size of motor: 2.3 Brand of engine: SEWA Body: MPV From date: 01-07-2007 To date: 01-12-2014 Fuel: Gasoline Approved: Yes
    Ford Model: S-Max Model series: S-Max Type of engine: FlexFuel Size of motor: 2.0 Brand of engine: TBWA Body: MPV From date: 01-05-2006 To date: 01-12-2014 Fuel: Flex Approved: Yes
    Ford Model: S-Max Model series: S-Max Type of engine: FlexFuel Size of motor: 2.0 Brand of engine: TBWB Body: MPV From date: 01-05-2006 To date: 01-12-2014 Fuel: Flex Approved: Yes
    Ford Model: S-Max Van Model series: S-Max Van Size of motor: 2.0 Brand of engine: AODE Type description: WA6 Body: Box Body/MPV From date: 01-03-2010 To date: 01-12-2014 Fuel: Petrol Approved: Yes
    1 / 3
  • Beskrivelse
    Spænding: 14
    Amp.: 150
    Remskive afstand: 40,80
    Bredde/holder arm: 70,00
    Monteringsbeslag afstand: 74,00
    Beslaghul: 14,50
    Beslaghul 2: 12,50
    Bælte justering beslag hul pos.: 60
    Bælte justering beslag hul 1: 12,50
    Remskive dia.: 53,00
    Riller/remskive: 6
    Radius: 91,00
    Radius 2: 85,00
    B+: M8
    Position/B+ i min.: 15
    Rotation: CW
    Stik nr.: PL137
    Total længde mm: 164,00
    Terminaltype: COM
    Kommunikation: LIN
    Remskive: SP
    Regulator type: IR
    Bemærkninger: Denne Generator har en COM terminal på regulatoren. Det anbefales, at OEM-nummeret bruges til at kontrollere egnethed før bestilling.

    Filer

  • Specifikation
    B+ M8
    Communication LIN
    Mount. bracket dist. 74.00
    Belt. adj. bracket hole 1 12.50
    Belt. adj. brackethole pos. 60
    Plug no. PL137
    Bracket hole 14.50
    Bracket hole 2 12.50
    Position/B+ in min. 15
    Pulley SP
    Pulley dia. 53.00
    Pulley dist. 40.80
    Radius 91.00
    Radius 2 85.00
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Grooves/pulley 6
    Terminal type COM
    Voltage 14
    Total length 164.00 mm
    Width/holder arm 70.00
    Amp 150
  • Køretøjsmatchning

    • OEM
      F032115847, 6G9J10300DA, 6G9N10300DA, 6g9n10300db, 6G9N10300DC, 6G9N10300DD, 1379700, 1388003, 1469400, 2099437, 0121615007, 0121615107

    • Konkurrentreferens
      A0282, CAL10002, DRA0056, LRA03144, 28-5756, 595.567.150, 20010N, 20010R, 210429, 210429A, 440481, 9090483, 12090250, 0986047950

    • NormaliseratArtNr
      a0282, cal10002, dra0056, f032115847, lra03144, 6g9j10300da, 6g9n10300da, 6g9n10300db, 6g9n10300dc, 6g9n10300dd, 20010n, 20010r, 210429, 210429a, 285756, 440481, 1379700, 1388003, 1469400, 2099437, 9090483, 12090250, 0121615007, 0121615107, 595567150, 0986047950

    • Passar modeller
      Ford Model: Galaxy Model series: Galaxy Size of motor: 2.0 Brand of engine: AOWA Body: MPV From date: 01-05-2006 To date: 01-06-2015 Fuel: Gasoline Approved: Yes
      Ford Model: Galaxy Model series: Galaxy Size of motor: 2.0 Brand of engine: AOWA Type description: WA6 Body: Van From date: 01-05-2006 To date: 01-06-2015 Fuel: Petrol Approved: Yes
      Ford Model: Galaxy Model series: Galaxy Size of motor: 2.0 Brand of engine: AOWB Body: MPV From date: 01-05-2006 To date: 01-06-2015 Fuel: Gasoline Approved: Yes
      Ford Model: Galaxy Model series: Galaxy Size of motor: 2.3 Brand of engine: SEWA Body: MPV From date: 01-09-2007 To date: 01-06-2015 Fuel: Gasoline Approved: Yes
      Ford Model: Galaxy Model series: Galaxy Type of engine: FlexFuel Size of motor: 2.0 Brand of engine: TBWA Type description: WA6 Body: MPV From date: 01-05-2006 To date: 01-06-2015 Fuel: Bi-Fuel Approved: Yes
      Ford Model: Galaxy Model series: Galaxy Type of engine: FlexFuel Size of motor: 2.0 Brand of engine: TBWB Type description: WA6 Body: MPV From date: 01-05-2006 To date: 01-06-2015 Fuel: Bi-Fuel Approved: Yes
      Ford Model: Mondeo Model series: Mondeo Size of motor: 2.3 Brand of engine: SEBA Body: Estate From date: 01-07-2007 To date: 01-01-2015 Fuel: Gasoline Approved: Yes Manufacture type: turnier
      Ford Model: Mondeo Model series: Mondeo Size of motor: 2.3 Brand of engine: SEBA Body: Hatchback From date: 01-07-2007 To date: 01-01-2015 Fuel: Gasoline Approved: Yes
      Ford Model: Mondeo Model series: Mondeo Size of motor: 2.3 Brand of engine: SEBA From date: 01-07-2007 To date: 01-01-2015 Fuel: Gasoline Approved: Yes
      Ford Model: S-Max Model series: S-Max Size of motor: 2.0 Brand of engine: AOWA Body: MPV From date: 01-05-2006 To date: 01-12-2014 Fuel: Gasoline Approved: Yes
      Ford Model: S-Max Model series: S-Max Size of motor: 2.0 Brand of engine: AOWB Body: MPV From date: 01-05-2006 To date: 01-12-2014 Fuel: Gasoline Approved: Yes
      Ford Model: S-Max Model series: S-Max Size of motor: 2.3 Brand of engine: SEWA Body: MPV From date: 01-07-2007 To date: 01-12-2014 Fuel: Gasoline Approved: Yes
      Ford Model: S-Max Model series: S-Max Type of engine: FlexFuel Size of motor: 2.0 Brand of engine: TBWA Body: MPV From date: 01-05-2006 To date: 01-12-2014 Fuel: Flex Approved: Yes
      Ford Model: S-Max Model series: S-Max Type of engine: FlexFuel Size of motor: 2.0 Brand of engine: TBWB Body: MPV From date: 01-05-2006 To date: 01-12-2014 Fuel: Flex Approved: Yes
      Ford Model: S-Max Van Model series: S-Max Van Size of motor: 2.0 Brand of engine: AODE Type description: WA6 Body: Box Body/MPV From date: 01-03-2010 To date: 01-12-2014 Fuel: Petrol Approved: Yes
