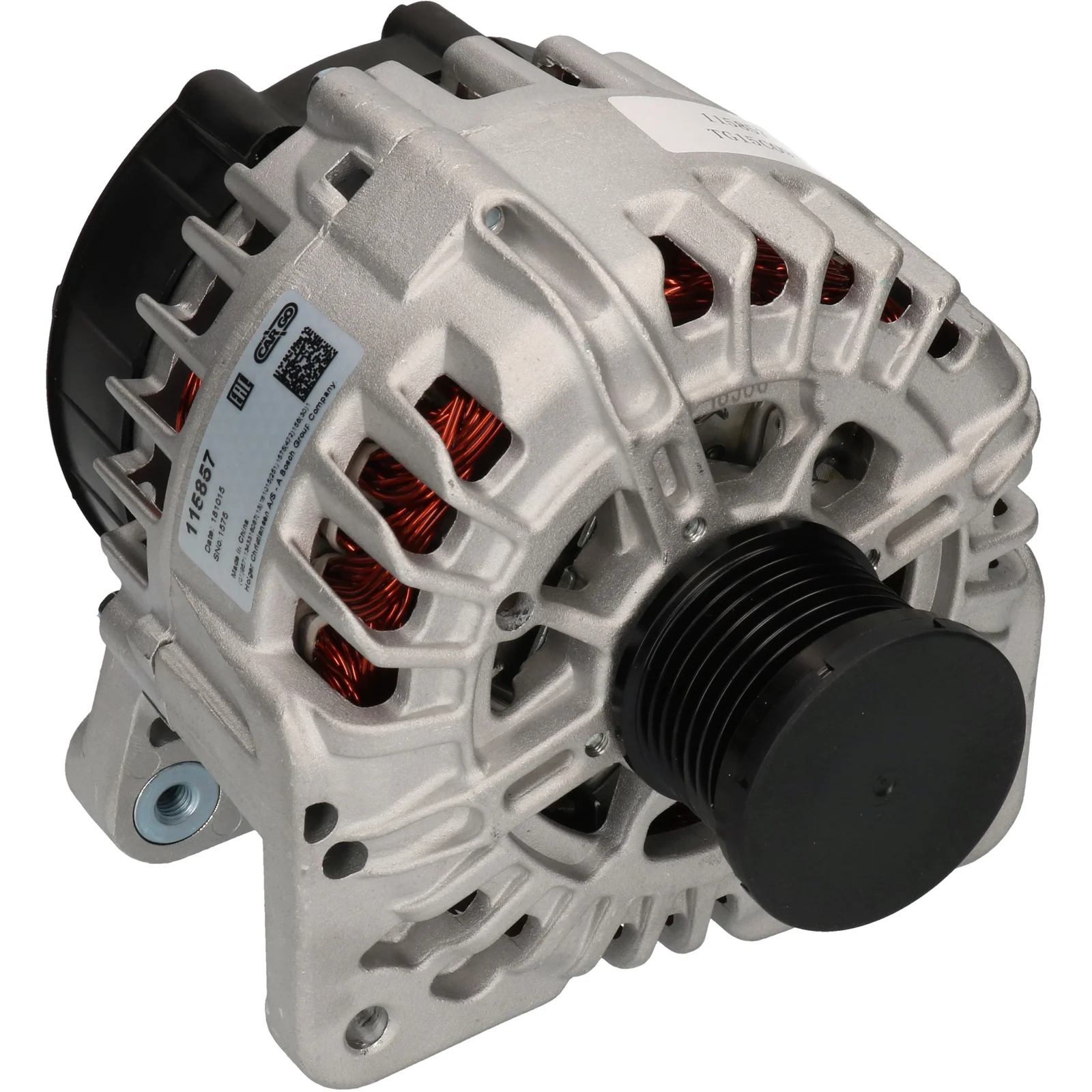

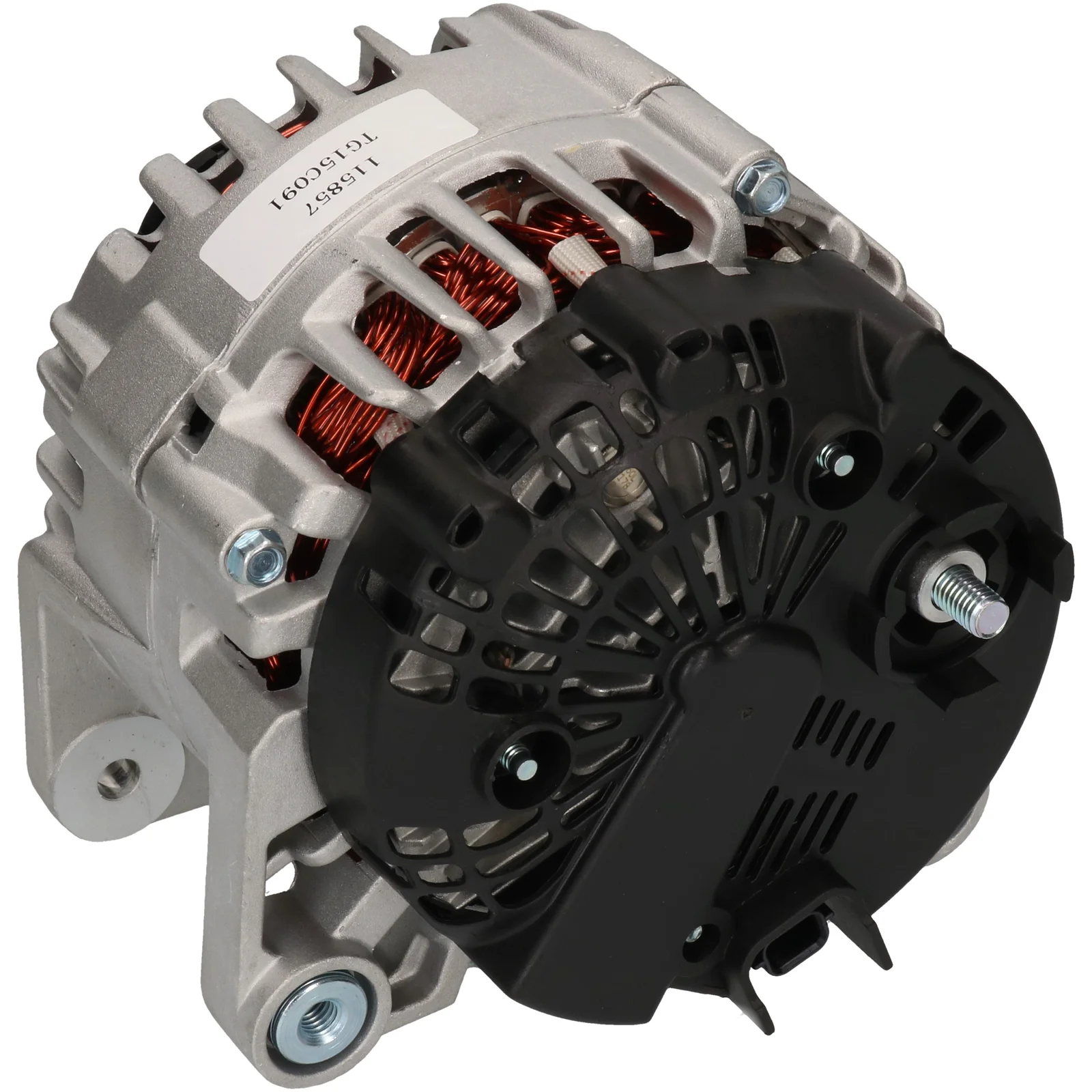

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032115857

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 150, Rotation: CW, Monteringsbeslag afstand: 60,50

Beskrivelse

Spænding: 14
Amp: 150
Remskive diteme.: 33,00
Bredde/bærepind: 14,00
Monteringsbeslag afstand.: 60,50
Beslagshul: 8,50
Bæltejustering beslaghul pos.: 45
Bæltejustering beslaghul 1: 8,50
Remskive dia.: 49,50
Spor/remskive: 7
Radius: 90,00
Radius 2: 90,00
B+: M8
Position/B+ i min.: 5
Rotation: CW
Stik nr.: PL131
Samlet længde mm: 185,00
Terminaltype: COM
Kommunikation: BSS
Remskive: SP/FW
Vifte: IF
Regulator type: IR
Bemærkninger: Denne generator har en COM terminal på regulatoren. Det anbefales at bruge OEM-nummeret for at kontrollere egnethed, inden der bestilles.

Filer

Specifikation

B+ M8
Communication BSS
Mount. bracket dist. 60.50
Belt. adj. bracket hole 1 8.50
Belt. adj. brackethole pos. 45
Plug no. PL131
Bracket hole 8.50
Position/B+ in min. 5
Pulley SP/FW
Pulley dia. 49.50
Pulley dist. 33.00
Radius 90.00
Radius 2 90.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Fan IF
Grooves/pulley 7
Terminal type COM
Voltage 14
Total length 185.00 mm
Width/holder arm 14.00
Amp 150

  • OEM
    F032115857, TG15C059, TG15C091, TG15C125, 1936ir, 2543388, 2543597, 8200404461, 8200525891, 8200725683

  • Konkurrentreferens
    A3322, A5296, CAL15488, CAL35314, DRA0784, 8EL738211-871, 28-5789, 230.340.1502, 575.509.150, 112627, 210510, 210510A, 301936RI, 439577, 440035, 747069, 9090850, 12090275

  • NormaliseratArtNr
    a3322, a5296, cal15488, cal35314, dra0784, f032115857, tg15c059, tg15c091, tg15c125, 8el738211871, 1936ir, 112627, 210510, 210510a, 285789, 301936ri, 439577, 440035, 747069, 2543388, 2543597, 9090850, 12090275, 575509150, 2303401502, 8200404461, 8200525891, 8200725683

  • Passar modeller
    Renault Model: Megane Model series: Megane Type of engine: DCi Size of motor: 2.0 Brand of engine: M9R700 Type description: BM0/1_, CM0/1_ Body: Hatchback From date: 01-09-2005 To date: 01-02-2008 Fuel: Diesel Approved: Yes
    Renault Model: Megane Model series: Megane Type of engine: DCi Size of motor: 2.0 Brand of engine: M9R700 Type description: EM0/1_ Body: Convertible From date: 01-09-2005 To date: 01-03-2009 Fuel: Diesel Approved: Yes
    Renault Model: Megane Model series: Megane Type of engine: DCi Size of motor: 2.0 Brand of engine: M9R700 Type description: KM0/1_ Body: Estate From date: 01-09-2005 To date: 01-07-2009 Fuel: Diesel Approved: Yes
    Renault Model: Megane Model series: Megane Type of engine: DCi Size of motor: 2.0 Brand of engine: M9R722 Type description: BM0/1_, CM0/1_ Body: Hatchback From date: 01-09-2005 To date: 01-02-2008 Fuel: Diesel Approved: Yes
    Renault Model: Megane Model series: Megane Type of engine: DCi Size of motor: 2.0 Brand of engine: M9R722 Type description: EM0/1_ Body: Convertible From date: 01-09-2005 To date: 01-03-2009 Fuel: Diesel Approved: Yes
    Renault Model: Megane Model series: Megane Type of engine: DCi Size of motor: 2.0 Brand of engine: M9R722 Type description: KM0/1_ Body: Estate From date: 01-09-2005 To date: 01-07-2009 Fuel: Diesel Approved: Yes
    Renault Model: Megane Model series: Megane Type of engine: DCi Size of motor: 2.0 Brand of engine: M9R724 Type description: BM0/1_, CM0/1_ Body: Hatchback From date: 01-01-2007 To date: 01-02-2008 Fuel: Diesel Approved: Yes
    Renault Model: Sc nic Model series: Grand Sc nic Type of engine: DCi Size of motor: 2.0 Brand of engine: M9R700 Type description: JM0/1 Body: MPV From date: 01-09-2005 To date: 01-11-2008 Fuel: Diesel Approved: Yes
    Renault Model: Sc nic Model series: Grand Sc nic Type of engine: DCi Size of motor: 2.0 Brand of engine: M9R721 Type description: JM0/1 Body: MPV From date: 01-09-2005 To date: 01-11-2008 Fuel: Diesel Approved: Yes
    Renault Model: Sc nic Model series: Grand Sc nic Type of engine: DCi Size of motor: 2.0 Brand of engine: M9R722 Type description: JM0/1 Body: MPV From date: 01-09-2005 To date: 01-11-2008 Fuel: Diesel Approved: Yes
    Renault Model: Sc nic Model series: Sc nic Type of engine: DCi Size of motor: 2.0 Brand of engine: M9R700 Type description: JM0/1_ Body: MPV From date: 01-09-2005 To date: 01-11-2008 Fuel: Diesel Approved: Yes
    Renault Model: Sc nic Model series: Sc nic Type of engine: DCi Size of motor: 2.0 Brand of engine: M9R721 Type description: JM0/1_ Body: MPV From date: 01-09-2005 To date: 01-11-2008 Fuel: Diesel Approved: Yes
    Renault Model: Sc nic Model series: Sc nic Type of engine: DCi Size of motor: 2.0 Brand of engine: M9R722 Type description: JM0/1_ Body: MPV From date: 01-09-2005 To date: 01-11-2008 Fuel: Diesel Approved: Yes
    1 / 3
  • Beskrivelse
    Spænding: 14
    Amp: 150
    Remskive diteme.: 33,00
    Bredde/bærepind: 14,00
    Monteringsbeslag afstand.: 60,50
    Beslagshul: 8,50
    Bæltejustering beslaghul pos.: 45
    Bæltejustering beslaghul 1: 8,50
    Remskive dia.: 49,50
    Spor/remskive: 7
    Radius: 90,00
    Radius 2: 90,00
    B+: M8
    Position/B+ i min.: 5
    Rotation: CW
    Stik nr.: PL131
    Samlet længde mm: 185,00
    Terminaltype: COM
    Kommunikation: BSS
    Remskive: SP/FW
    Vifte: IF
    Regulator type: IR
    Bemærkninger: Denne generator har en COM terminal på regulatoren. Det anbefales at bruge OEM-nummeret for at kontrollere egnethed, inden der bestilles.

    Filer

  • Specifikation
    B+ M8
    Communication BSS
    Mount. bracket dist. 60.50
    Belt. adj. bracket hole 1 8.50
    Belt. adj. brackethole pos. 45
    Plug no. PL131
    Bracket hole 8.50
    Position/B+ in min. 5
    Pulley SP/FW
    Pulley dia. 49.50
    Pulley dist. 33.00
    Radius 90.00
    Radius 2 90.00
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Fan IF
    Grooves/pulley 7
    Terminal type COM
    Voltage 14
    Total length 185.00 mm
    Width/holder arm 14.00
    Amp 150
  • Køretøjsmatchning

    • OEM
      F032115857, TG15C059, TG15C091, TG15C125, 1936ir, 2543388, 2543597, 8200404461, 8200525891, 8200725683

    • Konkurrentreferens
      A3322, A5296, CAL15488, CAL35314, DRA0784, 8EL738211-871, 28-5789, 230.340.1502, 575.509.150, 112627, 210510, 210510A, 301936RI, 439577, 440035, 747069, 9090850, 12090275

    • NormaliseratArtNr
      a3322, a5296, cal15488, cal35314, dra0784, f032115857, tg15c059, tg15c091, tg15c125, 8el738211871, 1936ir, 112627, 210510, 210510a, 285789, 301936ri, 439577, 440035, 747069, 2543388, 2543597, 9090850, 12090275, 575509150, 2303401502, 8200404461, 8200525891, 8200725683

    • Passar modeller
      Renault Model: Megane Model series: Megane Type of engine: DCi Size of motor: 2.0 Brand of engine: M9R700 Type description: BM0/1_, CM0/1_ Body: Hatchback From date: 01-09-2005 To date: 01-02-2008 Fuel: Diesel Approved: Yes
      Renault Model: Megane Model series: Megane Type of engine: DCi Size of motor: 2.0 Brand of engine: M9R700 Type description: EM0/1_ Body: Convertible From date: 01-09-2005 To date: 01-03-2009 Fuel: Diesel Approved: Yes
      Renault Model: Megane Model series: Megane Type of engine: DCi Size of motor: 2.0 Brand of engine: M9R700 Type description: KM0/1_ Body: Estate From date: 01-09-2005 To date: 01-07-2009 Fuel: Diesel Approved: Yes
      Renault Model: Megane Model series: Megane Type of engine: DCi Size of motor: 2.0 Brand of engine: M9R722 Type description: BM0/1_, CM0/1_ Body: Hatchback From date: 01-09-2005 To date: 01-02-2008 Fuel: Diesel Approved: Yes
      Renault Model: Megane Model series: Megane Type of engine: DCi Size of motor: 2.0 Brand of engine: M9R722 Type description: EM0/1_ Body: Convertible From date: 01-09-2005 To date: 01-03-2009 Fuel: Diesel Approved: Yes
      Renault Model: Megane Model series: Megane Type of engine: DCi Size of motor: 2.0 Brand of engine: M9R722 Type description: KM0/1_ Body: Estate From date: 01-09-2005 To date: 01-07-2009 Fuel: Diesel Approved: Yes
      Renault Model: Megane Model series: Megane Type of engine: DCi Size of motor: 2.0 Brand of engine: M9R724 Type description: BM0/1_, CM0/1_ Body: Hatchback From date: 01-01-2007 To date: 01-02-2008 Fuel: Diesel Approved: Yes
      Renault Model: Sc nic Model series: Grand Sc nic Type of engine: DCi Size of motor: 2.0 Brand of engine: M9R700 Type description: JM0/1 Body: MPV From date: 01-09-2005 To date: 01-11-2008 Fuel: Diesel Approved: Yes
      Renault Model: Sc nic Model series: Grand Sc nic Type of engine: DCi Size of motor: 2.0 Brand of engine: M9R721 Type description: JM0/1 Body: MPV From date: 01-09-2005 To date: 01-11-2008 Fuel: Diesel Approved: Yes
      Renault Model: Sc nic Model series: Grand Sc nic Type of engine: DCi Size of motor: 2.0 Brand of engine: M9R722 Type description: JM0/1 Body: MPV From date: 01-09-2005 To date: 01-11-2008 Fuel: Diesel Approved: Yes
      Renault Model: Sc nic Model series: Sc nic Type of engine: DCi Size of motor: 2.0 Brand of engine: M9R700 Type description: JM0/1_ Body: MPV From date: 01-09-2005 To date: 01-11-2008 Fuel: Diesel Approved: Yes
      Renault Model: Sc nic Model series: Sc nic Type of engine: DCi Size of motor: 2.0 Brand of engine: M9R721 Type description: JM0/1_ Body: MPV From date: 01-09-2005 To date: 01-11-2008 Fuel: Diesel Approved: Yes
      Renault Model: Sc nic Model series: Sc nic Type of engine: DCi Size of motor: 2.0 Brand of engine: M9R722 Type description: JM0/1_ Body: MPV From date: 01-09-2005 To date: 01-11-2008 Fuel: Diesel Approved: Yes
      1 / 3
