HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032115868

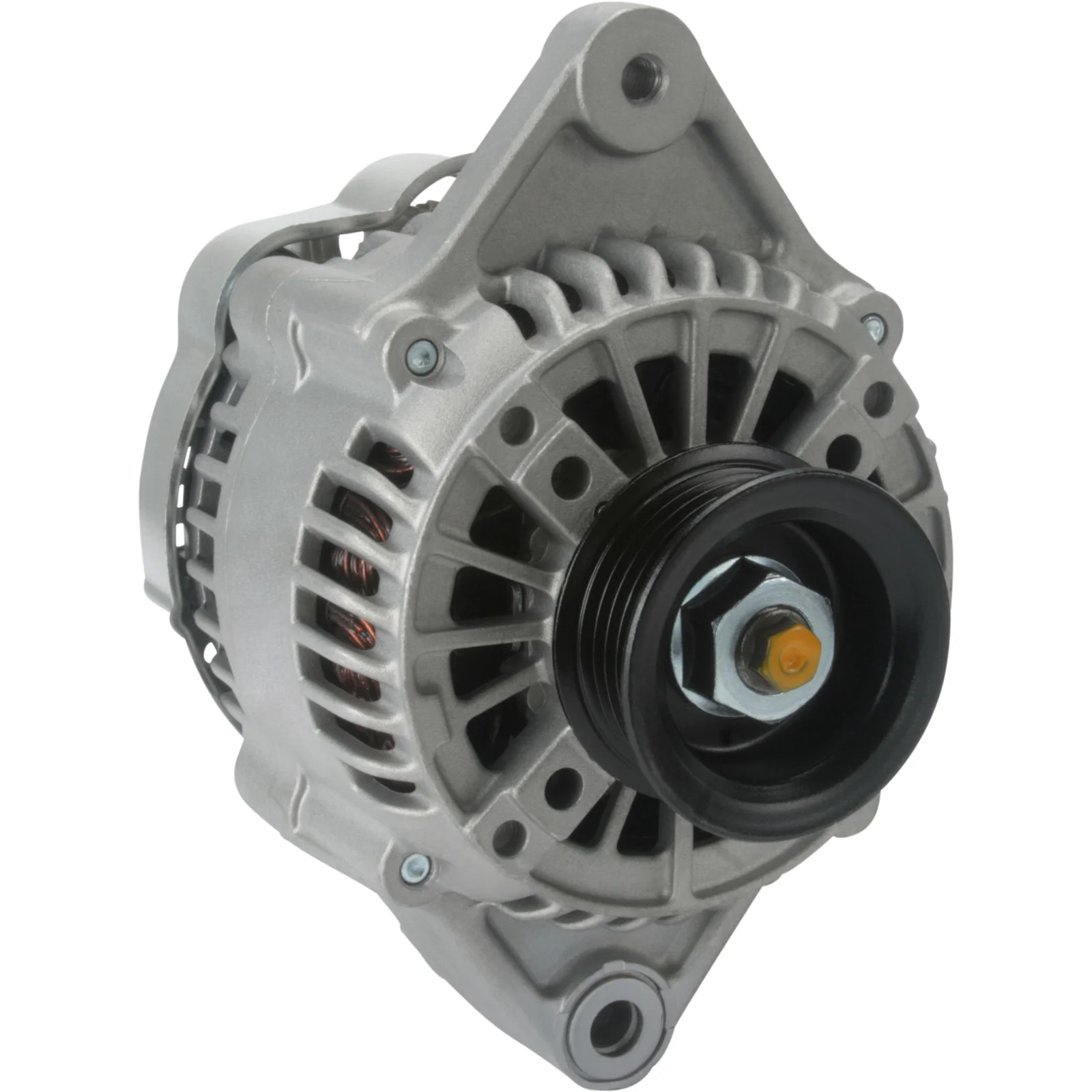

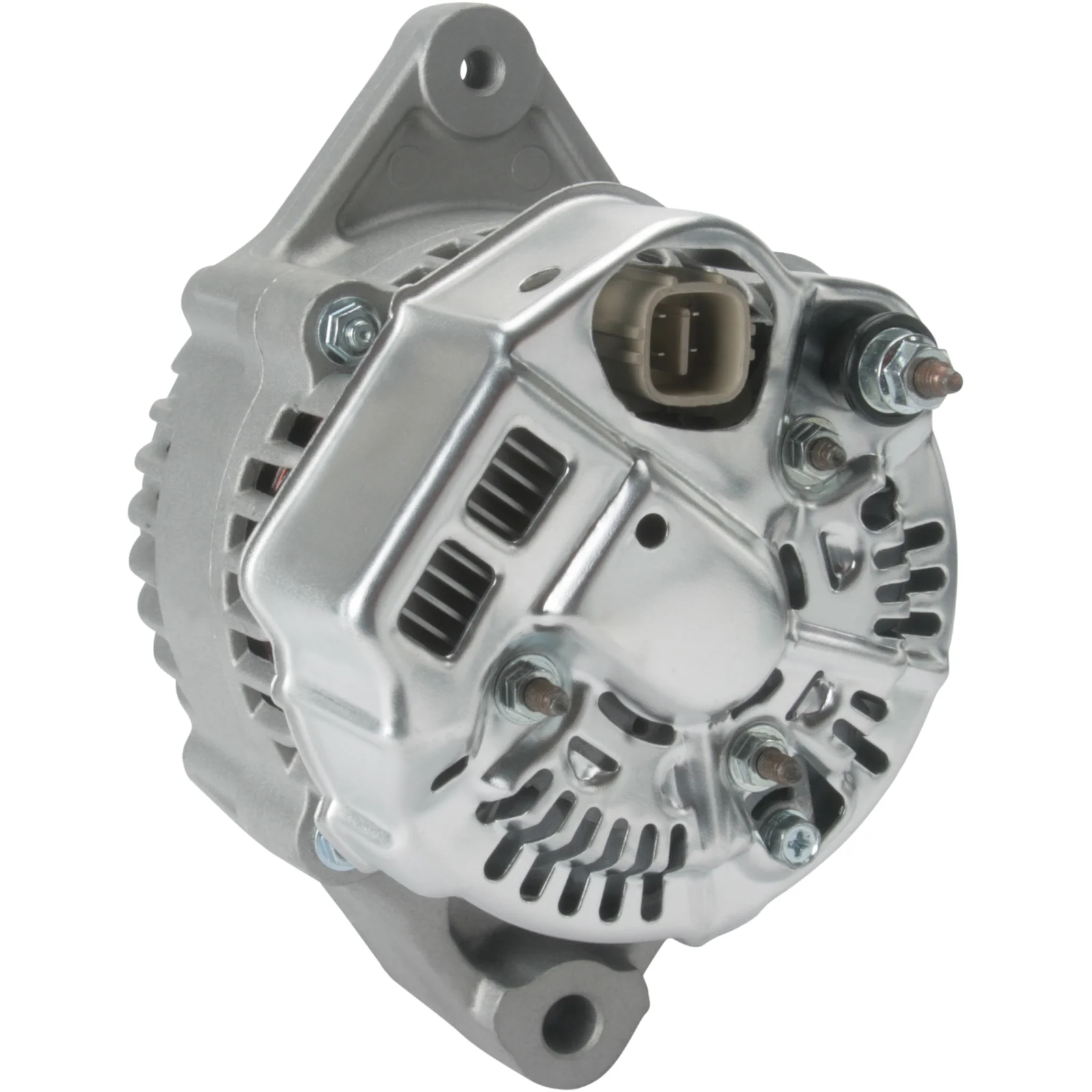

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 70, Rotation: CW, Remskive diameter: 51,00

Beskrivelse

Spænding: 14
Amp: 70
Drevskive: 91,00
Bredde/holder arm: 58,20
Bøjlehul: 10,30
Remspændingsjusteringsholder position: 60
Remspændingsjusteringsholder hul 1: M8
Drevskive di.: 51,00
Riller/drevskive: 5
Radius: 80,00
Radius 2: 82,00
B+: M6
Position/B+ i min.: 7
D+ Størrelse: Stik
Rotation: Udadgående
Stik nr.: PL78
Total længde mm: 168,00
Lygte type: Inaktiv
Drevskive: SP
Regulator type: IR
Produktinfo: BN

Filer

Specifikation

B+ M6
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 60
Plug no. PL78
Bracket hole 10.30
Position/B+ in min. 7
Prod. info BN
Pulley SP
Pulley dia. 51.00
Pulley dist. 91.00
Radius 80.00
D+ Size Plug
Radius 2 82.00
Regulator type IR
Rotation CW
Grooves/pulley 5
Lamp type Inactive
Voltage 14
Total length 168.00 mm
Width/holder arm 58.20
Amp 70

  • OEM
    F032115868, 2107ir, 23100-4a00c, 31400-68k10, 31400-m68k10, 102211-6100

  • Konkurrentreferens
    A6382S, CAL40444, DRA1018, LRA03374, 8EL011712-941, 28-5986, 165.580.070, 245.130.702, 20623N-OS, 444245, 12060951, 0986082300

  • NormaliseratArtNr
    a6382s, cal40444, dra1018, f032115868, lra03374, 8el011712941, 2107ir, 20623nos, 31400m68k10, 231004a00c, 285986, 444245, 3140068k10, 12060951, 165580070, 245130702, 0986082300, 1022116100

  • Passar modeller
    Nissan Model: Pixo Model series: Pixo Model type: LPG Type of engine: LPG Size of motor: 1.0 Brand of engine: K10B Type description: UA0 Body: Hatchback From date: 01-06-2009 Fuel: Petrol/Electro Approved: Yes
    Nissan Model: Pixo Model series: Pixo Size of motor: 1.0 Brand of engine: K10B Type description: UA0 Body: Hatchback From date: 01-06-2009 Fuel: Gasoline Approved: Yes
    Suzuki Model: Alto Model series: Alto K10 Size of motor: 1.0 Brand of engine: K10B Body: Hatchback From date: 01-10-2012 To date: 01-11-2014 Fuel: Gasoline Approved: Yes
    Suzuki Model: Alto Model series: Alto Size of motor: 1.0 Brand of engine: K10B Type description: GF Body: Hatchback From date: 01-01-2009 Fuel: Gasoline Approved: Yes
    Suzuki Model: Alto Model series: Alto Size of motor: 1.0 Brand of engine: K10B Type description: GF Body: Hatchback From date: 01-10-2012 Fuel: Gasoline Approved: Yes
  • Beskrivelse
    Spænding: 14
    Amp: 70
    Drevskive: 91,00
    Bredde/holder arm: 58,20
    Bøjlehul: 10,30
    Remspændingsjusteringsholder position: 60
    Remspændingsjusteringsholder hul 1: M8
    Drevskive di.: 51,00
    Riller/drevskive: 5
    Radius: 80,00
    Radius 2: 82,00
    B+: M6
    Position/B+ i min.: 7
    D+ Størrelse: Stik
    Rotation: Udadgående
    Stik nr.: PL78
    Total længde mm: 168,00
    Lygte type: Inaktiv
    Drevskive: SP
    Regulator type: IR
    Produktinfo: BN

    Filer

  • Specifikation
    B+ M6
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 60
    Plug no. PL78
    Bracket hole 10.30
    Position/B+ in min. 7
    Prod. info BN
    Pulley SP
    Pulley dia. 51.00
    Pulley dist. 91.00
    Radius 80.00
    D+ Size Plug
    Radius 2 82.00
    Regulator type IR
    Rotation CW
    Grooves/pulley 5
    Lamp type Inactive
    Voltage 14
    Total length 168.00 mm
    Width/holder arm 58.20
    Amp 70
  • Køretøjsmatchning

    • OEM
      F032115868, 2107ir, 23100-4a00c, 31400-68k10, 31400-m68k10, 102211-6100

    • Konkurrentreferens
      A6382S, CAL40444, DRA1018, LRA03374, 8EL011712-941, 28-5986, 165.580.070, 245.130.702, 20623N-OS, 444245, 12060951, 0986082300

    • NormaliseratArtNr
      a6382s, cal40444, dra1018, f032115868, lra03374, 8el011712941, 2107ir, 20623nos, 31400m68k10, 231004a00c, 285986, 444245, 3140068k10, 12060951, 165580070, 245130702, 0986082300, 1022116100

    • Passar modeller
      Nissan Model: Pixo Model series: Pixo Model type: LPG Type of engine: LPG Size of motor: 1.0 Brand of engine: K10B Type description: UA0 Body: Hatchback From date: 01-06-2009 Fuel: Petrol/Electro Approved: Yes
      Nissan Model: Pixo Model series: Pixo Size of motor: 1.0 Brand of engine: K10B Type description: UA0 Body: Hatchback From date: 01-06-2009 Fuel: Gasoline Approved: Yes
      Suzuki Model: Alto Model series: Alto K10 Size of motor: 1.0 Brand of engine: K10B Body: Hatchback From date: 01-10-2012 To date: 01-11-2014 Fuel: Gasoline Approved: Yes
      Suzuki Model: Alto Model series: Alto Size of motor: 1.0 Brand of engine: K10B Type description: GF Body: Hatchback From date: 01-01-2009 Fuel: Gasoline Approved: Yes
      Suzuki Model: Alto Model series: Alto Size of motor: 1.0 Brand of engine: K10B Type description: GF Body: Hatchback From date: 01-10-2012 Fuel: Gasoline Approved: Yes
