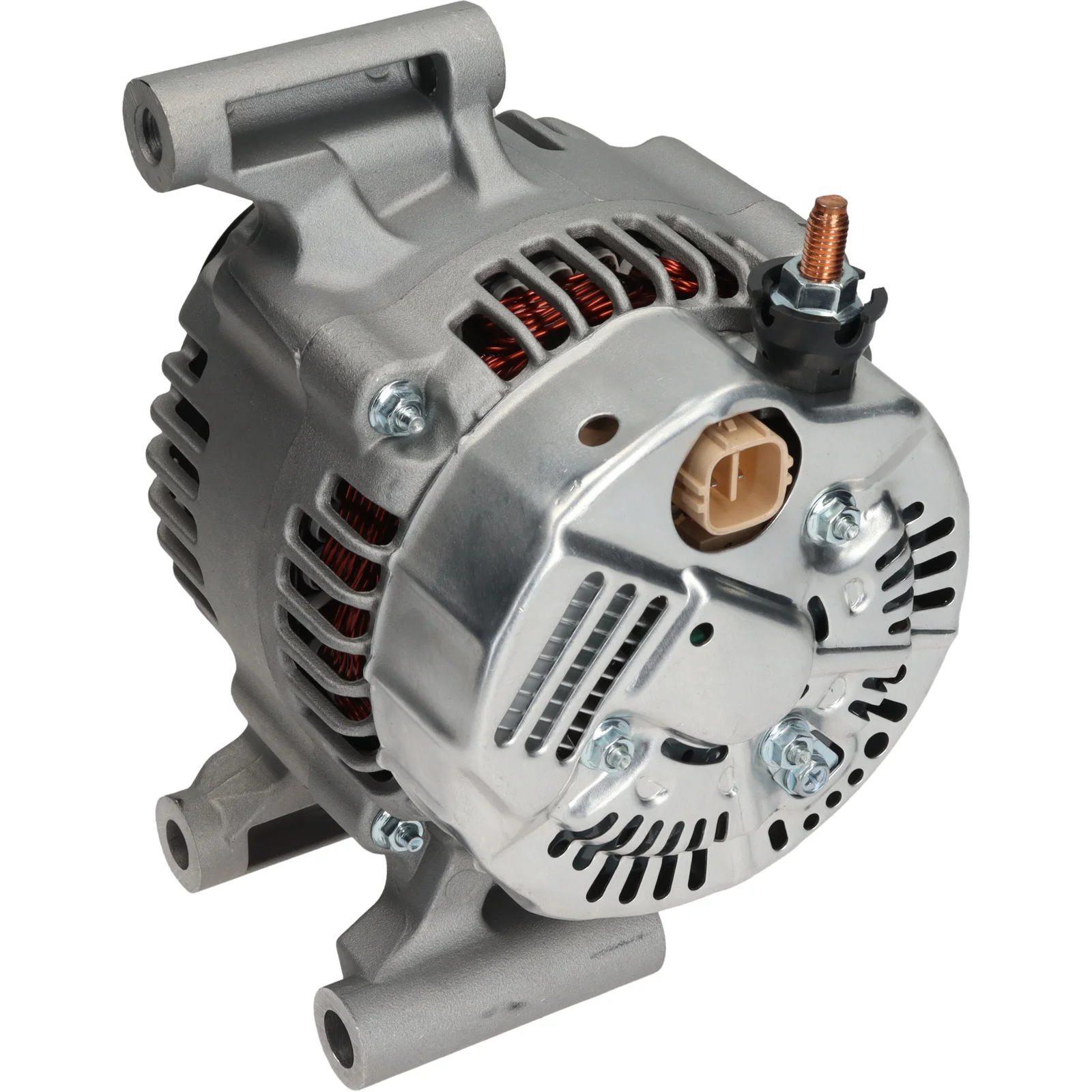

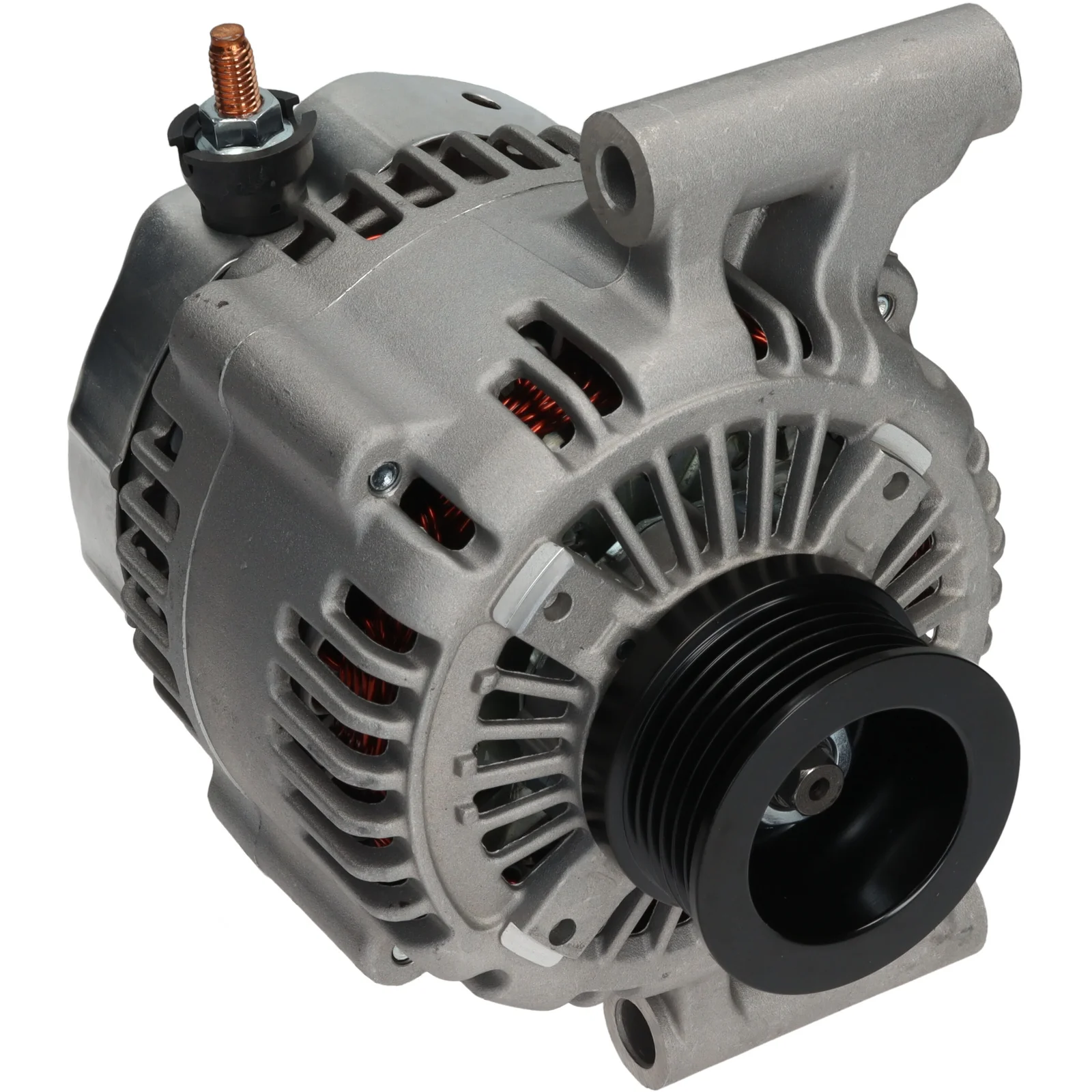

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032115956

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 120, Rotation: CW, Monteringsbeslag afstand: 74.50

Beskrivelse

Spænding: 14
Amp: 120
Drevskive dist.: 41.50
Bredde/holderarm: 73.00
Monteringsbeslag dist.: 74.50
Beslagshul: 10.50x11.50
Beslagshul 2: 12.20
Remjusteringsbeslag hulestilling: 60
Remjusteringsbeslag hulestilling 1: 10.20
Drevskive dia.: 58.00
Riller/drevskive: 6
Radius: 87.50
Radius 2: 87.50
B+: M8
Position/B+ i min.: 4
D+ Størrelse: Stikkontakt
Rotation: U-R
Stik nr.: PL60
Samlet længde mm: 178.00
Drevskive: SP
Regulator type: IR

Filer

Specifikation

B+ M8
Mount. bracket dist. 74.50
Belt. adj. bracket hole 1 10.20
Belt. adj. brackethole pos. 60
Plug no. PL60
Bracket hole 10.50x11.50
Bracket hole 2 12.20
Position/B+ in min. 4
Pulley SP
Pulley dia. 58.00
Pulley dist. 41.50
Radius 87.50
D+ Size Plug
Radius 2 87.50
Regulator type IR
Rotation CW
Grooves/pulley 6
Voltage 14
Total length 178.00 mm
Width/holder arm 73.00
Amp 120

  • OEM
    F032115956, xr837164, 2R8310300AA, 2R8310300AB, 102211-0980, 102211-0981

  • Konkurrentreferens
    A6360, CAL40221, DAN1408, DRA0987, LRA03520, 8EL015637-631, 28-6630, 214.174.1202, 595.535.120, 595.535.150, 11199N, 11199R, 12090680

  • NormaliseratArtNr
    a6360, cal40221, dan1408, dra0987, f032115956, lra03520, xr837164, 2r8310300aa, 2r8310300ab, 8el015637631, 11199n, 11199r, 286630, 12090680, 595535120, 595535150, 1022110980, 1022110981, 2141741202

  • Passar modeller
    Jaguar Model: S-Type Model series: S-Type Size of motor: 3.0 Brand of engine: XR8 Type description: X200 Body: Saloon From date: 01-09-1999 To date: 01-12-2002 Fuel: Petrol Approved: Yes
    Jaguar Model: S-Type Model series: S-Type Size of motor: 3.0 Brand of engine: XR8 Type description: X200 Body: Saloon From date: 01-09-2006 To date: 01-12-2007 Fuel: Petrol Approved: Yes
    Jaguar Model: S-type Model series: S-type Type of engine: V6 Size of motor: 2.5 Brand of engine: JB Type description: CCX From date: 01-04-2002 To date: 01-10-2007 Fuel: Gasoline Approved: Yes
    Jaguar Model: S-type Model series: S-type Type of engine: V6 Size of motor: 3.0 Brand of engine: AJ-V6 From date: 01-01-1999 To date: 01-10-2007 Fuel: Gasoline Approved: Yes
    Jaguar Model: S-type Model series: S-type Type of engine: V6 Size of motor: 3.0 Brand of engine: FB From date: 01-01-1999 To date: 01-10-2007 Fuel: Gasoline Approved: Yes
    Jaguar Model: XJ Model series: XJ 6 Size of motor: 3.0 Brand of engine: AJ-V6 From date: 01-05-2003 To date: 01-03-2009 Fuel: Gasoline Approved: Yes
    1 / 2
  • Beskrivelse
    Spænding: 14
    Amp: 120
    Drevskive dist.: 41.50
    Bredde/holderarm: 73.00
    Monteringsbeslag dist.: 74.50
    Beslagshul: 10.50x11.50
    Beslagshul 2: 12.20
    Remjusteringsbeslag hulestilling: 60
    Remjusteringsbeslag hulestilling 1: 10.20
    Drevskive dia.: 58.00
    Riller/drevskive: 6
    Radius: 87.50
    Radius 2: 87.50
    B+: M8
    Position/B+ i min.: 4
    D+ Størrelse: Stikkontakt
    Rotation: U-R
    Stik nr.: PL60
    Samlet længde mm: 178.00
    Drevskive: SP
    Regulator type: IR

    Filer

  • Specifikation
    B+ M8
    Mount. bracket dist. 74.50
    Belt. adj. bracket hole 1 10.20
    Belt. adj. brackethole pos. 60
    Plug no. PL60
    Bracket hole 10.50x11.50
    Bracket hole 2 12.20
    Position/B+ in min. 4
    Pulley SP
    Pulley dia. 58.00
    Pulley dist. 41.50
    Radius 87.50
    D+ Size Plug
    Radius 2 87.50
    Regulator type IR
    Rotation CW
    Grooves/pulley 6
    Voltage 14
    Total length 178.00 mm
    Width/holder arm 73.00
    Amp 120
  • Køretøjsmatchning

    • OEM
      F032115956, xr837164, 2R8310300AA, 2R8310300AB, 102211-0980, 102211-0981

    • Konkurrentreferens
      A6360, CAL40221, DAN1408, DRA0987, LRA03520, 8EL015637-631, 28-6630, 214.174.1202, 595.535.120, 595.535.150, 11199N, 11199R, 12090680

    • NormaliseratArtNr
      a6360, cal40221, dan1408, dra0987, f032115956, lra03520, xr837164, 2r8310300aa, 2r8310300ab, 8el015637631, 11199n, 11199r, 286630, 12090680, 595535120, 595535150, 1022110980, 1022110981, 2141741202

    • Passar modeller
      Jaguar Model: S-Type Model series: S-Type Size of motor: 3.0 Brand of engine: XR8 Type description: X200 Body: Saloon From date: 01-09-1999 To date: 01-12-2002 Fuel: Petrol Approved: Yes
      Jaguar Model: S-Type Model series: S-Type Size of motor: 3.0 Brand of engine: XR8 Type description: X200 Body: Saloon From date: 01-09-2006 To date: 01-12-2007 Fuel: Petrol Approved: Yes
      Jaguar Model: S-type Model series: S-type Type of engine: V6 Size of motor: 2.5 Brand of engine: JB Type description: CCX From date: 01-04-2002 To date: 01-10-2007 Fuel: Gasoline Approved: Yes
      Jaguar Model: S-type Model series: S-type Type of engine: V6 Size of motor: 3.0 Brand of engine: AJ-V6 From date: 01-01-1999 To date: 01-10-2007 Fuel: Gasoline Approved: Yes
      Jaguar Model: S-type Model series: S-type Type of engine: V6 Size of motor: 3.0 Brand of engine: FB From date: 01-01-1999 To date: 01-10-2007 Fuel: Gasoline Approved: Yes
      Jaguar Model: XJ Model series: XJ 6 Size of motor: 3.0 Brand of engine: AJ-V6 From date: 01-05-2003 To date: 01-03-2009 Fuel: Gasoline Approved: Yes
      1 / 2
