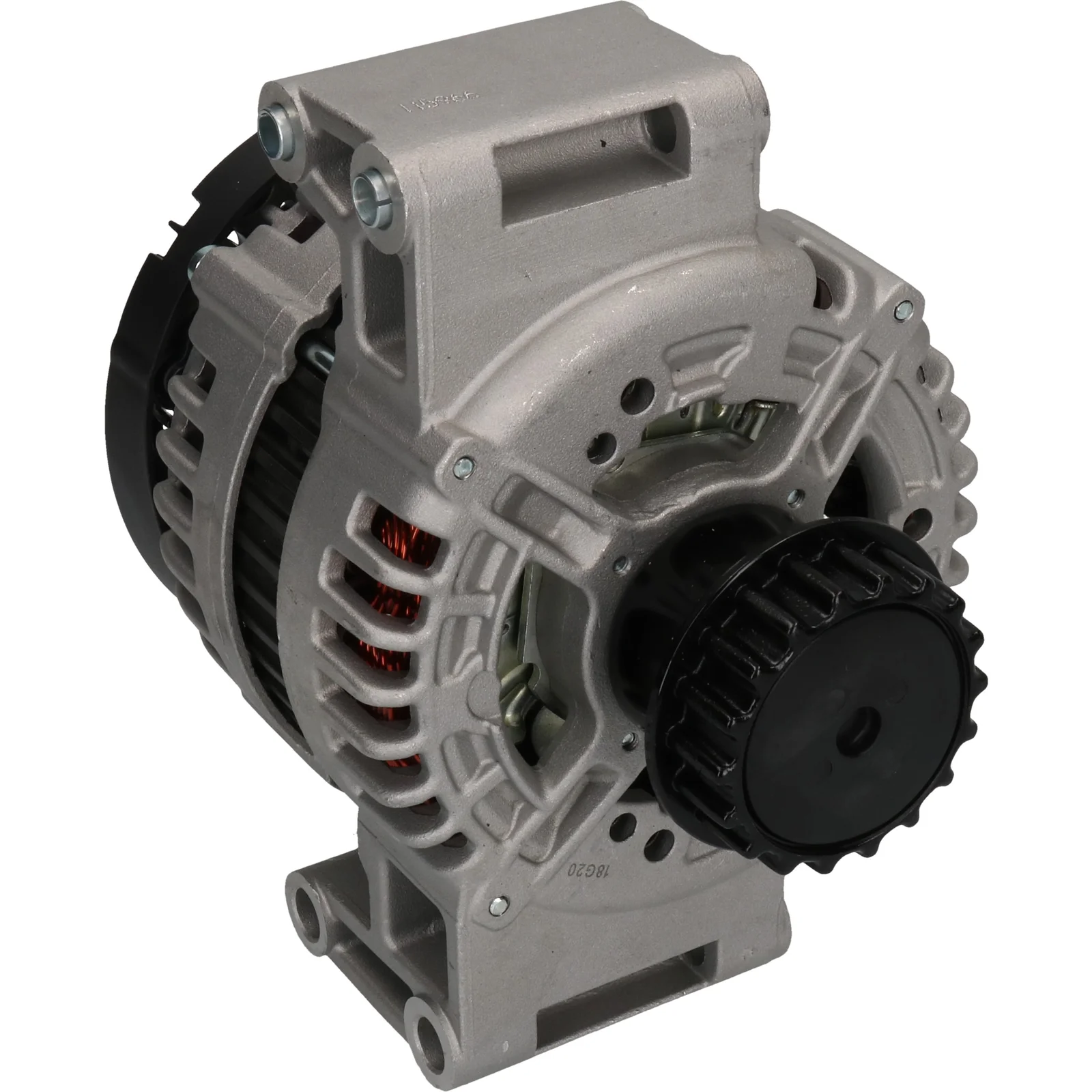

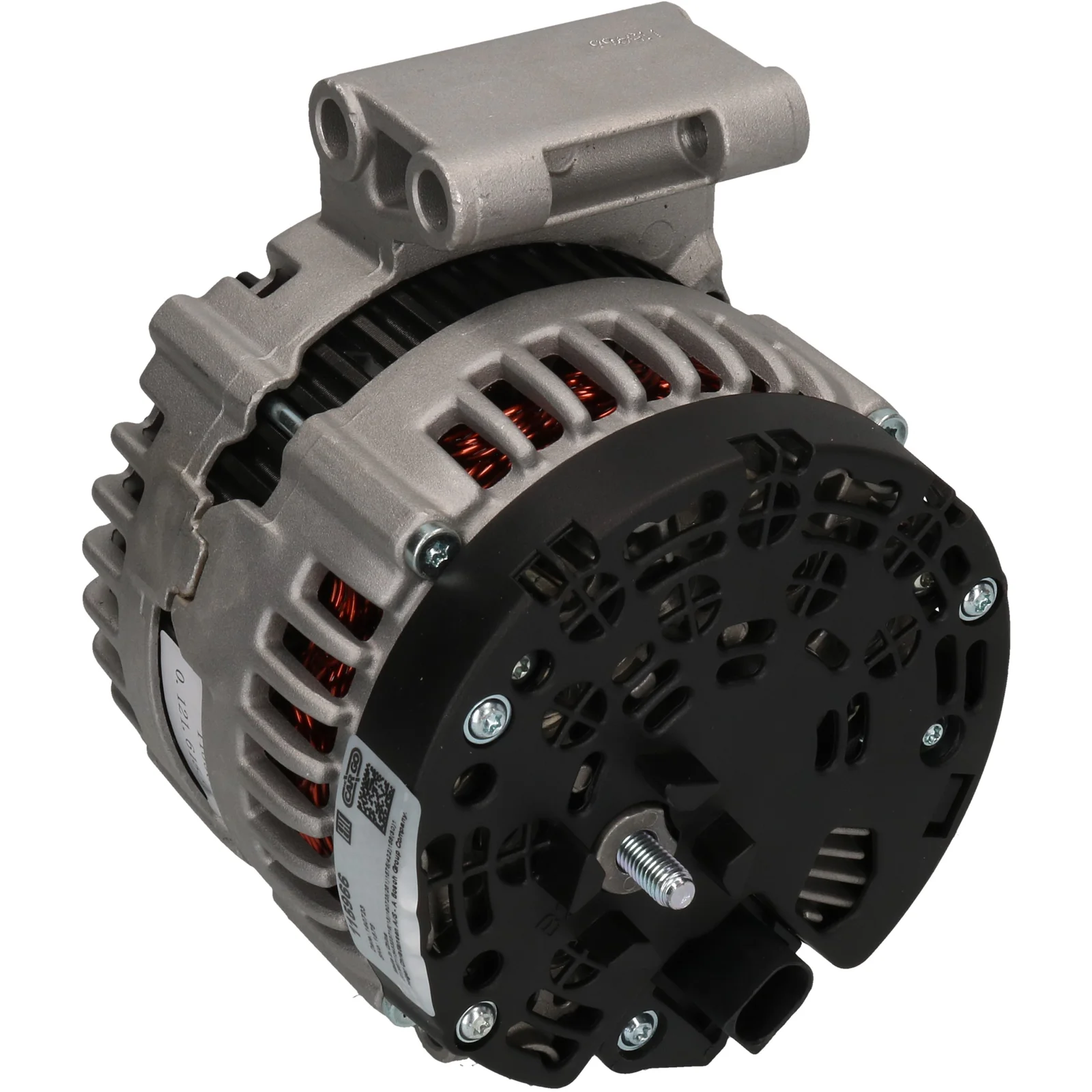

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032115966

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 150, Rotation: CCW, Montering. bøsning afstand: 36.00

Beskrivelse

Spænding: 14
Amp.: 150
Bredde/bøsning arm: 77,00
Mount. tilskudsafstand: 36,00
Bøsning hull: 8,00
Bøsning hull 2: 8,00
Bælte. juster. bøsning pos.: 60
Bælte. juster. bøsning hul 1: 11,00
Radius: 92,50
Radius 2: 87,50
B+: M8
Position/B+ i min.: 15
Rotation: mod uret
Stik nr.: PL174
Samlet længde mm: 170,00
Terminaltype: COM
Kommunikation: LIN
Rullevare: FW
Regulator type: IR
Bemærkninger: Denne Generator har en COM-terminal på regulatoren. Det anbefales at anvende OEM-nummeret til at kontrollere egnethed, inden der bestilles.

Filer

Specifikation

B+ M8
Communication LIN
Mount. bracket dist. 36.00
Belt. adj. bracket hole 1 11.00
Belt. adj. brackethole pos. 60
Plug no. PL174
Bracket hole 8.00
Bracket hole 2 8.00
Position/B+ in min. 15
Pulley FW
Radius 92.50
Radius 2 87.50
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CCW
Terminal type COM
Voltage 14
Total length 170.00 mm
Width/holder arm 77.00
Amp 150

  • OEM
    F00E100025, F032115966, LR002426, 6g9n10300la, 31110082, 36000210, 0121615011, 0121615111

  • Konkurrentreferens
    A0464, A0464(P), CAL10425, DRA0571, 28-6570, 11345N, 11345R, 209378, 209378A, 444317, 12090618, 32615111, 0986086420

  • NormaliseratArtNr
    a0464, a0464p, cal10425, dra0571, f00e100025, f032115966, lr002426, 6g9n10300la, 11345n, 11345r, 209378, 209378a, 286570, 444317, 12090618, 31110082, 32615111, 36000210, 0121615011, 0121615111, 0986086420

  • Passar modeller
    Land Rover Model: Freelander Model series: Freelander Size of motor: 3.2 Brand of engine: B6324S Type description: FA_ From date: 01-10-2006 To date: 01-10-2014 Fuel: Gasoline Approved: Yes
    Volvo Model: S60 Model series: S60 Model type: T5 Size of motor: 2.5 Brand of engine: B5254T5 Type description: 134 Body: Saloon From date: 01-09-2011 To date: 01-12-2015 Fuel: Petrol Approved: Yes
    Volvo Model: S60 Model series: S60 Model type: T6 4x4 Size of motor: 3.0 Brand of engine: B6304T4 From date: 01-04-2010 To date: 01-12-2015 Fuel: Gasoline Approved: Yes
    Volvo Model: S80 Model series: S80 Model type: AWD Size of motor: 3.2 Brand of engine: B6324S5 From date: 01-01-2010 To date: 01-12-2012 Fuel: Gasoline Approved: Yes
    Volvo Model: S80 Model series: S80 Model type: AWD Size of motor: 3.2 Type description: 124 From date: 01-01-2009 To date: 01-03-2010 Fuel: Diesel/Electro Approved: Yes
    Volvo Model: S80 Model series: S80 Model type: T6 AWD Size of motor: 3.0 Brand of engine: B6304T4 From date: 01-10-2010 To date: 01-12-2016 Fuel: Gasoline Approved: Yes
    Volvo Model: S80 Model series: S80 Model type: T6 AWD Type of engine: Turbo Size of motor: 3.0 Brand of engine: B6304T2 From date: 01-01-2007 To date: 01-12-2010 Fuel: Gasoline Approved: Yes
    Volvo Model: S80 Model series: S80 Size of motor: 3.2 Brand of engine: B6324S From date: 01-03-2006 Fuel: Gasoline Approved: Yes
    Volvo Model: S80 Model series: S80 Size of motor: 3.2 Brand of engine: B6324S5 From date: 01-01-2010 Fuel: Gasoline Approved: Yes
    Volvo Model: V60 Model series: V60 Model type: T6 AWD Size of motor: 3.0 Brand of engine: B6304T4 Body: Estate From date: 01-07-2010 To date: 01-12-2015 Fuel: Gasoline Approved: Yes
    Volvo Model: V60 Model series: V60 Model type: T6 Size of motor: 3.0 Brand of engine: B6304T4 Type description: 155 Body: Estate From date: 01-07-2014 To date: 01-04-2015 Fuel: Petrol Approved: Yes
    Volvo Model: V70 Model series: V70 Model type: AWD Size of motor: 3.2 Brand of engine: B6324S5 Body: Estate From date: 01-04-2010 To date: 01-12-2015 Fuel: Gasoline Approved: Yes Manufacture type: Kombi
    Volvo Model: V70 Model series: V70 Model type: T6 AWD Size of motor: 3.0 Brand of engine: B6304T2 Body: Estate From date: 01-08-2007 To date: 01-12-2010 Fuel: Gasoline Approved: Yes
    Volvo Model: V70 Model series: V70 Model type: T6 AWD Size of motor: 3.0 Brand of engine: B6304T4 Body: Estate From date: 01-01-2010 To date: 01-12-2015 Fuel: Gasoline Approved: Yes
    Volvo Model: V70 Model series: V70 Size of motor: 3.2 Brand of engine: B6324S Body: Estate From date: 01-04-2007 To date: 01-12-2010 Fuel: Gasoline Approved: Yes
    Volvo Model: V70 Model series: V70 Size of motor: 3.2 Brand of engine: B6324S Body: Estate From date: 01-08-2007 To date: 01-12-2010 Fuel: Gasoline Approved: Yes
    Volvo Model: V70 Model series: V70 Size of motor: 3.2 Brand of engine: B6324S5 Body: Estate From date: 01-04-2010 To date: 01-12-2014 Fuel: Gasoline Approved: Yes Manufacture type: Kombi
    Volvo Model: XC60 Model series: XC60 Model type: 4x4 Size of motor: 3.2 Brand of engine: B6324S5 Body: Estate From date: 01-03-2010 To date: 01-12-2015 Fuel: Gasoline Approved: Yes
    Volvo Model: XC60 Model series: XC60 Model type: AWD Size of motor: 3.2 Brand of engine: B6324S Body: SUV From date: 01-07-2009 To date: 01-12-2010 Fuel: Gasoline Approved: Yes
    Volvo Model: XC60 Model series: XC60 Model type: T6 4x4 Size of motor: 3.0 Brand of engine: B6304T4 Body: Estate From date: 01-03-2010 To date: 01-02-2017 Fuel: Gasoline Approved: Yes
    Volvo Model: XC60 Model series: XC60 Size of motor: 3.0 Brand of engine: B6304T2 Body: SUV From date: 01-05-2008 To date: 01-12-2010 Fuel: Gasoline Approved: Yes
    Volvo Model: XC60 Model series: XC60 SUV Size of motor: 3.2 Brand of engine: B6324S Type description: 156 Body: SUV From date: 01-09-2009 To date: 01-12-2010 Fuel: Petrol Approved: Yes
    Volvo Model: XC60 Model series: XC60 SUV Size of motor: 3.2 Brand of engine: B6324S4 Type description: 156 Body: SUV From date: 01-09-2011 To date: 01-12-2014 Fuel: Petrol Approved: Yes
    Volvo Model: XC60 Model series: XC60 SUV Size of motor: 3.2 Brand of engine: B6324S5 Type description: 156 Body: SUV From date: 01-09-2011 To date: 01-12-2014 Fuel: Petrol Approved: Yes
    Volvo Model: XC70 Model series: XC70 Model type: AWD Size of motor: 3.0 Brand of engine: B6304T2 Body: SUV From date: 01-01-2008 Fuel: Gasoline Approved: Yes
    Volvo Model: XC70 Model series: XC70 Model type: AWD Size of motor: 3.2 Brand of engine: B6324S Body: SUV From date: 01-08-2007 To date: 01-12-2011 Fuel: Gasoline Approved: Yes
    Volvo Model: XC70 Model series: XC70 Model type: AWD Size of motor: 3.2 Brand of engine: B6324S5 Body: Estate From date: 01-05-2010 Fuel: Gasoline Approved: Yes Manufacture type: Kombi
    Volvo Model: XC70 Model series: XC70 Model type: T6 AWD Size of motor: 2.9 Brand of engine: B6304T4 Type description: 136 Body: Estate From date: 01-11-2013 Fuel: Gasoline Approved: Yes
    Volvo Model: XC70 Model series: XC70 Model type: T6 AWD Size of motor: 3.0 Brand of engine: B6304T4 Body: Estate From date: 01-01-2010 Fuel: Gasoline Approved: Yes Manufacture type: Kombi
    Volvo Model: XC70 Model series: XC70 Size of motor: 3.2 Brand of engine: B6324S5 Body: Estate From date: 01-09-2010 To date: 01-12-2014 Fuel: Gasoline Approved: Yes
    Volvo Model: XC90 Model series: XC90 Size of motor: 3.2 Brand of engine: B6324S Body: SUV From date: 01-03-2006 To date: 01-12-2010 Fuel: Gasoline Approved: Yes
    Volvo Model: XC90 Model series: XC90 Size of motor: 3.2 Brand of engine: B6324S Type description: 275 Body: SUV From date: 01-09-2011 To date: 01-09-2014 Fuel: Petrol Approved: Yes
    Volvo Model: XC90 Model series: XC90 Size of motor: 3.2 Brand of engine: B6324S5 Body: Estate From date: 01-04-2010 To date: 01-12-2012 Fuel: Gasoline Approved: Yes
    Volvo Model: XC90 Model series: XC90 Size of motor: 3.2 Brand of engine: B6324S5 Type description: 275 Body: SUV From date: 01-09-2011 To date: 01-09-2014 Fuel: Petrol Approved: Yes
    1 / 7
  • Beskrivelse
    Spænding: 14
    Amp.: 150
    Bredde/bøsning arm: 77,00
    Mount. tilskudsafstand: 36,00
    Bøsning hull: 8,00
    Bøsning hull 2: 8,00
    Bælte. juster. bøsning pos.: 60
    Bælte. juster. bøsning hul 1: 11,00
    Radius: 92,50
    Radius 2: 87,50
    B+: M8
    Position/B+ i min.: 15
    Rotation: mod uret
    Stik nr.: PL174
    Samlet længde mm: 170,00
    Terminaltype: COM
    Kommunikation: LIN
    Rullevare: FW
    Regulator type: IR
    Bemærkninger: Denne Generator har en COM-terminal på regulatoren. Det anbefales at anvende OEM-nummeret til at kontrollere egnethed, inden der bestilles.

    Filer

  • Specifikation
    B+ M8
    Communication LIN
    Mount. bracket dist. 36.00
    Belt. adj. bracket hole 1 11.00
    Belt. adj. brackethole pos. 60
    Plug no. PL174
    Bracket hole 8.00
    Bracket hole 2 8.00
    Position/B+ in min. 15
    Pulley FW
    Radius 92.50
    Radius 2 87.50
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CCW
    Terminal type COM
    Voltage 14
    Total length 170.00 mm
    Width/holder arm 77.00
    Amp 150
  • Køretøjsmatchning

    • OEM
      F00E100025, F032115966, LR002426, 6g9n10300la, 31110082, 36000210, 0121615011, 0121615111

    • Konkurrentreferens
      A0464, A0464(P), CAL10425, DRA0571, 28-6570, 11345N, 11345R, 209378, 209378A, 444317, 12090618, 32615111, 0986086420

    • NormaliseratArtNr
      a0464, a0464p, cal10425, dra0571, f00e100025, f032115966, lr002426, 6g9n10300la, 11345n, 11345r, 209378, 209378a, 286570, 444317, 12090618, 31110082, 32615111, 36000210, 0121615011, 0121615111, 0986086420

    • Passar modeller
      Land Rover Model: Freelander Model series: Freelander Size of motor: 3.2 Brand of engine: B6324S Type description: FA_ From date: 01-10-2006 To date: 01-10-2014 Fuel: Gasoline Approved: Yes
      Volvo Model: S60 Model series: S60 Model type: T5 Size of motor: 2.5 Brand of engine: B5254T5 Type description: 134 Body: Saloon From date: 01-09-2011 To date: 01-12-2015 Fuel: Petrol Approved: Yes
      Volvo Model: S60 Model series: S60 Model type: T6 4x4 Size of motor: 3.0 Brand of engine: B6304T4 From date: 01-04-2010 To date: 01-12-2015 Fuel: Gasoline Approved: Yes
      Volvo Model: S80 Model series: S80 Model type: AWD Size of motor: 3.2 Brand of engine: B6324S5 From date: 01-01-2010 To date: 01-12-2012 Fuel: Gasoline Approved: Yes
      Volvo Model: S80 Model series: S80 Model type: AWD Size of motor: 3.2 Type description: 124 From date: 01-01-2009 To date: 01-03-2010 Fuel: Diesel/Electro Approved: Yes
      Volvo Model: S80 Model series: S80 Model type: T6 AWD Size of motor: 3.0 Brand of engine: B6304T4 From date: 01-10-2010 To date: 01-12-2016 Fuel: Gasoline Approved: Yes
      Volvo Model: S80 Model series: S80 Model type: T6 AWD Type of engine: Turbo Size of motor: 3.0 Brand of engine: B6304T2 From date: 01-01-2007 To date: 01-12-2010 Fuel: Gasoline Approved: Yes
      Volvo Model: S80 Model series: S80 Size of motor: 3.2 Brand of engine: B6324S From date: 01-03-2006 Fuel: Gasoline Approved: Yes
      Volvo Model: S80 Model series: S80 Size of motor: 3.2 Brand of engine: B6324S5 From date: 01-01-2010 Fuel: Gasoline Approved: Yes
      Volvo Model: V60 Model series: V60 Model type: T6 AWD Size of motor: 3.0 Brand of engine: B6304T4 Body: Estate From date: 01-07-2010 To date: 01-12-2015 Fuel: Gasoline Approved: Yes
      Volvo Model: V60 Model series: V60 Model type: T6 Size of motor: 3.0 Brand of engine: B6304T4 Type description: 155 Body: Estate From date: 01-07-2014 To date: 01-04-2015 Fuel: Petrol Approved: Yes
      Volvo Model: V70 Model series: V70 Model type: AWD Size of motor: 3.2 Brand of engine: B6324S5 Body: Estate From date: 01-04-2010 To date: 01-12-2015 Fuel: Gasoline Approved: Yes Manufacture type: Kombi
      Volvo Model: V70 Model series: V70 Model type: T6 AWD Size of motor: 3.0 Brand of engine: B6304T2 Body: Estate From date: 01-08-2007 To date: 01-12-2010 Fuel: Gasoline Approved: Yes
      Volvo Model: V70 Model series: V70 Model type: T6 AWD Size of motor: 3.0 Brand of engine: B6304T4 Body: Estate From date: 01-01-2010 To date: 01-12-2015 Fuel: Gasoline Approved: Yes
      Volvo Model: V70 Model series: V70 Size of motor: 3.2 Brand of engine: B6324S Body: Estate From date: 01-04-2007 To date: 01-12-2010 Fuel: Gasoline Approved: Yes
      Volvo Model: V70 Model series: V70 Size of motor: 3.2 Brand of engine: B6324S Body: Estate From date: 01-08-2007 To date: 01-12-2010 Fuel: Gasoline Approved: Yes
      Volvo Model: V70 Model series: V70 Size of motor: 3.2 Brand of engine: B6324S5 Body: Estate From date: 01-04-2010 To date: 01-12-2014 Fuel: Gasoline Approved: Yes Manufacture type: Kombi
      Volvo Model: XC60 Model series: XC60 Model type: 4x4 Size of motor: 3.2 Brand of engine: B6324S5 Body: Estate From date: 01-03-2010 To date: 01-12-2015 Fuel: Gasoline Approved: Yes
      Volvo Model: XC60 Model series: XC60 Model type: AWD Size of motor: 3.2 Brand of engine: B6324S Body: SUV From date: 01-07-2009 To date: 01-12-2010 Fuel: Gasoline Approved: Yes
      Volvo Model: XC60 Model series: XC60 Model type: T6 4x4 Size of motor: 3.0 Brand of engine: B6304T4 Body: Estate From date: 01-03-2010 To date: 01-02-2017 Fuel: Gasoline Approved: Yes
      Volvo Model: XC60 Model series: XC60 Size of motor: 3.0 Brand of engine: B6304T2 Body: SUV From date: 01-05-2008 To date: 01-12-2010 Fuel: Gasoline Approved: Yes
      Volvo Model: XC60 Model series: XC60 SUV Size of motor: 3.2 Brand of engine: B6324S Type description: 156 Body: SUV From date: 01-09-2009 To date: 01-12-2010 Fuel: Petrol Approved: Yes
      Volvo Model: XC60 Model series: XC60 SUV Size of motor: 3.2 Brand of engine: B6324S4 Type description: 156 Body: SUV From date: 01-09-2011 To date: 01-12-2014 Fuel: Petrol Approved: Yes
      Volvo Model: XC60 Model series: XC60 SUV Size of motor: 3.2 Brand of engine: B6324S5 Type description: 156 Body: SUV From date: 01-09-2011 To date: 01-12-2014 Fuel: Petrol Approved: Yes
      Volvo Model: XC70 Model series: XC70 Model type: AWD Size of motor: 3.0 Brand of engine: B6304T2 Body: SUV From date: 01-01-2008 Fuel: Gasoline Approved: Yes
      Volvo Model: XC70 Model series: XC70 Model type: AWD Size of motor: 3.2 Brand of engine: B6324S Body: SUV From date: 01-08-2007 To date: 01-12-2011 Fuel: Gasoline Approved: Yes
      Volvo Model: XC70 Model series: XC70 Model type: AWD Size of motor: 3.2 Brand of engine: B6324S5 Body: Estate From date: 01-05-2010 Fuel: Gasoline Approved: Yes Manufacture type: Kombi
      Volvo Model: XC70 Model series: XC70 Model type: T6 AWD Size of motor: 2.9 Brand of engine: B6304T4 Type description: 136 Body: Estate From date: 01-11-2013 Fuel: Gasoline Approved: Yes
      Volvo Model: XC70 Model series: XC70 Model type: T6 AWD Size of motor: 3.0 Brand of engine: B6304T4 Body: Estate From date: 01-01-2010 Fuel: Gasoline Approved: Yes Manufacture type: Kombi
      Volvo Model: XC70 Model series: XC70 Size of motor: 3.2 Brand of engine: B6324S5 Body: Estate From date: 01-09-2010 To date: 01-12-2014 Fuel: Gasoline Approved: Yes
      Volvo Model: XC90 Model series: XC90 Size of motor: 3.2 Brand of engine: B6324S Body: SUV From date: 01-03-2006 To date: 01-12-2010 Fuel: Gasoline Approved: Yes
      Volvo Model: XC90 Model series: XC90 Size of motor: 3.2 Brand of engine: B6324S Type description: 275 Body: SUV From date: 01-09-2011 To date: 01-09-2014 Fuel: Petrol Approved: Yes
      Volvo Model: XC90 Model series: XC90 Size of motor: 3.2 Brand of engine: B6324S5 Body: Estate From date: 01-04-2010 To date: 01-12-2012 Fuel: Gasoline Approved: Yes
      Volvo Model: XC90 Model series: XC90 Size of motor: 3.2 Brand of engine: B6324S5 Type description: 275 Body: SUV From date: 01-09-2011 To date: 01-09-2014 Fuel: Petrol Approved: Yes
      1 / 7
