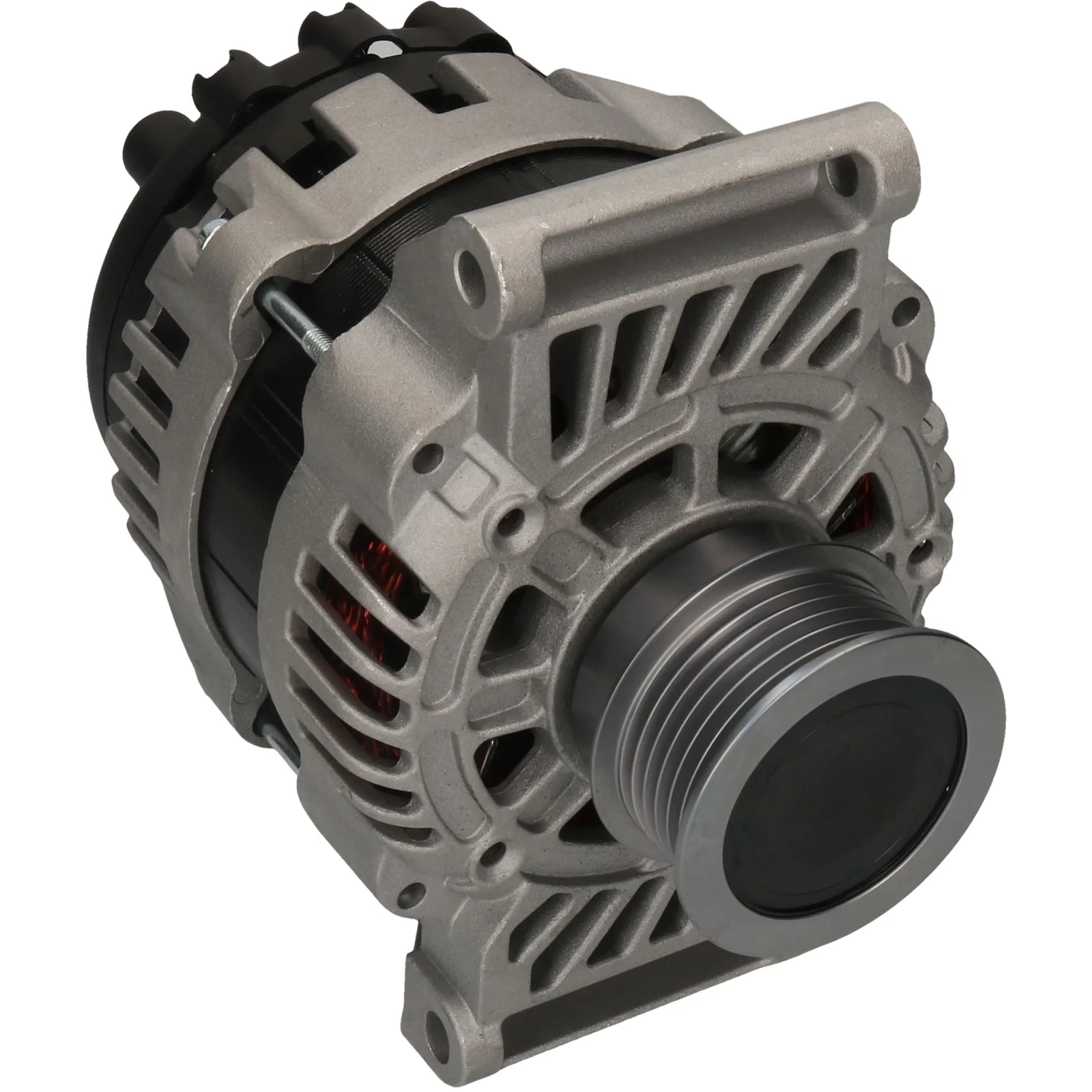

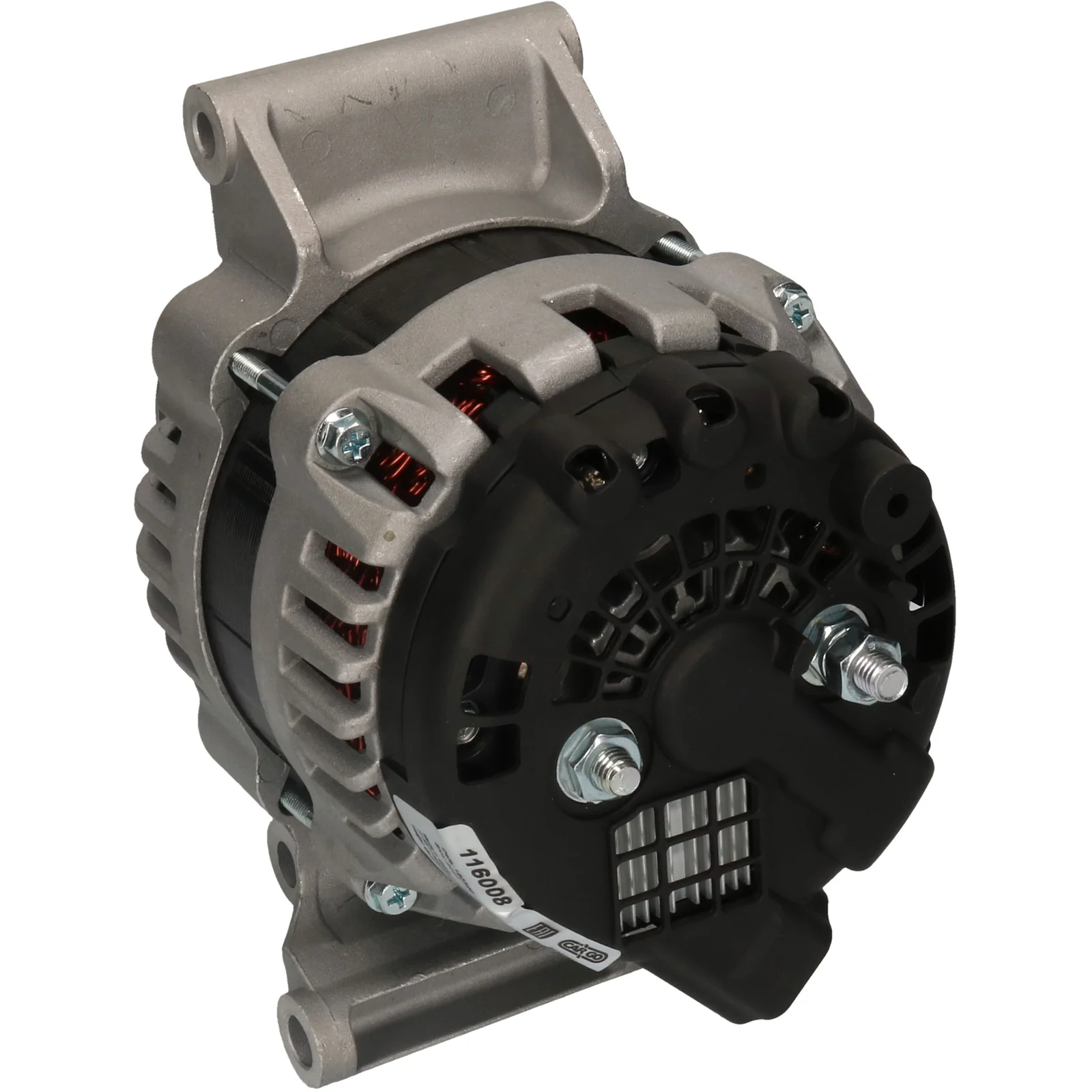

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032116008

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 100, Rotation: CW, Monteringsbeslag forfordeling: 56,00

Beskrivelse

Spænding: 14
Amp.: 100
Skruehjul dist.: 32,00
Bredde/holder arm: 79,00
Monteringsbeslag dist.: 56,00
Beslagshul: 10,20
Bæltejustering beslags hul position: 60
Bæltejustering beslags hul 1: 8,20
Skruehjul diameter: 56,00
Riller/skruehjul: 6
Radius: 81,50
Radius 2: 81,50
B+: M8
Position/B+ i min.: 15
D+ Størrelse: Stik
Rotation: med uret
Stik nr.: PL75
Samlet længde mm: 194,00
Skruehjul: SP/FW

Filer

Specifikation

B+ M8
Mount. bracket dist. 56.00
Belt. adj. bracket hole 1 8.20
Belt. adj. brackethole pos. 60
Plug no. PL75
Bracket hole 10.20
Position/B+ in min. 15
Pulley SP/FW
Pulley dia. 56.00
Pulley dist. 32.00
Radius 81.50
D+ Size Plug
Radius 2 81.50
Rotation CW
Grooves/pulley 6
Voltage 14
Total length 194.00 mm
Width/holder arm 79.00
Amp 100

  • OEM
    F032116008, 1204648, 13500330, 13502592, 13579673

  • Konkurrentreferens
    28-7778, 135.929.100, 228.313.1002, 209245, 209245A

  • NormaliseratArtNr
    f032116008, 209245, 209245a, 287778, 1204648, 13500330, 13502592, 13579673, 135929100, 2283131002

  • Passar modeller
    Opel Model: Insignia Model series: Insignia Model type: 4x4 Sports Tourer Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NFT Body: Estate From date: 01-09-2011 To date: 01-06-2013 Fuel: Gasoline Approved: Yes Manufacture type: Sports Tou
    Opel Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NFT Body: Hatchback From date: 01-07-2011 To date: 01-03-2017 Fuel: Gasoline Approved: Yes
    Opel Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NFT From date: 01-07-2011 To date: 01-03-2017 Fuel: Gasoline Approved: Yes
    Opel Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NHT Body: Estate From date: 01-07-2008 To date: 01-06-2011 Fuel: Gasoline Approved: Yes Manufacture type: SportsTour
    Opel Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NHT Body: Hatchback From date: 01-07-2008 To date: 01-03-2017 Fuel: Gasoline Approved: Yes
    Opel Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NHT From date: 01-07-2008 To date: 01-03-2017 Fuel: Gasoline Approved: Yes
    Opel Model: Insignia Model series: Insignia Model type: Caravan Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NHT Body: Estate From date: 01-07-2008 To date: 01-06-2013 Fuel: Gasoline Approved: Yes Manufacture type: CARAVAN
    Opel Model: Insignia Model series: Insignia Model type: E85 Turbo Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NFT Body: Estate From date: 01-09-2010 To date: 01-11-2011 Fuel: Bi-Fuel Approved: Yes Manufacture type: Sports Tou
    Opel Model: Insignia Model series: Insignia Model type: E85 Turbo Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NFT Body: Hatchback From date: 01-10-2010 To date: 01-03-2017 Fuel: Bi-Fuel Approved: Yes
    Opel Model: Insignia Model series: Insignia Model type: E85 Turbo Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NFT From date: 01-07-2008 To date: 01-03-2017 Fuel: Diesel Approved: Yes
    Opel Model: Insignia Model series: Insignia Model type: E85 Turbo Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NHT Body: Estate From date: 01-09-2010 To date: 01-11-2011 Fuel: Bi-Fuel Approved: Yes Manufacture type: Sports Tou
    Opel Model: Insignia Model series: Insignia Model type: E85 Turbo Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NHT Body: Hatchback From date: 01-10-2010 To date: 01-03-2017 Fuel: Bi-Fuel Approved: Yes
    Opel Model: Insignia Model series: Insignia Sports Tourer Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NHT Body: Estate From date: 01-04-2014 To date: 01-11-2014 Fuel: Gasoline Approved: Yes Manufacture type: Sports Tou
    Opel Model: Insignia Model series: Insignia Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NHT Body: Hatchback From date: 01-04-2014 To date: 01-03-2017 Fuel: Gasoline Approved: Yes
    Opel Model: Insignia Model series: Insignia Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NHT Body: Hatchback From date: 01-07-2008 To date: 01-03-2017 Fuel: Gasoline Approved: Yes
    Opel Model: Insignia Model series: Insignia Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NHT From date: 01-04-2014 To date: 01-03-2017 Fuel: Gasoline Approved: Yes
    Opel Model: Insignia Model series: Insignia Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NHT From date: 01-07-2008 To date: 01-03-2017 Fuel: Gasoline Approved: Yes
    Vauxhall Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NFT From date: 01-09-2011 To date: 01-05-2017 Fuel: Gasoline Approved: Yes
    Vauxhall Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NHT Body: Estate From date: 01-07-2008 To date: 01-05-2017 Fuel: Gasoline Approved: Yes Manufacture type: Estate
    Vauxhall Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NHT Body: Hatchback From date: 01-07-2008 To date: 01-05-2017 Fuel: Gasoline Approved: Yes
    Vauxhall Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NHT From date: 01-07-2008 To date: 01-05-2017 Fuel: Gasoline Approved: Yes
    Vauxhall Model: Insignia Model series: Insignia Sports Tourer Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NFT Body: Estate From date: 01-07-2011 To date: 01-05-2017 Fuel: Gasoline Approved: Yes Manufacture type: Sports Tou
    Vauxhall Model: Insignia Model series: Insignia Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NFT Body: Hatchback From date: 01-07-2011 To date: 01-05-2017 Fuel: Gasoline Approved: Yes
    Vauxhall Model: Insignia Model series: Insignia Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NHT Body: Hatchback From date: 01-07-2008 To date: 01-05-2017 Fuel: Gasoline Approved: Yes
    Vauxhall Model: Insignia Model series: Insignia Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NHT From date: 01-07-2008 To date: 01-05-2017 Fuel: Gasoline Approved: Yes
    1 / 5
  • Beskrivelse
    Spænding: 14
    Amp.: 100
    Skruehjul dist.: 32,00
    Bredde/holder arm: 79,00
    Monteringsbeslag dist.: 56,00
    Beslagshul: 10,20
    Bæltejustering beslags hul position: 60
    Bæltejustering beslags hul 1: 8,20
    Skruehjul diameter: 56,00
    Riller/skruehjul: 6
    Radius: 81,50
    Radius 2: 81,50
    B+: M8
    Position/B+ i min.: 15
    D+ Størrelse: Stik
    Rotation: med uret
    Stik nr.: PL75
    Samlet længde mm: 194,00
    Skruehjul: SP/FW

    Filer

  • Specifikation
    B+ M8
    Mount. bracket dist. 56.00
    Belt. adj. bracket hole 1 8.20
    Belt. adj. brackethole pos. 60
    Plug no. PL75
    Bracket hole 10.20
    Position/B+ in min. 15
    Pulley SP/FW
    Pulley dia. 56.00
    Pulley dist. 32.00
    Radius 81.50
    D+ Size Plug
    Radius 2 81.50
    Rotation CW
    Grooves/pulley 6
    Voltage 14
    Total length 194.00 mm
    Width/holder arm 79.00
    Amp 100
  • Køretøjsmatchning

    • OEM
      F032116008, 1204648, 13500330, 13502592, 13579673

    • Konkurrentreferens
      28-7778, 135.929.100, 228.313.1002, 209245, 209245A

    • NormaliseratArtNr
      f032116008, 209245, 209245a, 287778, 1204648, 13500330, 13502592, 13579673, 135929100, 2283131002

    • Passar modeller
      Opel Model: Insignia Model series: Insignia Model type: 4x4 Sports Tourer Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NFT Body: Estate From date: 01-09-2011 To date: 01-06-2013 Fuel: Gasoline Approved: Yes Manufacture type: Sports Tou
      Opel Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NFT Body: Hatchback From date: 01-07-2011 To date: 01-03-2017 Fuel: Gasoline Approved: Yes
      Opel Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NFT From date: 01-07-2011 To date: 01-03-2017 Fuel: Gasoline Approved: Yes
      Opel Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NHT Body: Estate From date: 01-07-2008 To date: 01-06-2011 Fuel: Gasoline Approved: Yes Manufacture type: SportsTour
      Opel Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NHT Body: Hatchback From date: 01-07-2008 To date: 01-03-2017 Fuel: Gasoline Approved: Yes
      Opel Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NHT From date: 01-07-2008 To date: 01-03-2017 Fuel: Gasoline Approved: Yes
      Opel Model: Insignia Model series: Insignia Model type: Caravan Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NHT Body: Estate From date: 01-07-2008 To date: 01-06-2013 Fuel: Gasoline Approved: Yes Manufacture type: CARAVAN
      Opel Model: Insignia Model series: Insignia Model type: E85 Turbo Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NFT Body: Estate From date: 01-09-2010 To date: 01-11-2011 Fuel: Bi-Fuel Approved: Yes Manufacture type: Sports Tou
      Opel Model: Insignia Model series: Insignia Model type: E85 Turbo Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NFT Body: Hatchback From date: 01-10-2010 To date: 01-03-2017 Fuel: Bi-Fuel Approved: Yes
      Opel Model: Insignia Model series: Insignia Model type: E85 Turbo Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NFT From date: 01-07-2008 To date: 01-03-2017 Fuel: Diesel Approved: Yes
      Opel Model: Insignia Model series: Insignia Model type: E85 Turbo Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NHT Body: Estate From date: 01-09-2010 To date: 01-11-2011 Fuel: Bi-Fuel Approved: Yes Manufacture type: Sports Tou
      Opel Model: Insignia Model series: Insignia Model type: E85 Turbo Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NHT Body: Hatchback From date: 01-10-2010 To date: 01-03-2017 Fuel: Bi-Fuel Approved: Yes
      Opel Model: Insignia Model series: Insignia Sports Tourer Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NHT Body: Estate From date: 01-04-2014 To date: 01-11-2014 Fuel: Gasoline Approved: Yes Manufacture type: Sports Tou
      Opel Model: Insignia Model series: Insignia Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NHT Body: Hatchback From date: 01-04-2014 To date: 01-03-2017 Fuel: Gasoline Approved: Yes
      Opel Model: Insignia Model series: Insignia Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NHT Body: Hatchback From date: 01-07-2008 To date: 01-03-2017 Fuel: Gasoline Approved: Yes
      Opel Model: Insignia Model series: Insignia Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NHT From date: 01-04-2014 To date: 01-03-2017 Fuel: Gasoline Approved: Yes
      Opel Model: Insignia Model series: Insignia Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NHT From date: 01-07-2008 To date: 01-03-2017 Fuel: Gasoline Approved: Yes
      Vauxhall Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NFT From date: 01-09-2011 To date: 01-05-2017 Fuel: Gasoline Approved: Yes
      Vauxhall Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NHT Body: Estate From date: 01-07-2008 To date: 01-05-2017 Fuel: Gasoline Approved: Yes Manufacture type: Estate
      Vauxhall Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NHT Body: Hatchback From date: 01-07-2008 To date: 01-05-2017 Fuel: Gasoline Approved: Yes
      Vauxhall Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NHT From date: 01-07-2008 To date: 01-05-2017 Fuel: Gasoline Approved: Yes
      Vauxhall Model: Insignia Model series: Insignia Sports Tourer Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NFT Body: Estate From date: 01-07-2011 To date: 01-05-2017 Fuel: Gasoline Approved: Yes Manufacture type: Sports Tou
      Vauxhall Model: Insignia Model series: Insignia Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NFT Body: Hatchback From date: 01-07-2011 To date: 01-05-2017 Fuel: Gasoline Approved: Yes
      Vauxhall Model: Insignia Model series: Insignia Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NHT Body: Hatchback From date: 01-07-2008 To date: 01-05-2017 Fuel: Gasoline Approved: Yes
      Vauxhall Model: Insignia Model series: Insignia Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NHT From date: 01-07-2008 To date: 01-05-2017 Fuel: Gasoline Approved: Yes
