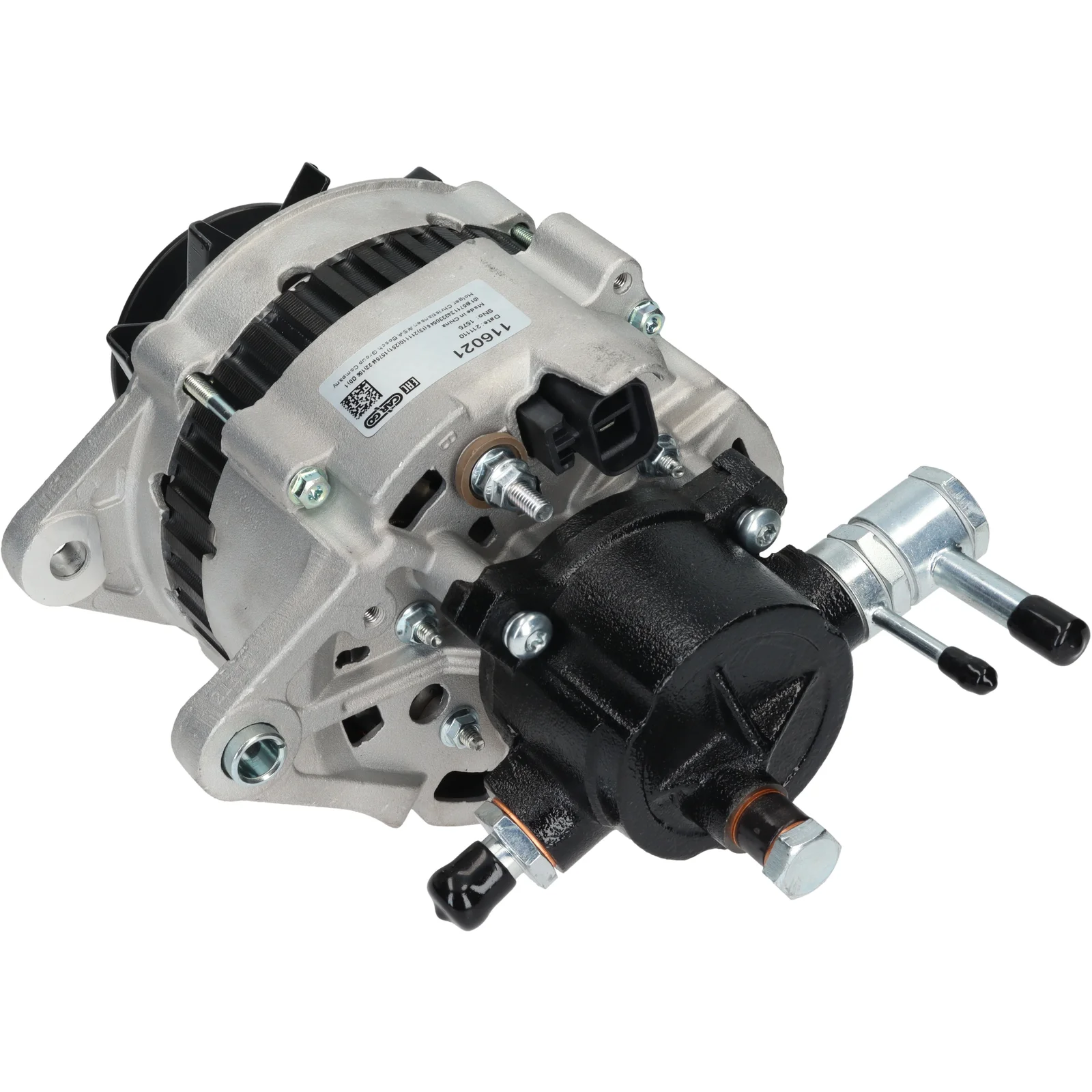

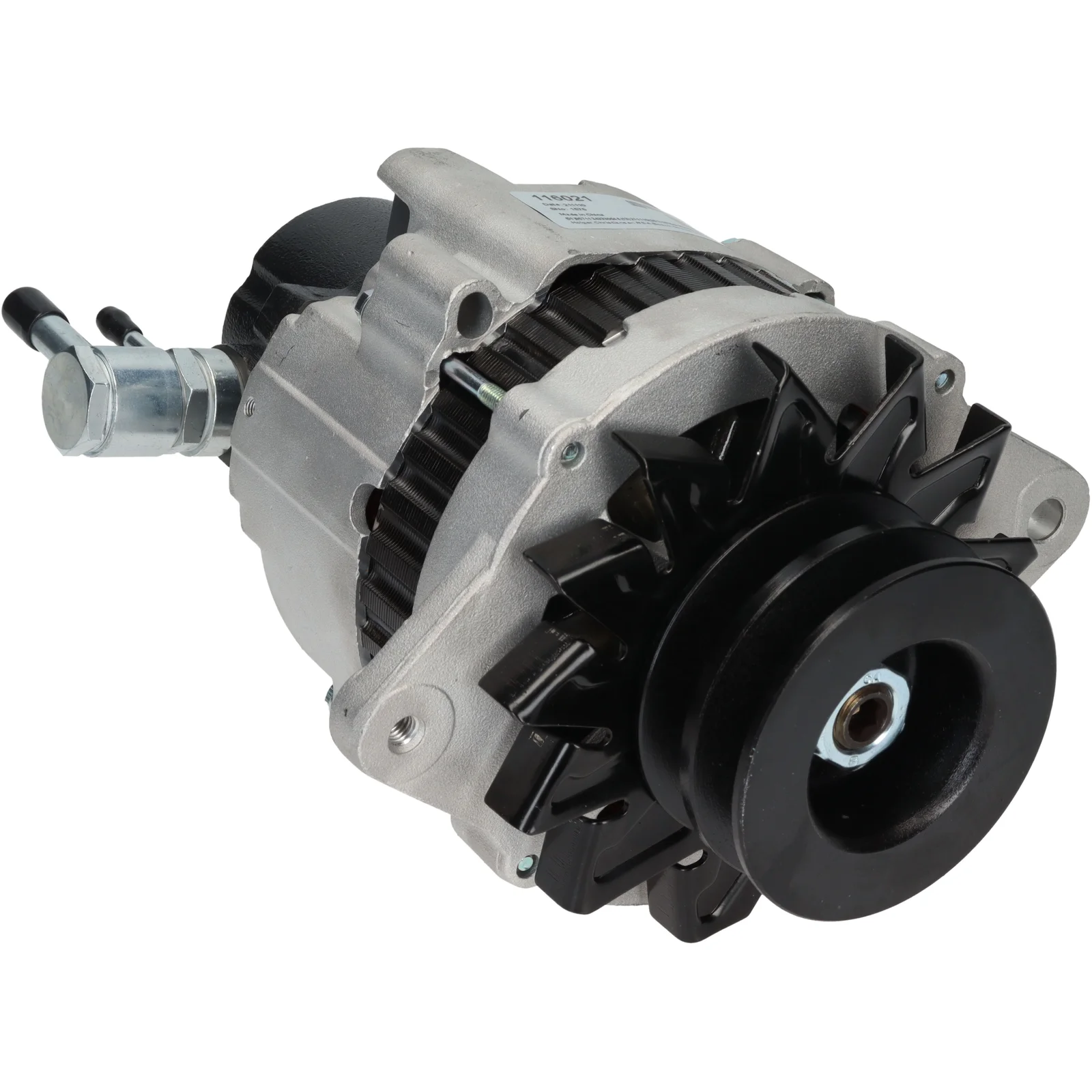

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032116021

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 90, Rotation: med uret, Monteringsbeslag for fordeling: 79.50

Beskrivelse

Spænding: 14
Ampere: 90
Drevskive dist.: 42,50
Bredde/holder arm: 13,00
Monteringsbeslag dist.: 79,50
Beslagshul: 10,50
Bæltejusteringsbeslag hul position.: 60
Bæltejusteringsbeslag hul 1: M8
Drevskive dia.: 84,00
Riller/drevskive: 2
Radius: 90,00
Radius 2: 85,00
B+: M6
Position/B+ i min.: 44
D+ Størrelse: Stik
Rotation: med uret
Stik nr.: PL07
Samlet længde mm: 260,00
Lystype: Inaktiv
Drevskive: DP
Vifte: EF
Regulator type: IR
Vakuumpumpe: Ja

Filer

Specifikation

B+ M6
Mount. bracket dist. 79.50
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 60
Plug no. PL07
Bracket hole 10.50
Position/B+ in min. 44
Pulley DP
Pulley dia. 84.00
Pulley dist. 42.50
Radius 90.00
D+ Size Plug
Radius 2 85.00
Regulator type IR
Rotation CW
Fan EF
Grooves/pulley 2
Lamp type Inactive
Vac. pump Yes
Voltage 14
Total length 260.00 mm
Width/holder arm 13.00
Amp 90

  • OEM
    F032116021, lr190-511, lr190-511b, 23100-86n00, 23100-86n01

  • Konkurrentreferens
    12060282

  • NormaliseratArtNr
    f032116021, lr190511, lr190511b, 2310086n00, 2310086n01, 12060282

  • Passar modeller
    Nissan Model: Terrano Model series: Terrano Model type: 4x4 Size of motor: 3.0 Brand of engine: VG30I Type description: WD21 From date: 01-07-1986 To date: 01-08-1989 Fuel: Gasoline Approved: Yes
    Nissan Model: Terrano Model series: Terrano Size of motor: 2.4 Brand of engine: Z24i Type description: WD21 From date: 01-07-1986 To date: 01-10-1995 Fuel: Gasoline Approved: Yes
    Nissan Model: Terrano Model series: Terrano Type of engine: i Size of motor: 2.4 Brand of engine: Z24i Type description: WD21 From date: 01-10-1987 To date: 01-02-1993 Fuel: Gasoline Approved: Yes
    Nissan Model: Terrano Model series: Terrano Type of engine: i Size of motor: 3.0 Brand of engine: VG30E Type description: WD21 From date: 01-01-1990 To date: 01-12-1995 Fuel: Gasoline Approved: Yes
    Nissan Model: Terrano Model series: Terrano Type of engine: TD Size of motor: 2.7 Brand of engine: TD27T Type description: WD21 From date: 01-02-1989 To date: 01-02-1996 Fuel: Diesel Approved: Yes
  • Beskrivelse
    Spænding: 14
    Ampere: 90
    Drevskive dist.: 42,50
    Bredde/holder arm: 13,00
    Monteringsbeslag dist.: 79,50
    Beslagshul: 10,50
    Bæltejusteringsbeslag hul position.: 60
    Bæltejusteringsbeslag hul 1: M8
    Drevskive dia.: 84,00
    Riller/drevskive: 2
    Radius: 90,00
    Radius 2: 85,00
    B+: M6
    Position/B+ i min.: 44
    D+ Størrelse: Stik
    Rotation: med uret
    Stik nr.: PL07
    Samlet længde mm: 260,00
    Lystype: Inaktiv
    Drevskive: DP
    Vifte: EF
    Regulator type: IR
    Vakuumpumpe: Ja

    Filer

  • Specifikation
    B+ M6
    Mount. bracket dist. 79.50
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 60
    Plug no. PL07
    Bracket hole 10.50
    Position/B+ in min. 44
    Pulley DP
    Pulley dia. 84.00
    Pulley dist. 42.50
    Radius 90.00
    D+ Size Plug
    Radius 2 85.00
    Regulator type IR
    Rotation CW
    Fan EF
    Grooves/pulley 2
    Lamp type Inactive
    Vac. pump Yes
    Voltage 14
    Total length 260.00 mm
    Width/holder arm 13.00
    Amp 90
  • Køretøjsmatchning

    • OEM
      F032116021, lr190-511, lr190-511b, 23100-86n00, 23100-86n01

    • Konkurrentreferens
      12060282

    • NormaliseratArtNr
      f032116021, lr190511, lr190511b, 2310086n00, 2310086n01, 12060282

    • Passar modeller
      Nissan Model: Terrano Model series: Terrano Model type: 4x4 Size of motor: 3.0 Brand of engine: VG30I Type description: WD21 From date: 01-07-1986 To date: 01-08-1989 Fuel: Gasoline Approved: Yes
      Nissan Model: Terrano Model series: Terrano Size of motor: 2.4 Brand of engine: Z24i Type description: WD21 From date: 01-07-1986 To date: 01-10-1995 Fuel: Gasoline Approved: Yes
      Nissan Model: Terrano Model series: Terrano Type of engine: i Size of motor: 2.4 Brand of engine: Z24i Type description: WD21 From date: 01-10-1987 To date: 01-02-1993 Fuel: Gasoline Approved: Yes
      Nissan Model: Terrano Model series: Terrano Type of engine: i Size of motor: 3.0 Brand of engine: VG30E Type description: WD21 From date: 01-01-1990 To date: 01-12-1995 Fuel: Gasoline Approved: Yes
      Nissan Model: Terrano Model series: Terrano Type of engine: TD Size of motor: 2.7 Brand of engine: TD27T Type description: WD21 From date: 01-02-1989 To date: 01-02-1996 Fuel: Diesel Approved: Yes
