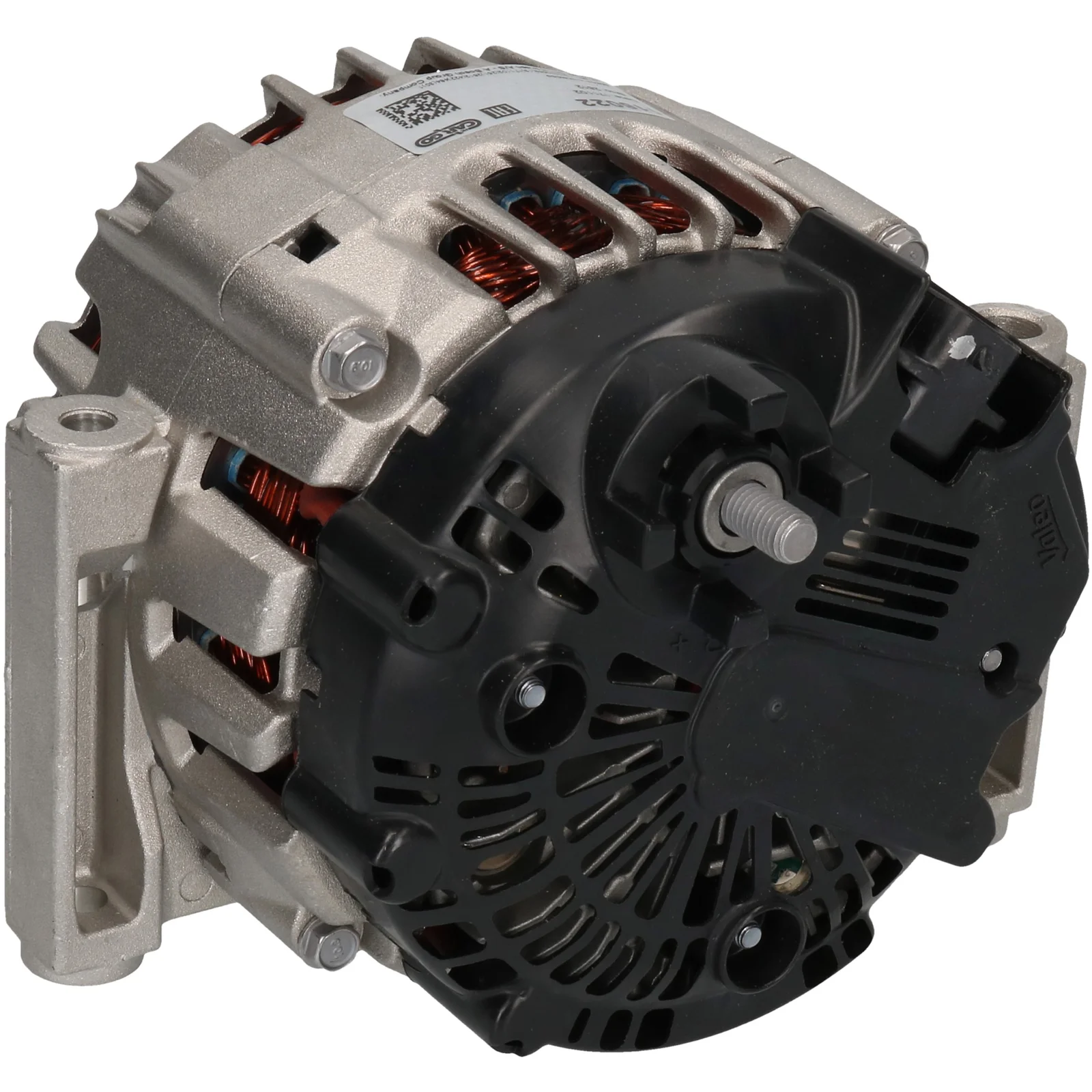

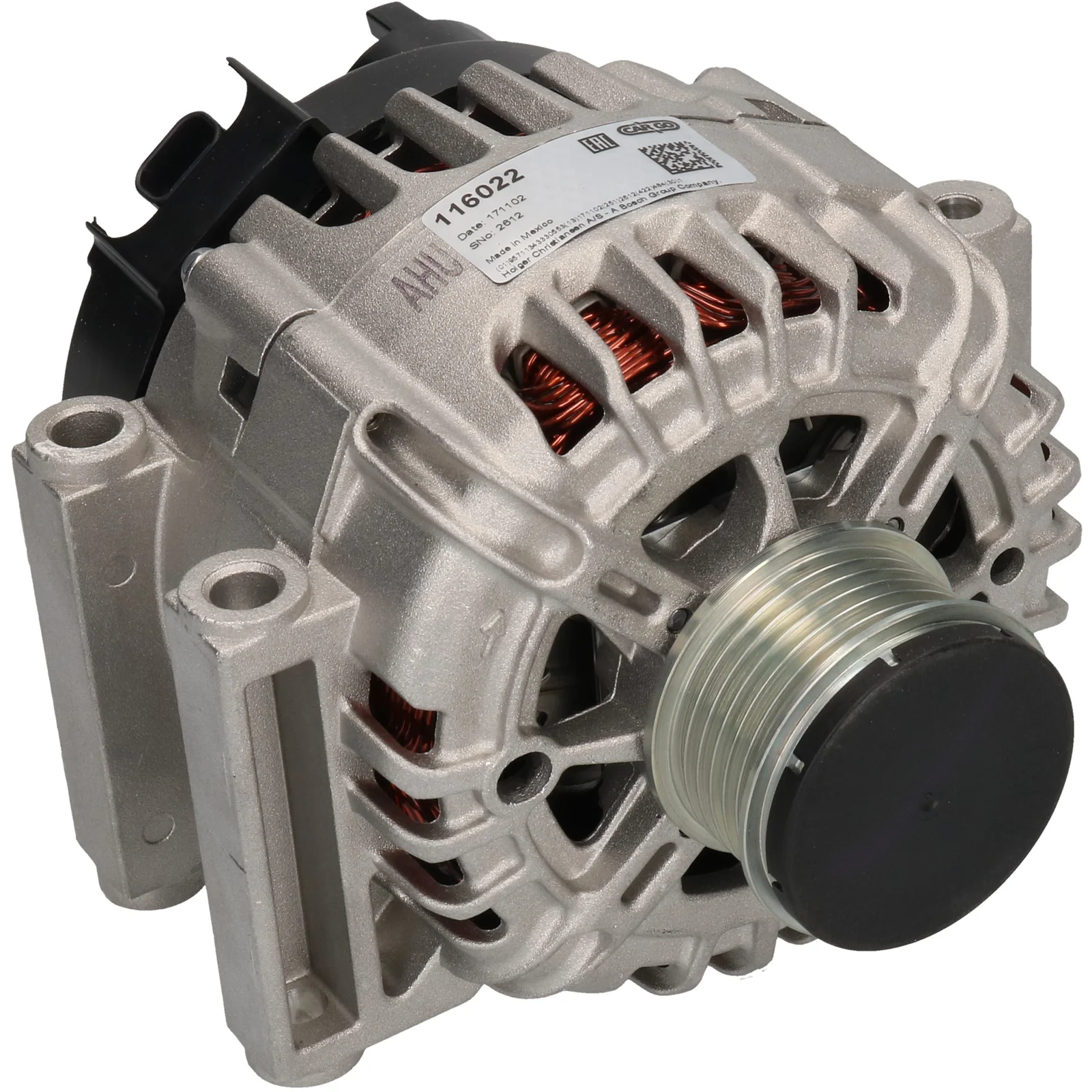

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032116022

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 140, Rotation: CW, Monteringsbøjle afstand: 55.00

Beskrivelse

Spænding: 14
Amp: 140
Remskive fordeling.: 41.50
Bredde/beslag arm: 95.00
Monteringsbeslag afstand.: 55.00
Beslagshul: 10.50
Beslagshul 2: 8.00x9.30
Bælte. justering beslag hul 1: 8.00
Remskive dia.: 53.50
Riller/remskive: 6
Radius: 76.00
Radius 2: 80.00
B+: M8
Position/B+ i min.: 12
D+ Størrelse: Stik
Rotation: CW
Stik nr.: PL180
Total længde mm: 189.00
Terminaltype: L-F
Kommunikation: PWM
Remskive: SP/FW
Regulator type: IR
Bemærkninger: Denne generator har en PWM-terminal på regulatoren. Det anbefales at bruge OEM-nummeret til at kontrollere egnethed, inden bestilling.

Filer

Specifikation

B+ M8
Communication PWM
Mount. bracket dist. 55.00
Belt. adj. bracket hole 1 8.00
Plug no. PL180
Bracket hole 10.50
Bracket hole 2 8.00x9.30
Position/B+ in min. 12
Pulley SP/FW
Pulley dia. 53.50
Pulley dist. 41.50
Radius 76.00
D+ Size Plug
Radius 2 80.00
Regulator type IR
Remarks This Alternator has a PWM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Grooves/pulley 6
Terminal type L-F
Voltage 14
Total length 189.00 mm
Width/holder arm 95.00
Amp 140

  • OEM
    F032116022, TG12C105, TG12C193, 1202219, 1202341, 2610570, 2610570a, 2620379, 2620379a, 13505392, 13512755, 13588308, 95515971

  • Konkurrentreferens
    A3347PR, A3347S, CAL15009, DRA1542, 28-7540, 135.586.140, 228.305.1402, 24099-OS, 209241, 209241A, 439761, 440353, 554186RI, 849240, 12090641

  • NormaliseratArtNr
    a3347pr, a3347s, cal15009, dra1542, f032116022, tg12c105, tg12c193, 24099os, 209241, 209241a, 287540, 439761, 440353, 554186ri, 849240, 1202219, 1202341, 2610570, 2610570a, 2620379, 2620379a, 12090641, 13505392, 13512755, 13588308, 95515971, 135586140, 2283051402

  • Passar modeller
    Chevrolet Model: Aveo Model series: Aveo Type of engine: Diesel Size of motor: 1.3 Brand of engine: LDV Type description: T300 Body: Hatchback From date: 01-07-2011 Fuel: Diesel Approved: Yes
    Chevrolet Model: Aveo Model series: Aveo Type of engine: Diesel Size of motor: 1.3 Brand of engine: LDV Type description: T300 From date: 01-07-2011 Fuel: Diesel Approved: Yes
    Chevrolet Model: Aveo Model series: Aveo Type of engine: Diesel Size of motor: 1.3 Brand of engine: LSF Type description: T300 Body: Hatchback From date: 01-07-2011 Fuel: Diesel Approved: Yes
    Chevrolet Model: Aveo Model series: Aveo Type of engine: Diesel Size of motor: 1.3 Brand of engine: LSF Type description: T300 From date: 01-07-2011 Fuel: Diesel Approved: Yes
    Opel Model: Astra Model series: Astra J Type of engine: CDTi Size of motor: 1.2 Brand of engine: A13DTE Type description: P10 Body: Box Body / Estate From date: 01-10-2012 To date: 01-10-2015 Fuel: Diesel Approved: Yes
    Opel Model: Astra Model series: Astra J Type of engine: CDTi Size of motor: 1.2 Brand of engine: A13DTE Type description: P10 Body: Box Body / Hatchback From date: 01-05-2013 To date: 01-10-2015 Fuel: Diesel Approved: Yes
    Opel Model: Meriva Model series: Meriva B Model type: 75 Type of engine: CDTi Size of motor: 1.2 Brand of engine: A13DTE Type description: S10 Body: Van From date: 01-01-2013 To date: 01-11-2014 Fuel: Diesel Approved: Yes
    1 / 2
  • Beskrivelse
    Spænding: 14
    Amp: 140
    Remskive fordeling.: 41.50
    Bredde/beslag arm: 95.00
    Monteringsbeslag afstand.: 55.00
    Beslagshul: 10.50
    Beslagshul 2: 8.00x9.30
    Bælte. justering beslag hul 1: 8.00
    Remskive dia.: 53.50
    Riller/remskive: 6
    Radius: 76.00
    Radius 2: 80.00
    B+: M8
    Position/B+ i min.: 12
    D+ Størrelse: Stik
    Rotation: CW
    Stik nr.: PL180
    Total længde mm: 189.00
    Terminaltype: L-F
    Kommunikation: PWM
    Remskive: SP/FW
    Regulator type: IR
    Bemærkninger: Denne generator har en PWM-terminal på regulatoren. Det anbefales at bruge OEM-nummeret til at kontrollere egnethed, inden bestilling.

    Filer

  • Specifikation
    B+ M8
    Communication PWM
    Mount. bracket dist. 55.00
    Belt. adj. bracket hole 1 8.00
    Plug no. PL180
    Bracket hole 10.50
    Bracket hole 2 8.00x9.30
    Position/B+ in min. 12
    Pulley SP/FW
    Pulley dia. 53.50
    Pulley dist. 41.50
    Radius 76.00
    D+ Size Plug
    Radius 2 80.00
    Regulator type IR
    Remarks This Alternator has a PWM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Grooves/pulley 6
    Terminal type L-F
    Voltage 14
    Total length 189.00 mm
    Width/holder arm 95.00
    Amp 140
  • Køretøjsmatchning

    • OEM
      F032116022, TG12C105, TG12C193, 1202219, 1202341, 2610570, 2610570a, 2620379, 2620379a, 13505392, 13512755, 13588308, 95515971

    • Konkurrentreferens
      A3347PR, A3347S, CAL15009, DRA1542, 28-7540, 135.586.140, 228.305.1402, 24099-OS, 209241, 209241A, 439761, 440353, 554186RI, 849240, 12090641

    • NormaliseratArtNr
      a3347pr, a3347s, cal15009, dra1542, f032116022, tg12c105, tg12c193, 24099os, 209241, 209241a, 287540, 439761, 440353, 554186ri, 849240, 1202219, 1202341, 2610570, 2610570a, 2620379, 2620379a, 12090641, 13505392, 13512755, 13588308, 95515971, 135586140, 2283051402

    • Passar modeller
      Chevrolet Model: Aveo Model series: Aveo Type of engine: Diesel Size of motor: 1.3 Brand of engine: LDV Type description: T300 Body: Hatchback From date: 01-07-2011 Fuel: Diesel Approved: Yes
      Chevrolet Model: Aveo Model series: Aveo Type of engine: Diesel Size of motor: 1.3 Brand of engine: LDV Type description: T300 From date: 01-07-2011 Fuel: Diesel Approved: Yes
      Chevrolet Model: Aveo Model series: Aveo Type of engine: Diesel Size of motor: 1.3 Brand of engine: LSF Type description: T300 Body: Hatchback From date: 01-07-2011 Fuel: Diesel Approved: Yes
      Chevrolet Model: Aveo Model series: Aveo Type of engine: Diesel Size of motor: 1.3 Brand of engine: LSF Type description: T300 From date: 01-07-2011 Fuel: Diesel Approved: Yes
      Opel Model: Astra Model series: Astra J Type of engine: CDTi Size of motor: 1.2 Brand of engine: A13DTE Type description: P10 Body: Box Body / Estate From date: 01-10-2012 To date: 01-10-2015 Fuel: Diesel Approved: Yes
      Opel Model: Astra Model series: Astra J Type of engine: CDTi Size of motor: 1.2 Brand of engine: A13DTE Type description: P10 Body: Box Body / Hatchback From date: 01-05-2013 To date: 01-10-2015 Fuel: Diesel Approved: Yes
      Opel Model: Meriva Model series: Meriva B Model type: 75 Type of engine: CDTi Size of motor: 1.2 Brand of engine: A13DTE Type description: S10 Body: Van From date: 01-01-2013 To date: 01-11-2014 Fuel: Diesel Approved: Yes
