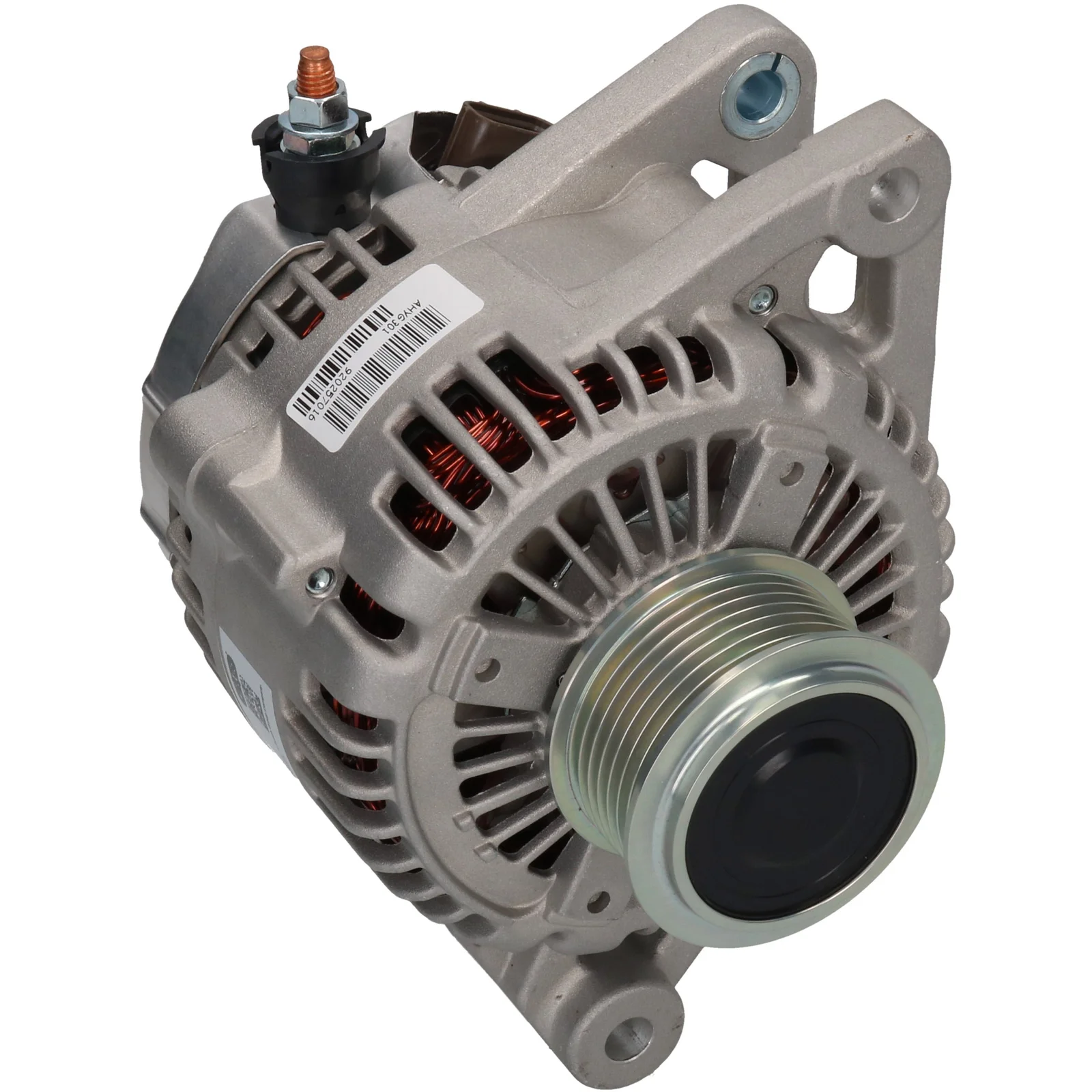

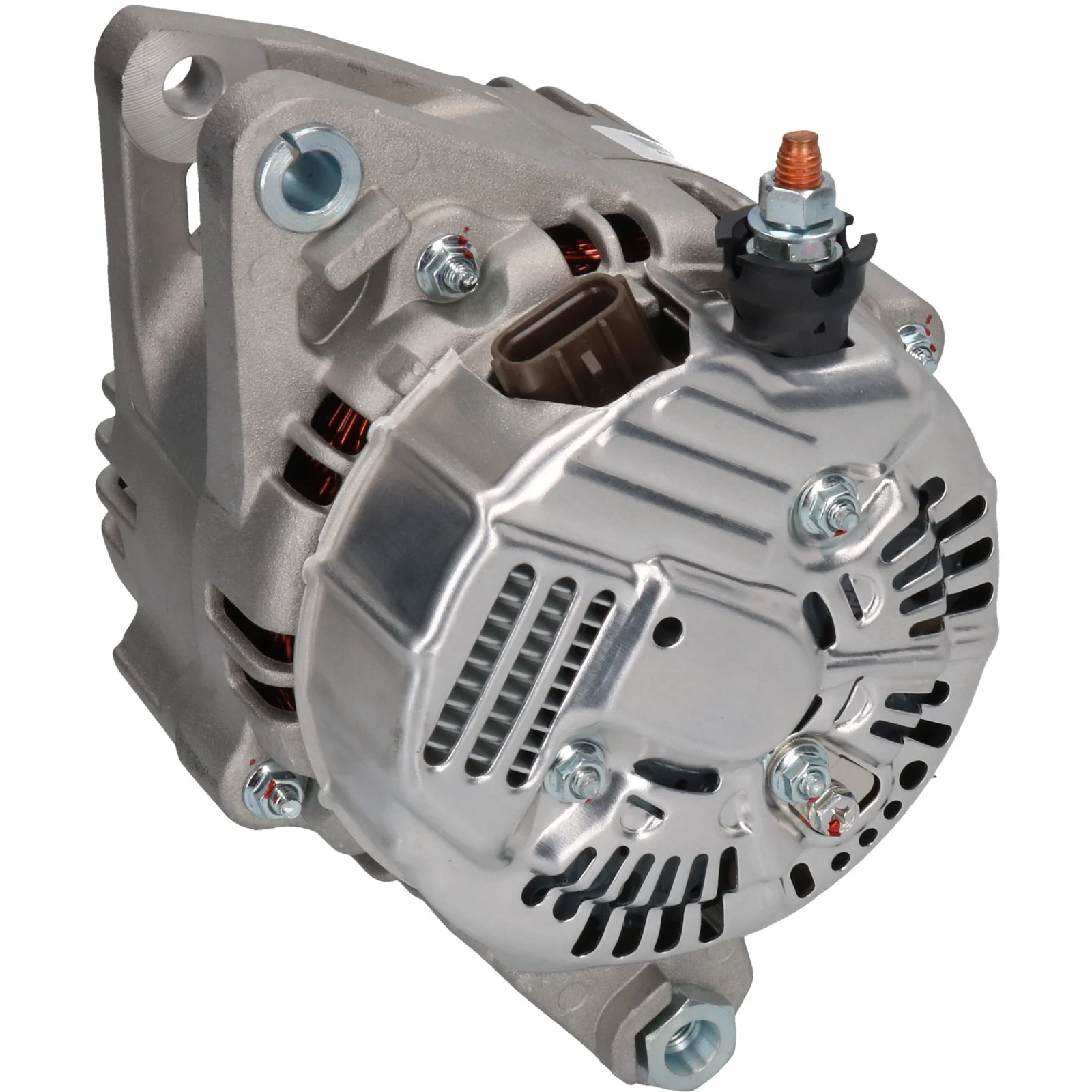

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032116027

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 110, Rotation: CW, Mount. bøjle for fordelerdæksel: 54,50

Beskrivelse

Voltage: 14
Ampere: 110
Remskive afstand: 43.00
Bredde/holder arm: 27.80
Monteringsbeslag afstand: 54.50
Beslagshul: 11.00
Bæltejustering beslag hul pos.: 5
Bæltejustering beslag hul 1: 11.00
Remskive diameter: 60.00
Riller/remskive: 7
Radius: 90.00
Radius 2: 97.50
B+: M8
Position/B+ i min.: 58
D+ Størrelse: Stik
Rotation: med uret
Stik nr.: PL173
Samlet længde mm: 174.00
Terminaltype: L
Lampetype: Inaktiv
Remskive: SP/FW
Regulator type: IR

Filer

Specifikation

B+ M8
Mount. bracket dist. 54.50
Belt. adj. bracket hole 1 11.00
Belt. adj. brackethole pos. 5
Plug no. PL173
Bracket hole 11.00
Position/B+ in min. 58
Pulley SP/FW
Pulley dia. 60.00
Pulley dist. 43.00
Radius 90.00
D+ Size Plug
Radius 2 97.50
Regulator type IR
Rotation CW
Grooves/pulley 7
Lamp type Inactive
Terminal type L
Voltage 14
Total length 174.00 mm
Width/holder arm 27.80
Amp 110

  • OEM
    F032116027, 1986A01610, 02131-9340, 37300-4a310

  • Konkurrentreferens
    A6219(DENSO), A9311S, CAL32136, DRA0902, DRA0902N, LRA03351, 28-5963, 155.586.110, 526.151.1102, 113276, 554100RI, 12061036

  • NormaliseratArtNr
    a6219denso, a9311s, cal32136, dra0902, dra0902n, f032116027, lra03351, 1986a01610, 113276, 285963, 373004a310, 554100ri, 12061036, 021319340, 155586110, 5261511102

  • Passar modeller
    Hyundai Model: H-1 Model series: H-1 Cargo Type of engine: CRDi Size of motor: 2.5 Brand of engine: D4CB Body: Van From date: 01-01-2009 Fuel: Diesel Approved: Yes
    Hyundai Model: H-1 Model series: H-1 Cargo Type of engine: CRDi Size of motor: 2.5 Brand of engine: D4CB Body: Van From date: 01-02-2008 Fuel: Diesel Approved: Yes
    Hyundai Model: H-1 Model series: H-1 Cargo Type of engine: CRDi Size of motor: 2.5 Brand of engine: D4CB-L Body: Van From date: 01-02-2008 Fuel: Diesel Approved: Yes
    Hyundai Model: H-1 Model series: H-1 Cargo Type of engine: CRDi Size of motor: 2.5 Brand of engine: D4CB-W Body: Van From date: 01-08-2009 Fuel: Diesel Approved: Yes
    Hyundai Model: H-1 Model series: H-1 Model type: Travel Type of engine: CRDi Size of motor: 2.5 Brand of engine: D4CB Body: Bus From date: 01-05-2008 Fuel: Diesel Approved: Yes Manufacture type: Travel
    Hyundai Model: H-1 Model series: H-1 Travel Type of engine: CRDi Size of motor: 2.5 Brand of engine: D4CB Body: Bus From date: 01-05-2008 Fuel: Diesel Approved: Yes
    Hyundai Model: H-1 Model series: H-1 Type of engine: CRDi Size of motor: 2.5 Brand of engine: D4CB Body: Bus From date: 01-07-2008 Fuel: Diesel Approved: Yes
    Hyundai Model: H-1 Model series: H-1 Type of engine: CRDi Size of motor: 2.5 Brand of engine: D4CB Body: Bus From date: 01-08-2011 Fuel: Diesel Approved: Yes
    Hyundai Model: H-1 Model series: H-1 Type of engine: CRDi Size of motor: 2.5 Brand of engine: D4CB Body: Van From date: 01-02-2008 Fuel: Diesel Approved: Yes
    Hyundai Model: H-1 Model series: H-1 Type of engine: CRDi Size of motor: 2.5 Brand of engine: D4CB Type description: TQ Body: Bus From date: 01-07-2010 Fuel: Diesel Approved: Yes
    Hyundai Model: H-1 Travel Model series: H-1 Travel Model type: CRDI Type of engine: CRDi Size of motor: 2.5 Brand of engine: D4CB Type description: TQ Body: Bus Fuel: Diesel Approved: Yes
    Hyundai Model: H-1 Travel Model series: H-1 Travel Type of engine: CRDi Size of motor: 2.5 Brand of engine: D4CB Type description: TQ Body: Bus From date: 01-02-2008 Fuel: Diesel Approved: Yes
    1 / 3
  • Beskrivelse
    Voltage: 14
    Ampere: 110
    Remskive afstand: 43.00
    Bredde/holder arm: 27.80
    Monteringsbeslag afstand: 54.50
    Beslagshul: 11.00
    Bæltejustering beslag hul pos.: 5
    Bæltejustering beslag hul 1: 11.00
    Remskive diameter: 60.00
    Riller/remskive: 7
    Radius: 90.00
    Radius 2: 97.50
    B+: M8
    Position/B+ i min.: 58
    D+ Størrelse: Stik
    Rotation: med uret
    Stik nr.: PL173
    Samlet længde mm: 174.00
    Terminaltype: L
    Lampetype: Inaktiv
    Remskive: SP/FW
    Regulator type: IR

    Filer

  • Specifikation
    B+ M8
    Mount. bracket dist. 54.50
    Belt. adj. bracket hole 1 11.00
    Belt. adj. brackethole pos. 5
    Plug no. PL173
    Bracket hole 11.00
    Position/B+ in min. 58
    Pulley SP/FW
    Pulley dia. 60.00
    Pulley dist. 43.00
    Radius 90.00
    D+ Size Plug
    Radius 2 97.50
    Regulator type IR
    Rotation CW
    Grooves/pulley 7
    Lamp type Inactive
    Terminal type L
    Voltage 14
    Total length 174.00 mm
    Width/holder arm 27.80
    Amp 110
  • Køretøjsmatchning

    • OEM
      F032116027, 1986A01610, 02131-9340, 37300-4a310

    • Konkurrentreferens
      A6219(DENSO), A9311S, CAL32136, DRA0902, DRA0902N, LRA03351, 28-5963, 155.586.110, 526.151.1102, 113276, 554100RI, 12061036

    • NormaliseratArtNr
      a6219denso, a9311s, cal32136, dra0902, dra0902n, f032116027, lra03351, 1986a01610, 113276, 285963, 373004a310, 554100ri, 12061036, 021319340, 155586110, 5261511102

    • Passar modeller
      Hyundai Model: H-1 Model series: H-1 Cargo Type of engine: CRDi Size of motor: 2.5 Brand of engine: D4CB Body: Van From date: 01-01-2009 Fuel: Diesel Approved: Yes
      Hyundai Model: H-1 Model series: H-1 Cargo Type of engine: CRDi Size of motor: 2.5 Brand of engine: D4CB Body: Van From date: 01-02-2008 Fuel: Diesel Approved: Yes
      Hyundai Model: H-1 Model series: H-1 Cargo Type of engine: CRDi Size of motor: 2.5 Brand of engine: D4CB-L Body: Van From date: 01-02-2008 Fuel: Diesel Approved: Yes
      Hyundai Model: H-1 Model series: H-1 Cargo Type of engine: CRDi Size of motor: 2.5 Brand of engine: D4CB-W Body: Van From date: 01-08-2009 Fuel: Diesel Approved: Yes
      Hyundai Model: H-1 Model series: H-1 Model type: Travel Type of engine: CRDi Size of motor: 2.5 Brand of engine: D4CB Body: Bus From date: 01-05-2008 Fuel: Diesel Approved: Yes Manufacture type: Travel
      Hyundai Model: H-1 Model series: H-1 Travel Type of engine: CRDi Size of motor: 2.5 Brand of engine: D4CB Body: Bus From date: 01-05-2008 Fuel: Diesel Approved: Yes
      Hyundai Model: H-1 Model series: H-1 Type of engine: CRDi Size of motor: 2.5 Brand of engine: D4CB Body: Bus From date: 01-07-2008 Fuel: Diesel Approved: Yes
      Hyundai Model: H-1 Model series: H-1 Type of engine: CRDi Size of motor: 2.5 Brand of engine: D4CB Body: Bus From date: 01-08-2011 Fuel: Diesel Approved: Yes
      Hyundai Model: H-1 Model series: H-1 Type of engine: CRDi Size of motor: 2.5 Brand of engine: D4CB Body: Van From date: 01-02-2008 Fuel: Diesel Approved: Yes
      Hyundai Model: H-1 Model series: H-1 Type of engine: CRDi Size of motor: 2.5 Brand of engine: D4CB Type description: TQ Body: Bus From date: 01-07-2010 Fuel: Diesel Approved: Yes
      Hyundai Model: H-1 Travel Model series: H-1 Travel Model type: CRDI Type of engine: CRDi Size of motor: 2.5 Brand of engine: D4CB Type description: TQ Body: Bus Fuel: Diesel Approved: Yes
      Hyundai Model: H-1 Travel Model series: H-1 Travel Type of engine: CRDi Size of motor: 2.5 Brand of engine: D4CB Type description: TQ Body: Bus From date: 01-02-2008 Fuel: Diesel Approved: Yes
