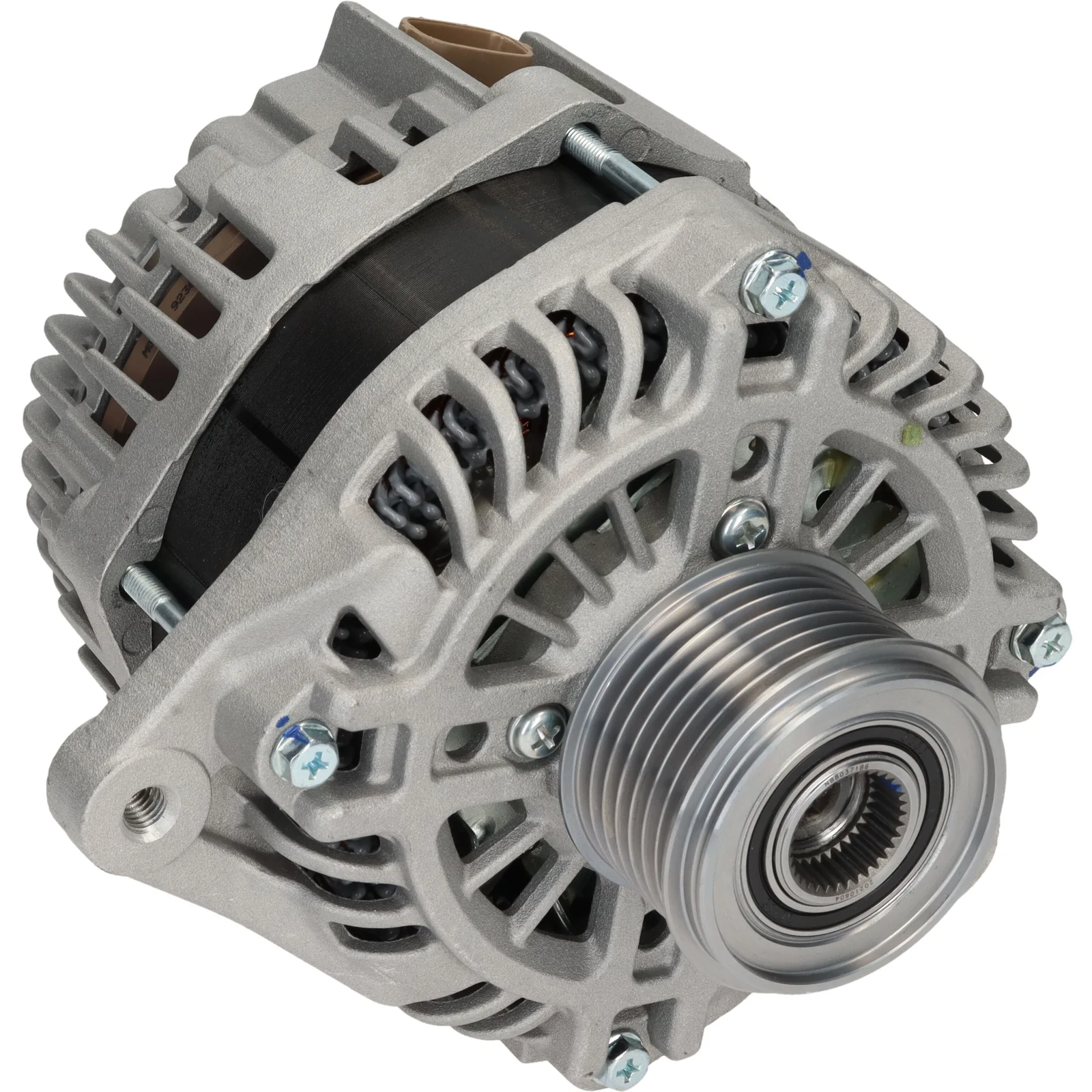

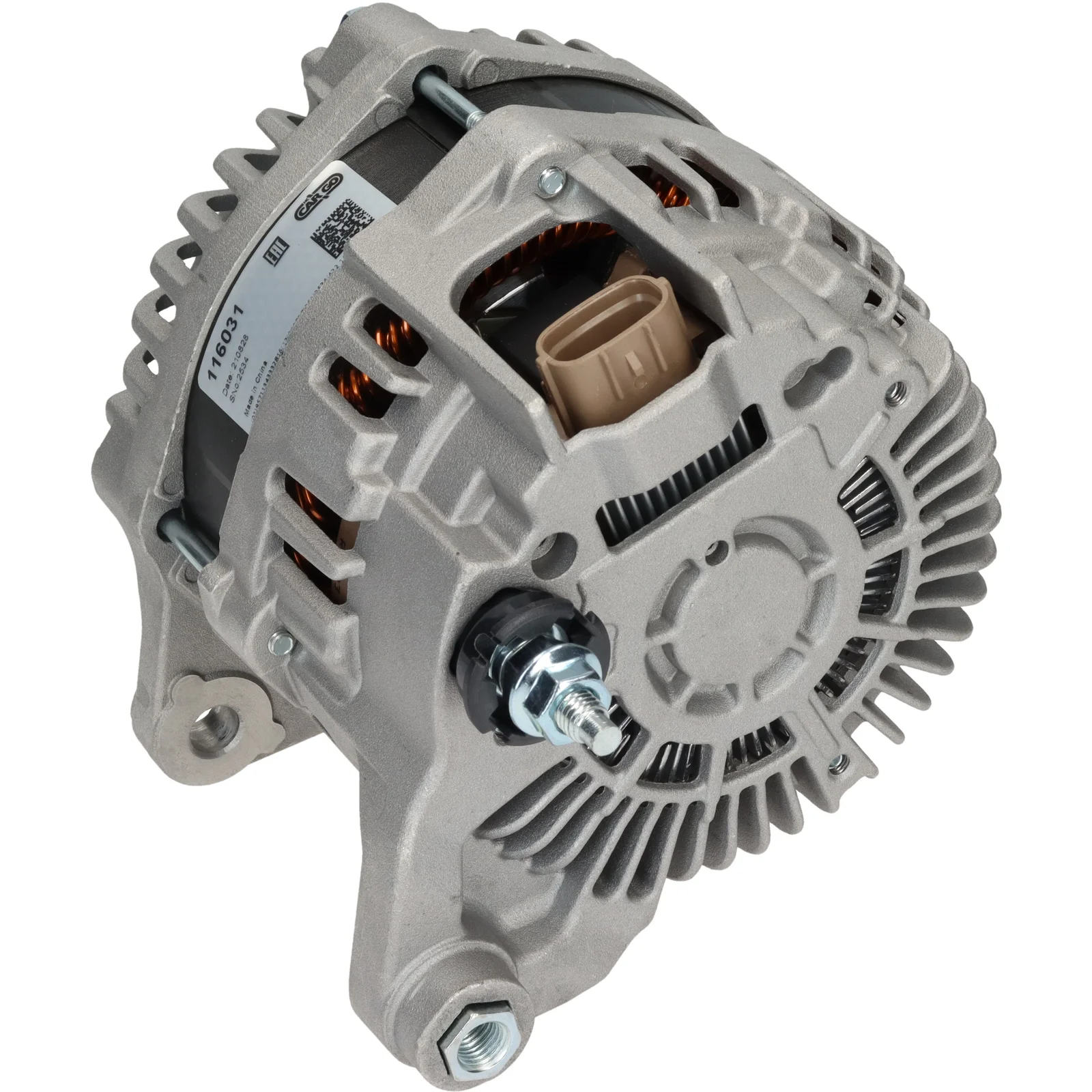

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032116031

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 150, Rotation: CW, Monteringsbøjle fordeler: 81.00

Beskrivelse

Spænding: 14
Amp: 150
Remskive dist.: 39.50
Bredde/holder arm: 13.00
Monteringsbeslag dist.: 81.00
Beslaghul: 10.50
Bæltespændingsbeslag hul pos.: 53
Bæltespændingsbeslag hul 1: M8
Remskive dia.: 55.00
Riller/remskive: 7
Radius: 85.00
Radius 2: 85.00
B+: M8
Position/B+ i min.: 40
D+ Størrelse: Stik
Rotation: med uret
Stik nr.: PL163
Samlet længde mm: 189.00
Terminal type: L-S-C
Remskive: SP/FW
Blæser: IF
Regulator type: IR

Filer

Specifikation

B+ M8
Mount. bracket dist. 81.00
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 53
Plug no. PL163
Bracket hole 10.50
Position/B+ in min. 40
Pulley SP/FW
Pulley dia. 55.00
Pulley dist. 39.50
Radius 85.00
D+ Size Plug
Radius 2 85.00
Regulator type IR
Rotation CW
Fan IF
Grooves/pulley 7
Terminal type L-S-C
Voltage 14
Total length 189.00 mm
Width/holder arm 13.00
Amp 150

  • OEM
    A002TX0781, A002TX0781AM, A002TX1181, A2TX0781, A2TX0781AM, A2TX1181, A5146, CAL35320, F032116031, 165.919.150, 23100-1BN1A, 23100-5X21A, 554426RI, 12061226

  • Konkurrentreferens
    A5146, CAL35320, 165.919.150, 554426RI, 12061226

  • Bilmärken
    INFINITI, NISSAN

  • NormaliseratArtNr
    a002tx0781, a002tx0781am, a002tx1181, a2tx0781, a2tx0781am, a2tx1181, a5146, cal35320, f032116031, 231001bn1a, 231005x21a, 554426ri, 12061226, 165919150

  • Passar modeller
    INFINITI EX 30d Engine volume: 3.0 Engine type: V9X Year: 04.10-
    INFINITI FX 30d AWD Engine volume: 3.0 Engine type: V9X Year: 04.10-
    INFINITI M (Y51) 30d Engine volume: 3.0 Engine type: V9X Year: 03.10-
    INFINITI Q70 (Y51) 3.0 Engine volume: 3.0 Engine type: V9X Year: 03.13-
    INFINITI QX50 I 30d AWD Engine volume: 3.0 Engine type: V9X Year: 08.13-
    INFINITI QX70 30d AWD Engine volume: 3.0 Engine type: V9X Year: 08.13-
    NISSAN NAVARA NP300 (D40) 3.0 dCi 4WD Engine volume: 3.0 Engine type: V9X Year: 02.10-
    NISSAN NAVARA NP300 Flak/chassi (D40) 3.0 dCi Engine volume: 3.0 Engine type: V9X Year: 03.10-
    NISSAN PATHFINDER III (R51) 3.0 dCi Engine volume: 3.0 Engine type: V9X Year: 08.10-
