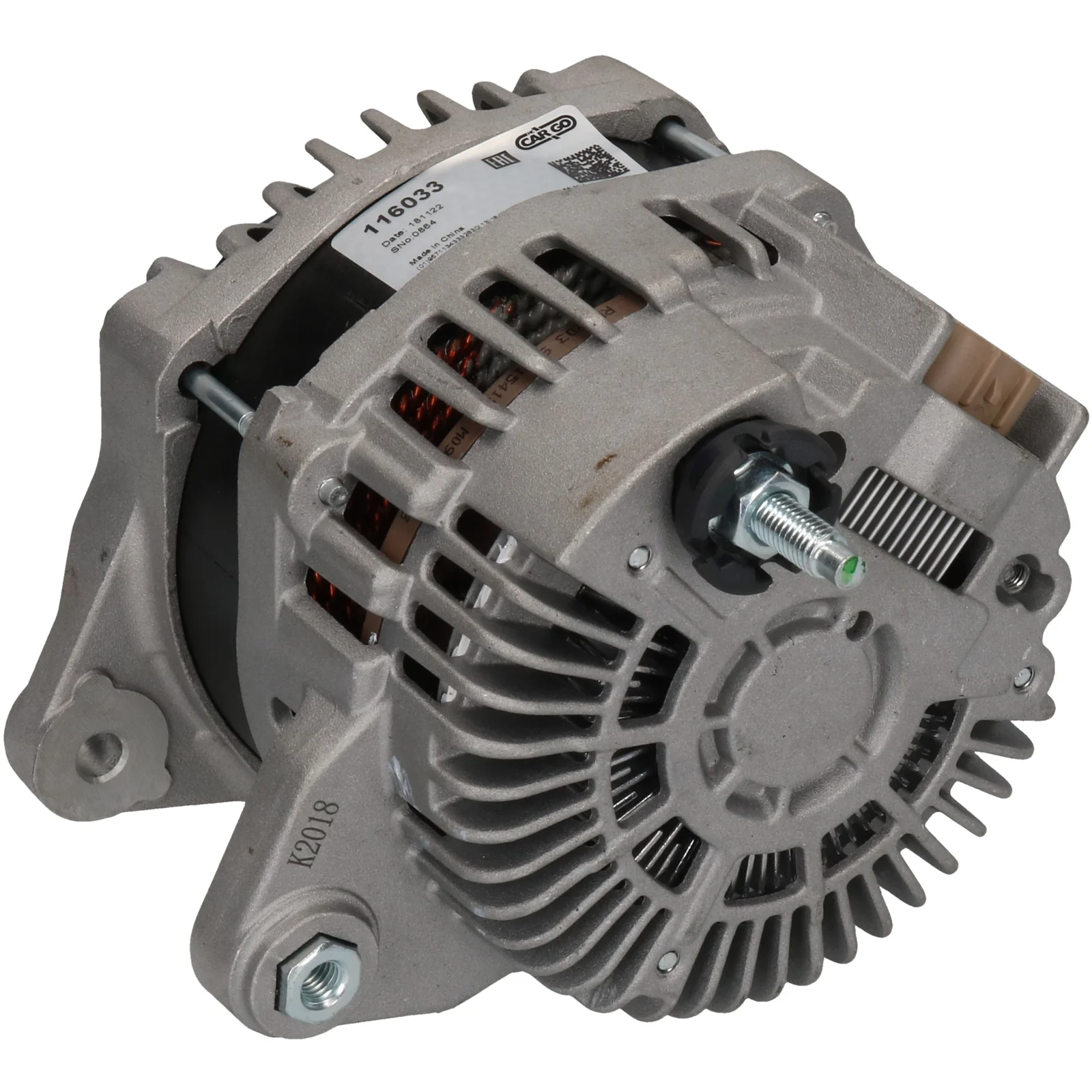

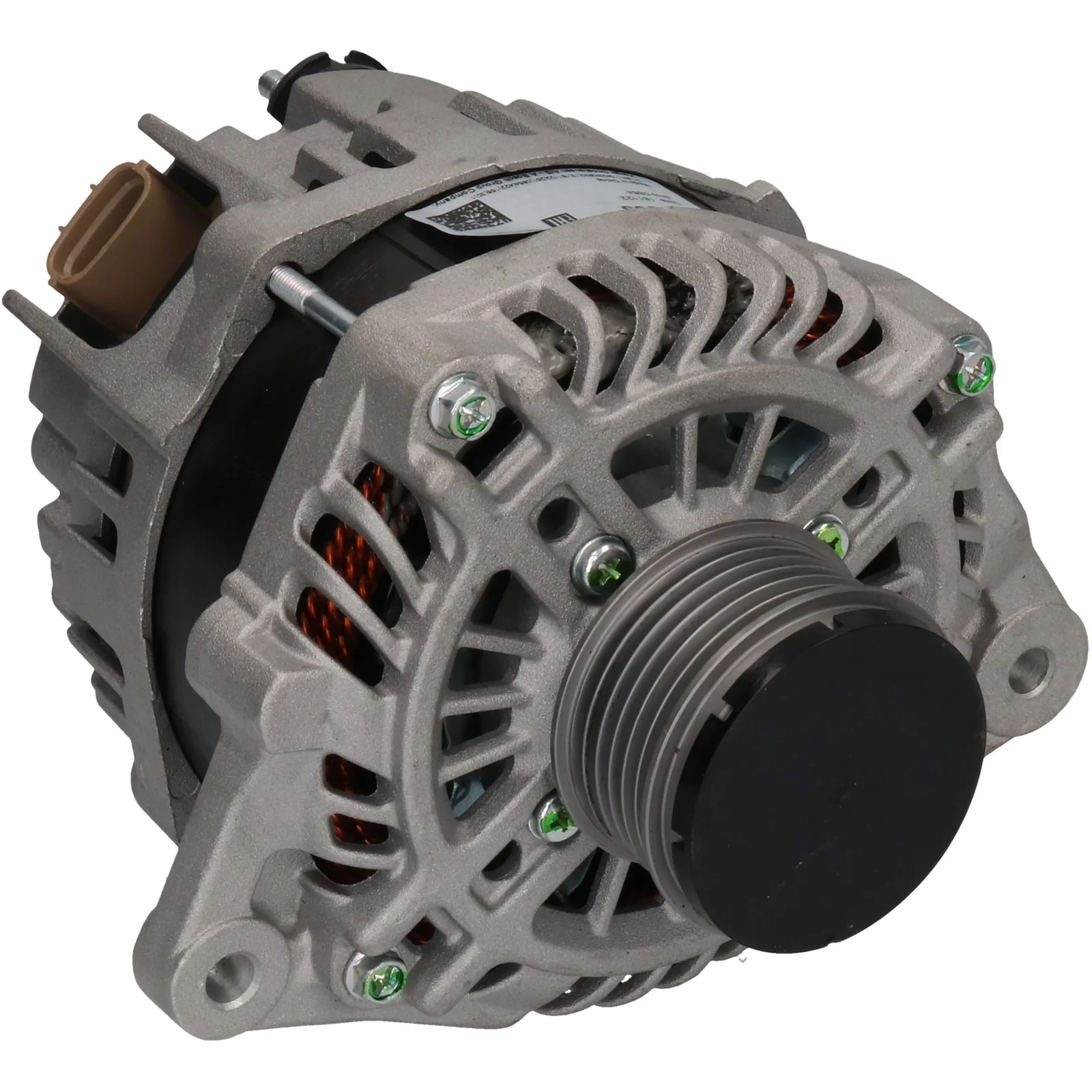

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032116033

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 150, Rotation: CW, Monteringsbeslag fordeler: 59.00

Beskrivelse

Spænding: 14
Amp: 150
Tromledistance: 33.00
Bredde/holderarm: 13.00
Mount. beslag afstand: 59.00
Beslagshuls: 8.50
Bæltejustering beslagshuls pos.: 52
Bæltejustering beslagshuls 1: 8.50
Tromlediameter: 55.00
Riller/tromle: 6
Radius: 85.00
Radius 2: 85.00
B+: M8
Position/B+ i min.: 46
D+ Størrelse: Stik
Rotation: CW
Stik nr.: PL163
Total længde mm: 192.00
Terminaltype: L-S-C
Tromle: SP/FW
Regulator type: IR

Filer

Specifikation

B+ M8
Mount. bracket dist. 59.00
Belt. adj. bracket hole 1 8.50
Belt. adj. brackethole pos. 52
Plug no. PL163
Bracket hole 8.50
Position/B+ in min. 46
Pulley SP/FW
Pulley dia. 55.00
Pulley dist. 33.00
Radius 85.00
D+ Size Plug
Radius 2 85.00
Regulator type IR
Rotation CW
Grooves/pulley 6
Terminal type L-S-C
Voltage 14
Total length 192.00 mm
Width/holder arm 13.00
Amp 150

  • OEM
    A002TX1981, A002TX1981ZT, A2TX1981, A2TX1981AE, A2TX1981ZT, F032116033, 23100-3HD1A, 23100-3HN1A, 23100-3HN1B, 23100-3VS5M

  • Konkurrentreferens
    A5430S, CAL35389, DRA1064, 28-7558, 165.918.150, 554429RI, 12061242

  • NormaliseratArtNr
    a002tx1981, a002tx1981zt, a2tx1981, a2tx1981ae, a2tx1981zt, a5430s, cal35389, dra1064, f032116033, 231003hd1a, 231003hn1a, 231003hn1b, 231003vs5m, 287558, 554429ri, 12061242, 165918150

  • Passar modeller
    Nissan Model: Micra Model series: Micra Size of motor: 1.2 Brand of engine: HR12DDR Type description: K13 Body: Hatchback From date: 01-03-2011 Fuel: Gasoline Approved: Yes
  • Beskrivelse
    Spænding: 14
    Amp: 150
    Tromledistance: 33.00
    Bredde/holderarm: 13.00
    Mount. beslag afstand: 59.00
    Beslagshuls: 8.50
    Bæltejustering beslagshuls pos.: 52
    Bæltejustering beslagshuls 1: 8.50
    Tromlediameter: 55.00
    Riller/tromle: 6
    Radius: 85.00
    Radius 2: 85.00
    B+: M8
    Position/B+ i min.: 46
    D+ Størrelse: Stik
    Rotation: CW
    Stik nr.: PL163
    Total længde mm: 192.00
    Terminaltype: L-S-C
    Tromle: SP/FW
    Regulator type: IR

    Filer

  • Specifikation
    B+ M8
    Mount. bracket dist. 59.00
    Belt. adj. bracket hole 1 8.50
    Belt. adj. brackethole pos. 52
    Plug no. PL163
    Bracket hole 8.50
    Position/B+ in min. 46
    Pulley SP/FW
    Pulley dia. 55.00
    Pulley dist. 33.00
    Radius 85.00
    D+ Size Plug
    Radius 2 85.00
    Regulator type IR
    Rotation CW
    Grooves/pulley 6
    Terminal type L-S-C
    Voltage 14
    Total length 192.00 mm
    Width/holder arm 13.00
    Amp 150
  • Køretøjsmatchning

    • OEM
      A002TX1981, A002TX1981ZT, A2TX1981, A2TX1981AE, A2TX1981ZT, F032116033, 23100-3HD1A, 23100-3HN1A, 23100-3HN1B, 23100-3VS5M

    • Konkurrentreferens
      A5430S, CAL35389, DRA1064, 28-7558, 165.918.150, 554429RI, 12061242

    • NormaliseratArtNr
      a002tx1981, a002tx1981zt, a2tx1981, a2tx1981ae, a2tx1981zt, a5430s, cal35389, dra1064, f032116033, 231003hd1a, 231003hn1a, 231003hn1b, 231003vs5m, 287558, 554429ri, 12061242, 165918150

    • Passar modeller
      Nissan Model: Micra Model series: Micra Size of motor: 1.2 Brand of engine: HR12DDR Type description: K13 Body: Hatchback From date: 01-03-2011 Fuel: Gasoline Approved: Yes
