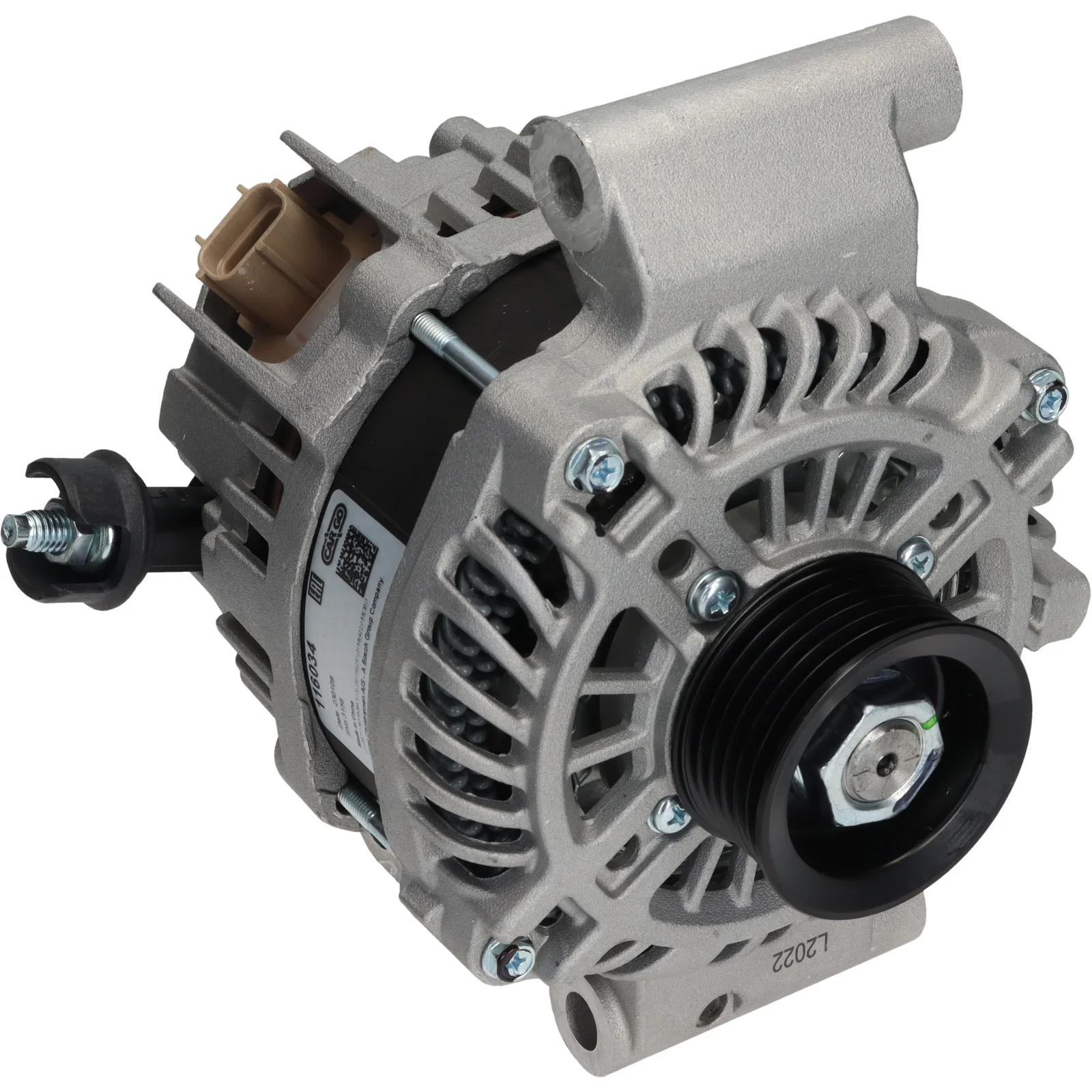

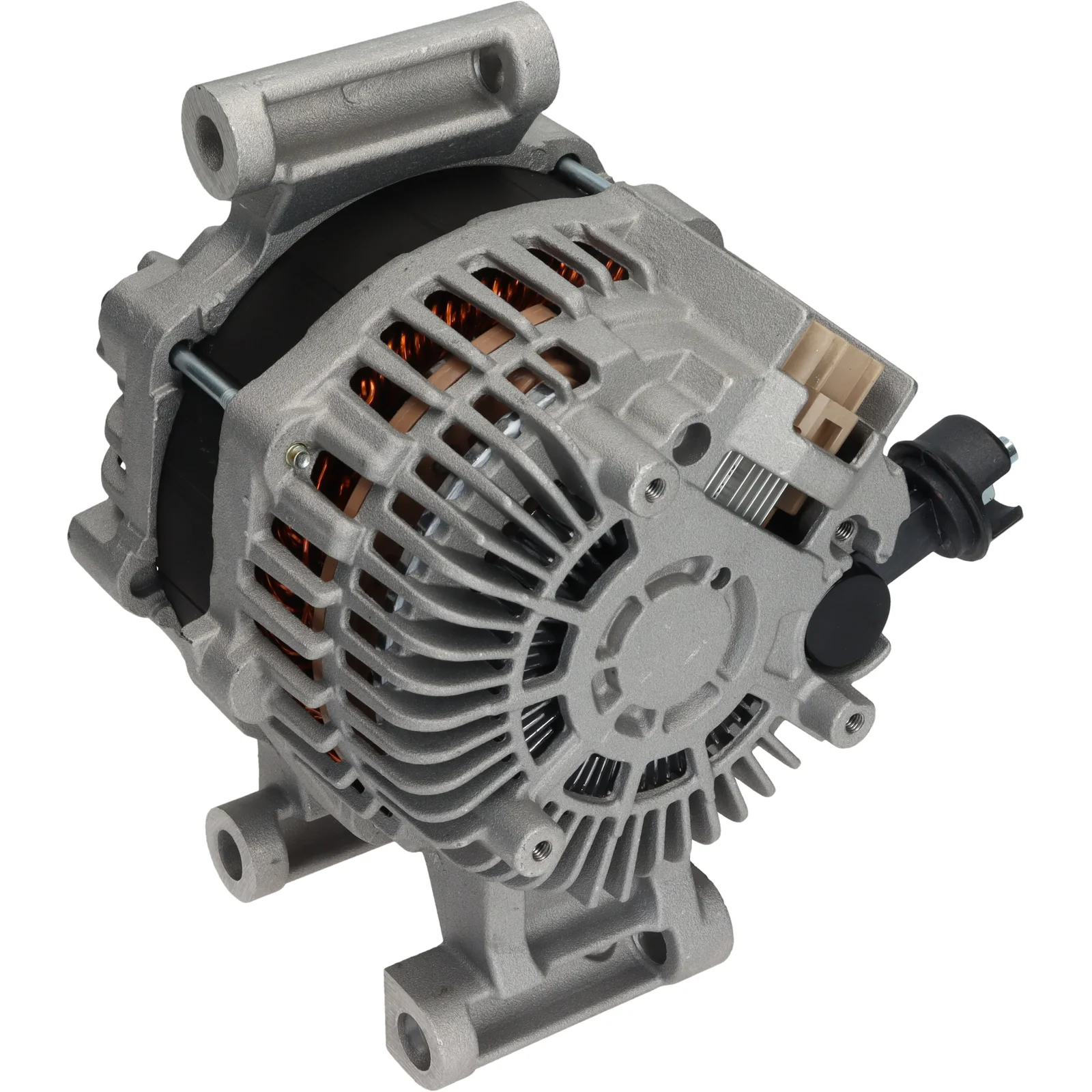

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032116034

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 150, Rotation: CW, Monteringsbeslag fordeling: 74,50

Beskrivelse

Spænding: 14
Amp: 150
Drevskål: 39.50
Bredde/holderarm: 74.00
Monteringsbeslagets afstand: 74.50
Beslagshul: 10.50x11.50
Bæltejusteringsbeslagets hul 1: 10.00
Drevskål diameter: 53.50
Riller/drevskål: 6
Radius: 87.50
Radius 2: 87.50
B+: M8
Position/B+ i min.: 15
Rotation: Uret
Stik nr.: PL57
Total længde mm: 164.00
Terminaltype: FR-SIG-A
Drevskål: SP
Cirkulationsventilator: IF
Regulator type: IR

Filer

Specifikation

B+ M8
Mount. bracket dist. 74.50
Belt. adj. bracket hole 1 10.00
Plug no. PL57
Bracket hole 10.50x11.50
Position/B+ in min. 15
Pulley SP
Pulley dia. 53.50
Pulley dist. 39.50
Radius 87.50
Radius 2 87.50
Regulator type IR
Rotation CW
Fan IF
Grooves/pulley 6
Terminal type FR-SIG-A
Voltage 14
Total length 164.00 mm
Width/holder arm 74.00
Amp 150

  • OEM
    A002TX0191ZC, A2TX0191, A2TX0191ZC, F032116034, zzc7-18-300, 8s4t10300aa, 8S4T10300AC, 8S4T10300AD, 8S4Z10346A, 4838679, 4844254, 4852388, 5115806

  • Konkurrentreferens
    A5283, CAL35257, 595.586.150, 11272, 11272N, 113244, 209348, 209348A, 553460RI, 9090629

  • NormaliseratArtNr
    a002tx0191zc, a2tx0191, a2tx0191zc, a5283, cal35257, f032116034, zzc718300, 8s4t10300aa, 8s4t10300ac, 8s4t10300ad, 8s4z10346a, 11272, 11272n, 113244, 209348, 209348a, 553460ri, 4838679, 4844254, 4852388, 5115806, 9090629, 595586150

  • Passar modeller
    Ford Model: Fusion Model series: Fusion Size of motor: 2.5 From date: 01-05-2009 To date: 01-12-2012 Fuel: Gasoline Approved: Yes
    Ford USA Model: Ecosport Model series: Ecosport Model type: XLT 4x4 Size of motor: 2.0 Body: MPV From date: 01-06-2002 To date: 01-03-2013 Fuel: Gasoline Approved: Yes
    Ford USA Model: Ecosport Model series: Ecosport Model type: XLT Size of motor: 2.0 Body: MPV From date: 01-06-2002 Fuel: Gasoline Approved: Yes
    Ford USA Model: Ecosport Model series: Ecosport Size of motor: 2.0 From date: 01-11-2006 To date: 01-10-2008 Fuel: Gasoline Approved: Yes
    Ford USA Model: Escape Model series: Escape Size of motor: 2.5 From date: 01-01-2009 To date: 01-12-2012 Fuel: Gasoline Approved: Yes
    Ford USA Model: Fusion Model series: Fusion Size of motor: 2.5 From date: 01-05-2009 To date: 01-12-2012 Fuel: Gasoline Approved: Yes
    Mazda Model: Tribute Model series: Tribute Size of motor: 2.5 From date: 01-01-2009 Fuel: Gasoline Approved: Yes
    1 / 2
  • Beskrivelse
    Spænding: 14
    Amp: 150
    Drevskål: 39.50
    Bredde/holderarm: 74.00
    Monteringsbeslagets afstand: 74.50
    Beslagshul: 10.50x11.50
    Bæltejusteringsbeslagets hul 1: 10.00
    Drevskål diameter: 53.50
    Riller/drevskål: 6
    Radius: 87.50
    Radius 2: 87.50
    B+: M8
    Position/B+ i min.: 15
    Rotation: Uret
    Stik nr.: PL57
    Total længde mm: 164.00
    Terminaltype: FR-SIG-A
    Drevskål: SP
    Cirkulationsventilator: IF
    Regulator type: IR

    Filer

  • Specifikation
    B+ M8
    Mount. bracket dist. 74.50
    Belt. adj. bracket hole 1 10.00
    Plug no. PL57
    Bracket hole 10.50x11.50
    Position/B+ in min. 15
    Pulley SP
    Pulley dia. 53.50
    Pulley dist. 39.50
    Radius 87.50
    Radius 2 87.50
    Regulator type IR
    Rotation CW
    Fan IF
    Grooves/pulley 6
    Terminal type FR-SIG-A
    Voltage 14
    Total length 164.00 mm
    Width/holder arm 74.00
    Amp 150
  • Køretøjsmatchning

    • OEM
      A002TX0191ZC, A2TX0191, A2TX0191ZC, F032116034, zzc7-18-300, 8s4t10300aa, 8S4T10300AC, 8S4T10300AD, 8S4Z10346A, 4838679, 4844254, 4852388, 5115806

    • Konkurrentreferens
      A5283, CAL35257, 595.586.150, 11272, 11272N, 113244, 209348, 209348A, 553460RI, 9090629

    • NormaliseratArtNr
      a002tx0191zc, a2tx0191, a2tx0191zc, a5283, cal35257, f032116034, zzc718300, 8s4t10300aa, 8s4t10300ac, 8s4t10300ad, 8s4z10346a, 11272, 11272n, 113244, 209348, 209348a, 553460ri, 4838679, 4844254, 4852388, 5115806, 9090629, 595586150

    • Passar modeller
      Ford Model: Fusion Model series: Fusion Size of motor: 2.5 From date: 01-05-2009 To date: 01-12-2012 Fuel: Gasoline Approved: Yes
      Ford USA Model: Ecosport Model series: Ecosport Model type: XLT 4x4 Size of motor: 2.0 Body: MPV From date: 01-06-2002 To date: 01-03-2013 Fuel: Gasoline Approved: Yes
      Ford USA Model: Ecosport Model series: Ecosport Model type: XLT Size of motor: 2.0 Body: MPV From date: 01-06-2002 Fuel: Gasoline Approved: Yes
      Ford USA Model: Ecosport Model series: Ecosport Size of motor: 2.0 From date: 01-11-2006 To date: 01-10-2008 Fuel: Gasoline Approved: Yes
      Ford USA Model: Escape Model series: Escape Size of motor: 2.5 From date: 01-01-2009 To date: 01-12-2012 Fuel: Gasoline Approved: Yes
      Ford USA Model: Fusion Model series: Fusion Size of motor: 2.5 From date: 01-05-2009 To date: 01-12-2012 Fuel: Gasoline Approved: Yes
      Mazda Model: Tribute Model series: Tribute Size of motor: 2.5 From date: 01-01-2009 Fuel: Gasoline Approved: Yes
      1 / 2
