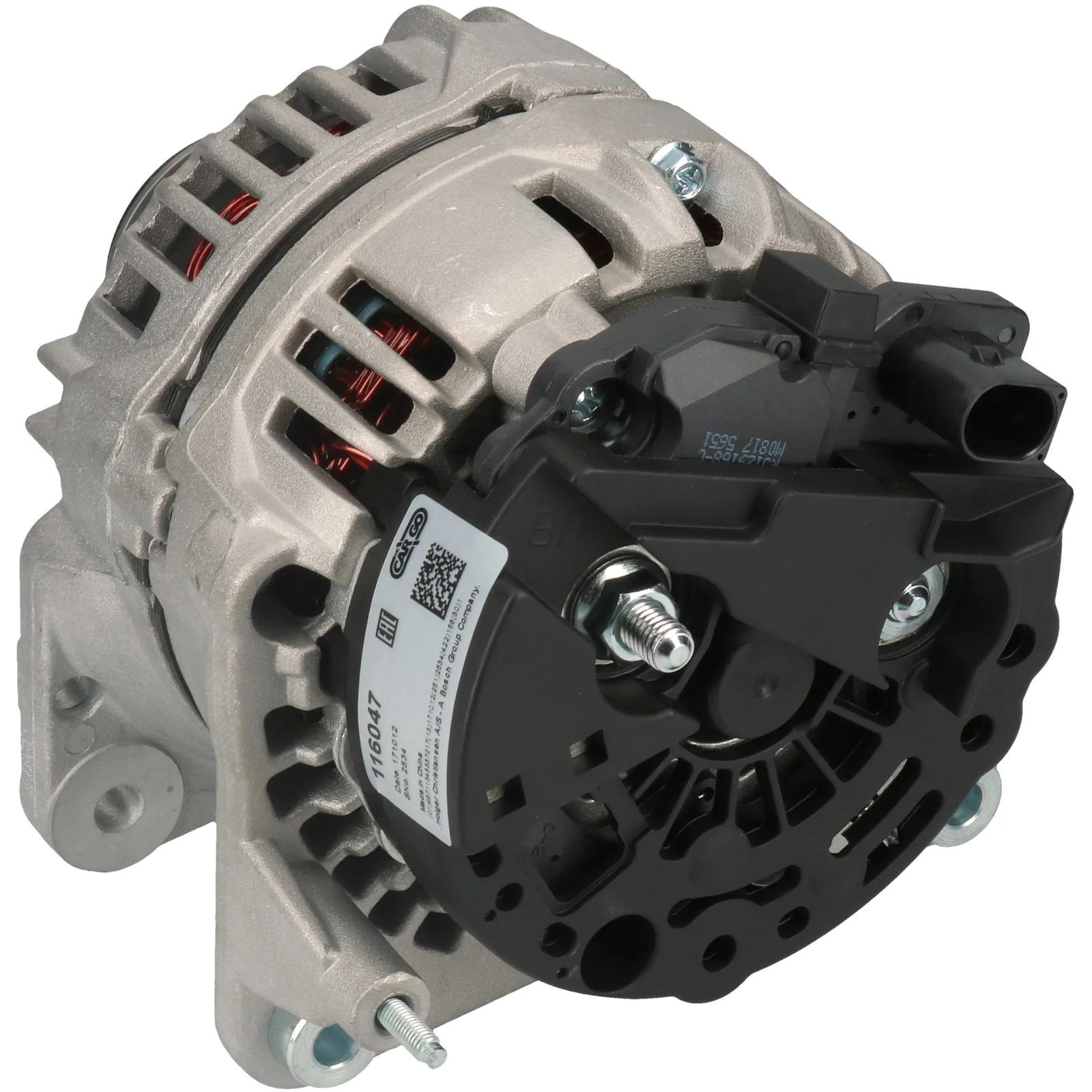

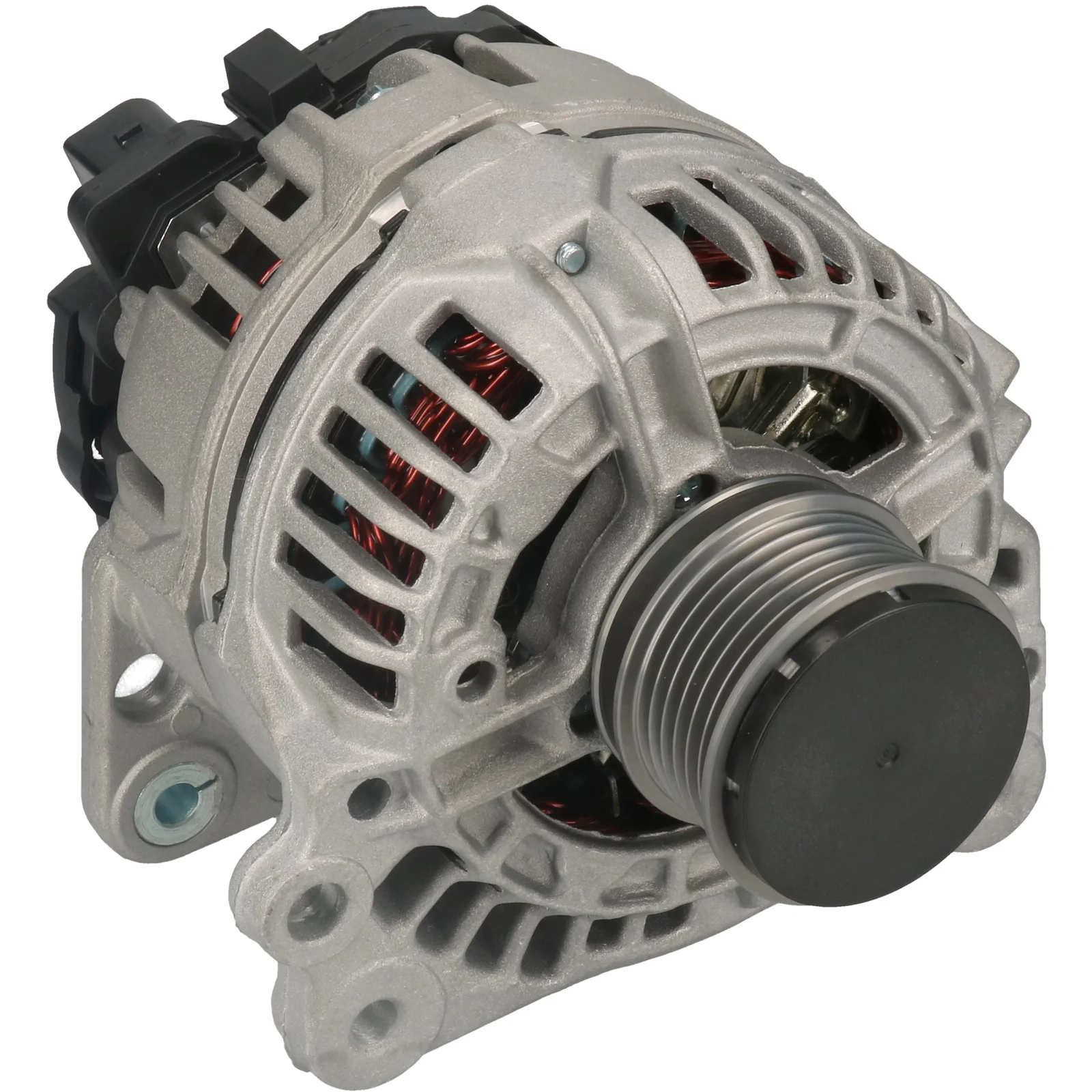

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032116047

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 110, Rotation: CW, Montagebeslag afstand: 61.10

Beskrivelse

Spænding: 14
Amp: 110
Drivskive dist.: 39,00
Bredde/holderarm: 14,00
Monteringsbeslag dist.: 61,10
Beslagshul: 8,50
Bælte justering beslags hul position.: 45
Bælte justering beslags hul 1: 8,50
Drivskive dia.: 56,00
Grene/drivskive: 6
Radius: 90,00
Radius 2: 90,00
B+: M8
Position/B+ i min.: 45
D+ Størrelse: Stik
Rotation: CW
Stik nr.: PL61
Samlet længde mm: 192,00
Drivskive: SP/FW
Regulator type: IR
Produktinfo: BN

Filer

Specifikation

B+ M8
Mount. bracket dist. 61.10
Belt. adj. bracket hole 1 8.50
Belt. adj. brackethole pos. 45
Plug no. PL61
Bracket hole 8.50
Position/B+ in min. 45
Prod. info BN
Pulley SP/FW
Pulley dia. 56.00
Pulley dist. 39.00
Radius 90.00
D+ Size Plug
Radius 2 90.00
Regulator type IR
Rotation CW
Grooves/pulley 6
Voltage 14
Total length 192.00 mm
Width/holder arm 14.00
Amp 110

  • OEM
    F032116047, 3.852.2319F, 1986A00811, 0124325178, 0124325280, 528110010

  • Konkurrentreferens
    A0345, CAL10372, CAL21204, DRA0034, 8EL011713-351, 28-5891, 214.170.1102, 425.502.110, 20014N, 23949R, 12090451

  • NormaliseratArtNr
    a0345, cal10372, cal21204, dra0034, f032116047, 8el011713351, 1986a00811, 20014n, 23949r, 285891, 12090451, 38522319f, 0124325178, 0124325280, 425502110, 528110010, 2141701102

  • Passar modeller
    LDV Model: Maxus Model series: Maxus Type of engine: CDi Size of motor: 2.5 Brand of engine: VM39C Body: Bus From date: 01-02-2005 To date: 01-12-2009 Fuel: Diesel Approved: Yes
    LDV Model: Maxus Model series: Maxus Type of engine: CDi Size of motor: 2.5 Brand of engine: VM39C, VM40C Body: Bus From date: 01-02-2005 To date: 01-12-2008 Fuel: Diesel Approved: Yes
    LDV Model: Maxus Model series: Maxus Type of engine: CDi Size of motor: 2.5 Brand of engine: VM39C, VM40C Body: Van From date: 01-02-2005 To date: 01-12-2008 Fuel: Diesel Approved: Yes
    LDV Model: Maxus Model series: Maxus Type of engine: CRD Size of motor: 2.5 Brand of engine: VM39C Body: Platform / Chassis From date: 01-02-2005 To date: 01-12-2008 Fuel: Diesel Approved: Yes
    LDV Model: V80 Model series: V80 Body: Platform / Chassis From date: 01-11-2016 Fuel: Electric Approved: Yes
    LDV Model: V80 Model series: V80 Box Size of motor: 2.5 Body: Van From date: 01-11-2016 Fuel: Diesel Approved: Yes
    Maxus Model: V80 Model series: V80 Type of engine: Diesel Size of motor: 2.5 Body: Bus From date: 01-09-2011 Fuel: Diesel Approved: Yes
    Maxus Model: V80 Model series: V80 Type of engine: Diesel Size of motor: 2.5 Body: Bus From date: 01-10-2010 Fuel: Diesel Approved: Yes
    Maxus Model: V80 Model series: V80 Type of engine: Diesel Size of motor: 2.5 Body: Van From date: 01-10-2010 Fuel: Diesel Approved: Yes
    1 / 2
  • Beskrivelse
    Spænding: 14
    Amp: 110
    Drivskive dist.: 39,00
    Bredde/holderarm: 14,00
    Monteringsbeslag dist.: 61,10
    Beslagshul: 8,50
    Bælte justering beslags hul position.: 45
    Bælte justering beslags hul 1: 8,50
    Drivskive dia.: 56,00
    Grene/drivskive: 6
    Radius: 90,00
    Radius 2: 90,00
    B+: M8
    Position/B+ i min.: 45
    D+ Størrelse: Stik
    Rotation: CW
    Stik nr.: PL61
    Samlet længde mm: 192,00
    Drivskive: SP/FW
    Regulator type: IR
    Produktinfo: BN

    Filer

  • Specifikation
    B+ M8
    Mount. bracket dist. 61.10
    Belt. adj. bracket hole 1 8.50
    Belt. adj. brackethole pos. 45
    Plug no. PL61
    Bracket hole 8.50
    Position/B+ in min. 45
    Prod. info BN
    Pulley SP/FW
    Pulley dia. 56.00
    Pulley dist. 39.00
    Radius 90.00
    D+ Size Plug
    Radius 2 90.00
    Regulator type IR
    Rotation CW
    Grooves/pulley 6
    Voltage 14
    Total length 192.00 mm
    Width/holder arm 14.00
    Amp 110
  • Køretøjsmatchning

    • OEM
      F032116047, 3.852.2319F, 1986A00811, 0124325178, 0124325280, 528110010

    • Konkurrentreferens
      A0345, CAL10372, CAL21204, DRA0034, 8EL011713-351, 28-5891, 214.170.1102, 425.502.110, 20014N, 23949R, 12090451

    • NormaliseratArtNr
      a0345, cal10372, cal21204, dra0034, f032116047, 8el011713351, 1986a00811, 20014n, 23949r, 285891, 12090451, 38522319f, 0124325178, 0124325280, 425502110, 528110010, 2141701102

    • Passar modeller
      LDV Model: Maxus Model series: Maxus Type of engine: CDi Size of motor: 2.5 Brand of engine: VM39C Body: Bus From date: 01-02-2005 To date: 01-12-2009 Fuel: Diesel Approved: Yes
      LDV Model: Maxus Model series: Maxus Type of engine: CDi Size of motor: 2.5 Brand of engine: VM39C, VM40C Body: Bus From date: 01-02-2005 To date: 01-12-2008 Fuel: Diesel Approved: Yes
      LDV Model: Maxus Model series: Maxus Type of engine: CDi Size of motor: 2.5 Brand of engine: VM39C, VM40C Body: Van From date: 01-02-2005 To date: 01-12-2008 Fuel: Diesel Approved: Yes
      LDV Model: Maxus Model series: Maxus Type of engine: CRD Size of motor: 2.5 Brand of engine: VM39C Body: Platform / Chassis From date: 01-02-2005 To date: 01-12-2008 Fuel: Diesel Approved: Yes
      LDV Model: V80 Model series: V80 Body: Platform / Chassis From date: 01-11-2016 Fuel: Electric Approved: Yes
      LDV Model: V80 Model series: V80 Box Size of motor: 2.5 Body: Van From date: 01-11-2016 Fuel: Diesel Approved: Yes
      Maxus Model: V80 Model series: V80 Type of engine: Diesel Size of motor: 2.5 Body: Bus From date: 01-09-2011 Fuel: Diesel Approved: Yes
      Maxus Model: V80 Model series: V80 Type of engine: Diesel Size of motor: 2.5 Body: Bus From date: 01-10-2010 Fuel: Diesel Approved: Yes
      Maxus Model: V80 Model series: V80 Type of engine: Diesel Size of motor: 2.5 Body: Van From date: 01-10-2010 Fuel: Diesel Approved: Yes
