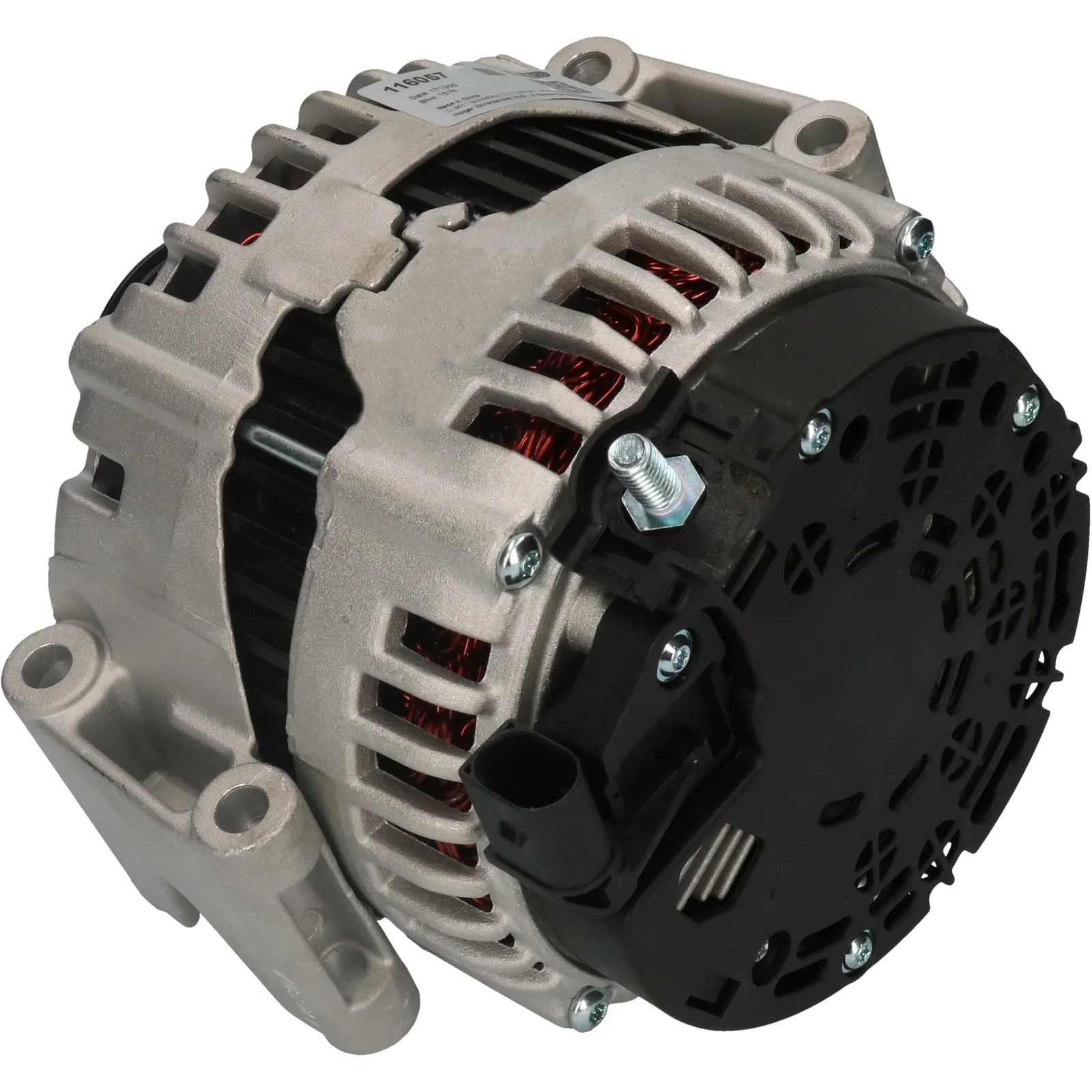

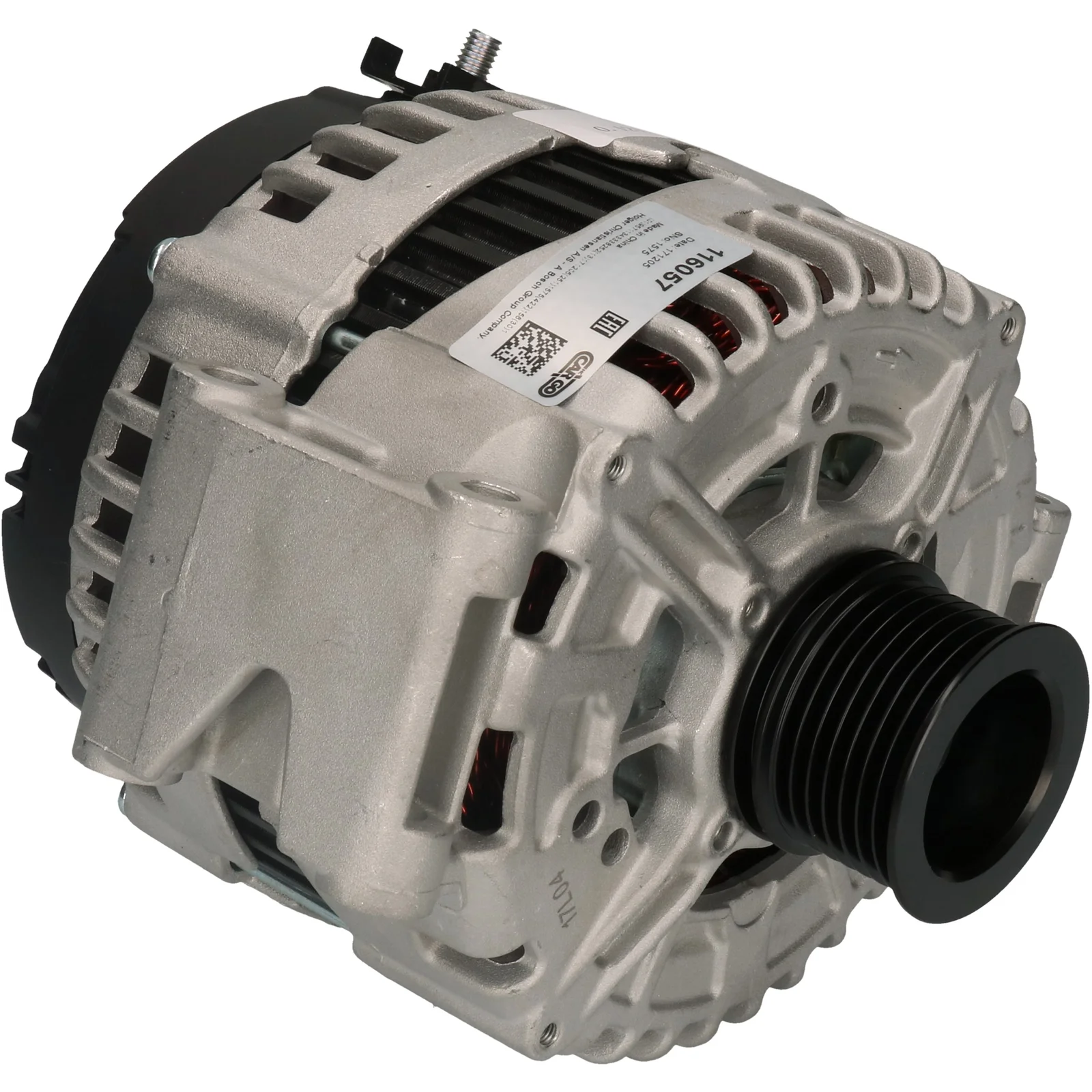

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032116057

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 220, Rotation: CW, Monteringsbeslag afstand: 56,00

Beskrivelse

Spænding: 14
Amp: 220
Skive fordeling: 31,50
Bredde/beslagshåndsarm: 70,00
Monteringsbeslagets afstand: 56,00
Beslagshuls: 9,00
Bæltespændingsjusteringbeslagets hulpos.: 60
Bæltespændingsjusteringbeslagets hul 1: 9,00
Bæltespændingsjusteringbeslagets hul 2: 8,50
Skivens diameter: 56,00
Riller/skive: 7
Radius: 81,50
Radius 2: 81,50
B+: M8
Position/B+ i min.: 13
Rotation: CW
Stik nr.: PL166
Samlet længde mm: 186,00
Terminaltype: COM
Kommunikation: LIN
Skive: SP
Regulator type: IR
Produktoplysninger: BN
Bemærkninger: Denne generator har en COM-terminal på regulatoren. Det anbefales, at OEM-nummeret bruges til at kontrollere egnethed, inden der bestilles.

Filer

Specifikation

B+ M8
Communication LIN
Mount. bracket dist. 56.00
Belt. adj. bracket hole 1 9.00
Belt. adj. bracket hole 2 8.50
Belt. adj. brackethole pos. 60
Plug no. PL166
Bracket hole 9.00
Position/B+ in min. 13
Prod. info BN
Pulley SP
Pulley dia. 56.00
Pulley dist. 31.50
Radius 81.50
Radius 2 81.50
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Grooves/pulley 7
Terminal type COM
Voltage 14
Total length 186.00 mm
Width/holder arm 70.00
Amp 220

  • OEM
    A0131549902, F032116057, 0121813014, 0121813114, 0131549902

  • Konkurrentreferens
    A0526, A0570S, CAL10497, DRA0695, 11304N, 0986048513, 0986048517

  • NormaliseratArtNr
    a0131549902, a0526, a0570s, cal10497, dra0695, f032116057, 11304n, 0121813014, 0121813114, 0131549902, 0986048513, 0986048517

  • Passar modeller
    Mercedes-Benz Model: 63 Model series: CL 63 AMG Size of motor: 6.2 Brand of engine: M156.984 Type description: 216 Body: Coupe From date: 01-10-2006 To date: 01-12-2013 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 63 Model series: CL 63 AMG Size of motor: 6.2 Brand of engine: M156.984 Type description: C216 Body: Coupe From date: 01-09-2007 To date: 01-12-2011 Fuel: Petrol Approved: Yes
    Mercedes-Benz Model: 63 Model series: S 63 AMG Size of motor: 6.2 Brand of engine: M156.984 Type description: 221 From date: 01-10-2006 To date: 01-12-2013 Fuel: Gasoline Approved: Yes
  • Beskrivelse
    Spænding: 14
    Amp: 220
    Skive fordeling: 31,50
    Bredde/beslagshåndsarm: 70,00
    Monteringsbeslagets afstand: 56,00
    Beslagshuls: 9,00
    Bæltespændingsjusteringbeslagets hulpos.: 60
    Bæltespændingsjusteringbeslagets hul 1: 9,00
    Bæltespændingsjusteringbeslagets hul 2: 8,50
    Skivens diameter: 56,00
    Riller/skive: 7
    Radius: 81,50
    Radius 2: 81,50
    B+: M8
    Position/B+ i min.: 13
    Rotation: CW
    Stik nr.: PL166
    Samlet længde mm: 186,00
    Terminaltype: COM
    Kommunikation: LIN
    Skive: SP
    Regulator type: IR
    Produktoplysninger: BN
    Bemærkninger: Denne generator har en COM-terminal på regulatoren. Det anbefales, at OEM-nummeret bruges til at kontrollere egnethed, inden der bestilles.

    Filer

  • Specifikation
    B+ M8
    Communication LIN
    Mount. bracket dist. 56.00
    Belt. adj. bracket hole 1 9.00
    Belt. adj. bracket hole 2 8.50
    Belt. adj. brackethole pos. 60
    Plug no. PL166
    Bracket hole 9.00
    Position/B+ in min. 13
    Prod. info BN
    Pulley SP
    Pulley dia. 56.00
    Pulley dist. 31.50
    Radius 81.50
    Radius 2 81.50
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Grooves/pulley 7
    Terminal type COM
    Voltage 14
    Total length 186.00 mm
    Width/holder arm 70.00
    Amp 220
  • Køretøjsmatchning

    • OEM
      A0131549902, F032116057, 0121813014, 0121813114, 0131549902

    • Konkurrentreferens
      A0526, A0570S, CAL10497, DRA0695, 11304N, 0986048513, 0986048517

    • NormaliseratArtNr
      a0131549902, a0526, a0570s, cal10497, dra0695, f032116057, 11304n, 0121813014, 0121813114, 0131549902, 0986048513, 0986048517

    • Passar modeller
      Mercedes-Benz Model: 63 Model series: CL 63 AMG Size of motor: 6.2 Brand of engine: M156.984 Type description: 216 Body: Coupe From date: 01-10-2006 To date: 01-12-2013 Fuel: Gasoline Approved: Yes
      Mercedes-Benz Model: 63 Model series: CL 63 AMG Size of motor: 6.2 Brand of engine: M156.984 Type description: C216 Body: Coupe From date: 01-09-2007 To date: 01-12-2011 Fuel: Petrol Approved: Yes
      Mercedes-Benz Model: 63 Model series: S 63 AMG Size of motor: 6.2 Brand of engine: M156.984 Type description: 221 From date: 01-10-2006 To date: 01-12-2013 Fuel: Gasoline Approved: Yes
