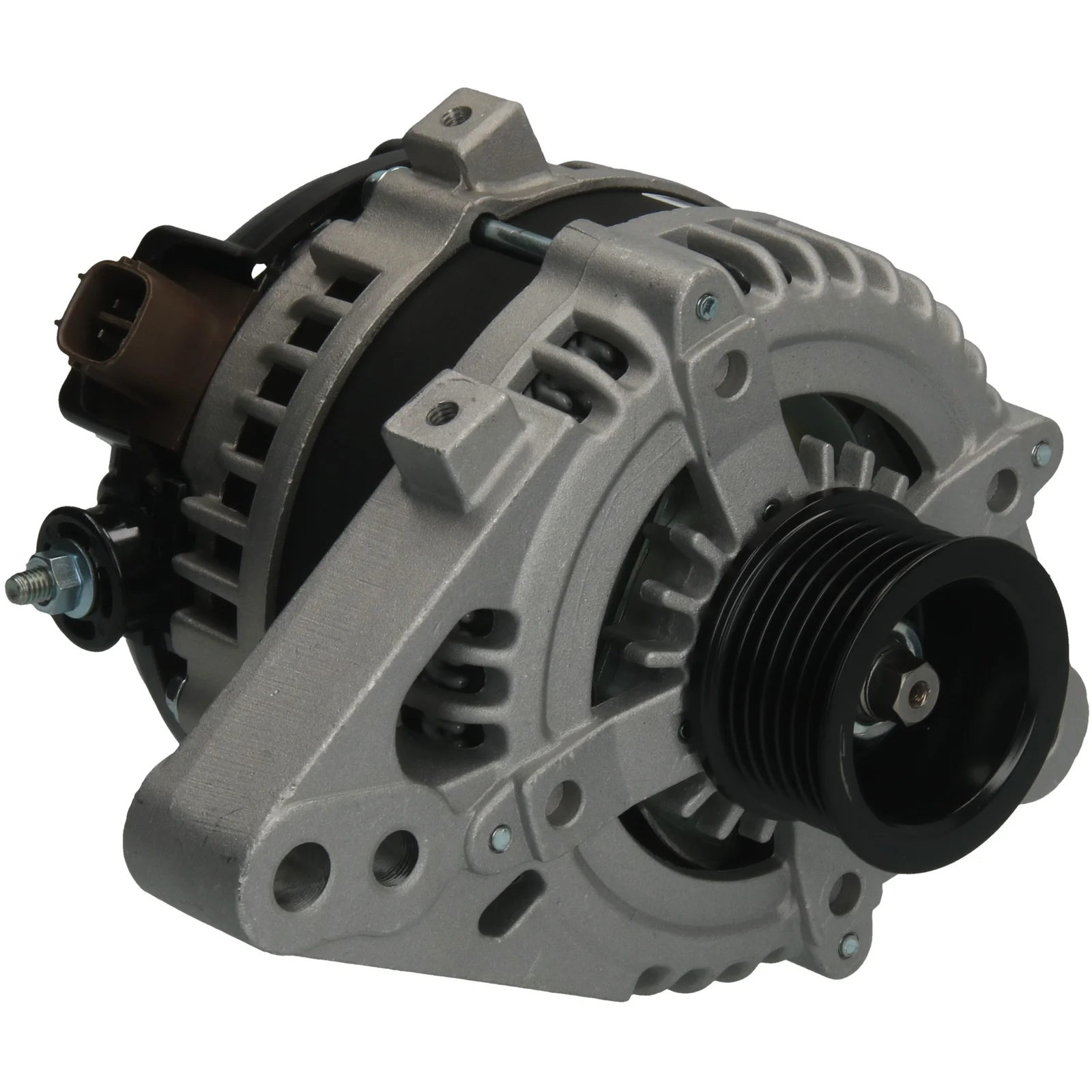

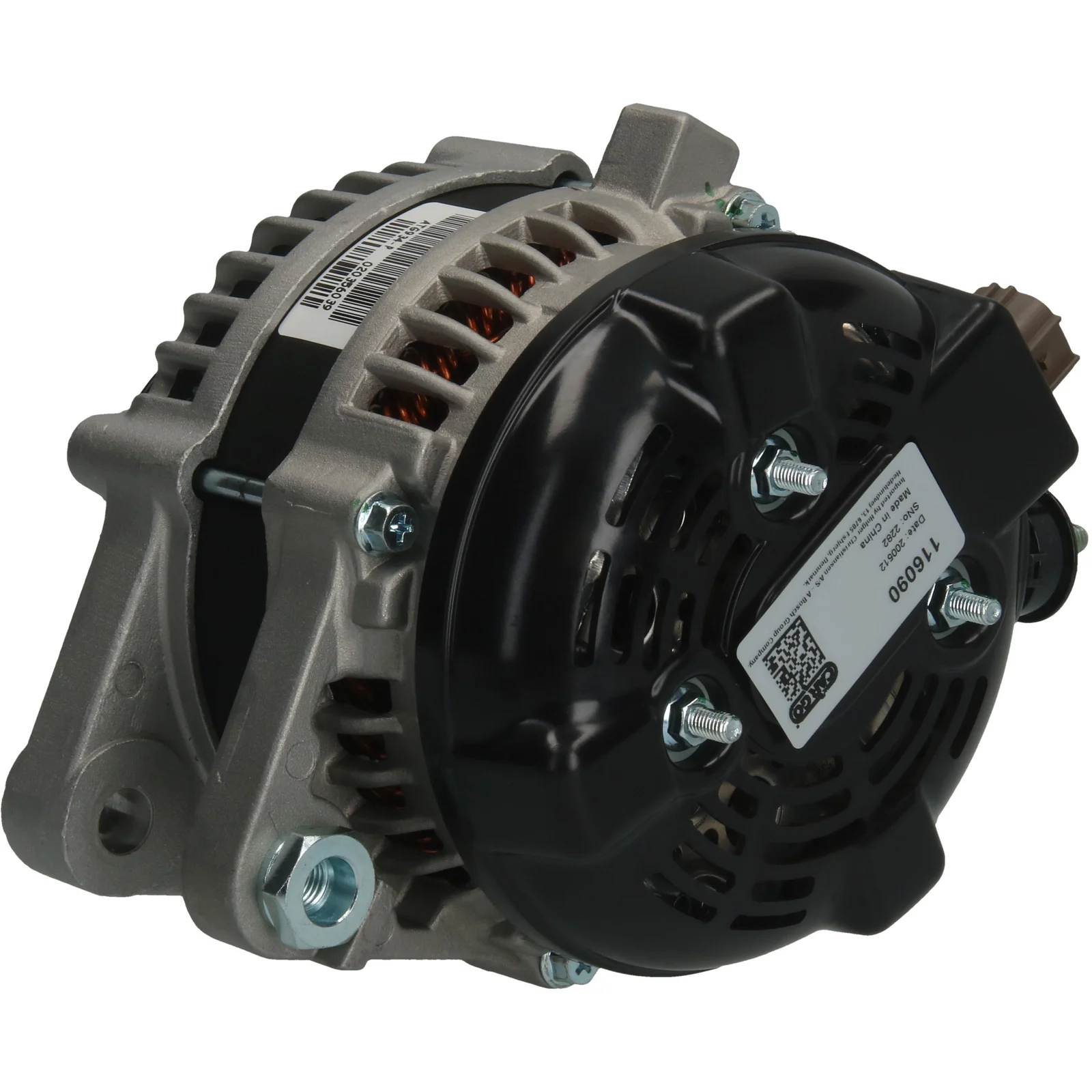

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032116090

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 100, Rotation: CW, Montering. bøsning for fordeling: 30.60

Beskrivelse

Spændingsregulator: 14
Amp: 100
Remskive dist.: 40.00
Bredde/holderarm: 18.20
Monteringsbeslag dist.: 30.60
Beslagshul: 11.30
Bæltespændings reguleringsbeslag hul position.: 55
Bæltespændings reguleringsbeslag hul 1: 11.30
Bæltespændings reguleringsbeslag hul 2: 9.00
Remskive dia.: 52.00
Riller/remskive: 7
Radius: 85.00
Radius 2: 83.00
Radius 3: 103.00
B+: M6
Position/B+ i min.: 5
D+ Størrelse: Tildozer
Rotation: CW
Tildozer nr.: PL78
Samlet længde mm: 164.00
Remskive: SP
Køler: IF
Regulator type: IR

Filer

Specifikation

B+ M6
Mount. bracket dist. 30.60
Belt. adj. bracket hole 1 11.30
Belt. adj. bracket hole 2 9.00
Belt. adj. brackethole pos. 55
Plug no. PL78
Bracket hole 11.30
Position/B+ in min. 5
Pulley SP
Pulley dia. 52.00
Pulley dist. 40.00
Radius 85.00
D+ Size Plug
Radius 2 83.00
Radius 3 103.00
Regulator type IR
Rotation CW
Fan IF
Grooves/pulley 7
Voltage 14
Total length 164.00 mm
Width/holder arm 18.20
Amp 100

  • OEM
    F032116090, 27060-0P030, 27060-31120, 104210-4230, 104210-4920, 104210-4921

  • Konkurrentreferens
    A6327, CAL40324, 195.960.100, 11138, 11138N, 11324, 11324N, 11324R, 553765RI, 12060960

  • NormaliseratArtNr
    a6327, cal40324, f032116090, 11138, 11138n, 11324, 11324n, 11324r, 270600p030, 553765ri, 12060960, 195960100, 1042104230, 1042104920, 1042104921, 2706031120

  • Passar modeller
    Faw Toyota Model: Land Cruiser Model series: Land Cruiser Model type: 4x4 Size of motor: 4.0 Brand of engine: 1GR-FE Body: SUV From date: 01-12-2007 To date: 01-12-2012 Fuel: Gasoline Approved: Yes
    Toyota Model: FJ Cruiser Model series: FJ Cruiser Model type: 4WD Size of motor: 4.0 Brand of engine: 1GR-FE Type description: GSJ1_ Body: SUV From date: 01-01-2007 To date: 01-06-2014 Fuel: Petrol Approved: Yes
    Toyota Model: FJ CRUISER Model series: FJ CRUISER Type of engine: VVTi Size of motor: 4.0 Brand of engine: 1GR-FE Type description: GSJ1_ From date: 01-01-2006 To date: 01-01-2018 Fuel: Gasoline Approved: Yes
    Toyota Model: Tundra Model series: Tundra Pickup Size of motor: 4.0 Brand of engine: 1GR-FE Type description: _K5_, _K6_ Body: Pickup From date: 01-11-2006 Fuel: Petrol Approved: Yes
  • Beskrivelse
    Spændingsregulator: 14
    Amp: 100
    Remskive dist.: 40.00
    Bredde/holderarm: 18.20
    Monteringsbeslag dist.: 30.60
    Beslagshul: 11.30
    Bæltespændings reguleringsbeslag hul position.: 55
    Bæltespændings reguleringsbeslag hul 1: 11.30
    Bæltespændings reguleringsbeslag hul 2: 9.00
    Remskive dia.: 52.00
    Riller/remskive: 7
    Radius: 85.00
    Radius 2: 83.00
    Radius 3: 103.00
    B+: M6
    Position/B+ i min.: 5
    D+ Størrelse: Tildozer
    Rotation: CW
    Tildozer nr.: PL78
    Samlet længde mm: 164.00
    Remskive: SP
    Køler: IF
    Regulator type: IR

    Filer

  • Specifikation
    B+ M6
    Mount. bracket dist. 30.60
    Belt. adj. bracket hole 1 11.30
    Belt. adj. bracket hole 2 9.00
    Belt. adj. brackethole pos. 55
    Plug no. PL78
    Bracket hole 11.30
    Position/B+ in min. 5
    Pulley SP
    Pulley dia. 52.00
    Pulley dist. 40.00
    Radius 85.00
    D+ Size Plug
    Radius 2 83.00
    Radius 3 103.00
    Regulator type IR
    Rotation CW
    Fan IF
    Grooves/pulley 7
    Voltage 14
    Total length 164.00 mm
    Width/holder arm 18.20
    Amp 100
  • Køretøjsmatchning

    • OEM
      F032116090, 27060-0P030, 27060-31120, 104210-4230, 104210-4920, 104210-4921

    • Konkurrentreferens
      A6327, CAL40324, 195.960.100, 11138, 11138N, 11324, 11324N, 11324R, 553765RI, 12060960

    • NormaliseratArtNr
      a6327, cal40324, f032116090, 11138, 11138n, 11324, 11324n, 11324r, 270600p030, 553765ri, 12060960, 195960100, 1042104230, 1042104920, 1042104921, 2706031120

    • Passar modeller
      Faw Toyota Model: Land Cruiser Model series: Land Cruiser Model type: 4x4 Size of motor: 4.0 Brand of engine: 1GR-FE Body: SUV From date: 01-12-2007 To date: 01-12-2012 Fuel: Gasoline Approved: Yes
      Toyota Model: FJ Cruiser Model series: FJ Cruiser Model type: 4WD Size of motor: 4.0 Brand of engine: 1GR-FE Type description: GSJ1_ Body: SUV From date: 01-01-2007 To date: 01-06-2014 Fuel: Petrol Approved: Yes
      Toyota Model: FJ CRUISER Model series: FJ CRUISER Type of engine: VVTi Size of motor: 4.0 Brand of engine: 1GR-FE Type description: GSJ1_ From date: 01-01-2006 To date: 01-01-2018 Fuel: Gasoline Approved: Yes
      Toyota Model: Tundra Model series: Tundra Pickup Size of motor: 4.0 Brand of engine: 1GR-FE Type description: _K5_, _K6_ Body: Pickup From date: 01-11-2006 Fuel: Petrol Approved: Yes
