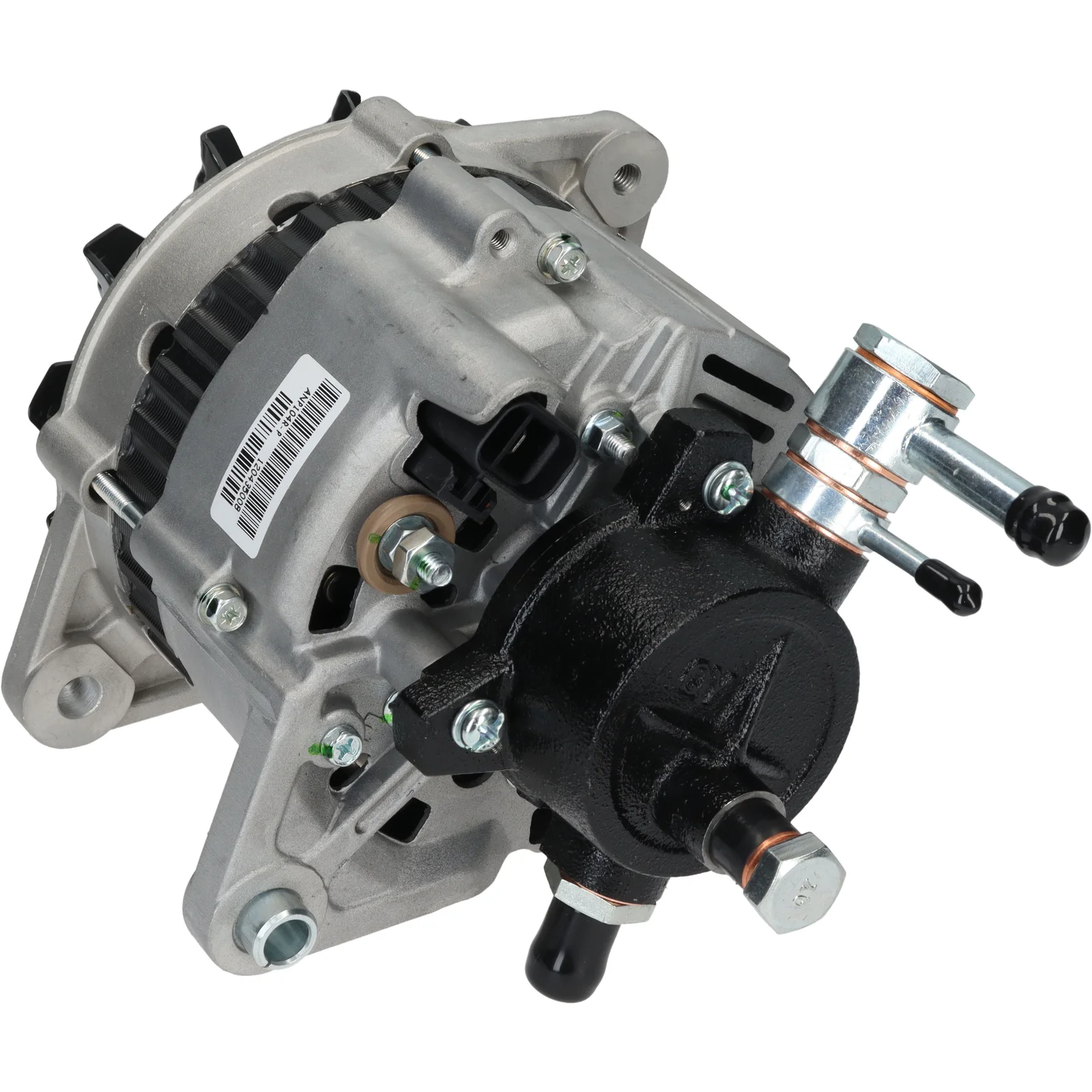

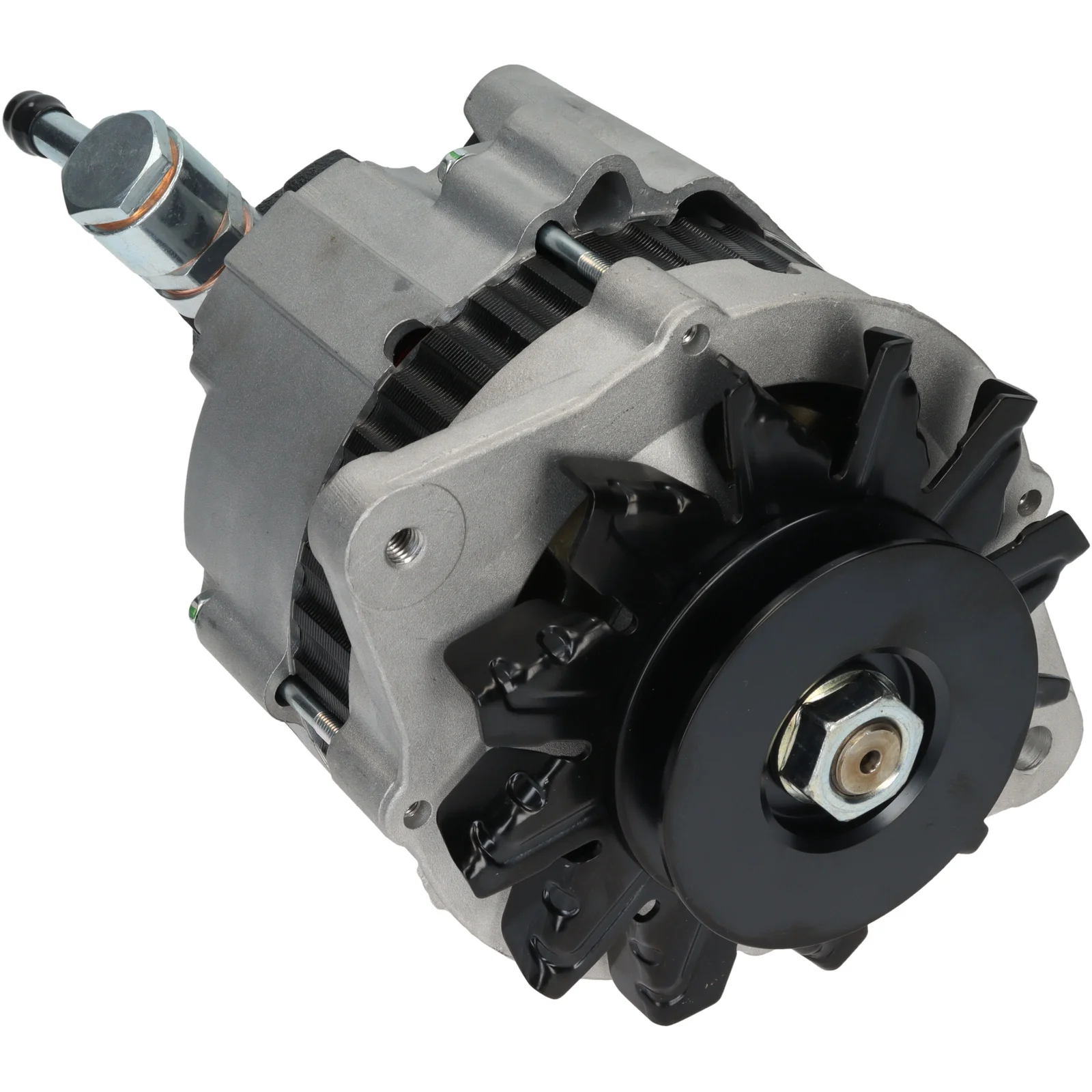

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032116106

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 2.67, Rotation: CW, Monteringsbeslag afstand.: 80.00

Beskrivelse

Spænding: 14
Ampere: 2.67
Bæltekredse: 42.30
Bredde/holderarm: 13.00
Monteringsbeslag afstand: 80.00
Beslagshul: 10.50
Bælteindstilling. beslagshul pos.: 60
Bælteindstilling. beslagshul 1: M8
Kredse diameter: 83.50
Riller/kredse: 1
Radius: 90.00
Radius 2: 85.00
B+: M6
Position/B+ i min.: 42
D+ Størrelse: Plug
Rotation: CW
Plug nr.: PL07
Total længde mm: 207.00
Pæretype: Inaktiv
Kredse: P
Blanderen: EF
Regulatorstype: IR
Vakuumpumpe: Ja

Filer

Specifikation

B+ M6
Mount. bracket dist. 80.00
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 60
Plug no. PL07
Bracket hole 10.50
Position/B+ in min. 42
Pulley P
Pulley dia. 83.50
Pulley dist. 42.30
Radius 90.00
D+ Size Plug
Radius 2 85.00
Regulator type IR
Rotation CW
Fan EF
Grooves/pulley 1
Lamp type Inactive
Vac. pump Yes
Voltage 14
Total length 207.00 mm
Width/holder arm 13.00
Amp 2.67

  • OEM
    F032116106, lr140-415, lr140-415b, 23100-18g02

  • Konkurrentreferens
    A2114S, ada-351, CAL20165, 8el726331-001, 28-0987, 28-51.115, 227.112.402, 5326, 56236, 12060239

  • NormaliseratArtNr
    a2114s, ada351, cal20165, f032116106, lr140415, lr140415b, 8el726331001, 5326, 56236, 280987, 2310018g02, 2851115, 12060239, 227112402

  • Passar modeller
    Nissan Model: King Cab Model series: King Cab Type of engine: Diesel Size of motor: 2.3 Brand of engine: SD23 Type description: D21 Body: Pick Up From date: 01-06-1985 To date: 01-08-1987 Fuel: Diesel Approved: Yes
    Nissan Model: Pick-Up Model series: Pick-Up Model type: 4WD Type of engine: Diesel Size of motor: 2.5 Brand of engine: SD25 Type description: D21 Body: Pick Up From date: 01-03-1986 To date: 01-08-1991 Fuel: Diesel Approved: Yes
    Nissan Model: Pick-Up Model series: Pick-Up Model type: 4WD Type of engine: Diesel Size of motor: 2.5 Brand of engine: SD25 Type description: D21 Body: Pick Up From date: 01-09-1985 To date: 01-08-1988 Fuel: Diesel Approved: Yes
    Nissan Model: Pick-Up Model series: Pick-Up Type of engine: Diesel Size of motor: 2.3 Brand of engine: SD23 Type description: D21 Body: Pick Up From date: 01-09-1985 To date: 01-08-1988 Fuel: Diesel Approved: Yes
  • Beskrivelse
    Spænding: 14
    Ampere: 2.67
    Bæltekredse: 42.30
    Bredde/holderarm: 13.00
    Monteringsbeslag afstand: 80.00
    Beslagshul: 10.50
    Bælteindstilling. beslagshul pos.: 60
    Bælteindstilling. beslagshul 1: M8
    Kredse diameter: 83.50
    Riller/kredse: 1
    Radius: 90.00
    Radius 2: 85.00
    B+: M6
    Position/B+ i min.: 42
    D+ Størrelse: Plug
    Rotation: CW
    Plug nr.: PL07
    Total længde mm: 207.00
    Pæretype: Inaktiv
    Kredse: P
    Blanderen: EF
    Regulatorstype: IR
    Vakuumpumpe: Ja

    Filer

  • Specifikation
    B+ M6
    Mount. bracket dist. 80.00
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 60
    Plug no. PL07
    Bracket hole 10.50
    Position/B+ in min. 42
    Pulley P
    Pulley dia. 83.50
    Pulley dist. 42.30
    Radius 90.00
    D+ Size Plug
    Radius 2 85.00
    Regulator type IR
    Rotation CW
    Fan EF
    Grooves/pulley 1
    Lamp type Inactive
    Vac. pump Yes
    Voltage 14
    Total length 207.00 mm
    Width/holder arm 13.00
    Amp 2.67
  • Køretøjsmatchning

    • OEM
      F032116106, lr140-415, lr140-415b, 23100-18g02

    • Konkurrentreferens
      A2114S, ada-351, CAL20165, 8el726331-001, 28-0987, 28-51.115, 227.112.402, 5326, 56236, 12060239

    • NormaliseratArtNr
      a2114s, ada351, cal20165, f032116106, lr140415, lr140415b, 8el726331001, 5326, 56236, 280987, 2310018g02, 2851115, 12060239, 227112402

    • Passar modeller
      Nissan Model: King Cab Model series: King Cab Type of engine: Diesel Size of motor: 2.3 Brand of engine: SD23 Type description: D21 Body: Pick Up From date: 01-06-1985 To date: 01-08-1987 Fuel: Diesel Approved: Yes
      Nissan Model: Pick-Up Model series: Pick-Up Model type: 4WD Type of engine: Diesel Size of motor: 2.5 Brand of engine: SD25 Type description: D21 Body: Pick Up From date: 01-03-1986 To date: 01-08-1991 Fuel: Diesel Approved: Yes
      Nissan Model: Pick-Up Model series: Pick-Up Model type: 4WD Type of engine: Diesel Size of motor: 2.5 Brand of engine: SD25 Type description: D21 Body: Pick Up From date: 01-09-1985 To date: 01-08-1988 Fuel: Diesel Approved: Yes
      Nissan Model: Pick-Up Model series: Pick-Up Type of engine: Diesel Size of motor: 2.3 Brand of engine: SD23 Type description: D21 Body: Pick Up From date: 01-09-1985 To date: 01-08-1988 Fuel: Diesel Approved: Yes
