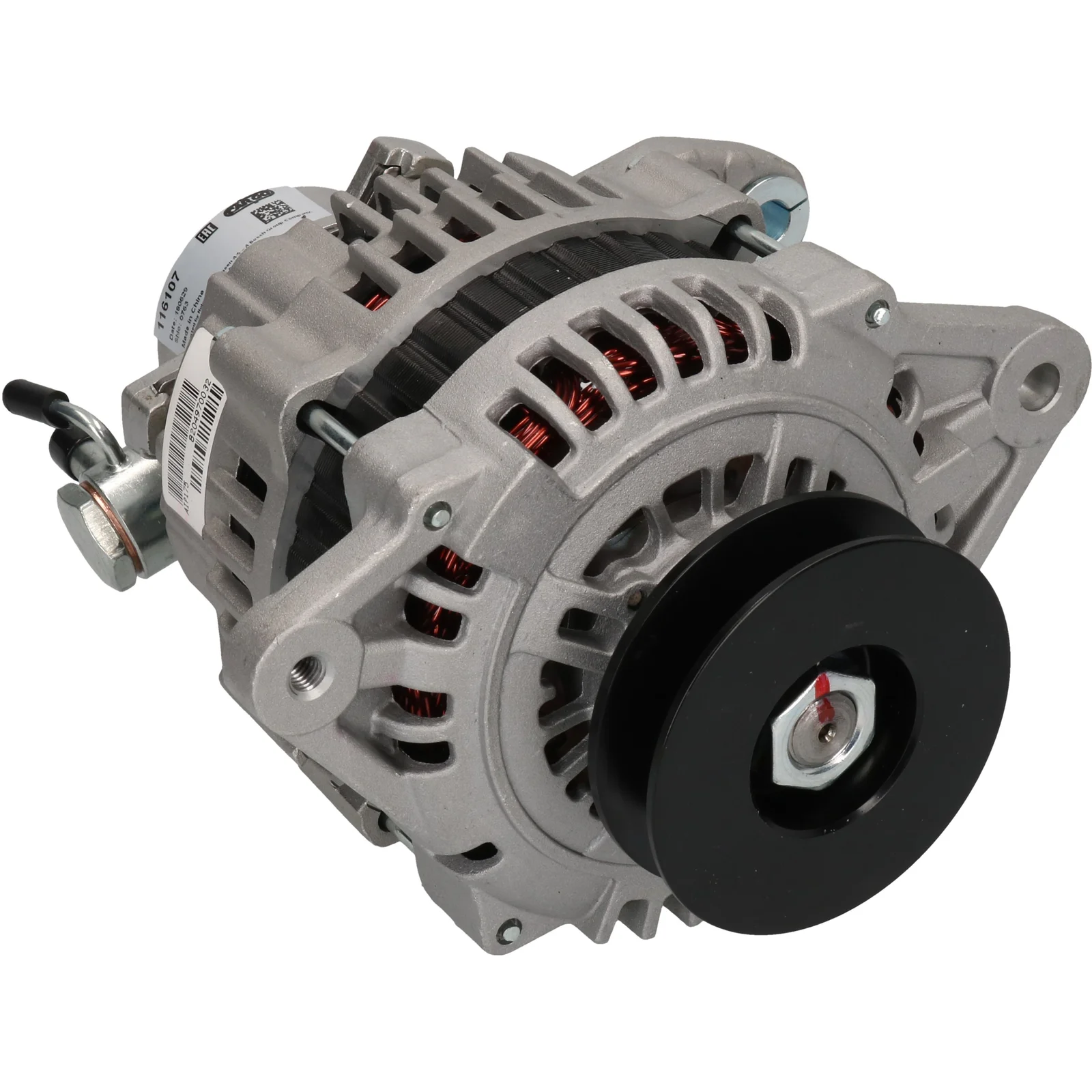

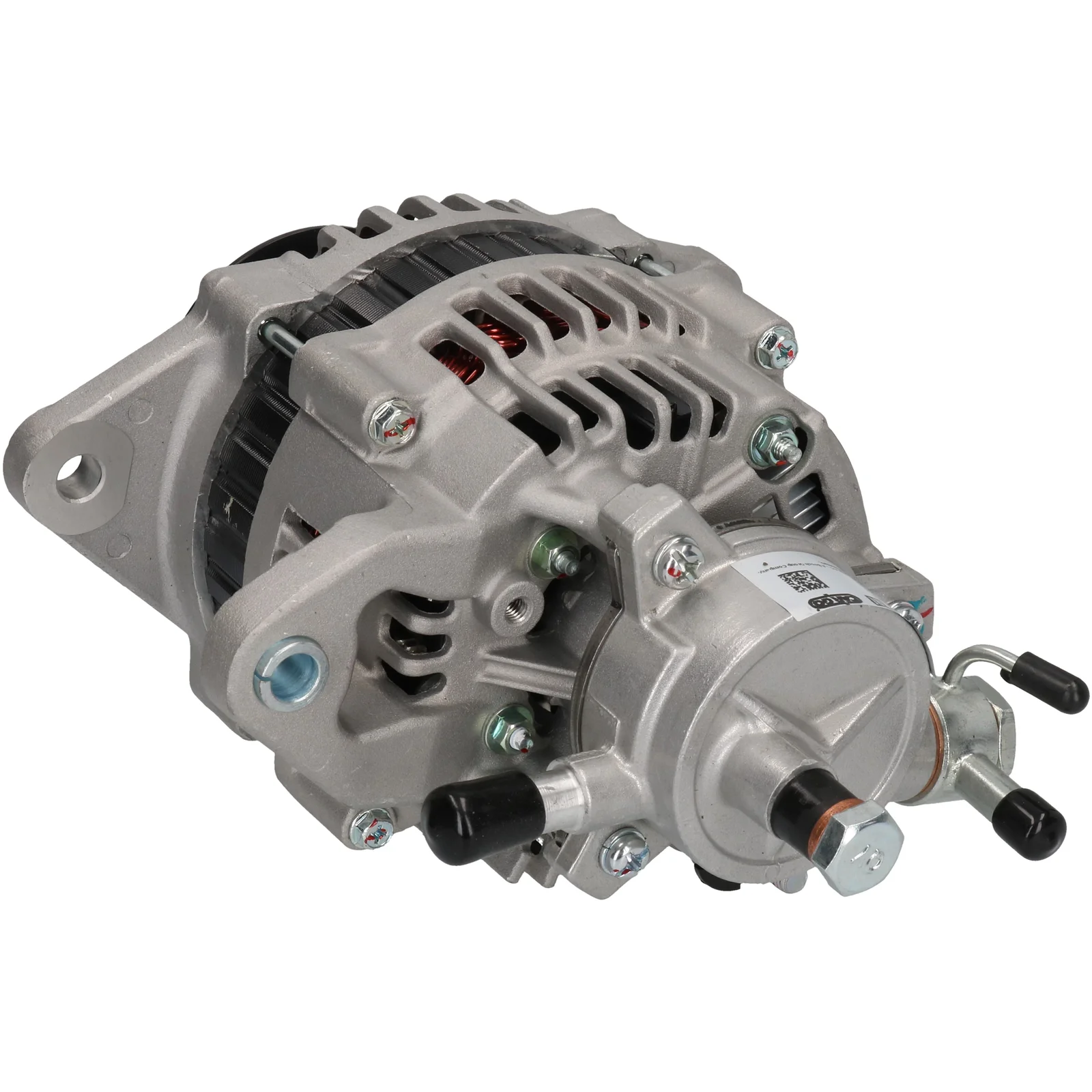

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032116107

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 80, Rotation: CW, Monteringsbøsning fordeler: 81,50

Beskrivelse

Spænding: 14
Amp: 80
Skive dybde: 49,00
Bredde/holder arm: 18,00
Monteringsbeslag afstand: 81,50
Beslaghul: 12,20
Bæltejusteringsbeslags hul position: 5
Bæltejusteringsbeslags hul 1: 10,50
Skive diameter: 82,00
Riller/skive: 1
Radius: 90,00
Radius 2: 85,00
B+: M8
Position/B+ i min.: 10
Rotation: Uret (CW)
Plug nr.: PL07
Total længde mm: 242,50
Terminaltype: L-S
Skive: P
Regulatortype: IR
Vakuumpumpe: Ja

Filer

Specifikation

B+ M8
Mount. bracket dist. 81.50
Belt. adj. bracket hole 1 10.50
Belt. adj. brackethole pos. 5
Plug no. PL07
Bracket hole 12.20
Position/B+ in min. 10
Pulley P
Pulley dia. 82.00
Pulley dist. 49.00
Radius 90.00
Radius 2 85.00
Regulator type IR
Rotation CW
Grooves/pulley 1
Terminal type L-S
Vac. pump Yes
Voltage 14
Total length 242.50 mm
Width/holder arm 18.00
Amp 80

  • OEM
    F032116107, lr180-513, lr180-513B, 8973272181

  • Konkurrentreferens
    A2089S, CAL20244, DRA1024, F042205116, LRA03441, 28-6551, 135.606.080, 243.128.802, 20095, 20095N

  • NormaliseratArtNr
    a2089s, cal20244, dra1024, f032116107, f042205116, lr180513, lr180513b, lra03441, 20095, 20095n, 286551, 135606080, 243128802, 8973272181

  • Passar modeller
    Isuzu Model: D-Max Model series: D-Max Model type: 4WD Type of engine: Diesel Size of motor: 3.0 Brand of engine: 4JH1-TC Type description: 8DH Body: Pick Up From date: 01-05-2002 To date: 01-06-2012 Fuel: Diesel Approved: Yes
    Isuzu Model: KB Model series: KB Model type: 4WD Type of engine: DiTD Size of motor: 2.5 Brand of engine: 4JA1 Body: Pick Up From date: 01-07-2002 To date: 01-06-2004 Fuel: Diesel Approved: Yes
    Isuzu Model: KB Model series: KB Model type: 4WD Type of engine: DiTD Size of motor: 2.5 Brand of engine: 4JA1 Body: Pick Up From date: 01-07-2004 To date: 01-09-2008 Fuel: Diesel Approved: Yes
    Isuzu Model: KB Model series: KB Type of engine: D-TEQ Size of motor: 2.5 Brand of engine: 4JK1-TC Body: Pick Up From date: 01-10-2008 Fuel: Diesel Approved: Yes
    Isuzu Model: KB Model series: KB Type of engine: DiTD Size of motor: 3.0 Brand of engine: 4JH1-TC Body: Pick Up From date: 01-10-2002 To date: 01-09-2003 Fuel: Diesel Approved: Yes
  • Beskrivelse
    Spænding: 14
    Amp: 80
    Skive dybde: 49,00
    Bredde/holder arm: 18,00
    Monteringsbeslag afstand: 81,50
    Beslaghul: 12,20
    Bæltejusteringsbeslags hul position: 5
    Bæltejusteringsbeslags hul 1: 10,50
    Skive diameter: 82,00
    Riller/skive: 1
    Radius: 90,00
    Radius 2: 85,00
    B+: M8
    Position/B+ i min.: 10
    Rotation: Uret (CW)
    Plug nr.: PL07
    Total længde mm: 242,50
    Terminaltype: L-S
    Skive: P
    Regulatortype: IR
    Vakuumpumpe: Ja

    Filer

  • Specifikation
    B+ M8
    Mount. bracket dist. 81.50
    Belt. adj. bracket hole 1 10.50
    Belt. adj. brackethole pos. 5
    Plug no. PL07
    Bracket hole 12.20
    Position/B+ in min. 10
    Pulley P
    Pulley dia. 82.00
    Pulley dist. 49.00
    Radius 90.00
    Radius 2 85.00
    Regulator type IR
    Rotation CW
    Grooves/pulley 1
    Terminal type L-S
    Vac. pump Yes
    Voltage 14
    Total length 242.50 mm
    Width/holder arm 18.00
    Amp 80
  • Køretøjsmatchning

    • OEM
      F032116107, lr180-513, lr180-513B, 8973272181

    • Konkurrentreferens
      A2089S, CAL20244, DRA1024, F042205116, LRA03441, 28-6551, 135.606.080, 243.128.802, 20095, 20095N

    • NormaliseratArtNr
      a2089s, cal20244, dra1024, f032116107, f042205116, lr180513, lr180513b, lra03441, 20095, 20095n, 286551, 135606080, 243128802, 8973272181

    • Passar modeller
      Isuzu Model: D-Max Model series: D-Max Model type: 4WD Type of engine: Diesel Size of motor: 3.0 Brand of engine: 4JH1-TC Type description: 8DH Body: Pick Up From date: 01-05-2002 To date: 01-06-2012 Fuel: Diesel Approved: Yes
      Isuzu Model: KB Model series: KB Model type: 4WD Type of engine: DiTD Size of motor: 2.5 Brand of engine: 4JA1 Body: Pick Up From date: 01-07-2002 To date: 01-06-2004 Fuel: Diesel Approved: Yes
      Isuzu Model: KB Model series: KB Model type: 4WD Type of engine: DiTD Size of motor: 2.5 Brand of engine: 4JA1 Body: Pick Up From date: 01-07-2004 To date: 01-09-2008 Fuel: Diesel Approved: Yes
      Isuzu Model: KB Model series: KB Type of engine: D-TEQ Size of motor: 2.5 Brand of engine: 4JK1-TC Body: Pick Up From date: 01-10-2008 Fuel: Diesel Approved: Yes
      Isuzu Model: KB Model series: KB Type of engine: DiTD Size of motor: 3.0 Brand of engine: 4JH1-TC Body: Pick Up From date: 01-10-2002 To date: 01-09-2003 Fuel: Diesel Approved: Yes
