HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032116138

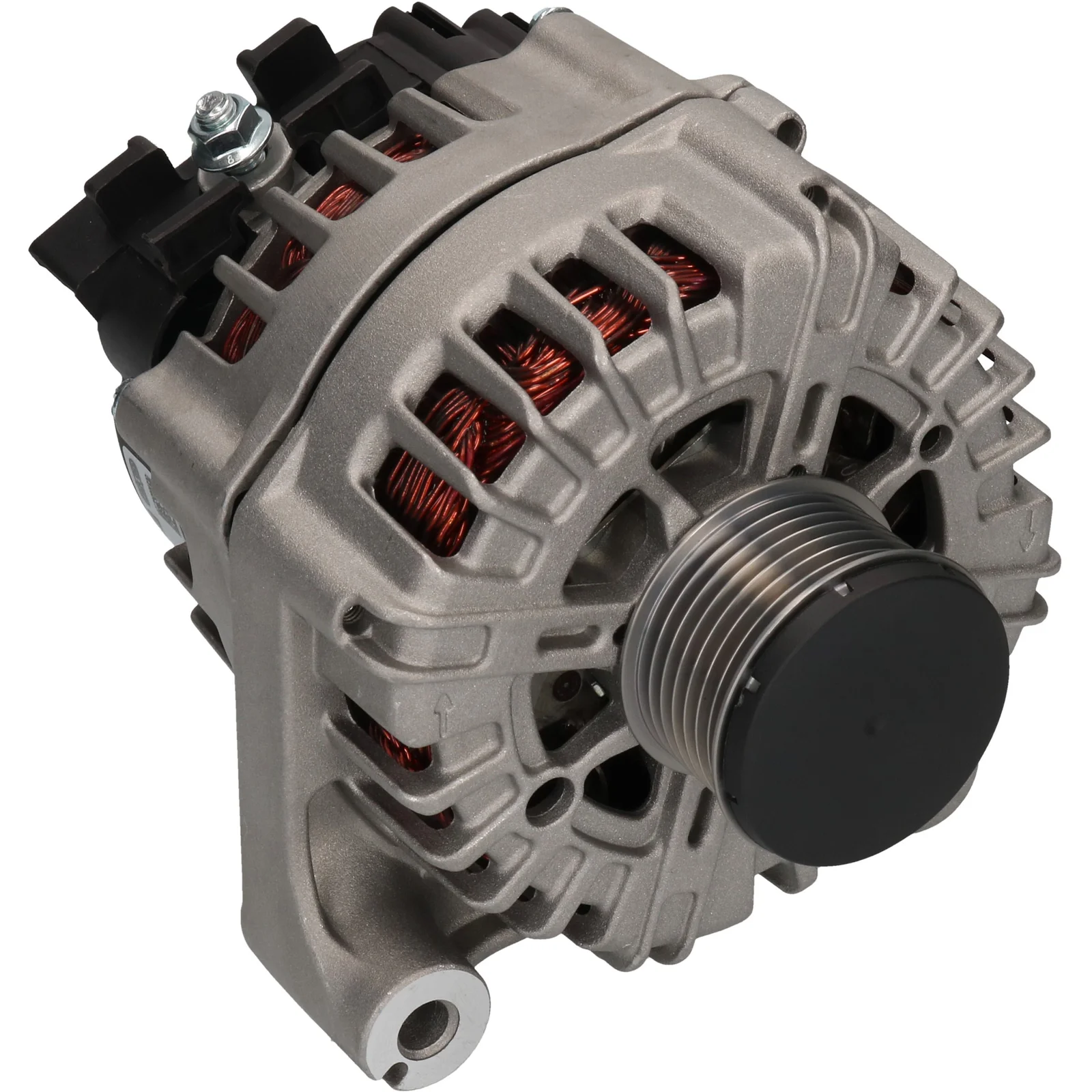

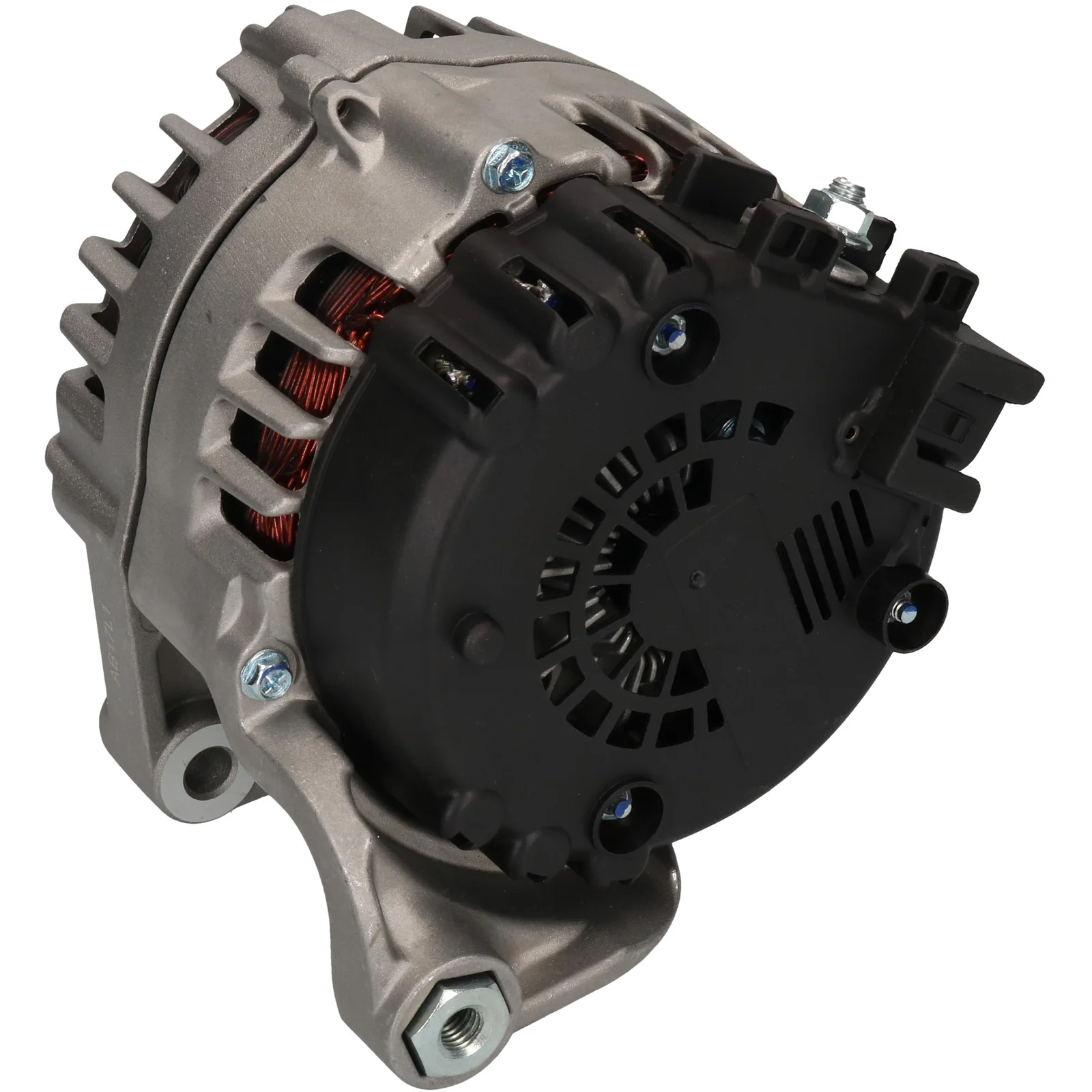

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 220, Rotation: CW, Monteringsbeslag tændrelæ: 76,00

Beskrivelse

Spænding: 14
Amp: 220
Rebskive ford. drift.: 55,30
Bredde/holderarm: 28,00
Monteringsbeslag afstand: 76,00
Beslagshul: 10,50
Bæltejustering beslaghul pos.: 45
Bæltejustering beslaghul 1: 10,50
Rebls. dia.: 54,00
Riller/rebskive: 7
Radius: 92,00
Radius 2: 92,00
B+: M8
Pos./B+ i min.: 58
Rotation: Fuld rotation
Stik nr.: PL125
Total længde mm: 185,00
Terminaltype: COM
Kommunikation: BSS
Rebskive: SP/FW
Fan: IF
Regulator type: IR
Bemærkninger: Denne generator har en COM-terminal på regulatoren. Det anbefales at bruge OEM-nummeret til at kontrollere egnethed, inden der bestilles.

Filer

Specifikation

B+ M8
Communication BSS
Mount. bracket dist. 76.00
Belt. adj. bracket hole 1 10.50
Belt. adj. brackethole pos. 45
Plug no. PL125
Bracket hole 10.50
Position/B+ in min. 58
Pulley SP/FW
Pulley dia. 54.00
Pulley dist. 55.30
Radius 92.00
Radius 2 92.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Fan IF
Grooves/pulley 7
Terminal type COM
Voltage 14
Total length 185.00 mm
Width/holder arm 28.00
Amp 220

  • OEM
    A3402S, A3402VALEO, F032116138, FG23S011, FGN23S011, L50620, 2543517B, 2543517C, 7807187, 10443520, 0986086670, 12317807187, 12317808075, 215583230000, 215583230004, 215583230280, 215583230346, 215583230500

  • Konkurrentreferens
    A3402S, CAL15523, DRA1254, LRA03642, 8EL011713-081, 28-6782, 215.198.2202, 215.583.220, 215.583.230, 24129N, 200216, 209272, 209272A, 439670, 440256, 553844RI, 9090572, 12090634, 32440256, 0986086670

  • Bilmärken
    BMW

  • NormaliseratArtNr
    a3402s, a3402valeo, f032116138, fg23s011, fgn23s011, l50620, 2543517b, 2543517c, 7807187, 10443520, 0986086670, 12317807187, 12317808075, 215583230000, 215583230004, 215583230280, 215583230346, 215583230500

  • Passar modeller
    BMW 5 (F10) 525 d Engine volume: 3.0 Engine type: N57 D30 A Year: 03.10-08.11
    BMW 5 (F10) 530 d Engine volume: 3.0 Engine type: N57 D30 A Year: 01.10-08.11
    BMW 5 (F10) 530 d Engine volume: 3.0 Engine type: N57 D30 A Year: 09.10-10.16
    BMW 5 (F10) 530 d Engine volume: 3.0 Engine type: N57 D30 A Year: 09.11-10.16
    BMW 5 (F10) 530 d xDrive Engine volume: 3.0 Engine type: N57 D30 A Year: 03.11-10.16
    BMW 5 (F10) 535 d Engine volume: 3.0 Engine type: N57 D30 B Year: 09.10-08.11
    BMW 5 (F10) 535 d Engine volume: 3.0 Engine type: N57 D30 B Year: 09.11-10.16
    BMW 5 (F10) 535 d xDrive Engine volume: 3.0 Engine type: N57 D30 B Year: 09.11-10.16
    BMW 5 Gran Turismo (F07) 530 d Engine volume: 3.0 Engine type: N57 D30 A Year: 07.12-02.17
    BMW 5 Gran Turismo (F07) 530 d Engine volume: 3.0 Engine type: N57 D30 A Year: 08.09-06.12
    BMW 5 Gran Turismo (F07) 530 d Engine volume: 3.0 Engine type: N57 D30 A Year: 09.10-02.17
    BMW 5 Gran Turismo (F07) 530 d xDrive Engine volume: 3.0 Engine type: N57 D30 A Year: 06.10-06.12
    BMW 5 Gran Turismo (F07) 530 d xDrive Engine volume: 3.0 Engine type: N57 D30 A Year: 07.12-02.17
    BMW 5 Gran Turismo (F07) 535 d Engine volume: 3.0 Engine type: N57 D30 B Year: 03.10-06.12
    BMW 5 Gran Turismo (F07) 535 d Engine volume: 3.0 Engine type: N57 D30 B Year: 07.12-02.17
    BMW 5 Gran Turismo (F07) 535 d xDrive Engine volume: 3.0 Engine type: N57 D30 B Year: 03.10-06.12
    BMW 5 Gran Turismo (F07) 535 d xDrive Engine volume: 3.0 Engine type: N57 D30 B Year: 07.12-02.17
    BMW 5 Touring (F11) 525 d Engine volume: 3.0 Engine type: N57 D30 A Year: 09.10-08.11
    BMW 5 Touring (F11) 530 d Engine volume: 3.0 Engine type: N57 D30 A Year: 06.10-08.11
    BMW 5 Touring (F11) 530 d Engine volume: 3.0 Engine type: N57 D30 A Year: 09.11-02.17
    BMW 5 Touring (F11) 530 d xDrive Engine volume: 3.0 Engine type: N57 D30 A Year: 03.11-02.17
    BMW 5 Touring (F11) 535 d Engine volume: 3.0 Engine type: N57 D30 B Year: 09.10-08.11
    BMW 5 Touring (F11) 535 d Engine volume: 3.0 Engine type: N57 D30 B Year: 09.11-02.17
    BMW 5 Touring (F11) 535 d xDrive Engine volume: 3.0 Engine type: N57 D30 B Year: 09.11-02.17
    BMW 7 (F01, F02, F03, F04) 730 d Engine volume: 3.0 Engine type: N57 D30 A Year: 02.08-05.15
    BMW 7 (F01, F02, F03, F04) 730 d Engine volume: 3.0 Engine type: N57 D30 A Year: 09.08-06.12
    BMW 7 (F01, F02, F03, F04) 730 d xDrive Engine volume: 3.0 Engine type: N57 D30 A Year: 11.11-05.15
    BMW 7 (F01, F02, F03, F04) 740 d Engine volume: 3.0 Engine type: N57 D30 B Year: 09.09-06.12
    BMW 7 (F01, F02, F03, F04) 740 d xDrive Engine volume: 3.0 Engine type: N57 D30 B Year: 09.10-12.12
    BMW X5 (E70) xDrive 30 d Engine volume: 3.0 Engine type: M57 D30 (306D3) Year: 10.08-03.10
    BMW X5 (E70) xDrive 30 d Engine volume: 3.0 Engine type: M57 D30 (306D3), N57 D30 A Year: 10.08-07.13
    BMW X5 (E70) xDrive 30 d Engine volume: 3.0 Engine type: N57 D30 A Year: 04.10-07.13
    BMW X5 (E70) xDrive 40 d Engine volume: 3.0 Engine type: N57 D30 B Year: 09.10-06.13
    BMW X6 (E71, E72) xDrive 30 d Engine volume: 3.0 Engine type: M57 D30 (306D3) Year: 04.08-03.10
    BMW X6 (E71, E72) xDrive 30 d Engine volume: 3.0 Engine type: N57 D30 A Year: 04.10-07.14
    BMW X6 (E71, E72) xDrive 40 d Engine volume: 3.0 Engine type: N57 D30 B Year: 07.09-06.14
    BMW X6 (F16, F86) xDrive 30 d Engine volume: 3.0 Engine type: N57 D30 A Year: 08.14-07.19
