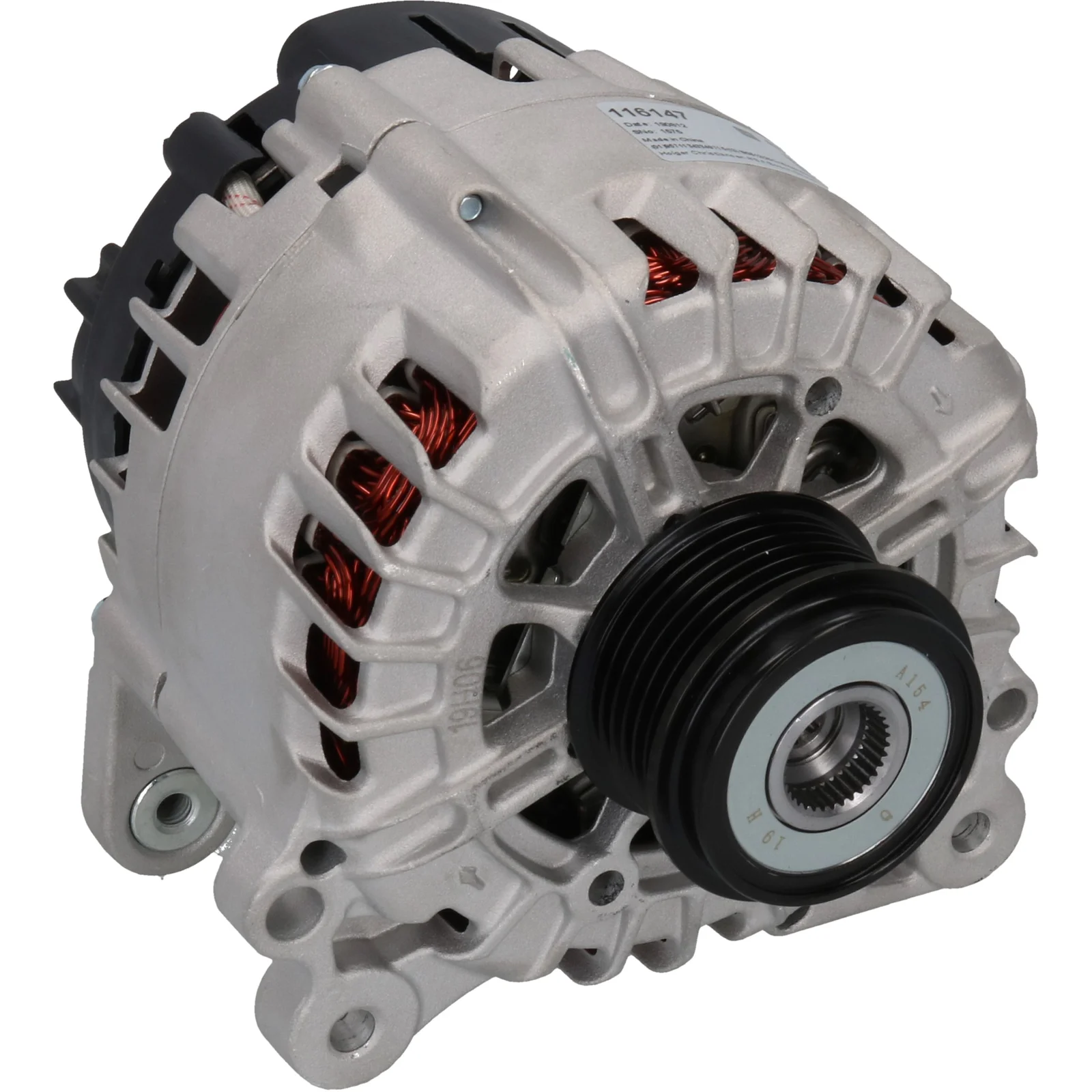

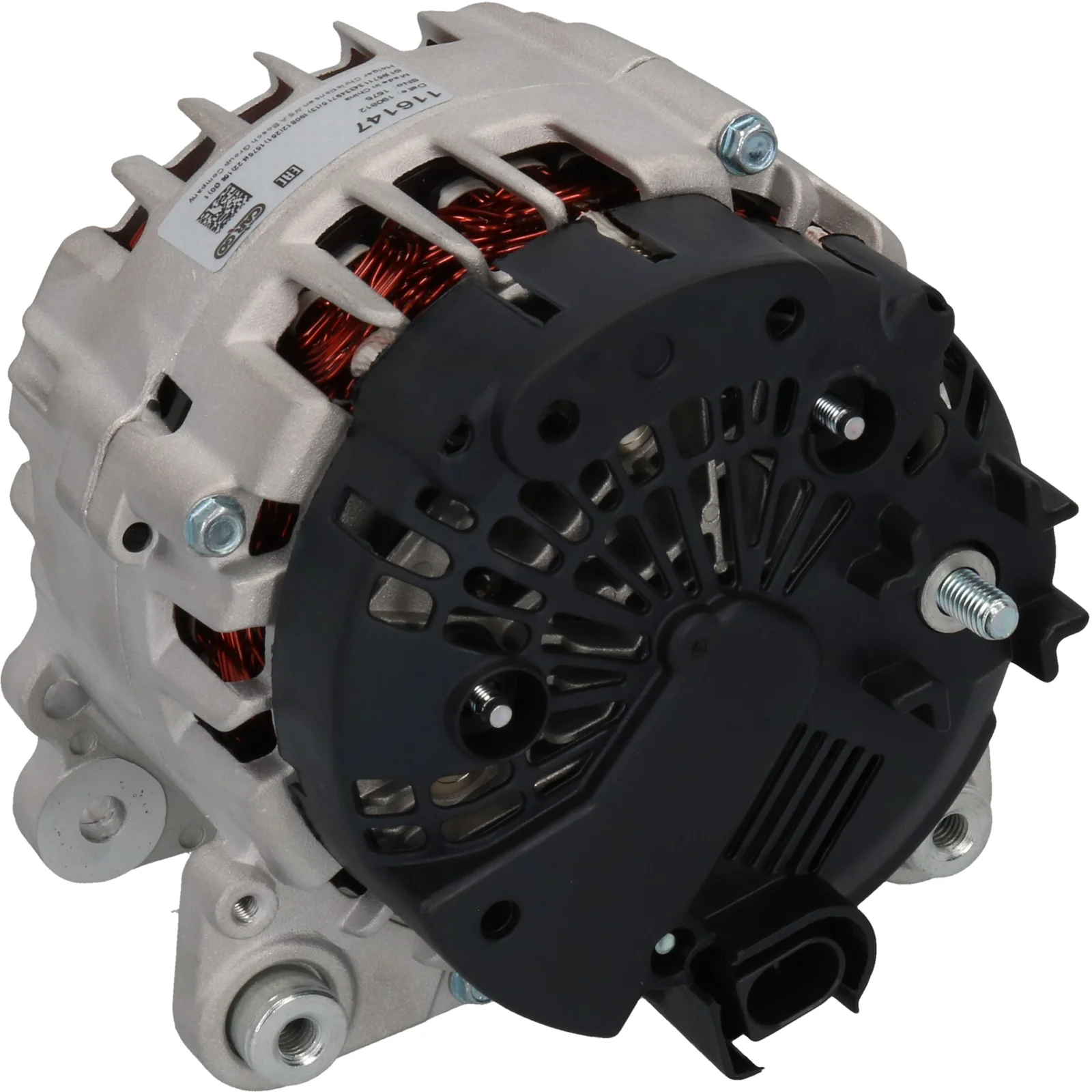

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032116147

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 180, Rotation: CW, Monteringsbeslag forfordeling: 60.80

Beskrivelse

Spænding: 14
Amp: 180
Skive afstand: 29.30
Bredde/holder arm: 13.70
Mont. skab. afstand: 60.80
Skab. hul: 8.50
Bælte just. skab. hul pos.: 15
Bælte just. skab. hul 1: 8.50
Skive dia.: 56.00
Gnav/skive: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ i min.: 25
Rotation: Uhr, mod uret
Stik nr.: PL181
Total længde mm: 191.00
Terminal type: COM
Kommunikation: LIN
Pulley: SP/FW
Regulator type: IR
Bemærkninger: Denne generator har en COM-terminal på regulatoren. Det anbefales at bruge OEM-nummeret for at kontrollere egnethed, før der bestilles.

Filer

Specifikation

B+ M8
Communication LIN
Mount. bracket dist. 60.80
Belt. adj. bracket hole 1 8.50
Belt. adj. brackethole pos. 15
Plug no. PL181
Bracket hole 8.50
Position/B+ in min. 25
Pulley SP/FW
Pulley dia. 56.00
Pulley dist. 29.30
Radius 90.00
Radius 2 90.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Grooves/pulley 6
Terminal type COM
Voltage 14
Total length 191.00 mm
Width/holder arm 13.70
Amp 180

  • OEM
    F032116147, FG18S100, FG18T094, FG18T120, FGN18S100, 059903019D, 059903023K, 059903023KX, 059903023M, 059903023MX

  • Konkurrentreferens
    A3147, A3147(VALEO), A3468S, A3600S, CAL15399, CAL15485, CAL15514, CAL15543, DRA0675, DRA0794, LRA03358, 28-5970, 211.375.1802, 305.902.180, 305.912.180, 20939AN, 113447, 209195, 209195A, 439777, 439784, 439838, 440410, 440416, 440563, 553442RI, 553626RI, 553959RI, 9090608, 9090860, 12090474, 12090661

  • NormaliseratArtNr
    a3147, a3147valeo, a3468s, a3600s, cal15399, cal15485, cal15514, cal15543, dra0675, dra0794, f032116147, fg18s100, fg18t094, fg18t120, fgn18s100, lra03358, 20939an, 113447, 209195, 209195a, 285970, 439777, 439784, 439838, 440410, 440416, 440563, 553442ri, 553626ri, 553959ri, 9090608, 9090860, 12090474, 12090661, 059903019d, 059903023k, 059903023kx, 059903023m, 059903023mx, 305902180, 305912180, 2113751802

  • Passar modeller
    VW Model: Touareg Model series: Touareg Type of engine: TDi Size of motor: 3.0 Brand of engine: CASD Type description: 7P5 From date: 01-01-2010 To date: 01-03-2018 Fuel: Diesel Approved: Yes
    VW Model: Touareg Model series: Touareg Type of engine: TDi Size of motor: 3.0 Brand of engine: CJGD Type description: 7P5 From date: 01-05-2011 To date: 01-03-2018 Fuel: Diesel Approved: Yes
    VW Model: Touareg Model series: Touareg Type of engine: TDi Size of motor: 3.0 Brand of engine: CJMA Type description: 7P5 From date: 01-01-2010 To date: 01-03-2018 Fuel: Diesel Approved: Yes
    VW Model: Touareg Model series: Touareg Type of engine: TDi Size of motor: 3.0 Brand of engine: CRCA Type description: 7P5 From date: 01-05-2011 To date: 01-03-2018 Fuel: Diesel Approved: Yes
    VW Model: Touareg Model series: Touareg Type of engine: TDi Size of motor: 3.0 Brand of engine: CVWA Type description: 7P5 From date: 01-01-2010 To date: 01-03-2018 Fuel: Diesel Approved: Yes
    VW Model: Touareg Model series: Touareg Type of engine: V6 TDi Size of motor: 3.0 Brand of engine: CASA Type description: 7P5 From date: 01-01-2010 To date: 01-03-2018 Fuel: Diesel Approved: Yes
    VW Model: Touareg Model series: Touareg Type of engine: V6 TDI Size of motor: 3.0 Brand of engine: CATA Type description: 7P5 From date: 01-06-2010 To date: 01-03-2018 Fuel: Diesel Approved: Yes
    VW Model: Touareg Model series: Touareg Type of engine: V6 TDi Size of motor: 3.0 Brand of engine: CNRB Type description: 7P5 From date: 01-01-2010 To date: 01-03-2018 Fuel: Diesel Approved: Yes
    VW Model: Touareg Model series: Touareg Van Model type: 4Motion Type of engine: TDi Size of motor: 3.0 Brand of engine: CRCA Type description: 7P5 Body: Box Body / Estate From date: 01-05-2011 To date: 01-12-2014 Fuel: Diesel Approved: Yes
    1 / 2
  • Beskrivelse
    Spænding: 14
    Amp: 180
    Skive afstand: 29.30
    Bredde/holder arm: 13.70
    Mont. skab. afstand: 60.80
    Skab. hul: 8.50
    Bælte just. skab. hul pos.: 15
    Bælte just. skab. hul 1: 8.50
    Skive dia.: 56.00
    Gnav/skive: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ i min.: 25
    Rotation: Uhr, mod uret
    Stik nr.: PL181
    Total længde mm: 191.00
    Terminal type: COM
    Kommunikation: LIN
    Pulley: SP/FW
    Regulator type: IR
    Bemærkninger: Denne generator har en COM-terminal på regulatoren. Det anbefales at bruge OEM-nummeret for at kontrollere egnethed, før der bestilles.

    Filer

  • Specifikation
    B+ M8
    Communication LIN
    Mount. bracket dist. 60.80
    Belt. adj. bracket hole 1 8.50
    Belt. adj. brackethole pos. 15
    Plug no. PL181
    Bracket hole 8.50
    Position/B+ in min. 25
    Pulley SP/FW
    Pulley dia. 56.00
    Pulley dist. 29.30
    Radius 90.00
    Radius 2 90.00
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Grooves/pulley 6
    Terminal type COM
    Voltage 14
    Total length 191.00 mm
    Width/holder arm 13.70
    Amp 180
  • Køretøjsmatchning

    • OEM
      F032116147, FG18S100, FG18T094, FG18T120, FGN18S100, 059903019D, 059903023K, 059903023KX, 059903023M, 059903023MX

    • Konkurrentreferens
      A3147, A3147(VALEO), A3468S, A3600S, CAL15399, CAL15485, CAL15514, CAL15543, DRA0675, DRA0794, LRA03358, 28-5970, 211.375.1802, 305.902.180, 305.912.180, 20939AN, 113447, 209195, 209195A, 439777, 439784, 439838, 440410, 440416, 440563, 553442RI, 553626RI, 553959RI, 9090608, 9090860, 12090474, 12090661

    • NormaliseratArtNr
      a3147, a3147valeo, a3468s, a3600s, cal15399, cal15485, cal15514, cal15543, dra0675, dra0794, f032116147, fg18s100, fg18t094, fg18t120, fgn18s100, lra03358, 20939an, 113447, 209195, 209195a, 285970, 439777, 439784, 439838, 440410, 440416, 440563, 553442ri, 553626ri, 553959ri, 9090608, 9090860, 12090474, 12090661, 059903019d, 059903023k, 059903023kx, 059903023m, 059903023mx, 305902180, 305912180, 2113751802

    • Passar modeller
      VW Model: Touareg Model series: Touareg Type of engine: TDi Size of motor: 3.0 Brand of engine: CASD Type description: 7P5 From date: 01-01-2010 To date: 01-03-2018 Fuel: Diesel Approved: Yes
      VW Model: Touareg Model series: Touareg Type of engine: TDi Size of motor: 3.0 Brand of engine: CJGD Type description: 7P5 From date: 01-05-2011 To date: 01-03-2018 Fuel: Diesel Approved: Yes
      VW Model: Touareg Model series: Touareg Type of engine: TDi Size of motor: 3.0 Brand of engine: CJMA Type description: 7P5 From date: 01-01-2010 To date: 01-03-2018 Fuel: Diesel Approved: Yes
      VW Model: Touareg Model series: Touareg Type of engine: TDi Size of motor: 3.0 Brand of engine: CRCA Type description: 7P5 From date: 01-05-2011 To date: 01-03-2018 Fuel: Diesel Approved: Yes
      VW Model: Touareg Model series: Touareg Type of engine: TDi Size of motor: 3.0 Brand of engine: CVWA Type description: 7P5 From date: 01-01-2010 To date: 01-03-2018 Fuel: Diesel Approved: Yes
      VW Model: Touareg Model series: Touareg Type of engine: V6 TDi Size of motor: 3.0 Brand of engine: CASA Type description: 7P5 From date: 01-01-2010 To date: 01-03-2018 Fuel: Diesel Approved: Yes
      VW Model: Touareg Model series: Touareg Type of engine: V6 TDI Size of motor: 3.0 Brand of engine: CATA Type description: 7P5 From date: 01-06-2010 To date: 01-03-2018 Fuel: Diesel Approved: Yes
      VW Model: Touareg Model series: Touareg Type of engine: V6 TDi Size of motor: 3.0 Brand of engine: CNRB Type description: 7P5 From date: 01-01-2010 To date: 01-03-2018 Fuel: Diesel Approved: Yes
      VW Model: Touareg Model series: Touareg Van Model type: 4Motion Type of engine: TDi Size of motor: 3.0 Brand of engine: CRCA Type description: 7P5 Body: Box Body / Estate From date: 01-05-2011 To date: 01-12-2014 Fuel: Diesel Approved: Yes
