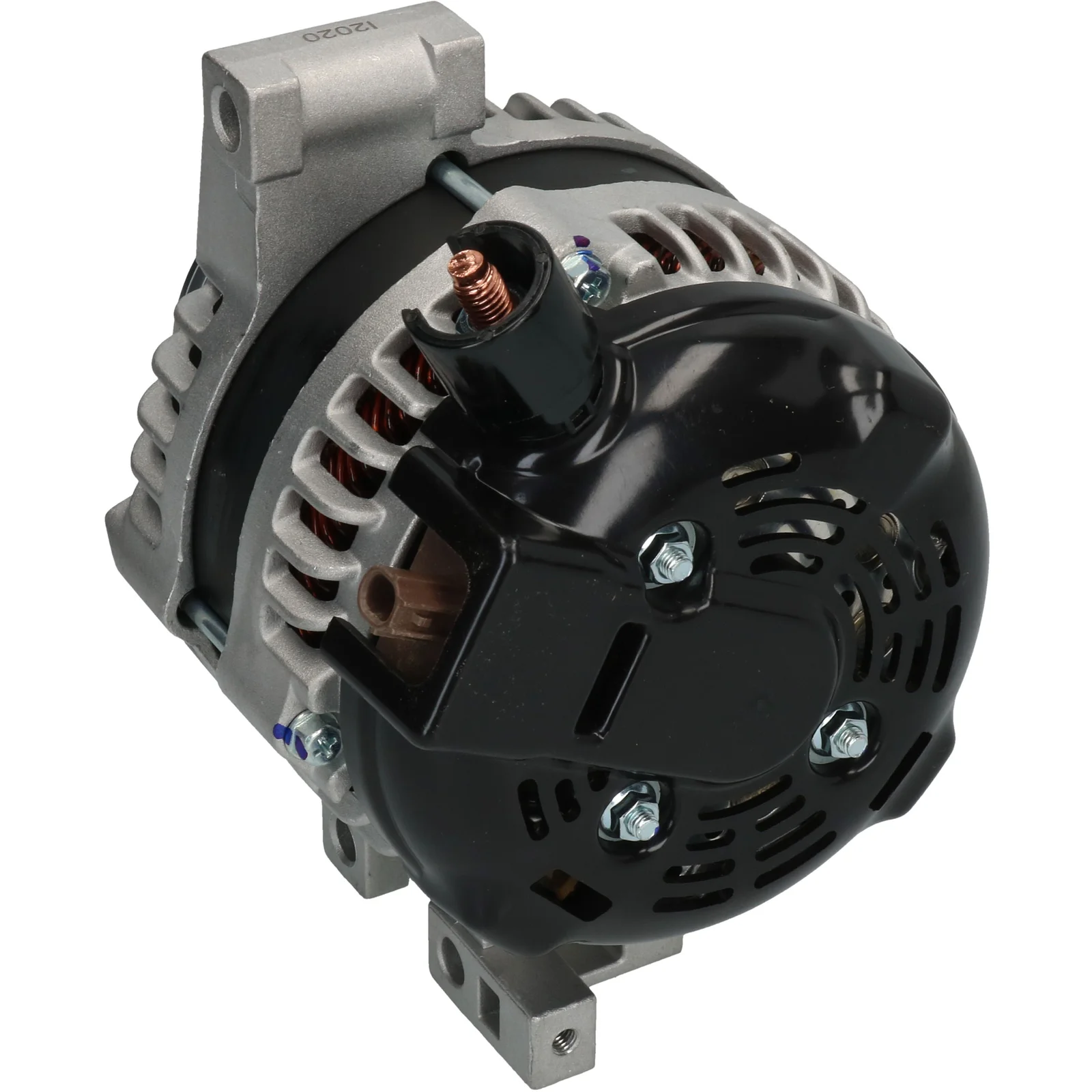

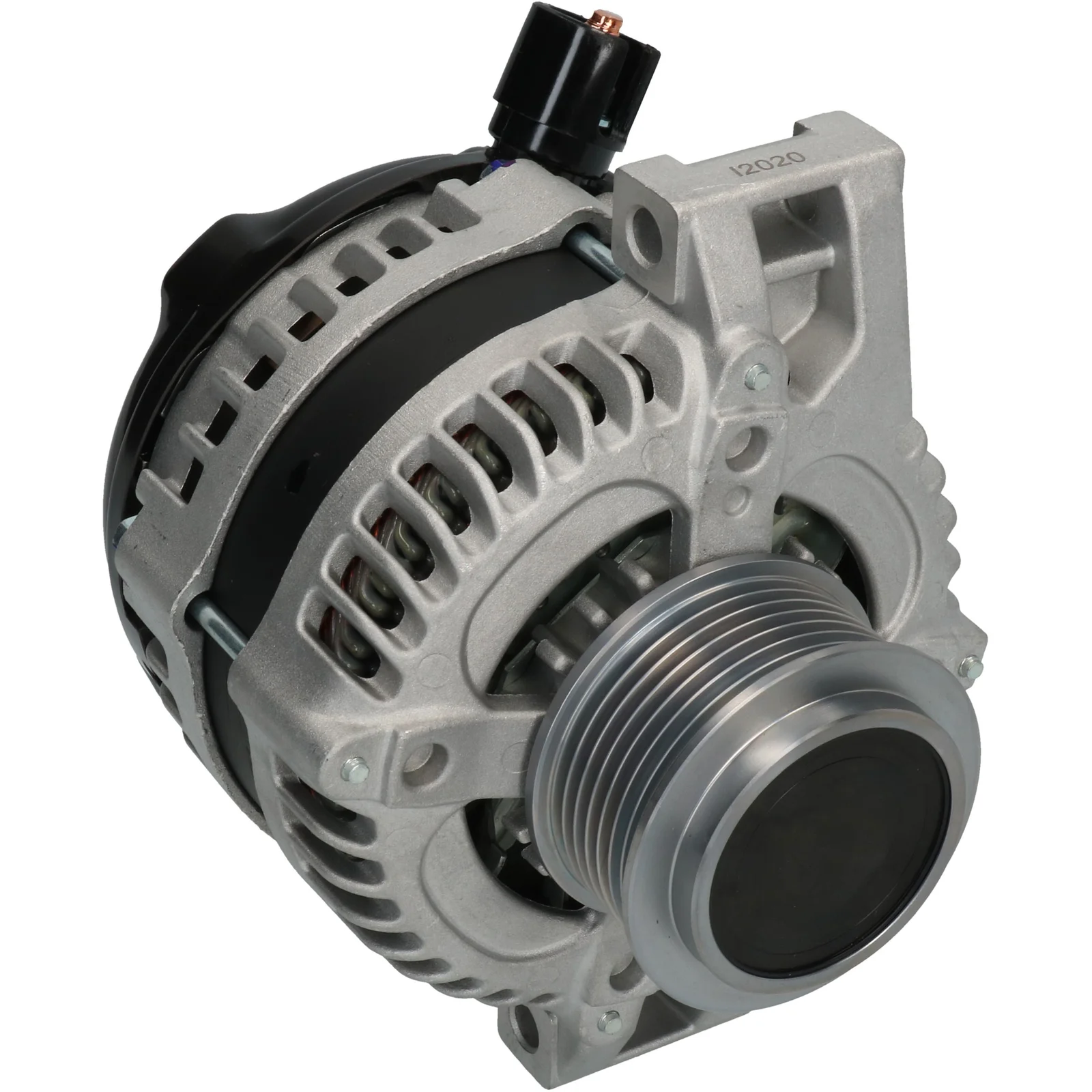

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032116148

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 150, Rotation: CW, Mount. bøjle afstand: 43,50

Beskrivelse

Spænding: 14
Ampere: 150
Bredde/holder arm: 46,00
Montagebeslag afstand: 43,50
Beslagshul: 8,90
Bæltejustering beslag hul 1: 9,00
Remskive dia.: 65,00
Ribber/remskive: 7
Radius: 81,50
Radius 2: 80,50
B+: M8
Position/B+ i min.: 58
Rotation: med uret
Stik nr.: PL205
Total længde mm: 167,00
Terminaltype: COM
Lysarrêt: Aktiv
Kommunikation: LIN
Remskive: SP/FW
Vifte: IF
Spændingsregulator type: IR
Bemærkninger: Denne Generator har en COM-terminal på spændingsregulatoren. Det anbefales at bruge OEM-nummeret for at kontrollere egnethed før bestilling.

Filer

Specifikation

B+ M8
Communication LIN
Mount. bracket dist. 43.50
Belt. adj. bracket hole 1 9.00
Plug no. PL205
Bracket hole 8.90
Position/B+ in min. 58
Pulley SP/FW
Pulley dia. 65.00
Radius 81.50
Radius 2 80.50
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Fan IF
Grooves/pulley 7
Lamp type Active
Terminal type COM
Voltage 14
Total length 167.00 mm
Width/holder arm 46.00
Amp 150

  • OEM
    CSJ65, F032116148, MAN7582, 31100-R3L-G01, 104210-1650

  • Konkurrentreferens
    A6566S, CAL40430, DAN1308, DRA1218, LRA04008, 8EL015637-471, 28-7618, 125.570.150, 222.169.1502, 210970, 210970A, 554459RI, 12061217

  • NormaliseratArtNr
    a6566s, cal40430, csj65, dan1308, dra1218, f032116148, lra04008, man7582, 8el015637471, 31100r3lg01, 210970, 210970a, 287618, 554459ri, 12061217, 125570150, 1042101650, 2221691502

  • Passar modeller
    Honda Model: Civic Model series: Civic Type of engine: DTEC Size of motor: 2.2 Brand of engine: N22B4 Body: Hatchback From date: 01-02-2012 Fuel: Diesel Approved: Yes
    Honda Model: CR-V Model series: CR-V Model type: 4WD Type of engine: DTEC Size of motor: 2.2 Brand of engine: N22B4 From date: 01-10-2012 Fuel: Diesel Approved: Yes
    Honda Model: CR-V Model series: CR-V Model type: 4WD Type of engine: i-DTEC Size of motor: 2.2 Brand of engine: N22B4 Type description: RM_ Body: SUV From date: 01-11-2012 To date: 01-05-2015 Fuel: Diesel Approved: Yes
  • Beskrivelse
    Spænding: 14
    Ampere: 150
    Bredde/holder arm: 46,00
    Montagebeslag afstand: 43,50
    Beslagshul: 8,90
    Bæltejustering beslag hul 1: 9,00
    Remskive dia.: 65,00
    Ribber/remskive: 7
    Radius: 81,50
    Radius 2: 80,50
    B+: M8
    Position/B+ i min.: 58
    Rotation: med uret
    Stik nr.: PL205
    Total længde mm: 167,00
    Terminaltype: COM
    Lysarrêt: Aktiv
    Kommunikation: LIN
    Remskive: SP/FW
    Vifte: IF
    Spændingsregulator type: IR
    Bemærkninger: Denne Generator har en COM-terminal på spændingsregulatoren. Det anbefales at bruge OEM-nummeret for at kontrollere egnethed før bestilling.

    Filer

  • Specifikation
    B+ M8
    Communication LIN
    Mount. bracket dist. 43.50
    Belt. adj. bracket hole 1 9.00
    Plug no. PL205
    Bracket hole 8.90
    Position/B+ in min. 58
    Pulley SP/FW
    Pulley dia. 65.00
    Radius 81.50
    Radius 2 80.50
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Fan IF
    Grooves/pulley 7
    Lamp type Active
    Terminal type COM
    Voltage 14
    Total length 167.00 mm
    Width/holder arm 46.00
    Amp 150
  • Køretøjsmatchning

    • OEM
      CSJ65, F032116148, MAN7582, 31100-R3L-G01, 104210-1650

    • Konkurrentreferens
      A6566S, CAL40430, DAN1308, DRA1218, LRA04008, 8EL015637-471, 28-7618, 125.570.150, 222.169.1502, 210970, 210970A, 554459RI, 12061217

    • NormaliseratArtNr
      a6566s, cal40430, csj65, dan1308, dra1218, f032116148, lra04008, man7582, 8el015637471, 31100r3lg01, 210970, 210970a, 287618, 554459ri, 12061217, 125570150, 1042101650, 2221691502

    • Passar modeller
      Honda Model: Civic Model series: Civic Type of engine: DTEC Size of motor: 2.2 Brand of engine: N22B4 Body: Hatchback From date: 01-02-2012 Fuel: Diesel Approved: Yes
      Honda Model: CR-V Model series: CR-V Model type: 4WD Type of engine: DTEC Size of motor: 2.2 Brand of engine: N22B4 From date: 01-10-2012 Fuel: Diesel Approved: Yes
      Honda Model: CR-V Model series: CR-V Model type: 4WD Type of engine: i-DTEC Size of motor: 2.2 Brand of engine: N22B4 Type description: RM_ Body: SUV From date: 01-11-2012 To date: 01-05-2015 Fuel: Diesel Approved: Yes
