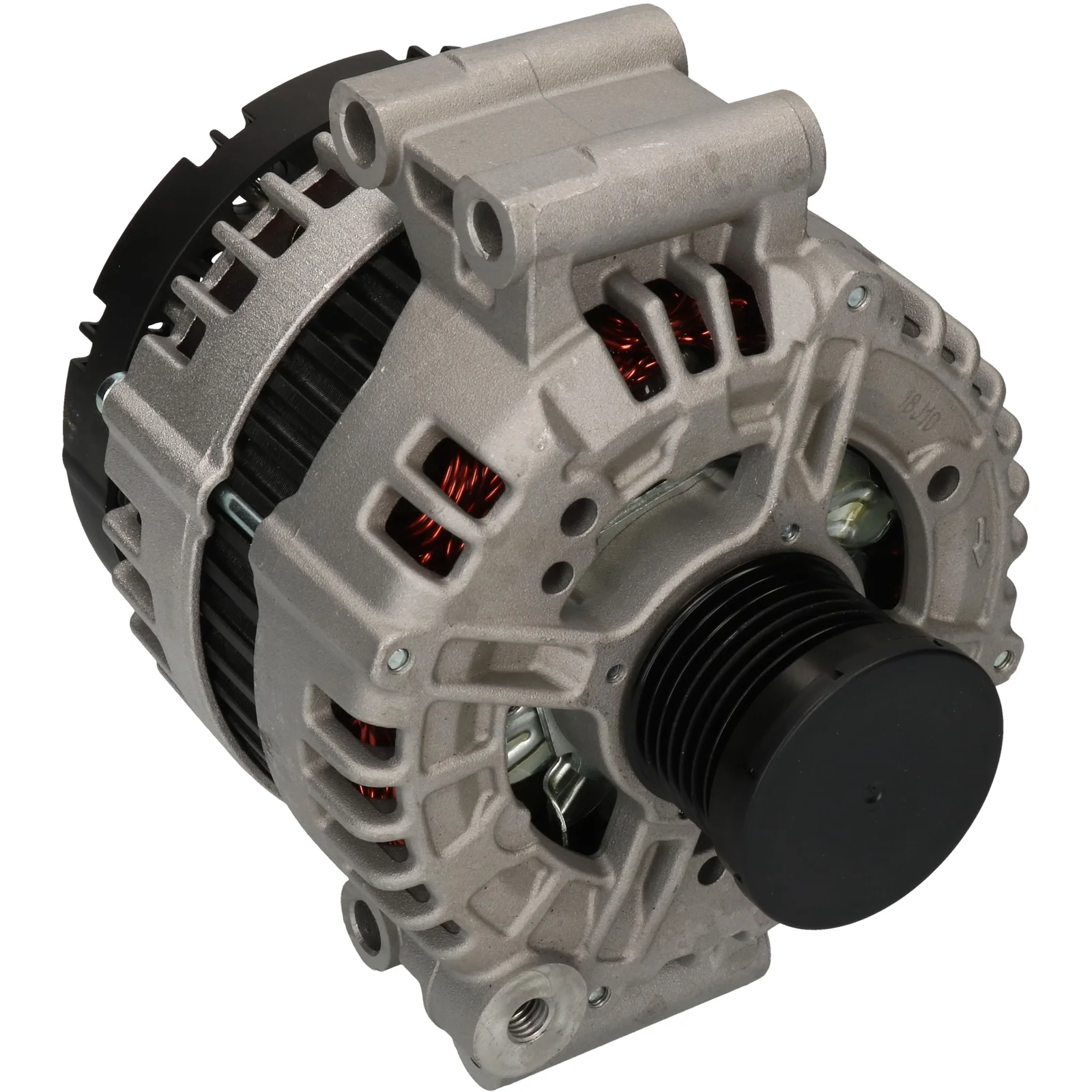

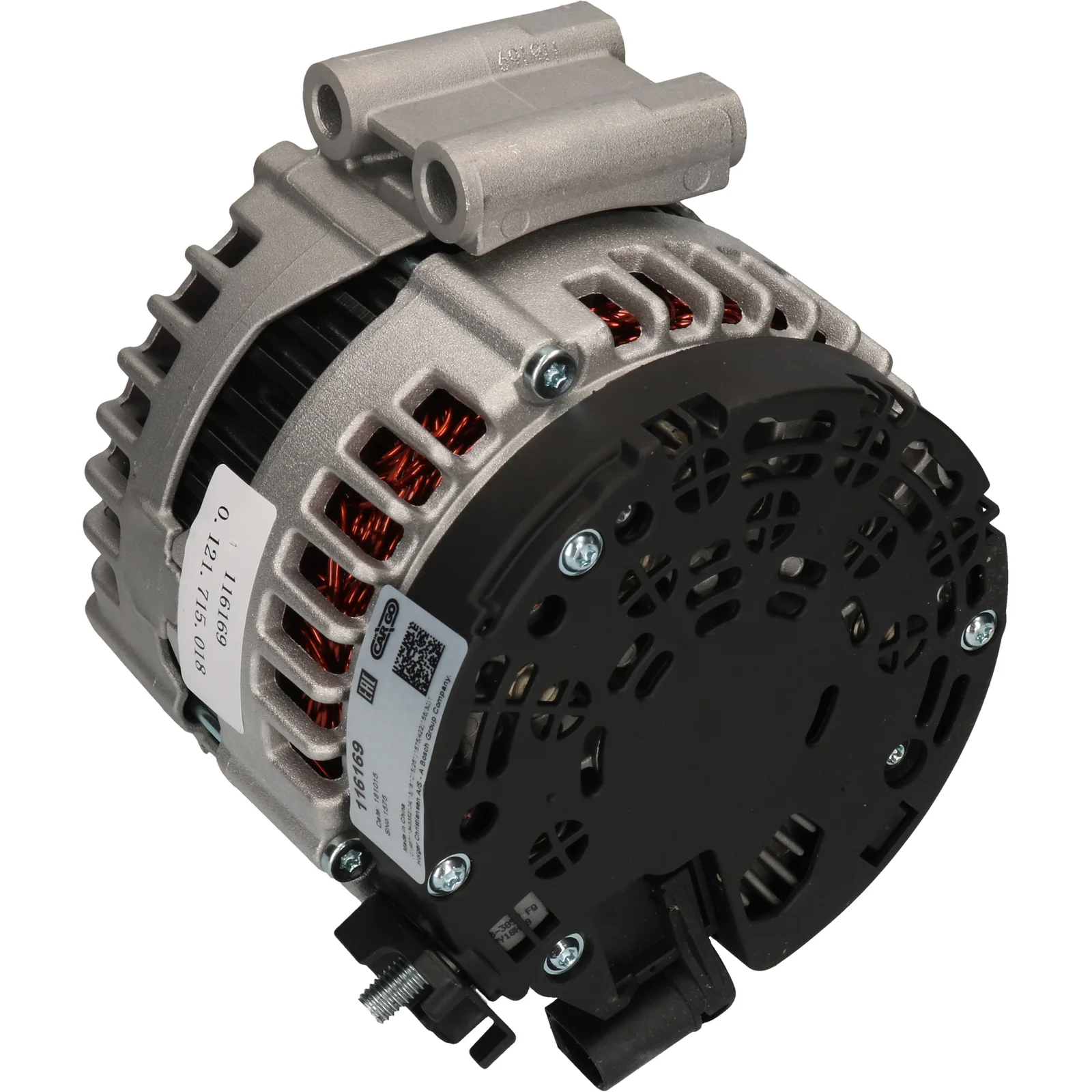

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032116169

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 180, Rotation: CW, Monteringsbeslag for fordeling: 40,80

Beskrivelse

Spænding: 14
Amp: 180
Remskive dist.: 31.00
Bredde/holderarm: 62.70
Montagebeslag dist.: 40.80
Beslagshul: 9.30
Remstram. justeringsbeslagshul 1: 9.30
Remskivediameter: 49.00
Riller/remskive: 7
Radius: 87.00
Radius 2: 87.00
B+: M8
Position/B+ i min.: 10
Rotation: CW
Stik nr.: PL86
Samlet længde mm: 179.00
Terminaltype: COM
Kommunikation: BSS
Remskive: SP/FW
Regulator type: IR
Bemærkninger: Denne Generator har en COM terminal på regulatoren. Det anbefales at bruge OEM-nummeret til at kontrollere egnethed inden bestilling.

Filer

Specifikation

B+ M8
Communication BSS
Mount. bracket dist. 40.80
Belt. adj. bracket hole 1 9.30
Plug no. PL86
Bracket hole 9.30
Position/B+ in min. 10
Pulley SP/FW
Pulley dia. 49.00
Pulley dist. 31.00
Radius 87.00
Radius 2 87.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Grooves/pulley 7
Terminal type COM
Voltage 14
Total length 179.00 mm
Width/holder arm 62.70
Amp 180

  • OEM
    F00E100028, F032116169, 7560985, 7560986, 0121715018, 0121715118, 12317560985, 12317560986

  • Konkurrentreferens
    A0461, CAL10452, DRA0471, 28-6597, 215.195.1802, 215.549.180, 11362N, 11362R, 113051, 553974RI, 12090543, 0986048943

  • NormaliseratArtNr
    a0461, cal10452, dra0471, f00e100028, f032116169, 11362n, 11362r, 113051, 286597, 553974ri, 7560985, 7560986, 12090543, 0121715018, 0121715118, 215549180, 0986048943, 2151951802, 12317560985, 12317560986

  • Passar modeller
    BMW Model: X5 Model series: X5 Model type: Xdrive Type of engine: i Size of motor: 3.0 Brand of engine: N52B30A Type description: E70 From date: 01-10-2008 To date: 01-03-2010 Fuel: Gasoline Approved: Yes
    BMW Model: X5 Model series: X5 Type of engine: Si Size of motor: 3.0 Brand of engine: N52B30 Type description: E70 From date: 01-10-2006 To date: 01-09-2008 Fuel: Gasoline Approved: Yes
    BMW Model: X5 Model series: X5 Type of engine: Si Size of motor: 3.0 Brand of engine: N52B30A Type description: E70 From date: 01-10-2006 To date: 01-09-2008 Fuel: Gasoline Approved: Yes
    BMW Model: X5 Model series: xDrive 30 i Model type: xDrive 30 i Size of motor: 3.0 Brand of engine: N52B30A Type description: E70 Body: SUV From date: 01-02-2007 To date: 01-12-2012 Fuel: Petrol Approved: Yes
    BMW Model: X5 Model series: Xdrive 30 I Model type: xDrive 30 i Size of motor: 3.0 Brand of engine: N52B30A Type description: E70 Body: SUV Fuel: Petrol Approved: Yes
  • Beskrivelse
    Spænding: 14
    Amp: 180
    Remskive dist.: 31.00
    Bredde/holderarm: 62.70
    Montagebeslag dist.: 40.80
    Beslagshul: 9.30
    Remstram. justeringsbeslagshul 1: 9.30
    Remskivediameter: 49.00
    Riller/remskive: 7
    Radius: 87.00
    Radius 2: 87.00
    B+: M8
    Position/B+ i min.: 10
    Rotation: CW
    Stik nr.: PL86
    Samlet længde mm: 179.00
    Terminaltype: COM
    Kommunikation: BSS
    Remskive: SP/FW
    Regulator type: IR
    Bemærkninger: Denne Generator har en COM terminal på regulatoren. Det anbefales at bruge OEM-nummeret til at kontrollere egnethed inden bestilling.

    Filer

  • Specifikation
    B+ M8
    Communication BSS
    Mount. bracket dist. 40.80
    Belt. adj. bracket hole 1 9.30
    Plug no. PL86
    Bracket hole 9.30
    Position/B+ in min. 10
    Pulley SP/FW
    Pulley dia. 49.00
    Pulley dist. 31.00
    Radius 87.00
    Radius 2 87.00
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Grooves/pulley 7
    Terminal type COM
    Voltage 14
    Total length 179.00 mm
    Width/holder arm 62.70
    Amp 180
  • Køretøjsmatchning

    • OEM
      F00E100028, F032116169, 7560985, 7560986, 0121715018, 0121715118, 12317560985, 12317560986

    • Konkurrentreferens
      A0461, CAL10452, DRA0471, 28-6597, 215.195.1802, 215.549.180, 11362N, 11362R, 113051, 553974RI, 12090543, 0986048943

    • NormaliseratArtNr
      a0461, cal10452, dra0471, f00e100028, f032116169, 11362n, 11362r, 113051, 286597, 553974ri, 7560985, 7560986, 12090543, 0121715018, 0121715118, 215549180, 0986048943, 2151951802, 12317560985, 12317560986

    • Passar modeller
      BMW Model: X5 Model series: X5 Model type: Xdrive Type of engine: i Size of motor: 3.0 Brand of engine: N52B30A Type description: E70 From date: 01-10-2008 To date: 01-03-2010 Fuel: Gasoline Approved: Yes
      BMW Model: X5 Model series: X5 Type of engine: Si Size of motor: 3.0 Brand of engine: N52B30 Type description: E70 From date: 01-10-2006 To date: 01-09-2008 Fuel: Gasoline Approved: Yes
      BMW Model: X5 Model series: X5 Type of engine: Si Size of motor: 3.0 Brand of engine: N52B30A Type description: E70 From date: 01-10-2006 To date: 01-09-2008 Fuel: Gasoline Approved: Yes
      BMW Model: X5 Model series: xDrive 30 i Model type: xDrive 30 i Size of motor: 3.0 Brand of engine: N52B30A Type description: E70 Body: SUV From date: 01-02-2007 To date: 01-12-2012 Fuel: Petrol Approved: Yes
      BMW Model: X5 Model series: Xdrive 30 I Model type: xDrive 30 i Size of motor: 3.0 Brand of engine: N52B30A Type description: E70 Body: SUV Fuel: Petrol Approved: Yes
