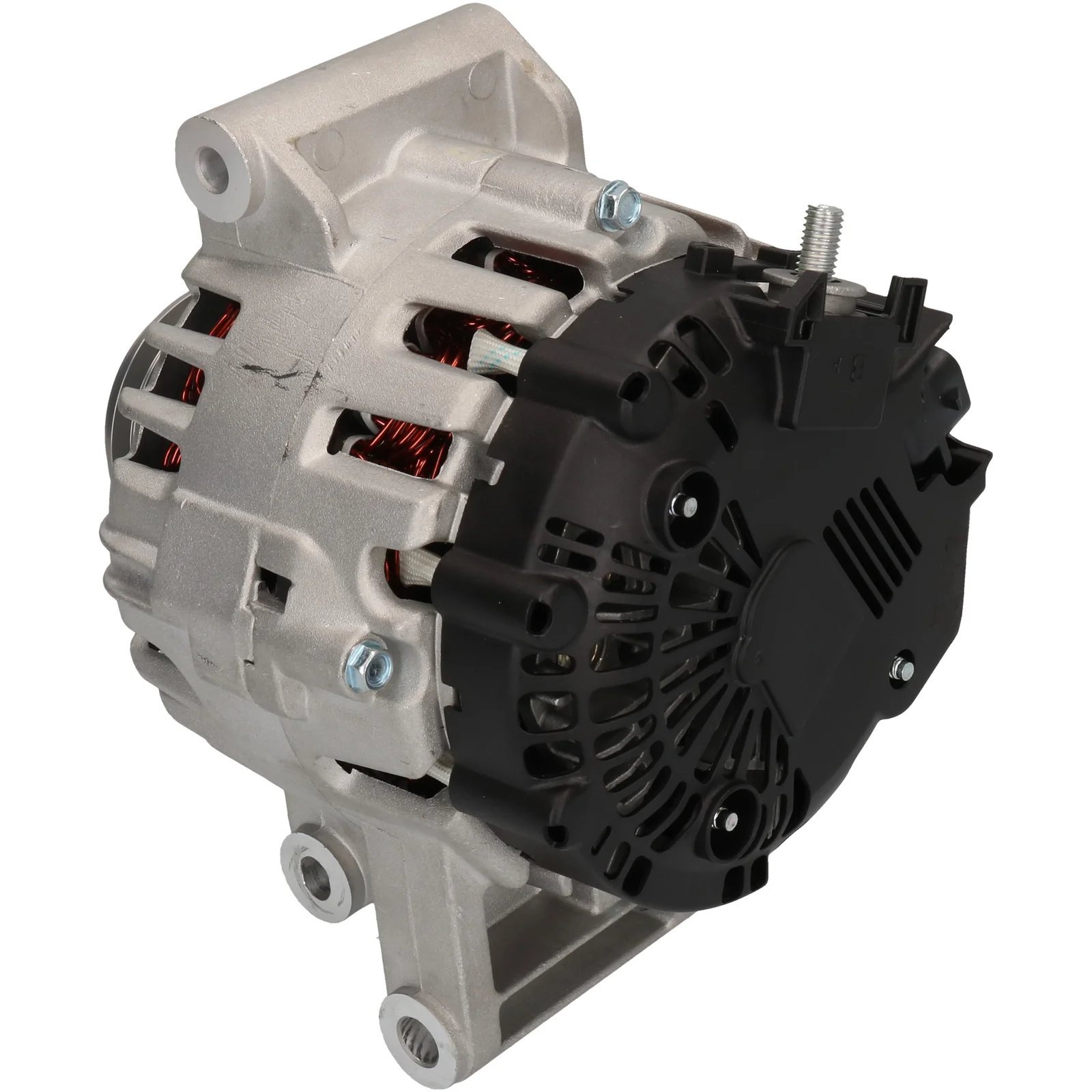

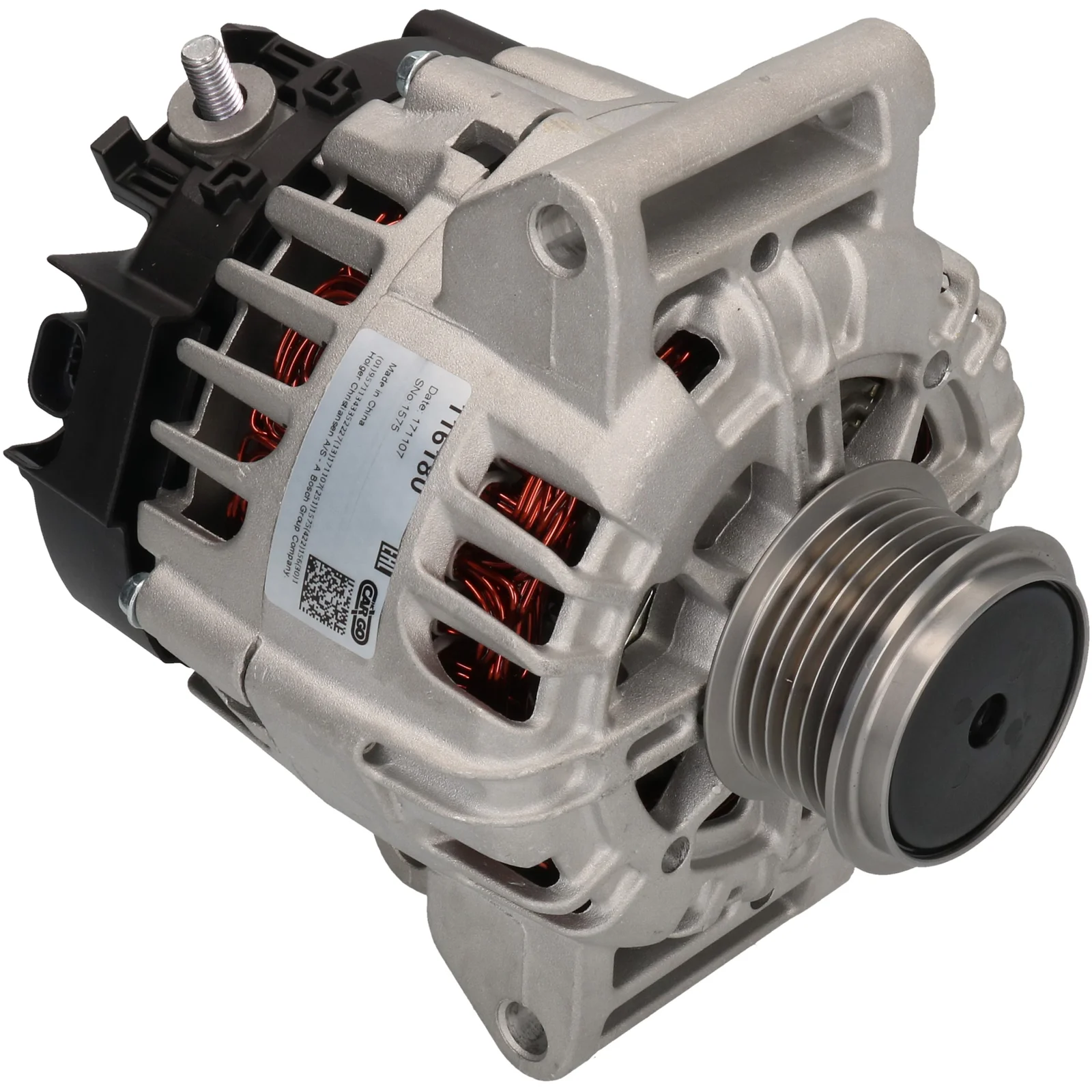

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032116180

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 140, Rotation: CW, Monteringsbeslag afstand: 56.00

Beskrivelse

"Spænding: 14
Amp: 140
Drevskive længde: 32.00
Bredde/holderarm: 79.00
Montagebeslag afstand: 56.00
Beslagshul: 8.50
Bæltestyringsbeslagshul 1: 10.50
Drevskive diameter: 55.00
Riller/drevskive: 6
Radius: 81.50
Radius 2: 81.50
B+: M8
Position/B+ i min.: 4
D+ Størrelse: Stik
Rotation: Udløbende med uret
Stik nr.: PL180
Total længde mm: 173.00
Terminaltype: L-F
Kommunikation: PWM
Drevskive: SP/FW
Regulator type: IR
Bemærkninger: Denne Generator har en PWM-terminal på regulatoren. Det anbefales at bruge OEM-nummeret til at kontrollere egnethed inden bestilling."

Filer

Specifikation

B+ M8
Communication PWM
Mount. bracket dist. 56.00
Belt. adj. bracket hole 1 10.50
Plug no. PL180
Bracket hole 8.50
Position/B+ in min. 4
Pulley SP/FW
Pulley dia. 55.00
Pulley dist. 32.00
Radius 81.50
D+ Size Plug
Radius 2 81.50
Regulator type IR
Remarks This Alternator has a PWM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Grooves/pulley 6
Terminal type L-F
Voltage 14
Total length 173.00 mm
Width/holder arm 79.00
Amp 140

  • OEM
    F032116180, TG12C065, TG12C177, 1204651, 2605326A, 13500332, 13512761

  • Konkurrentreferens
    A3276, CAL15505, DRA1043, 28-7571, 135.592.140, 228.304.1402, 24107N, 209246, 209246A, 440618, 849241, 12090603, 32004040

  • NormaliseratArtNr
    a3276, cal15505, dra1043, f032116180, tg12c065, tg12c177, 24107n, 209246, 209246a, 287571, 440618, 849241, 1204651, 2605326a, 12090603, 13500332, 13512761, 32004040, 135592140, 2283041402

  • Passar modeller
    Opel Model: Antara Model series: Antara Size of motor: 2.4 Brand of engine: A24XE From date: 01-12-2010 Fuel: Gasoline Approved: Yes
    Opel Model: Astra Model series: Astra J Model type: GTC Size of motor: 2.0 Brand of engine: A20NFT Body: Hatchback From date: 01-04-2012 Fuel: Gasoline Approved: Yes
    Opel Model: Insignia Model series: Insignia Model type: 4x4 Sports Tourer Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NFT Body: Estate From date: 01-09-2011 To date: 01-06-2013 Fuel: Gasoline Approved: Yes Manufacture type: Sports Tou
    Opel Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NFT Body: Hatchback From date: 01-07-2011 To date: 01-03-2017 Fuel: Gasoline Approved: Yes
    Opel Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NFT From date: 01-07-2011 To date: 01-03-2017 Fuel: Gasoline Approved: Yes
    Opel Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NHT Body: Estate From date: 01-07-2008 To date: 01-06-2011 Fuel: Gasoline Approved: Yes Manufacture type: SportsTour
    Opel Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NHT Body: Hatchback From date: 01-07-2008 To date: 01-03-2017 Fuel: Gasoline Approved: Yes
    Opel Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NHT From date: 01-07-2008 To date: 01-03-2017 Fuel: Gasoline Approved: Yes
    Opel Model: Insignia Model series: Insignia Model type: Caravan Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NHT Body: Estate From date: 01-07-2008 To date: 01-06-2013 Fuel: Gasoline Approved: Yes Manufacture type: CARAVAN
    Opel Model: Insignia Model series: Insignia Model type: E85 Turbo Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NFT Body: Estate From date: 01-09-2010 To date: 01-11-2011 Fuel: Bi-Fuel Approved: Yes Manufacture type: Sports Tou
    Opel Model: Insignia Model series: Insignia Model type: E85 Turbo Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NFT Body: Hatchback From date: 01-10-2010 To date: 01-03-2017 Fuel: Bi-Fuel Approved: Yes
    Opel Model: Insignia Model series: Insignia Model type: E85 Turbo Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NFT From date: 01-07-2008 To date: 01-03-2017 Fuel: Diesel Approved: Yes
    Opel Model: Insignia Model series: Insignia Model type: E85 Turbo Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NHT Body: Estate From date: 01-09-2010 To date: 01-11-2011 Fuel: Bi-Fuel Approved: Yes Manufacture type: Sports Tou
    Opel Model: Insignia Model series: Insignia Model type: E85 Turbo Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NHT Body: Hatchback From date: 01-10-2010 To date: 01-03-2017 Fuel: Bi-Fuel Approved: Yes
    Opel Model: Insignia Model series: Insignia Sports Tourer Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NHT Body: Estate From date: 01-04-2014 To date: 01-11-2014 Fuel: Gasoline Approved: Yes Manufacture type: Sports Tou
    Opel Model: Insignia Model series: Insignia Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NHT Body: Hatchback From date: 01-04-2014 To date: 01-03-2017 Fuel: Gasoline Approved: Yes
    Opel Model: Insignia Model series: Insignia Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NHT Body: Hatchback From date: 01-07-2008 To date: 01-03-2017 Fuel: Gasoline Approved: Yes
    Opel Model: Insignia Model series: Insignia Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NHT From date: 01-04-2014 To date: 01-03-2017 Fuel: Gasoline Approved: Yes
    Opel Model: Insignia Model series: Insignia Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NHT From date: 01-07-2008 To date: 01-03-2017 Fuel: Gasoline Approved: Yes
    1 / 4
  • Beskrivelse
    "Spænding: 14
    Amp: 140
    Drevskive længde: 32.00
    Bredde/holderarm: 79.00
    Montagebeslag afstand: 56.00
    Beslagshul: 8.50
    Bæltestyringsbeslagshul 1: 10.50
    Drevskive diameter: 55.00
    Riller/drevskive: 6
    Radius: 81.50
    Radius 2: 81.50
    B+: M8
    Position/B+ i min.: 4
    D+ Størrelse: Stik
    Rotation: Udløbende med uret
    Stik nr.: PL180
    Total længde mm: 173.00
    Terminaltype: L-F
    Kommunikation: PWM
    Drevskive: SP/FW
    Regulator type: IR
    Bemærkninger: Denne Generator har en PWM-terminal på regulatoren. Det anbefales at bruge OEM-nummeret til at kontrollere egnethed inden bestilling."

    Filer

  • Specifikation
    B+ M8
    Communication PWM
    Mount. bracket dist. 56.00
    Belt. adj. bracket hole 1 10.50
    Plug no. PL180
    Bracket hole 8.50
    Position/B+ in min. 4
    Pulley SP/FW
    Pulley dia. 55.00
    Pulley dist. 32.00
    Radius 81.50
    D+ Size Plug
    Radius 2 81.50
    Regulator type IR
    Remarks This Alternator has a PWM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Grooves/pulley 6
    Terminal type L-F
    Voltage 14
    Total length 173.00 mm
    Width/holder arm 79.00
    Amp 140
  • Køretøjsmatchning

    • OEM
      F032116180, TG12C065, TG12C177, 1204651, 2605326A, 13500332, 13512761

    • Konkurrentreferens
      A3276, CAL15505, DRA1043, 28-7571, 135.592.140, 228.304.1402, 24107N, 209246, 209246A, 440618, 849241, 12090603, 32004040

    • NormaliseratArtNr
      a3276, cal15505, dra1043, f032116180, tg12c065, tg12c177, 24107n, 209246, 209246a, 287571, 440618, 849241, 1204651, 2605326a, 12090603, 13500332, 13512761, 32004040, 135592140, 2283041402

    • Passar modeller
      Opel Model: Antara Model series: Antara Size of motor: 2.4 Brand of engine: A24XE From date: 01-12-2010 Fuel: Gasoline Approved: Yes
      Opel Model: Astra Model series: Astra J Model type: GTC Size of motor: 2.0 Brand of engine: A20NFT Body: Hatchback From date: 01-04-2012 Fuel: Gasoline Approved: Yes
      Opel Model: Insignia Model series: Insignia Model type: 4x4 Sports Tourer Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NFT Body: Estate From date: 01-09-2011 To date: 01-06-2013 Fuel: Gasoline Approved: Yes Manufacture type: Sports Tou
      Opel Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NFT Body: Hatchback From date: 01-07-2011 To date: 01-03-2017 Fuel: Gasoline Approved: Yes
      Opel Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NFT From date: 01-07-2011 To date: 01-03-2017 Fuel: Gasoline Approved: Yes
      Opel Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NHT Body: Estate From date: 01-07-2008 To date: 01-06-2011 Fuel: Gasoline Approved: Yes Manufacture type: SportsTour
      Opel Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NHT Body: Hatchback From date: 01-07-2008 To date: 01-03-2017 Fuel: Gasoline Approved: Yes
      Opel Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NHT From date: 01-07-2008 To date: 01-03-2017 Fuel: Gasoline Approved: Yes
      Opel Model: Insignia Model series: Insignia Model type: Caravan Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NHT Body: Estate From date: 01-07-2008 To date: 01-06-2013 Fuel: Gasoline Approved: Yes Manufacture type: CARAVAN
      Opel Model: Insignia Model series: Insignia Model type: E85 Turbo Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NFT Body: Estate From date: 01-09-2010 To date: 01-11-2011 Fuel: Bi-Fuel Approved: Yes Manufacture type: Sports Tou
      Opel Model: Insignia Model series: Insignia Model type: E85 Turbo Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NFT Body: Hatchback From date: 01-10-2010 To date: 01-03-2017 Fuel: Bi-Fuel Approved: Yes
      Opel Model: Insignia Model series: Insignia Model type: E85 Turbo Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NFT From date: 01-07-2008 To date: 01-03-2017 Fuel: Diesel Approved: Yes
      Opel Model: Insignia Model series: Insignia Model type: E85 Turbo Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NHT Body: Estate From date: 01-09-2010 To date: 01-11-2011 Fuel: Bi-Fuel Approved: Yes Manufacture type: Sports Tou
      Opel Model: Insignia Model series: Insignia Model type: E85 Turbo Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NHT Body: Hatchback From date: 01-10-2010 To date: 01-03-2017 Fuel: Bi-Fuel Approved: Yes
      Opel Model: Insignia Model series: Insignia Sports Tourer Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NHT Body: Estate From date: 01-04-2014 To date: 01-11-2014 Fuel: Gasoline Approved: Yes Manufacture type: Sports Tou
      Opel Model: Insignia Model series: Insignia Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NHT Body: Hatchback From date: 01-04-2014 To date: 01-03-2017 Fuel: Gasoline Approved: Yes
      Opel Model: Insignia Model series: Insignia Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NHT Body: Hatchback From date: 01-07-2008 To date: 01-03-2017 Fuel: Gasoline Approved: Yes
      Opel Model: Insignia Model series: Insignia Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NHT From date: 01-04-2014 To date: 01-03-2017 Fuel: Gasoline Approved: Yes
      Opel Model: Insignia Model series: Insignia Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NHT From date: 01-07-2008 To date: 01-03-2017 Fuel: Gasoline Approved: Yes
      1 / 4
