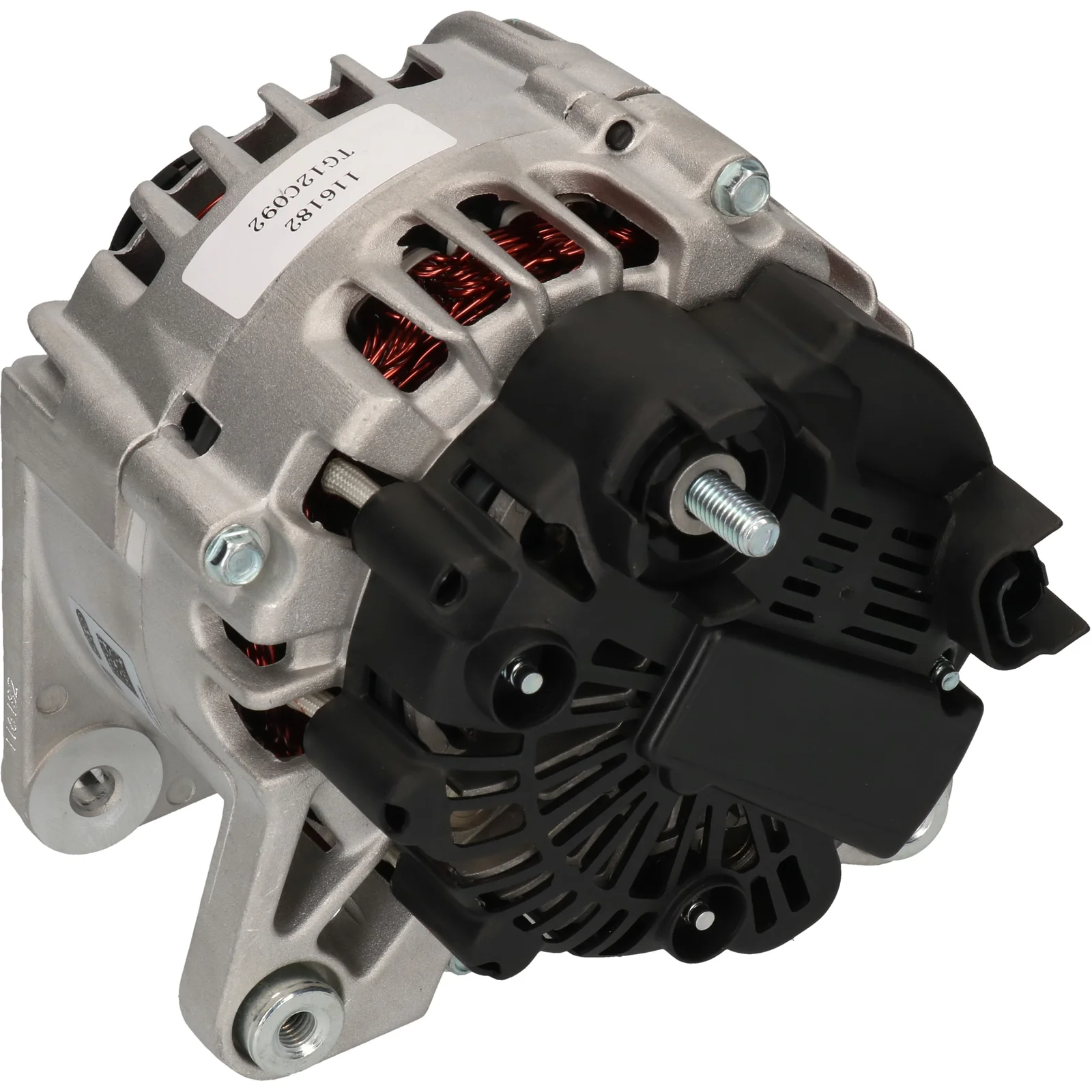

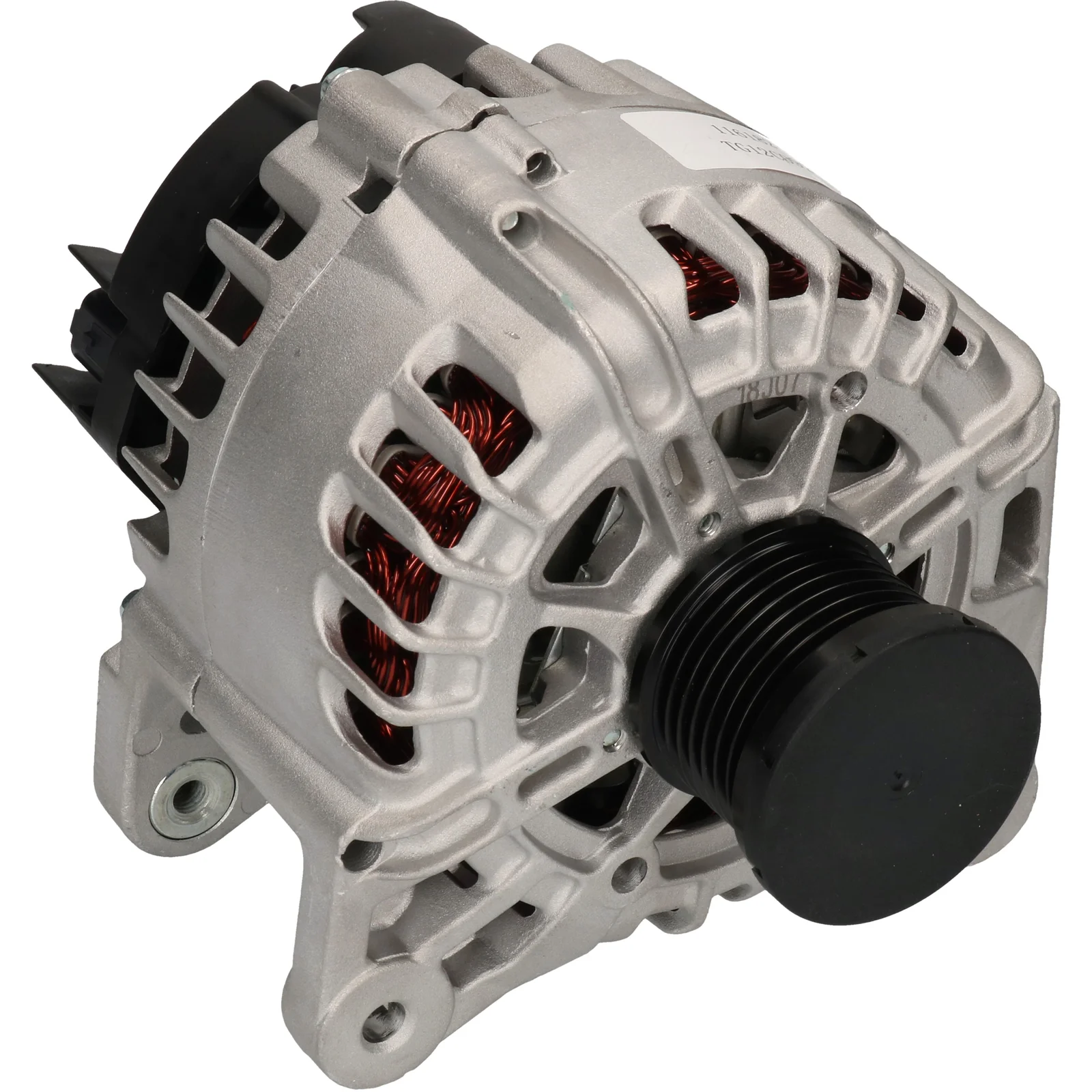

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032116182

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, A: 120, Rotation: CW, Monteringsbeslag afstand: 60,50

Beskrivelse

Spænding: 14
Amp.: 120
Skive distr.: 33,00
Bredde/holder arm: 14,00
Monteringsbeslag afstand: 60,50
Beslagshul: 8,50
Bæltejustering beslag hul pos.: 15
Bæltejustering beslag hul 1: 8,50
Skive dia.: 48,60
Riller/skive: 7
Radius: 90,00
Radius 2: 90,00
B+: M8
Position/B+ i min.: 10
D+ Størrelse: Støpsel
Rotation: med uret
Stik nr.: PL72
Skive: SP/FW
Regulator type: IR

Filer

Specifikation

B+ M8
Mount. bracket dist. 60.50
Belt. adj. bracket hole 1 8.50
Belt. adj. brackethole pos. 15
Plug no. PL72
Bracket hole 8.50
Position/B+ in min. 10
Pulley SP/FW
Pulley dia. 48.60
Pulley dist. 33.00
Radius 90.00
D+ Size Plug
Radius 2 90.00
Regulator type IR
Rotation CW
Grooves/pulley 7
Voltage 14
Width/holder arm 14.00
Amp 120

  • OEM
    A3282, CAL15532, DRA1402, F032116182, TG12C092, TG12C198, tg12c199, TG12C199, TG12C2013, TG12S274, 575.922.120, 20594N, 23100-7562R, 439790, 440427, 494719, 554195RI, 2607401A, 2607401C, 2714145A, 12090683, 231000091, 231000091R, 231000803R, 231000861R, 231003288, 231003288R, 231005225, 231005225R, 231007035, 231007035R, 231007562R, 231007788, 231007788R, 231007820R, 231008573, 231008573R

  • Konkurrentreferens
    A3282, CAL15532, DRA1402, 575.922.120, 20594N, 439790, 440427, 494719, 554195RI, 12090683

  • Bilmärken
    DACIA, RENAULT

  • NormaliseratArtNr
    a3282, cal15532, dra1402, f032116182, tg12c092, tg12c198, tg12c199, tg12c2013, tg12s274, 20594n, 439790, 440427, 494719, 554195ri, 2607401a, 2607401c, 2714145a, 12090683, 231000091, 231000091r, 231000803r, 231000861r, 231003288, 231003288r, 231005225, 231005225r, 231007035, 231007035r, 231007562r, 231007788, 231007788r, 231007820r, 231008573, 231008573r, 575922120

  • Passar modeller
    DACIA DOKKER Minibus, minivan (KE_) 1.2 TCe (KEM0, KEAY) Engine volume: 1.2 Engine type: H5F 402, H5F 408 Year: 11.12-12.21
    DACIA DOKKER Pick-up 1.2 TCe 115 Engine volume: 1.2 Engine type: H5F 408 Year: 09.17-12.21
    DACIA DOKKER Skåp/stor limousine 1.2 TCe 115 (FEAY) Engine volume: 1.2 Engine type: H5F 408 Year: 07.15-12.21
    DACIA DOKKER Skåp/stor limousine 1.2 TCe 115 (FEM0) Engine volume: 1.2 Engine type: H5F 402 Year: 12.12-12.15
    DACIA DUSTER (HM_) 1.2 TCe 125 4x4 (HMMA) Engine volume: 1.2 Engine type: H5F 410 Year: 10.17-
    DACIA DUSTER (HS_) 1.2 TCe 125 4x4 Engine volume: 1.2 Engine type: H5F 410 Year: 06.15-01.18
    DACIA DUSTER (HS_) 1.2 TCe 125 Engine volume: 1.2 Engine type: H5F 404, H5F 408 Year: 10.13-01.18
    DACIA DUSTER Skåp/SUV (HS_) 1.2 TCe 125 4x4 (HSAU) Engine volume: 1.2 Engine type: H5F 410 Year: 10.13-
    DACIA LODGY (JS_) 1.2 TCe (JSAY, JSM0) Engine volume: 1.2 Engine type: H5F 402, H5F 408 Year: 03.12-
    DACIA LOGAN II TCe 90 (L8MA, L8M1, L8AC) Engine volume: 0.9 Engine type: H4B 400, H4B 412, H4B 408 Year: 10.12-
    DACIA LOGAN II TCe 90 LPG Engine volume: 0.9 Engine type: H4B 410, H4B 405 Year: 09.15-
    DACIA LOGAN MCV II TCe 90 (K8M1, K8MA, K8AC) Engine volume: 0.9 Engine type: H4B 400, H4B 412, H4B 408 Year: 02.13-
    DACIA LOGAN MCV II TCe 90 LPG Engine volume: 0.9 Engine type: H4B 410, H4B 405 Year: 09.15-
    DACIA SANDERO II (B8_) TCe 90 (B8M1, B8MA, B8AC) Engine volume: 0.9 Engine type: H4B 400, H4B 412, H4B 411, H4B 410, H4B 408 Year: 10.12-
    DACIA SANDERO II (B8_) TCe 90 LPG (B8M1) Engine volume: 0.9 Engine type: H4B 410 Year: 09.15-
    RENAULT DUSTER (HS_) 2.0 4x4 Engine volume: 2.0 Engine type: F4R 403, F4R 402 Year: 10.11-01.18
    RENAULT DUSTER (HS_) 2.0 4x4 Engine volume: 2.0 Engine type: F4R 410, F4R 400, F4R 402 Year: 02.12-01.18
    RENAULT DUSTER (HS_) 2.0 Engine volume: 2.0 Engine type: F4R 403, F4R 405 Year: 02.12-01.18
    RENAULT GRAND SCÉNIC III (JZ0/1_) 1.2 TCe (JZ16) Engine volume: 1.2 Engine type: H5F 404 Year: 01.13-09.16
    RENAULT MEGANE CC (EZ0/1_) 1.2 TCe (EZ16) Engine volume: 1.2 Engine type: H5F 404 Year: 01.13-08.15
    RENAULT MEGANE III Coupé (DZ0/1_) 1.2 TCe (DZ16, DZ28) Engine volume: 1.2 Engine type: H5F 404, H5F 405, H5F 412 Year: 01.13-08.15
    RENAULT MEGANE III Grandtour (KZ0/1) 1.2 TCe (KZ16, KZ28) Engine volume: 1.2 Engine type: H5F 404, H5F 405, H5F 412 Year: 01.13-01.16
    RENAULT MEGANE III Halvkombi (BZ0/1_, B3_) 1.2 TCe (BZ16, BZ28) Engine volume: 1.2 Engine type: H5F 404, H5F 405, H5F 412 Year: 01.13-01.16
    RENAULT SCÉNIC III (JZ0/1_) 1.2 TCe (JZ16) Engine volume: 1.2 Engine type: H5F 404, H5F 408 Year: 01.13-09.16
    RENAULT SCÉNIC III (JZ0/1_) 1.2 TCe Engine volume: 1.2 Engine type: H5F 408 Year: 07.14-09.16
