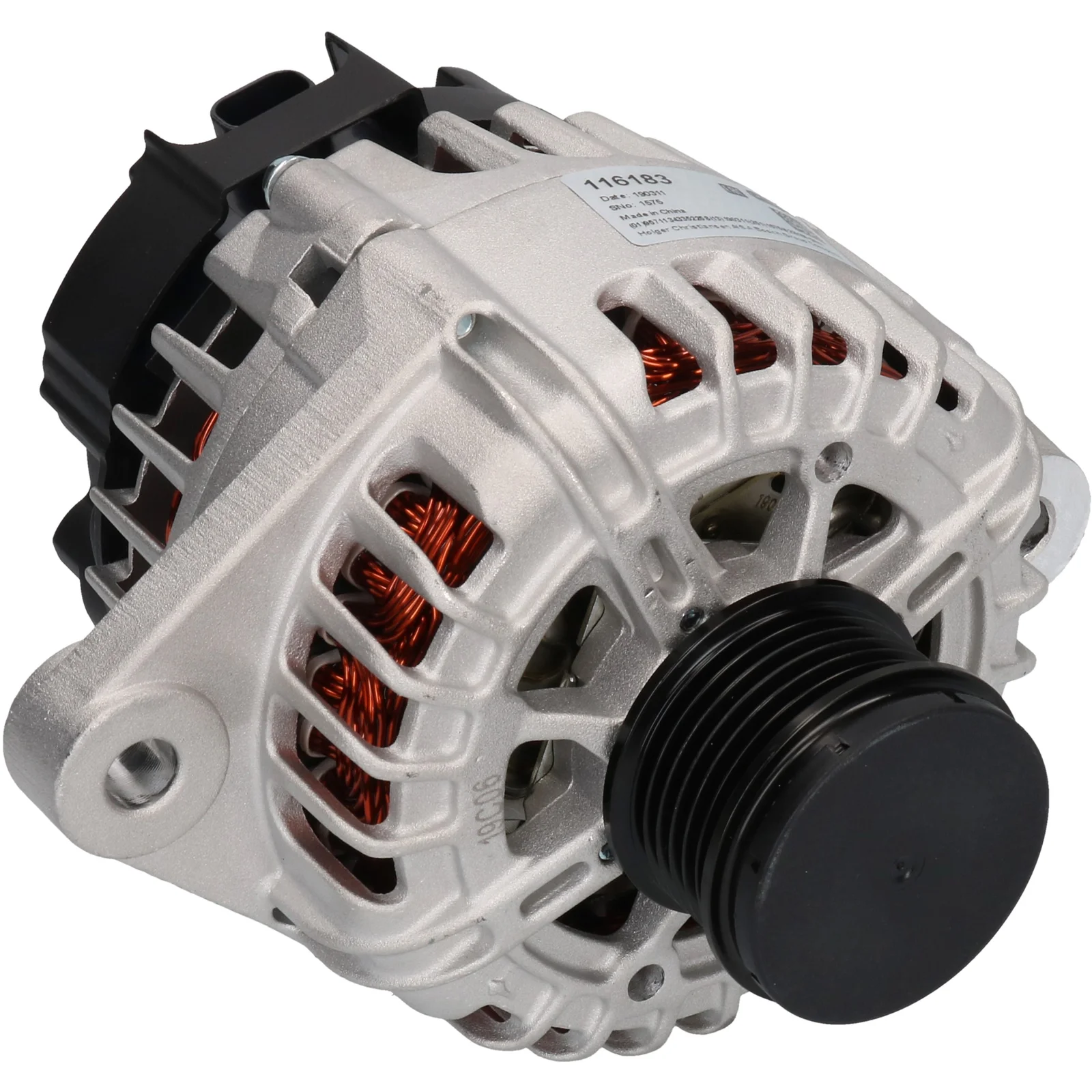

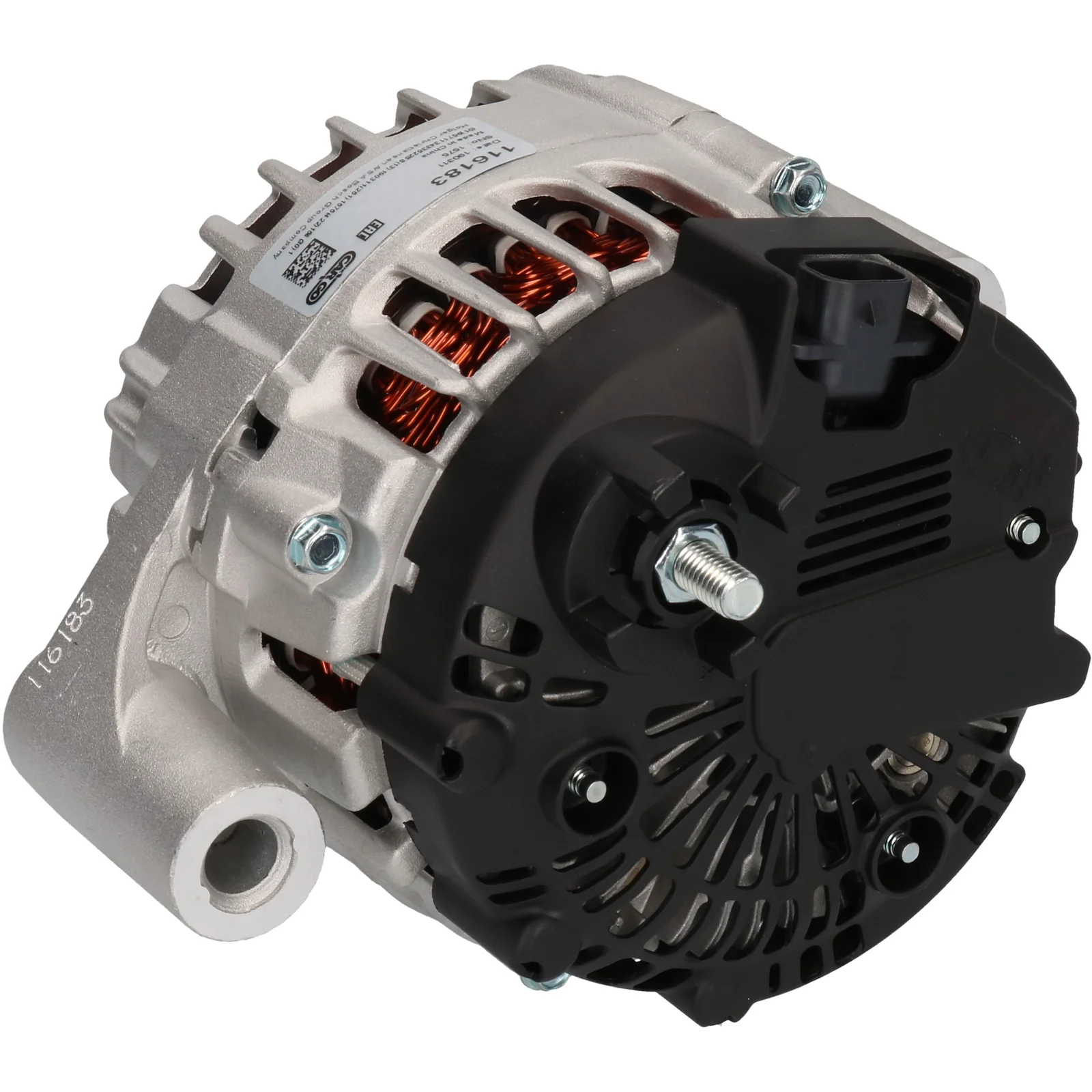

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032116183

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 120, Rotation: CW, Remskive dia.: 53,70

Beskrivelse

Spænding: 14
Amp: 120
Remskive dist.: 112,50
Bredde/holder arm: 60,80
Bøjlehul: 12,00
Bæltespændingsregulator bøjlehul pos.: 58
Bæltespændingsregulator bøjlehul 1: 12,00
Remskive dia.: 53,70
Riller/remskive: 6
Radius: 90,00
Radius 2: 90,00
B+: M8
Position/B+ i min.: 40
D+ Størrelse: Plug
Rotation: CW
Plug nr.: PL180
Total længde mm: 190,00
Terminaltype: L-F
Kommunikation: PWM
Remskive: SP/FW
Kølevifte: IF
Regulator type: IR
Bemærkninger: Denne generator har en PWM-terminal på regulatoren. Det anbefales at bruge OEM-nummeret til at kontrollere egnethed før bestilling.

Filer

Specifikation

B+ M8
Communication PWM
Belt. adj. bracket hole 1 12.00
Belt. adj. brackethole pos. 58
Plug no. PL180
Bracket hole 12.00
Position/B+ in min. 40
Pulley SP/FW
Pulley dia. 53.70
Pulley dist. 112.50
Radius 90.00
D+ Size Plug
Radius 2 90.00
Regulator type IR
Remarks This Alternator has a PWM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Fan IF
Grooves/pulley 6
Terminal type L-F
Voltage 14
Total length 190.00 mm
Width/holder arm 60.80
Amp 120

  • OEM
    F032116183, TG12C036, TG12C143, 1986A01502, 1202317, 1204642, 2650800, 2650800A, 13502582, 95515964

  • Konkurrentreferens
    A3190S, A3223, CAL15499, DRA1375, LRA03580, 28-6690, 135.585.120, 135.590.120, 209138, 209138A, 440621, 554024RI, 849120, 12090526

  • NormaliseratArtNr
    a3190s, a3223, cal15499, dra1375, f032116183, lra03580, tg12c036, tg12c143, 1986a01502, 209138, 209138a, 286690, 440621, 554024ri, 849120, 1202317, 1204642, 2650800, 2650800a, 12090526, 13502582, 95515964, 135585120, 135590120

  • Passar modeller
    Opel Model: Astra Gtc J Model series: Astra J GTC Type of engine: BiTurbo CDTI Size of motor: 2.0 Brand of engine: A20DTR Body: Hatchback From date: 01-10-2012 To date: 01-10-2015 Fuel: Diesel Approved: Yes
    Opel Model: Astra Model series: Astra J GTC Model type: CDTI (08) Type of engine: Diesel Size of motor: 2.0 Brand of engine: A20DTH Body: Hatchback Fuel: Diesel Approved: Yes
    Opel Model: Astra Model series: Astra J Model type: CDTi Type of engine: Diesel Size of motor: 2.0 Brand of engine: A20DTH Type description: P10 Body: Hatchback Fuel: Diesel Approved: Yes
    Opel Model: Astra Model series: Astra J Model type: Ecotec Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH Body: Estate From date: 01-10-2010 To date: 01-10-2015 Fuel: Diesel Approved: Yes Manufacture type: SPORTS TOU
    Opel Model: Astra Model series: Astra J Model type: GTC Size of motor: 2.0 Brand of engine: A20DTH Body: Hatchback From date: 01-10-2011 To date: 01-10-2015 Fuel: Diesel Approved: Yes
    Opel Model: Astra Model series: Astra J Model type: Sports Tourer Type of engine: BiTurbo CDTI Size of motor: 2.0 Brand of engine: A20DTR Type description: J Body: Estate From date: 01-09-2012 To date: 01-10-2015 Fuel: Diesel Approved: Yes Manufacture type: Sports Tou
    Opel Model: Astra Model series: Astra J Model type: Sports Tourer Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH Body: Estate From date: 01-08-2011 To date: 01-10-2015 Fuel: Diesel Approved: Yes Manufacture type: Sports Tou
    Opel Model: Astra Model series: Astra J Type of engine: BiTurbo CDTI Size of motor: 2.0 Brand of engine: A20DTR Body: Hatchback From date: 01-09-2012 To date: 01-10-2015 Fuel: Diesel Approved: Yes
    Opel Model: Astra Model series: Astra J Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH Body: Hatchback From date: 01-06-2011 To date: 01-10-2015 Fuel: Diesel Approved: Yes
    Opel Model: Astra Model series: Astra J Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH Body: Hatchback From date: 01-09-2009 To date: 01-10-2015 Fuel: Diesel Approved: Yes
    Opel Model: Insignia Model series: Insignia Model type: 4x4 Sports Tourer Type of engine: BiTurbo CDTI Size of motor: 2.0 Brand of engine: A20DTR Body: Estate From date: 01-01-2012 To date: 01-06-2015 Fuel: Diesel Approved: Yes Manufacture type: Sports Tou
    Opel Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: BiTurbo CDTI Size of motor: 2.0 Brand of engine: A20DTR Body: Hatchback From date: 01-01-2012 To date: 01-03-2017 Fuel: Diesel Approved: Yes
    Opel Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: BiTurbo CDTI Size of motor: 2.0 Brand of engine: A20DTR From date: 01-01-2012 To date: 01-03-2017 Fuel: Diesel Approved: Yes
    Opel Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH Body: Estate From date: 01-06-2010 To date: 01-06-2015 Fuel: Diesel Approved: Yes Manufacture type: SPORTS TOU
    Opel Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTR Body: Estate From date: 01-07-2008 To date: 01-03-2017 Fuel: Diesel Approved: Yes Manufacture type: SportsTour
    Opel Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTR Body: Hatchback From date: 01-05-2009 To date: 01-12-2011 Fuel: Diesel Approved: Yes
    Opel Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTR From date: 01-07-2008 To date: 01-12-2011 Fuel: Diesel Approved: Yes
    Opel Model: Insignia Model series: Insignia Model type: Caravan Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DT Body: Estate From date: 01-07-2008 To date: 01-06-2015 Fuel: Diesel Approved: Yes Manufacture type: CARAVAN
    Opel Model: Insignia Model series: Insignia Model type: Caravan Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTC Body: Estate From date: 01-07-2008 To date: 01-06-2013 Fuel: Diesel Approved: Yes Manufacture type: CARAVAN
    Opel Model: Insignia Model series: Insignia Model type: Caravan Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTJ Body: Estate From date: 01-07-2008 To date: 01-06-2015 Fuel: Diesel Approved: Yes Manufacture type: CARAVAN
    Opel Model: Insignia Model series: Insignia Model type: Caravan Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTL Body: Estate From date: 01-07-2008 To date: 01-06-2013 Fuel: Diesel Approved: Yes Manufacture type: CARAVAN
    Opel Model: Insignia Model series: Insignia Model type: Caravan Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTR Body: Estate From date: 01-07-2008 To date: 01-03-2017 Fuel: Diesel Approved: Yes Manufacture type: CARAVAN
    Opel Model: Insignia Model series: Insignia Model type: Sports Tourer Type of engine: BiTurbo CDTI Size of motor: 2.0 Brand of engine: A20DTR Body: Estate From date: 01-01-2012 To date: 01-06-2015 Fuel: Diesel Approved: Yes Manufacture type: Sports Tou
    Opel Model: Insignia Model series: Insignia Type of engine: BiTurbo CDTI Size of motor: 2.0 Brand of engine: A20DTR Body: Hatchback From date: 01-01-2012 To date: 01-03-2017 Fuel: Diesel Approved: Yes
    Opel Model: Insignia Model series: Insignia Type of engine: BiTurbo CDTI Size of motor: 2.0 Brand of engine: A20DTR From date: 01-01-2012 To date: 01-03-2017 Fuel: Diesel Approved: Yes
    Opel Model: Insignia Model series: Insignia Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DT Body: Hatchback From date: 01-07-2008 To date: 01-03-2017 Fuel: Diesel Approved: Yes
    Opel Model: Insignia Model series: Insignia Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DT From date: 01-07-2008 To date: 01-03-2017 Fuel: Diesel Approved: Yes
    Opel Model: Insignia Model series: Insignia Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTC Body: Hatchback From date: 01-07-2008 To date: 01-03-2017 Fuel: Diesel Approved: Yes
    Opel Model: Insignia Model series: Insignia Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTC From date: 01-07-2008 To date: 01-03-2017 Fuel: Diesel Approved: Yes
    Opel Model: Insignia Model series: Insignia Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTJ Body: Hatchback From date: 01-07-2008 To date: 01-03-2017 Fuel: Diesel Approved: Yes
    Opel Model: Insignia Model series: Insignia Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTJ From date: 01-07-2008 To date: 01-03-2017 Fuel: Diesel Approved: Yes
    Opel Model: Insignia Model series: Insignia Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTL Body: Hatchback From date: 01-07-2008 To date: 01-03-2017 Fuel: Diesel Approved: Yes
    Opel Model: Insignia Model series: Insignia Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTL From date: 01-07-2008 To date: 01-03-2017 Fuel: Diesel Approved: Yes
    Opel Model: Insignia Model series: Insignia Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTR Body: Hatchback From date: 01-07-2008 To date: 01-12-2011 Fuel: Diesel Approved: Yes
    Opel Model: Insignia Model series: Insignia Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTR From date: 01-07-2008 To date: 01-12-2011 Fuel: Diesel Approved: Yes
    Opel Model: Zafira Model series: Zafira C Type of engine: BiTurbo CDTI Size of motor: 2.0 Brand of engine: A20DTR Type description: P12 Body: MPV From date: 01-01-2013 Fuel: Diesel Approved: Yes
    Opel Model: Zafira Model series: Zafira C Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DT Type description: P12 Body: MPV From date: 01-10-2011 Fuel: Diesel Approved: Yes
    Opel Model: Zafira Model series: Zafira C Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH Type description: P12 Body: MPV From date: 01-10-2011 Fuel: Diesel Approved: Yes
    Opel Model: Zafira Model series: Zafira C Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTL Type description: P12 Body: MPV From date: 01-10-2011 Fuel: Diesel Approved: Yes
    Opel Model: Zafira Model series: Zafira C Type of engine: CDTi Size of motor: 2.0 Brand of engine: Y20DTJ Type description: P12 Body: MPV From date: 01-10-2011 Fuel: Diesel Approved: Yes
    Opel Model: Zafira Model series: Zafira C Type of engine: CDTi Size of motor: 2.0 Brand of engine: Z20DTJ Type description: P12 Body: MPV From date: 01-10-2011 Fuel: Diesel Approved: Yes
    Vauxhall Model: Astra Model series: Astra J GTC Model type: BiTurbo Type of engine: BiTurbo CDTI Size of motor: 2.0 Brand of engine: A20DTR Type description: J Body: Hatchback From date: 01-12-2012 To date: 01-10-2015 Fuel: Diesel Approved: Yes
    Vauxhall Model: Astra Model series: Astra MK V Model type: Sports Tourer Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH Body: Estate From date: 01-08-2011 To date: 01-10-2015 Fuel: Diesel Approved: Yes Manufacture type: Sports Tou
    Vauxhall Model: Astra Model series: Astra MK V Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH Body: Hatchback From date: 01-08-2011 To date: 01-10-2015 Fuel: Diesel Approved: Yes
    Vauxhall Model: Astra Model series: Astra MK VI Type of engine: BiTurbo CDTI Size of motor: 2.0 Brand of engine: A20DTR Type description: J Body: Hatchback From date: 01-12-2012 To date: 01-10-2015 Fuel: Diesel Approved: Yes
    Vauxhall Model: Astra Model series: Astra MK VI Type of engine: BiTurbo CDTI Size of motor: 2.0 Brand of engine: A20DTR Type description: J Sports Tourer Body: Estate From date: 01-12-2012 To date: 01-10-2015 Fuel: Diesel Approved: Yes Manufacture type: Sports Tou
    Vauxhall Model: Astra Model series: Astra MK VI Type of engine: CDTi 16V Size of motor: 2.0 Brand of engine: A20DTH Body: Estate From date: 01-10-2010 To date: 01-06-2011 Fuel: Diesel Approved: Yes Manufacture type: SPORTS TOU
    Vauxhall Model: Astra Model series: Astra MK VI Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH Body: Hatchback From date: 01-10-2011 To date: 01-10-2015 Fuel: Diesel Approved: Yes
    Vauxhall Model: Astra Model series: Astra MK VI Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH Body: Hatchback From date: 01-12-2009 To date: 01-06-2011 Fuel: Diesel Approved: Yes
    Vauxhall Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: Biturbo CDTI Size of motor: 2.0 Brand of engine: A20DTR Body: Estate From date: 01-03-2012 To date: 01-05-2017 Fuel: Diesel Approved: Yes Manufacture type: Sportstour
    Vauxhall Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: Biturbo CDTI Size of motor: 2.0 Brand of engine: A20DTR Body: Hatchback From date: 01-03-2012 To date: 01-05-2017 Fuel: Diesel Approved: Yes
    Vauxhall Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: Biturbo CDTI Size of motor: 2.0 Brand of engine: A20DTR From date: 01-03-2012 To date: 01-05-2017 Fuel: Diesel Approved: Yes
    Vauxhall Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: CDTi 16V Size of motor: 2.0 Brand of engine: A20DTH Body: Estate From date: 01-07-2008 To date: 01-05-2017 Fuel: Diesel Approved: Yes Manufacture type: SPORTS TOU
    Vauxhall Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: CDTi 16V Size of motor: 2.0 Brand of engine: A20DTH Body: Hatchback From date: 01-07-2008 To date: 01-05-2017 Fuel: Diesel Approved: Yes
    Vauxhall Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: CDTi 16V Size of motor: 2.0 Brand of engine: A20DTH From date: 01-07-2008 To date: 01-05-2017 Fuel: Diesel Approved: Yes
    Vauxhall Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTR Body: Estate From date: 01-05-2009 To date: 01-05-2017 Fuel: Diesel Approved: Yes Manufacture type: Sports Tou
    Vauxhall Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTR Body: Hatchback From date: 01-05-2009 To date: 01-05-2017 Fuel: Diesel Approved: Yes
    Vauxhall Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTR From date: 01-05-2009 To date: 01-05-2017 Fuel: Diesel Approved: Yes
    Vauxhall Model: Insignia Model series: Insignia Model type: Estate Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH Body: Estate From date: 01-07-2008 To date: 01-05-2017 Fuel: Diesel Approved: Yes Manufacture type: estate
    Vauxhall Model: Insignia Model series: Insignia Model type: Estate Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTJ Body: Estate From date: 01-07-2008 To date: 01-12-2014 Fuel: Diesel Approved: Yes Manufacture type: estate
    Vauxhall Model: Insignia Model series: Insignia Model type: Sports Tourer Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTC Body: Estate From date: 01-07-2008 To date: 01-05-2017 Fuel: Diesel Approved: Yes Manufacture type: Sports Tou
    Vauxhall Model: Insignia Model series: Insignia Type of engine: Biturbo CDTI Size of motor: 2.0 Brand of engine: A20DTR Body: Estate From date: 01-03-2012 To date: 01-05-2017 Fuel: Diesel Approved: Yes Manufacture type: Sportstour
    Vauxhall Model: Insignia Model series: Insignia Type of engine: Biturbo CDTI Size of motor: 2.0 Brand of engine: A20DTR Body: Hatchback From date: 01-03-2012 To date: 01-05-2017 Fuel: Diesel Approved: Yes
    Vauxhall Model: Insignia Model series: Insignia Type of engine: Biturbo CDTI Size of motor: 2.0 Brand of engine: A20DTR From date: 01-03-2012 To date: 01-05-2017 Fuel: Diesel Approved: Yes
    Vauxhall Model: Insignia Model series: Insignia Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTC Body: Hatchback From date: 01-07-2008 To date: 01-05-2017 Fuel: Diesel Approved: Yes
    Vauxhall Model: Insignia Model series: Insignia Type of engine: CDTI Size of motor: 2.0 Brand of engine: A20DTE Body: Estate From date: 01-03-2012 To date: 01-03-2016 Fuel: Diesel Approved: Yes Manufacture type: Sports Tou
    Vauxhall Model: Insignia Model series: Insignia Type of engine: CDTI Size of motor: 2.0 Brand of engine: A20DTE Body: Hatchback From date: 01-03-2012 To date: 01-03-2016 Fuel: Diesel Approved: Yes
    Vauxhall Model: Insignia Model series: Insignia Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH Body: Hatchback From date: 01-07-2008 To date: 01-05-2017 Fuel: Diesel Approved: Yes
    Vauxhall Model: Insignia Model series: Insignia Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH From date: 01-07-2008 To date: 01-05-2017 Fuel: Diesel Approved: Yes
    Vauxhall Model: Insignia Model series: Insignia Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTJ Body: Hatchback From date: 01-07-2008 To date: 01-12-2014 Fuel: Diesel Approved: Yes
    Vauxhall Model: Insignia Model series: Insignia Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTJ From date: 01-07-2008 To date: 01-12-2014 Fuel: Diesel Approved: Yes
    Vauxhall Model: Insignia Model series: Insignia Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTR Body: Estate From date: 01-11-2008 To date: 01-05-2017 Fuel: Diesel Approved: Yes Manufacture type: Sports Tou
    Vauxhall Model: Insignia Model series: Insignia Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTR Body: Hatchback From date: 01-10-2008 To date: 01-05-2017 Fuel: Diesel Approved: Yes
    Vauxhall Model: Insignia Model series: Insignia Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTR From date: 01-11-2008 To date: 01-05-2017 Fuel: Diesel Approved: Yes
    Vauxhall Model: Zafira Model series: Zafira Mk III Type of engine: BiTurbo CDTI Size of motor: 2.0 Brand of engine: A20DTR Type description: P12 Body: MPV From date: 01-11-2012 To date: 01-08-2018 Fuel: Diesel Approved: Yes
    Vauxhall Model: Zafira Model series: Zafira MK III Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DT Type description: P12 Body: MPV From date: 01-10-2011 To date: 01-08-2018 Fuel: Diesel Approved: Yes
    Vauxhall Model: Zafira Model series: Zafira MK III Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH Type description: P12 Body: MPV From date: 01-10-2011 To date: 01-08-2018 Fuel: Diesel Approved: Yes
    Vauxhall Model: Zafira Model series: Zafira MK III Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTJ Type description: P12 Body: MPV From date: 01-10-2011 To date: 01-08-2018 Fuel: Diesel Approved: Yes
    Vauxhall Model: Zafira Model series: Zafira MK III Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTL Type description: P12 Body: MPV From date: 01-10-2011 To date: 01-08-2018 Fuel: Diesel Approved: Yes
    Vauxhall Model: Zafira Model series: Zafira MK III Type of engine: CDTi Size of motor: 2.0 Brand of engine: Z20DTJ Type description: P12 Body: MPV From date: 01-10-2011 To date: 01-08-2018 Fuel: Diesel Approved: Yes
    1 / 16
  • Beskrivelse
    Spænding: 14
    Amp: 120
    Remskive dist.: 112,50
    Bredde/holder arm: 60,80
    Bøjlehul: 12,00
    Bæltespændingsregulator bøjlehul pos.: 58
    Bæltespændingsregulator bøjlehul 1: 12,00
    Remskive dia.: 53,70
    Riller/remskive: 6
    Radius: 90,00
    Radius 2: 90,00
    B+: M8
    Position/B+ i min.: 40
    D+ Størrelse: Plug
    Rotation: CW
    Plug nr.: PL180
    Total længde mm: 190,00
    Terminaltype: L-F
    Kommunikation: PWM
    Remskive: SP/FW
    Kølevifte: IF
    Regulator type: IR
    Bemærkninger: Denne generator har en PWM-terminal på regulatoren. Det anbefales at bruge OEM-nummeret til at kontrollere egnethed før bestilling.

    Filer

  • Specifikation
    B+ M8
    Communication PWM
    Belt. adj. bracket hole 1 12.00
    Belt. adj. brackethole pos. 58
    Plug no. PL180
    Bracket hole 12.00
    Position/B+ in min. 40
    Pulley SP/FW
    Pulley dia. 53.70
    Pulley dist. 112.50
    Radius 90.00
    D+ Size Plug
    Radius 2 90.00
    Regulator type IR
    Remarks This Alternator has a PWM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Fan IF
    Grooves/pulley 6
    Terminal type L-F
    Voltage 14
    Total length 190.00 mm
    Width/holder arm 60.80
    Amp 120
  • Køretøjsmatchning

    • OEM
      F032116183, TG12C036, TG12C143, 1986A01502, 1202317, 1204642, 2650800, 2650800A, 13502582, 95515964

    • Konkurrentreferens
      A3190S, A3223, CAL15499, DRA1375, LRA03580, 28-6690, 135.585.120, 135.590.120, 209138, 209138A, 440621, 554024RI, 849120, 12090526

    • NormaliseratArtNr
      a3190s, a3223, cal15499, dra1375, f032116183, lra03580, tg12c036, tg12c143, 1986a01502, 209138, 209138a, 286690, 440621, 554024ri, 849120, 1202317, 1204642, 2650800, 2650800a, 12090526, 13502582, 95515964, 135585120, 135590120

    • Passar modeller
      Opel Model: Astra Gtc J Model series: Astra J GTC Type of engine: BiTurbo CDTI Size of motor: 2.0 Brand of engine: A20DTR Body: Hatchback From date: 01-10-2012 To date: 01-10-2015 Fuel: Diesel Approved: Yes
      Opel Model: Astra Model series: Astra J GTC Model type: CDTI (08) Type of engine: Diesel Size of motor: 2.0 Brand of engine: A20DTH Body: Hatchback Fuel: Diesel Approved: Yes
      Opel Model: Astra Model series: Astra J Model type: CDTi Type of engine: Diesel Size of motor: 2.0 Brand of engine: A20DTH Type description: P10 Body: Hatchback Fuel: Diesel Approved: Yes
      Opel Model: Astra Model series: Astra J Model type: Ecotec Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH Body: Estate From date: 01-10-2010 To date: 01-10-2015 Fuel: Diesel Approved: Yes Manufacture type: SPORTS TOU
      Opel Model: Astra Model series: Astra J Model type: GTC Size of motor: 2.0 Brand of engine: A20DTH Body: Hatchback From date: 01-10-2011 To date: 01-10-2015 Fuel: Diesel Approved: Yes
      Opel Model: Astra Model series: Astra J Model type: Sports Tourer Type of engine: BiTurbo CDTI Size of motor: 2.0 Brand of engine: A20DTR Type description: J Body: Estate From date: 01-09-2012 To date: 01-10-2015 Fuel: Diesel Approved: Yes Manufacture type: Sports Tou
      Opel Model: Astra Model series: Astra J Model type: Sports Tourer Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH Body: Estate From date: 01-08-2011 To date: 01-10-2015 Fuel: Diesel Approved: Yes Manufacture type: Sports Tou
      Opel Model: Astra Model series: Astra J Type of engine: BiTurbo CDTI Size of motor: 2.0 Brand of engine: A20DTR Body: Hatchback From date: 01-09-2012 To date: 01-10-2015 Fuel: Diesel Approved: Yes
      Opel Model: Astra Model series: Astra J Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH Body: Hatchback From date: 01-06-2011 To date: 01-10-2015 Fuel: Diesel Approved: Yes
      Opel Model: Astra Model series: Astra J Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH Body: Hatchback From date: 01-09-2009 To date: 01-10-2015 Fuel: Diesel Approved: Yes
      Opel Model: Insignia Model series: Insignia Model type: 4x4 Sports Tourer Type of engine: BiTurbo CDTI Size of motor: 2.0 Brand of engine: A20DTR Body: Estate From date: 01-01-2012 To date: 01-06-2015 Fuel: Diesel Approved: Yes Manufacture type: Sports Tou
      Opel Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: BiTurbo CDTI Size of motor: 2.0 Brand of engine: A20DTR Body: Hatchback From date: 01-01-2012 To date: 01-03-2017 Fuel: Diesel Approved: Yes
      Opel Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: BiTurbo CDTI Size of motor: 2.0 Brand of engine: A20DTR From date: 01-01-2012 To date: 01-03-2017 Fuel: Diesel Approved: Yes
      Opel Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH Body: Estate From date: 01-06-2010 To date: 01-06-2015 Fuel: Diesel Approved: Yes Manufacture type: SPORTS TOU
      Opel Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTR Body: Estate From date: 01-07-2008 To date: 01-03-2017 Fuel: Diesel Approved: Yes Manufacture type: SportsTour
      Opel Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTR Body: Hatchback From date: 01-05-2009 To date: 01-12-2011 Fuel: Diesel Approved: Yes
      Opel Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTR From date: 01-07-2008 To date: 01-12-2011 Fuel: Diesel Approved: Yes
      Opel Model: Insignia Model series: Insignia Model type: Caravan Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DT Body: Estate From date: 01-07-2008 To date: 01-06-2015 Fuel: Diesel Approved: Yes Manufacture type: CARAVAN
      Opel Model: Insignia Model series: Insignia Model type: Caravan Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTC Body: Estate From date: 01-07-2008 To date: 01-06-2013 Fuel: Diesel Approved: Yes Manufacture type: CARAVAN
      Opel Model: Insignia Model series: Insignia Model type: Caravan Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTJ Body: Estate From date: 01-07-2008 To date: 01-06-2015 Fuel: Diesel Approved: Yes Manufacture type: CARAVAN
      Opel Model: Insignia Model series: Insignia Model type: Caravan Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTL Body: Estate From date: 01-07-2008 To date: 01-06-2013 Fuel: Diesel Approved: Yes Manufacture type: CARAVAN
      Opel Model: Insignia Model series: Insignia Model type: Caravan Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTR Body: Estate From date: 01-07-2008 To date: 01-03-2017 Fuel: Diesel Approved: Yes Manufacture type: CARAVAN
      Opel Model: Insignia Model series: Insignia Model type: Sports Tourer Type of engine: BiTurbo CDTI Size of motor: 2.0 Brand of engine: A20DTR Body: Estate From date: 01-01-2012 To date: 01-06-2015 Fuel: Diesel Approved: Yes Manufacture type: Sports Tou
      Opel Model: Insignia Model series: Insignia Type of engine: BiTurbo CDTI Size of motor: 2.0 Brand of engine: A20DTR Body: Hatchback From date: 01-01-2012 To date: 01-03-2017 Fuel: Diesel Approved: Yes
      Opel Model: Insignia Model series: Insignia Type of engine: BiTurbo CDTI Size of motor: 2.0 Brand of engine: A20DTR From date: 01-01-2012 To date: 01-03-2017 Fuel: Diesel Approved: Yes
      Opel Model: Insignia Model series: Insignia Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DT Body: Hatchback From date: 01-07-2008 To date: 01-03-2017 Fuel: Diesel Approved: Yes
      Opel Model: Insignia Model series: Insignia Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DT From date: 01-07-2008 To date: 01-03-2017 Fuel: Diesel Approved: Yes
      Opel Model: Insignia Model series: Insignia Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTC Body: Hatchback From date: 01-07-2008 To date: 01-03-2017 Fuel: Diesel Approved: Yes
      Opel Model: Insignia Model series: Insignia Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTC From date: 01-07-2008 To date: 01-03-2017 Fuel: Diesel Approved: Yes
      Opel Model: Insignia Model series: Insignia Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTJ Body: Hatchback From date: 01-07-2008 To date: 01-03-2017 Fuel: Diesel Approved: Yes
      Opel Model: Insignia Model series: Insignia Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTJ From date: 01-07-2008 To date: 01-03-2017 Fuel: Diesel Approved: Yes
      Opel Model: Insignia Model series: Insignia Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTL Body: Hatchback From date: 01-07-2008 To date: 01-03-2017 Fuel: Diesel Approved: Yes
      Opel Model: Insignia Model series: Insignia Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTL From date: 01-07-2008 To date: 01-03-2017 Fuel: Diesel Approved: Yes
      Opel Model: Insignia Model series: Insignia Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTR Body: Hatchback From date: 01-07-2008 To date: 01-12-2011 Fuel: Diesel Approved: Yes
      Opel Model: Insignia Model series: Insignia Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTR From date: 01-07-2008 To date: 01-12-2011 Fuel: Diesel Approved: Yes
      Opel Model: Zafira Model series: Zafira C Type of engine: BiTurbo CDTI Size of motor: 2.0 Brand of engine: A20DTR Type description: P12 Body: MPV From date: 01-01-2013 Fuel: Diesel Approved: Yes
      Opel Model: Zafira Model series: Zafira C Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DT Type description: P12 Body: MPV From date: 01-10-2011 Fuel: Diesel Approved: Yes
      Opel Model: Zafira Model series: Zafira C Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH Type description: P12 Body: MPV From date: 01-10-2011 Fuel: Diesel Approved: Yes
      Opel Model: Zafira Model series: Zafira C Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTL Type description: P12 Body: MPV From date: 01-10-2011 Fuel: Diesel Approved: Yes
      Opel Model: Zafira Model series: Zafira C Type of engine: CDTi Size of motor: 2.0 Brand of engine: Y20DTJ Type description: P12 Body: MPV From date: 01-10-2011 Fuel: Diesel Approved: Yes
      Opel Model: Zafira Model series: Zafira C Type of engine: CDTi Size of motor: 2.0 Brand of engine: Z20DTJ Type description: P12 Body: MPV From date: 01-10-2011 Fuel: Diesel Approved: Yes
      Vauxhall Model: Astra Model series: Astra J GTC Model type: BiTurbo Type of engine: BiTurbo CDTI Size of motor: 2.0 Brand of engine: A20DTR Type description: J Body: Hatchback From date: 01-12-2012 To date: 01-10-2015 Fuel: Diesel Approved: Yes
      Vauxhall Model: Astra Model series: Astra MK V Model type: Sports Tourer Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH Body: Estate From date: 01-08-2011 To date: 01-10-2015 Fuel: Diesel Approved: Yes Manufacture type: Sports Tou
      Vauxhall Model: Astra Model series: Astra MK V Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH Body: Hatchback From date: 01-08-2011 To date: 01-10-2015 Fuel: Diesel Approved: Yes
      Vauxhall Model: Astra Model series: Astra MK VI Type of engine: BiTurbo CDTI Size of motor: 2.0 Brand of engine: A20DTR Type description: J Body: Hatchback From date: 01-12-2012 To date: 01-10-2015 Fuel: Diesel Approved: Yes
      Vauxhall Model: Astra Model series: Astra MK VI Type of engine: BiTurbo CDTI Size of motor: 2.0 Brand of engine: A20DTR Type description: J Sports Tourer Body: Estate From date: 01-12-2012 To date: 01-10-2015 Fuel: Diesel Approved: Yes Manufacture type: Sports Tou
      Vauxhall Model: Astra Model series: Astra MK VI Type of engine: CDTi 16V Size of motor: 2.0 Brand of engine: A20DTH Body: Estate From date: 01-10-2010 To date: 01-06-2011 Fuel: Diesel Approved: Yes Manufacture type: SPORTS TOU
      Vauxhall Model: Astra Model series: Astra MK VI Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH Body: Hatchback From date: 01-10-2011 To date: 01-10-2015 Fuel: Diesel Approved: Yes
      Vauxhall Model: Astra Model series: Astra MK VI Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH Body: Hatchback From date: 01-12-2009 To date: 01-06-2011 Fuel: Diesel Approved: Yes
      Vauxhall Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: Biturbo CDTI Size of motor: 2.0 Brand of engine: A20DTR Body: Estate From date: 01-03-2012 To date: 01-05-2017 Fuel: Diesel Approved: Yes Manufacture type: Sportstour
      Vauxhall Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: Biturbo CDTI Size of motor: 2.0 Brand of engine: A20DTR Body: Hatchback From date: 01-03-2012 To date: 01-05-2017 Fuel: Diesel Approved: Yes
      Vauxhall Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: Biturbo CDTI Size of motor: 2.0 Brand of engine: A20DTR From date: 01-03-2012 To date: 01-05-2017 Fuel: Diesel Approved: Yes
      Vauxhall Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: CDTi 16V Size of motor: 2.0 Brand of engine: A20DTH Body: Estate From date: 01-07-2008 To date: 01-05-2017 Fuel: Diesel Approved: Yes Manufacture type: SPORTS TOU
      Vauxhall Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: CDTi 16V Size of motor: 2.0 Brand of engine: A20DTH Body: Hatchback From date: 01-07-2008 To date: 01-05-2017 Fuel: Diesel Approved: Yes
      Vauxhall Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: CDTi 16V Size of motor: 2.0 Brand of engine: A20DTH From date: 01-07-2008 To date: 01-05-2017 Fuel: Diesel Approved: Yes
      Vauxhall Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTR Body: Estate From date: 01-05-2009 To date: 01-05-2017 Fuel: Diesel Approved: Yes Manufacture type: Sports Tou
      Vauxhall Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTR Body: Hatchback From date: 01-05-2009 To date: 01-05-2017 Fuel: Diesel Approved: Yes
      Vauxhall Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTR From date: 01-05-2009 To date: 01-05-2017 Fuel: Diesel Approved: Yes
      Vauxhall Model: Insignia Model series: Insignia Model type: Estate Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH Body: Estate From date: 01-07-2008 To date: 01-05-2017 Fuel: Diesel Approved: Yes Manufacture type: estate
      Vauxhall Model: Insignia Model series: Insignia Model type: Estate Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTJ Body: Estate From date: 01-07-2008 To date: 01-12-2014 Fuel: Diesel Approved: Yes Manufacture type: estate
      Vauxhall Model: Insignia Model series: Insignia Model type: Sports Tourer Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTC Body: Estate From date: 01-07-2008 To date: 01-05-2017 Fuel: Diesel Approved: Yes Manufacture type: Sports Tou
      Vauxhall Model: Insignia Model series: Insignia Type of engine: Biturbo CDTI Size of motor: 2.0 Brand of engine: A20DTR Body: Estate From date: 01-03-2012 To date: 01-05-2017 Fuel: Diesel Approved: Yes Manufacture type: Sportstour
      Vauxhall Model: Insignia Model series: Insignia Type of engine: Biturbo CDTI Size of motor: 2.0 Brand of engine: A20DTR Body: Hatchback From date: 01-03-2012 To date: 01-05-2017 Fuel: Diesel Approved: Yes
      Vauxhall Model: Insignia Model series: Insignia Type of engine: Biturbo CDTI Size of motor: 2.0 Brand of engine: A20DTR From date: 01-03-2012 To date: 01-05-2017 Fuel: Diesel Approved: Yes
      Vauxhall Model: Insignia Model series: Insignia Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTC Body: Hatchback From date: 01-07-2008 To date: 01-05-2017 Fuel: Diesel Approved: Yes
      Vauxhall Model: Insignia Model series: Insignia Type of engine: CDTI Size of motor: 2.0 Brand of engine: A20DTE Body: Estate From date: 01-03-2012 To date: 01-03-2016 Fuel: Diesel Approved: Yes Manufacture type: Sports Tou
      Vauxhall Model: Insignia Model series: Insignia Type of engine: CDTI Size of motor: 2.0 Brand of engine: A20DTE Body: Hatchback From date: 01-03-2012 To date: 01-03-2016 Fuel: Diesel Approved: Yes
      Vauxhall Model: Insignia Model series: Insignia Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH Body: Hatchback From date: 01-07-2008 To date: 01-05-2017 Fuel: Diesel Approved: Yes
      Vauxhall Model: Insignia Model series: Insignia Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH From date: 01-07-2008 To date: 01-05-2017 Fuel: Diesel Approved: Yes
      Vauxhall Model: Insignia Model series: Insignia Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTJ Body: Hatchback From date: 01-07-2008 To date: 01-12-2014 Fuel: Diesel Approved: Yes
      Vauxhall Model: Insignia Model series: Insignia Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTJ From date: 01-07-2008 To date: 01-12-2014 Fuel: Diesel Approved: Yes
      Vauxhall Model: Insignia Model series: Insignia Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTR Body: Estate From date: 01-11-2008 To date: 01-05-2017 Fuel: Diesel Approved: Yes Manufacture type: Sports Tou
      Vauxhall Model: Insignia Model series: Insignia Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTR Body: Hatchback From date: 01-10-2008 To date: 01-05-2017 Fuel: Diesel Approved: Yes
      Vauxhall Model: Insignia Model series: Insignia Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTR From date: 01-11-2008 To date: 01-05-2017 Fuel: Diesel Approved: Yes
      Vauxhall Model: Zafira Model series: Zafira Mk III Type of engine: BiTurbo CDTI Size of motor: 2.0 Brand of engine: A20DTR Type description: P12 Body: MPV From date: 01-11-2012 To date: 01-08-2018 Fuel: Diesel Approved: Yes
      Vauxhall Model: Zafira Model series: Zafira MK III Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DT Type description: P12 Body: MPV From date: 01-10-2011 To date: 01-08-2018 Fuel: Diesel Approved: Yes
      Vauxhall Model: Zafira Model series: Zafira MK III Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH Type description: P12 Body: MPV From date: 01-10-2011 To date: 01-08-2018 Fuel: Diesel Approved: Yes
      Vauxhall Model: Zafira Model series: Zafira MK III Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTJ Type description: P12 Body: MPV From date: 01-10-2011 To date: 01-08-2018 Fuel: Diesel Approved: Yes
      Vauxhall Model: Zafira Model series: Zafira MK III Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTL Type description: P12 Body: MPV From date: 01-10-2011 To date: 01-08-2018 Fuel: Diesel Approved: Yes
      Vauxhall Model: Zafira Model series: Zafira MK III Type of engine: CDTi Size of motor: 2.0 Brand of engine: Z20DTJ Type description: P12 Body: MPV From date: 01-10-2011 To date: 01-08-2018 Fuel: Diesel Approved: Yes
      1 / 16

Vi bruger cookies for at give dig den bedste oplevelse på vores hjemmeside. Du accepterer brugen af ​​cookies ved at trykke på OK og fortsætte med at navigere på hjemmesiden.
