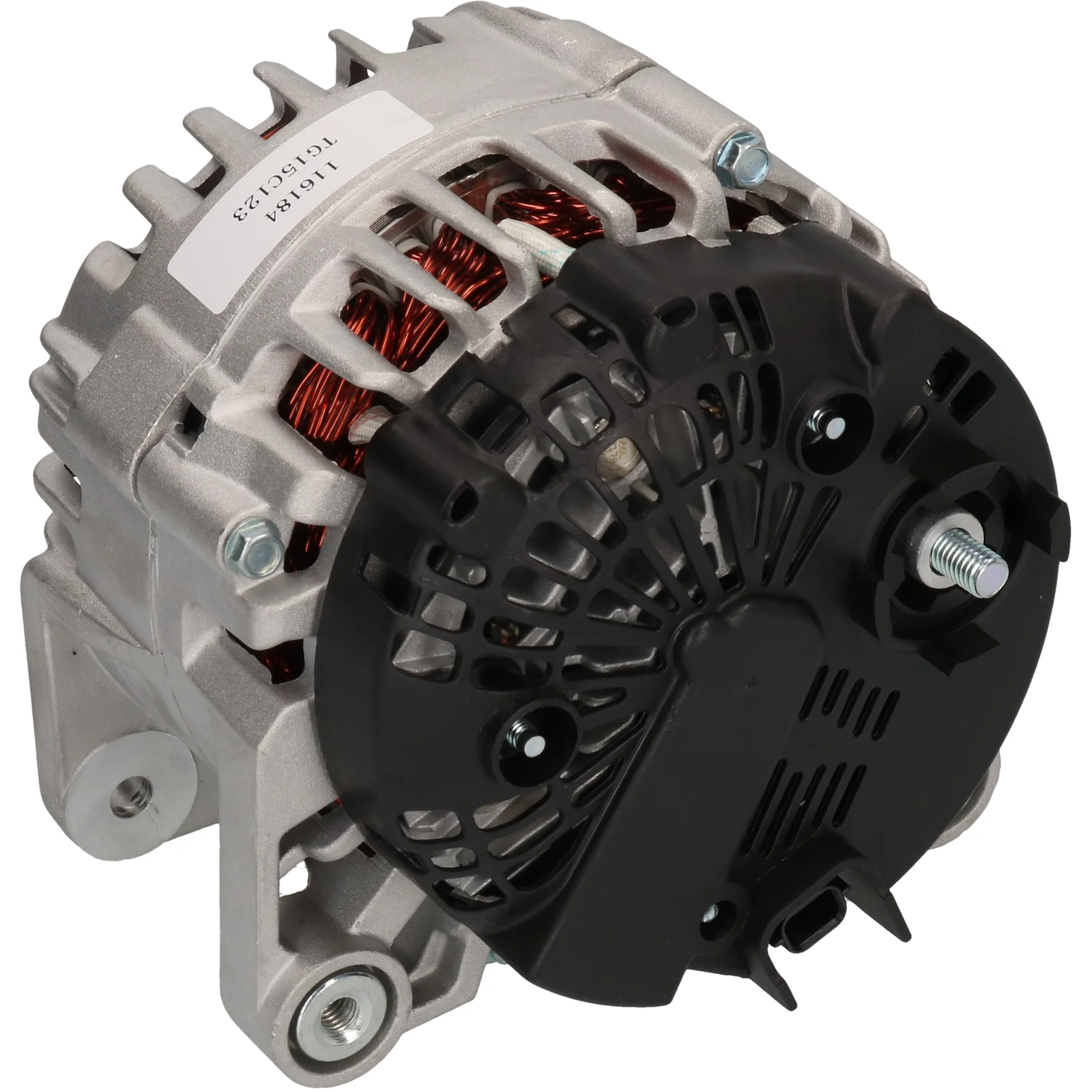

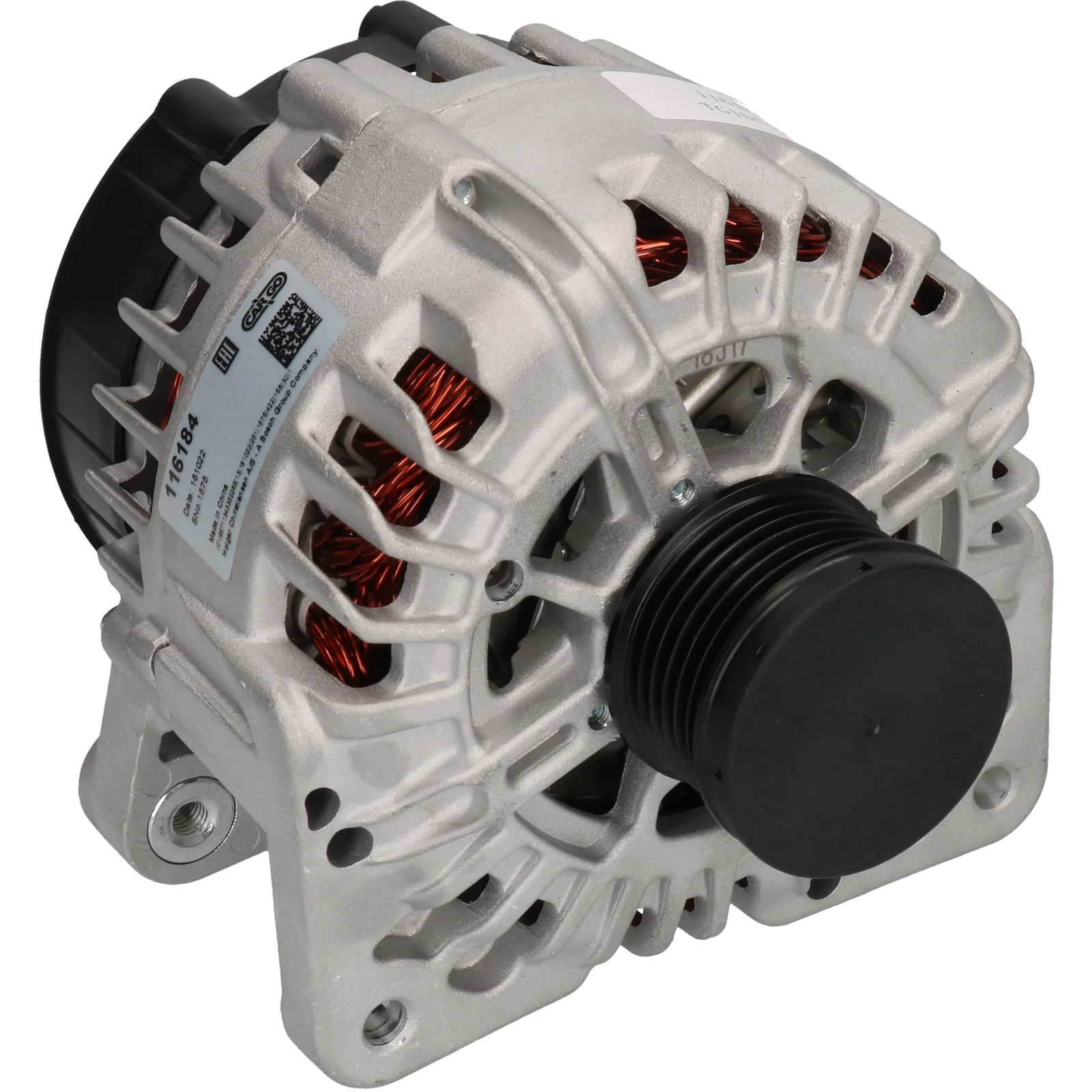

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032116184

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 150, Rotation: CW, Monteringsbøjle forfordeler: 61,00

Beskrivelse

Spænding: 14
Amp: 150
Remskivesignatur: 33,00
Bredde/holderarm: 14,00
Montagebeslagsafstand: 61,00
Beslagshul: 8,50
Bæltejusteringsbeslags hulestilling: 45
Bæltejusteringsbeslags hulestilling 1: 8,50
Remskivediameter: 51,50
Grovspor/remskive: 6
Radius: 90,00
Radius 2: 90,00
B+: M8
Position/B+ i min.: 5
Rotation: CW
Stiknummer: PL131
Samlet længde mm: 185,00
Terminaltype: COM
Kommunikation: BSS
Remskive: SP/FW
Regulator type: IR
Bemærkninger: Denne generator har en COM-terminal på regulatoren. Det anbefales at bruge OEM-nummeret til at tjekke egnethed, før der bestilles.

Filer

Specifikation

B+ M8
Communication BSS
Mount. bracket dist. 61.00
Belt. adj. bracket hole 1 8.50
Belt. adj. brackethole pos. 45
Plug no. PL131
Bracket hole 8.50
Position/B+ in min. 5
Pulley SP/FW
Pulley dia. 51.50
Pulley dist. 33.00
Radius 90.00
Radius 2 90.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Grooves/pulley 6
Terminal type COM
Voltage 14
Total length 185.00 mm
Width/holder arm 14.00
Amp 150

  • OEM
    F032116184, TG15C123, 23100-0011R, 2543592, 2543592A, 231000011R

  • Konkurrentreferens
    A3168, CAL15556, LRA03485, 28-6595, 230.351.1502, 575.911.150, 20843N, 440187, 553151RI, 9090527, 12090679

  • NormaliseratArtNr
    a3168, cal15556, f032116184, lra03485, tg15c123, 20843n, 286595, 440187, 553151ri, 2543592, 2543592a, 9090527, 12090679, 231000011r, 575911150, 2303511502

  • Passar modeller
    Renault Model: Laguna Model series: Laguna Model type: Grandtour Type of engine: 16V Hi-Flex Size of motor: 2.0 Brand of engine: M4R704 Type description: KT0/1 Body: Estate From date: 01-10-2007 To date: 01-12-2015 Fuel: Bi-Fuel Approved: Yes Manufacture type: Grandtour
    Renault Model: Laguna Model series: Laguna Model type: Grandtour Type of engine: 16V Hi-Flex Size of motor: 2.0 Brand of engine: M4R726 Type description: KT0/1 Body: Estate From date: 01-10-2007 To date: 01-12-2015 Fuel: Bi-Fuel Approved: Yes Manufacture type: Grandtour
    Renault Model: Laguna Model series: Laguna Type of engine: 16V Hi-Flex Size of motor: 2.0 Brand of engine: M4R704 Type description: BT0/1 Body: Hatchback From date: 01-10-2007 To date: 01-12-2015 Fuel: Bi-Fuel Approved: Yes
    Renault Model: Laguna Model series: Laguna Type of engine: 16V Size of motor: 2.0 Brand of engine: M4R704 Type description: BT0/1 Body: Hatchback From date: 01-10-2007 To date: 01-12-2012 Fuel: Gasoline Approved: Yes
    Renault Model: Laguna Model series: Laguna Type of engine: 16V Size of motor: 2.0 Brand of engine: M4R704 Type description: KT0/1 Body: Estate From date: 01-10-2007 To date: 01-12-2015 Fuel: Gasoline Approved: Yes Manufacture type: Grandtour
    Renault Model: Megane Model series: Megane Type of engine: 16V Size of motor: 2.0 Brand of engine: M4R711 Type description: BZ.. Body: Hatchback From date: 01-02-2009 Fuel: Gasoline Approved: Yes
    Renault Model: Megane Model series: Megane Type of engine: 16V Size of motor: 2.0 Brand of engine: M4R711 Type description: DZ0_ Body: Coupe From date: 01-05-2009 Fuel: Gasoline Approved: Yes
    Renault Model: Megane Model series: Megane Type of engine: 16V Size of motor: 2.0 Brand of engine: M4R711 Type description: KZ0/1 Body: Estate From date: 01-05-2009 Fuel: Gasoline Approved: Yes Manufacture type: Kombi
    Renault Model: Megane Model series: Megane Type of engine: 16V Size of motor: 2.0 Brand of engine: M4R713 Type description: BZ.. Body: Hatchback From date: 01-02-2009 Fuel: Gasoline Approved: Yes
    Renault Model: Megane Model series: Megane Type of engine: 16V Size of motor: 2.0 Brand of engine: M4RF713 Type description: KZ0/1 Body: Estate From date: 01-05-2009 Fuel: Gasoline Approved: Yes Manufacture type: Kombi
    Renault Model: Sc nic Model series: Grand Sc nic Type of engine: 16V Size of motor: 2.0 Brand of engine: M4R711 Type description: JZ0/1_ Body: MPV From date: 01-02-2009 Fuel: Gasoline Approved: Yes
    Renault Model: Sc nic Model series: Sc nic Type of engine: 16V Size of motor: 2.0 Brand of engine: M4R710 Body: MPV From date: 01-02-2009 Fuel: Gasoline Approved: Yes
    Renault Model: Sc nic Model series: Sc nic Type of engine: 16V Size of motor: 2.0 Brand of engine: M4R711 Body: MPV From date: 01-02-2009 Fuel: Gasoline Approved: Yes
    1 / 3
  • Beskrivelse
    Spænding: 14
    Amp: 150
    Remskivesignatur: 33,00
    Bredde/holderarm: 14,00
    Montagebeslagsafstand: 61,00
    Beslagshul: 8,50
    Bæltejusteringsbeslags hulestilling: 45
    Bæltejusteringsbeslags hulestilling 1: 8,50
    Remskivediameter: 51,50
    Grovspor/remskive: 6
    Radius: 90,00
    Radius 2: 90,00
    B+: M8
    Position/B+ i min.: 5
    Rotation: CW
    Stiknummer: PL131
    Samlet længde mm: 185,00
    Terminaltype: COM
    Kommunikation: BSS
    Remskive: SP/FW
    Regulator type: IR
    Bemærkninger: Denne generator har en COM-terminal på regulatoren. Det anbefales at bruge OEM-nummeret til at tjekke egnethed, før der bestilles.

    Filer

  • Specifikation
    B+ M8
    Communication BSS
    Mount. bracket dist. 61.00
    Belt. adj. bracket hole 1 8.50
    Belt. adj. brackethole pos. 45
    Plug no. PL131
    Bracket hole 8.50
    Position/B+ in min. 5
    Pulley SP/FW
    Pulley dia. 51.50
    Pulley dist. 33.00
    Radius 90.00
    Radius 2 90.00
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Grooves/pulley 6
    Terminal type COM
    Voltage 14
    Total length 185.00 mm
    Width/holder arm 14.00
    Amp 150
  • Køretøjsmatchning

    • OEM
      F032116184, TG15C123, 23100-0011R, 2543592, 2543592A, 231000011R

    • Konkurrentreferens
      A3168, CAL15556, LRA03485, 28-6595, 230.351.1502, 575.911.150, 20843N, 440187, 553151RI, 9090527, 12090679

    • NormaliseratArtNr
      a3168, cal15556, f032116184, lra03485, tg15c123, 20843n, 286595, 440187, 553151ri, 2543592, 2543592a, 9090527, 12090679, 231000011r, 575911150, 2303511502

    • Passar modeller
      Renault Model: Laguna Model series: Laguna Model type: Grandtour Type of engine: 16V Hi-Flex Size of motor: 2.0 Brand of engine: M4R704 Type description: KT0/1 Body: Estate From date: 01-10-2007 To date: 01-12-2015 Fuel: Bi-Fuel Approved: Yes Manufacture type: Grandtour
      Renault Model: Laguna Model series: Laguna Model type: Grandtour Type of engine: 16V Hi-Flex Size of motor: 2.0 Brand of engine: M4R726 Type description: KT0/1 Body: Estate From date: 01-10-2007 To date: 01-12-2015 Fuel: Bi-Fuel Approved: Yes Manufacture type: Grandtour
      Renault Model: Laguna Model series: Laguna Type of engine: 16V Hi-Flex Size of motor: 2.0 Brand of engine: M4R704 Type description: BT0/1 Body: Hatchback From date: 01-10-2007 To date: 01-12-2015 Fuel: Bi-Fuel Approved: Yes
      Renault Model: Laguna Model series: Laguna Type of engine: 16V Size of motor: 2.0 Brand of engine: M4R704 Type description: BT0/1 Body: Hatchback From date: 01-10-2007 To date: 01-12-2012 Fuel: Gasoline Approved: Yes
      Renault Model: Laguna Model series: Laguna Type of engine: 16V Size of motor: 2.0 Brand of engine: M4R704 Type description: KT0/1 Body: Estate From date: 01-10-2007 To date: 01-12-2015 Fuel: Gasoline Approved: Yes Manufacture type: Grandtour
      Renault Model: Megane Model series: Megane Type of engine: 16V Size of motor: 2.0 Brand of engine: M4R711 Type description: BZ.. Body: Hatchback From date: 01-02-2009 Fuel: Gasoline Approved: Yes
      Renault Model: Megane Model series: Megane Type of engine: 16V Size of motor: 2.0 Brand of engine: M4R711 Type description: DZ0_ Body: Coupe From date: 01-05-2009 Fuel: Gasoline Approved: Yes
      Renault Model: Megane Model series: Megane Type of engine: 16V Size of motor: 2.0 Brand of engine: M4R711 Type description: KZ0/1 Body: Estate From date: 01-05-2009 Fuel: Gasoline Approved: Yes Manufacture type: Kombi
      Renault Model: Megane Model series: Megane Type of engine: 16V Size of motor: 2.0 Brand of engine: M4R713 Type description: BZ.. Body: Hatchback From date: 01-02-2009 Fuel: Gasoline Approved: Yes
      Renault Model: Megane Model series: Megane Type of engine: 16V Size of motor: 2.0 Brand of engine: M4RF713 Type description: KZ0/1 Body: Estate From date: 01-05-2009 Fuel: Gasoline Approved: Yes Manufacture type: Kombi
      Renault Model: Sc nic Model series: Grand Sc nic Type of engine: 16V Size of motor: 2.0 Brand of engine: M4R711 Type description: JZ0/1_ Body: MPV From date: 01-02-2009 Fuel: Gasoline Approved: Yes
      Renault Model: Sc nic Model series: Sc nic Type of engine: 16V Size of motor: 2.0 Brand of engine: M4R710 Body: MPV From date: 01-02-2009 Fuel: Gasoline Approved: Yes
      Renault Model: Sc nic Model series: Sc nic Type of engine: 16V Size of motor: 2.0 Brand of engine: M4R711 Body: MPV From date: 01-02-2009 Fuel: Gasoline Approved: Yes
