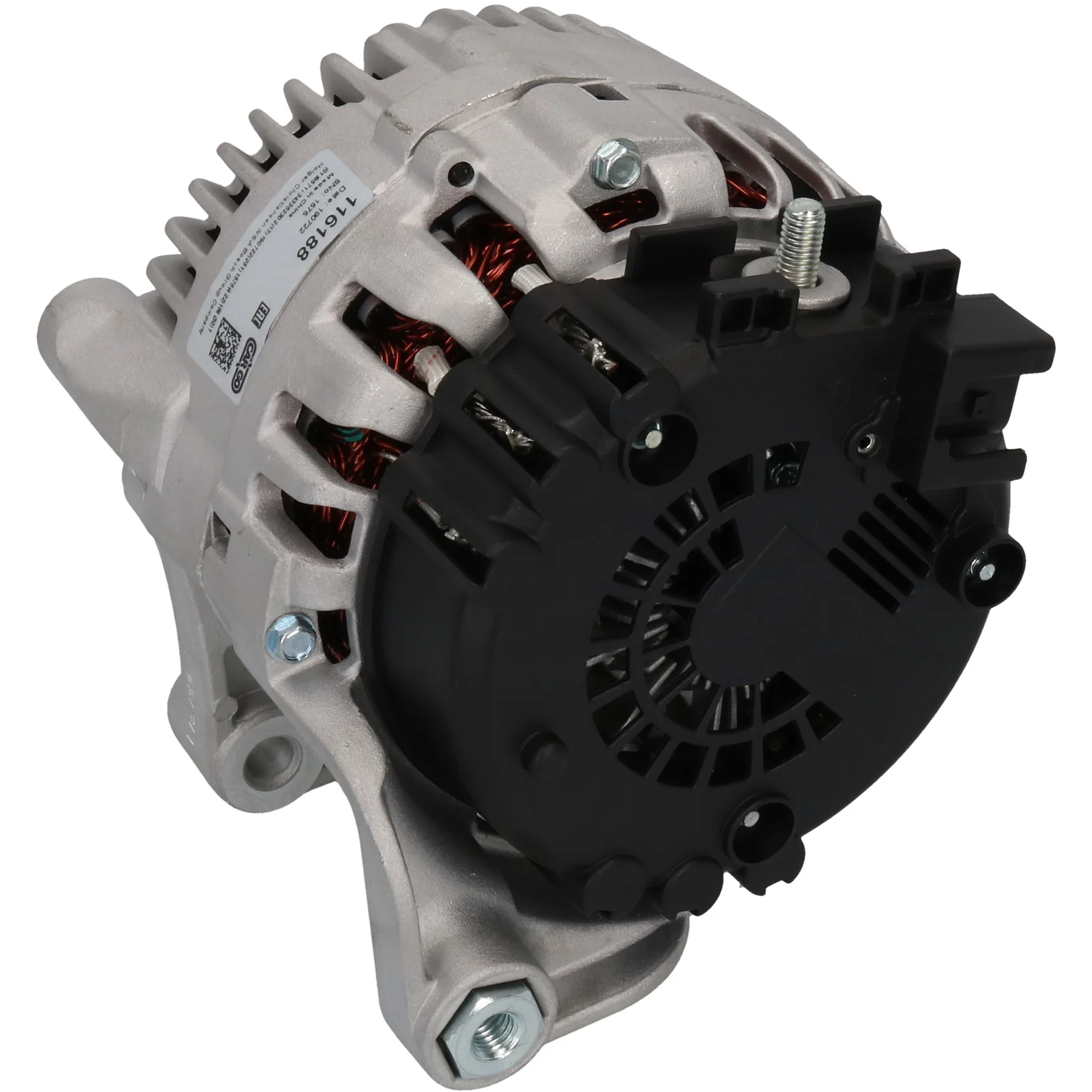

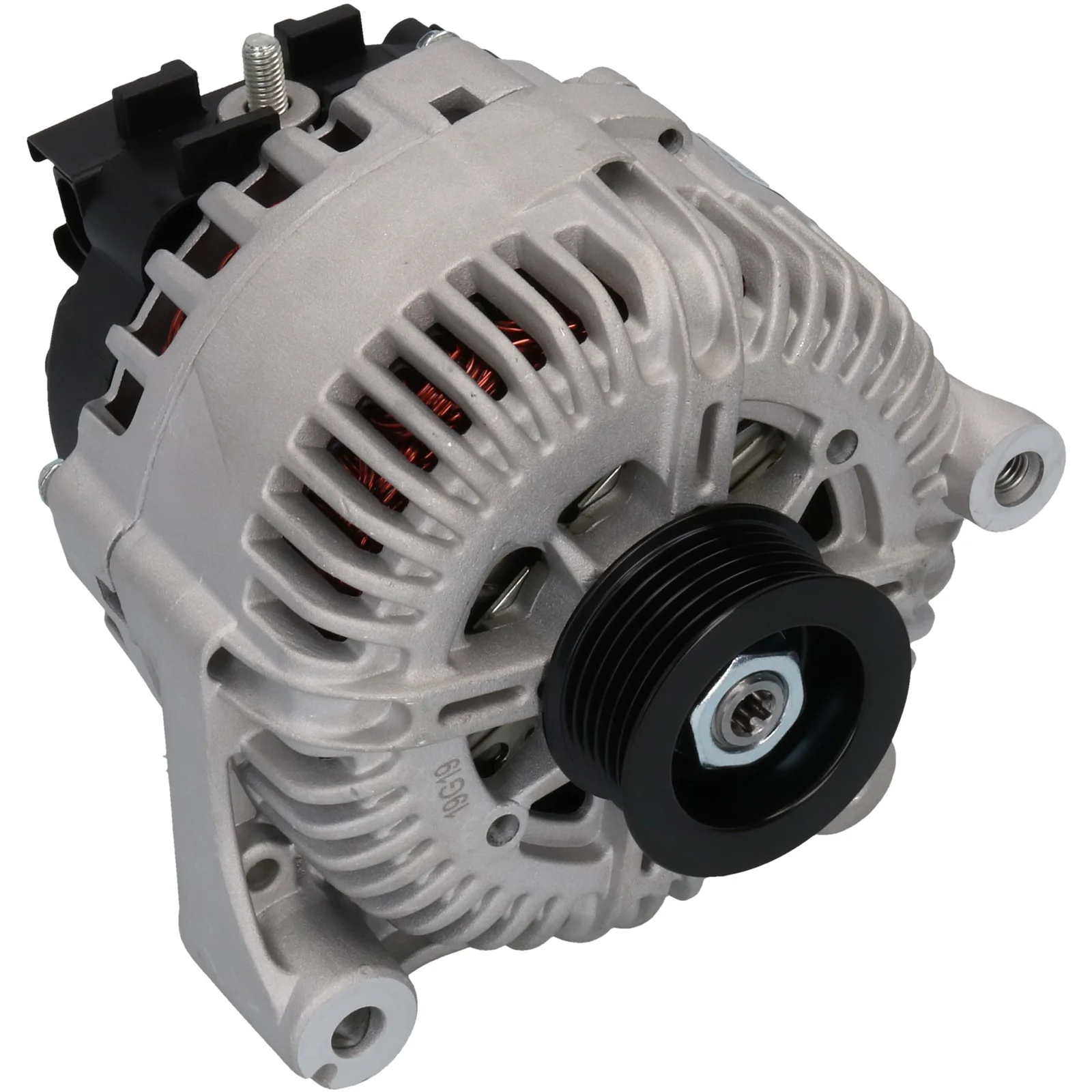

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032116188

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 220, Rotation: CW, Montering. bøjle fordeling: 75,00

Beskrivelse

Spænding: 14
Amp: 220
Bæltehjul fordeling: 56,50
Bredde/holderarms: 28,00
Montagebeslag afstand: 75,00
Beslagshul: 10,50
Bæltejusteringsbeslagshul position: 45
Bæltejusteringsbeslagshul 1: 10,50
Hjuldiameter: 57,00
Riller/hjul: 6
Radius: 93,00
Radius 2: 93,00
B+: M8
Position/B+ i min.: 55
Rotation: med uret
Stiknummer: PL125
Samlet længde mm: 180,00
Terminaltype: COM
Kommunikation: BSS
Hjul: SP
Regulator type: IR
Bemærkninger: Denne generator har en COM-terminal på regulatoren. Det anbefales at bruge OE-nummeret til at kontrollere egnethed, før der bestilles.

Filer

Specifikation

B+ M8
Communication BSS
Mount. bracket dist. 75.00
Belt. adj. bracket hole 1 10.50
Belt. adj. brackethole pos. 45
Plug no. PL125
Bracket hole 10.50
Position/B+ in min. 55
Pulley SP
Pulley dia. 57.00
Pulley dist. 56.50
Radius 93.00
Radius 2 93.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Grooves/pulley 6
Terminal type COM
Voltage 14
Total length 180.00 mm
Width/holder arm 28.00
Amp 220

  • OEM
    F032116188, TG23C012, 1986A01860, 2543223, 12317603775, 12317801124, 12317804266

  • Konkurrentreferens
    A3597S, CAL15475, DRA0593, LRA03242, 28-5854, 215.189.2202, 215.543.220, 11451N, 209237, 209237A, 439606, 440109, 553411RI, 9090478, 12090395, 0986083460

  • NormaliseratArtNr
    a3597s, cal15475, dra0593, f032116188, lra03242, tg23c012, 1986a01860, 11451n, 209237, 209237a, 285854, 439606, 440109, 553411ri, 2543223, 9090478, 12090395, 215543220, 0986083460, 2151892202, 12317603775, 12317801124, 12317804266

  • Passar modeller
    BMW Model: X5 Model series: X5 Model type: Sdrive Type of engine: Diesel Size of motor: 3.0 Brand of engine: M57D30 (306D5) Type description: E70 From date: 01-10-2007 To date: 01-09-2008 Fuel: Diesel Approved: Yes
    BMW Model: X5 Model series: X5 Model type: Xdrive Type of engine: Diesel Size of motor: 3.0 Brand of engine: M57N306D5 Type description: E70 From date: 01-10-2008 To date: 01-07-2013 Fuel: Diesel Approved: Yes
    BMW Model: X5 Model series: X5 Model type: Xdrive Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: E70 From date: 01-10-2008 To date: 01-03-2010 Fuel: Diesel Approved: Yes
    BMW Model: X5 Model series: X5 Type of engine: Diesel Size of motor: 3.0 Brand of engine: M57306D3 Type description: E70 From date: 01-12-2006 To date: 01-09-2008 Fuel: Diesel Approved: Yes
    BMW Model: X5 Model series: X5 Type of engine: Diesel Size of motor: 3.0 Brand of engine: M57D30 (306D3) Type description: E70 From date: 01-12-2006 To date: 01-09-2008 Fuel: Diesel Approved: Yes
    BMW Model: X5 Model series: X5 Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30C Type description: E70 From date: 01-08-2011 To date: 01-06-2013 Fuel: Diesel Approved: Yes
    BMW Model: X6 Model series: X6 Model type: Xdrive Type of engine: Diesel Size of motor: 3.0 Brand of engine: M57D30 (306D5) Type description: E71 Body: MPV From date: 01-01-2008 To date: 01-03-2010 Fuel: Diesel Approved: Yes
    BMW Model: X6 Model series: X6 Model type: xDrive30d Type of engine: Diesel Size of motor: 3.0 Brand of engine: M57D30 (306D3) Type description: E71, E72 From date: 01-04-2010 To date: 01-07-2014 Fuel: Diesel Approved: Yes
