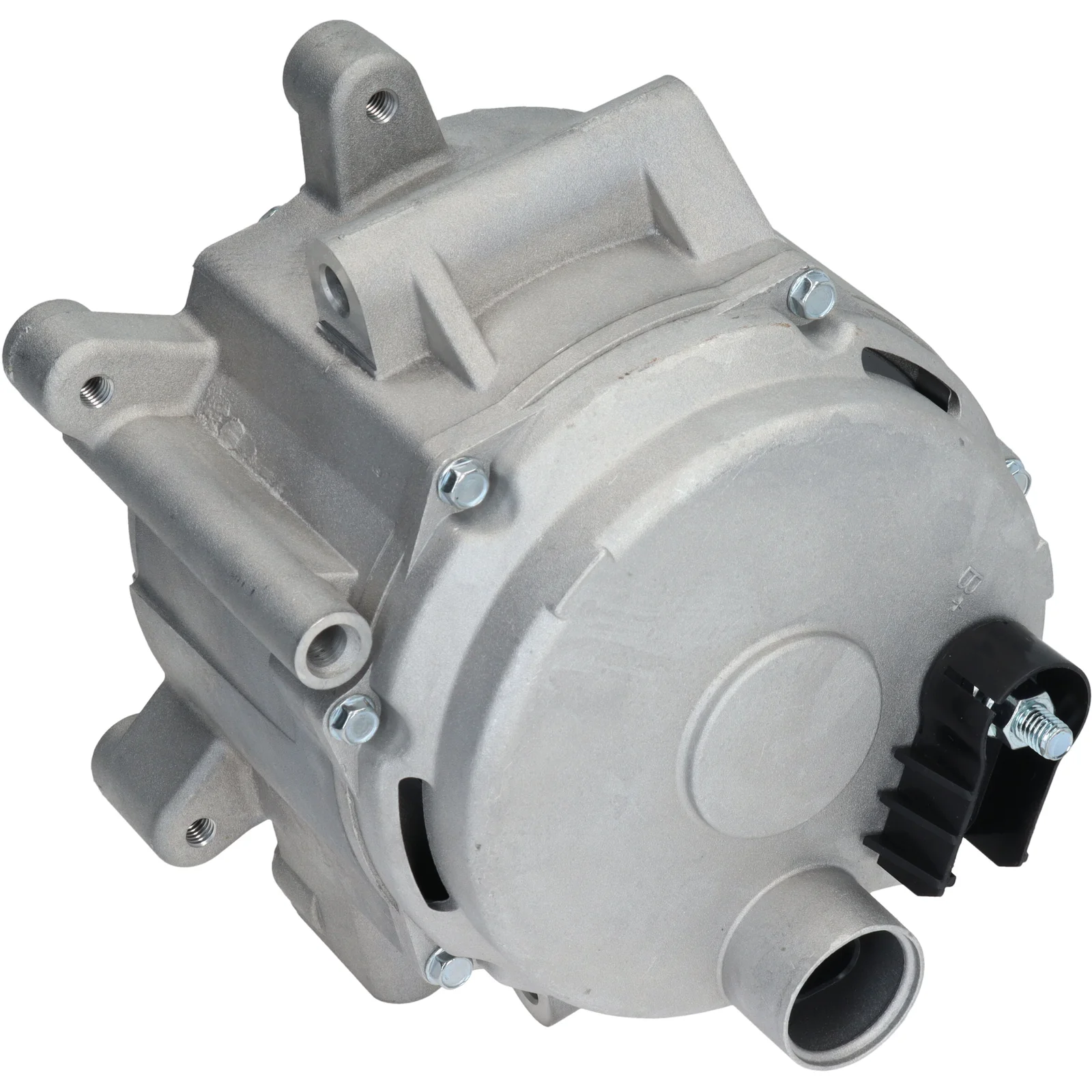

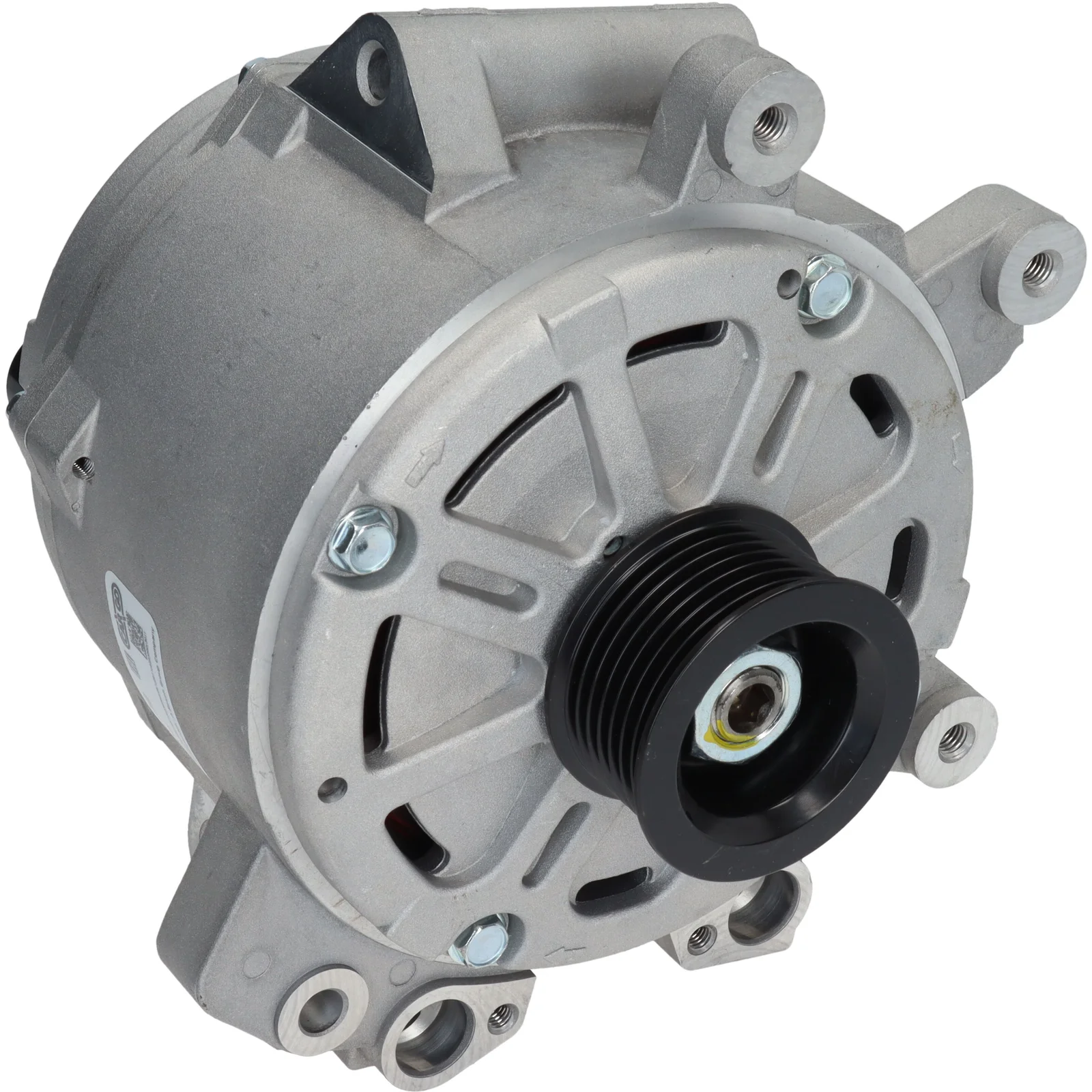

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032116190

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 190, Rotation: med uret, Pulley diameter: 56.00

Beskrivelse

Spænding: 14
Amp: 190
Remskive dist.: 76,70
Bredde/holderarm: 80,00
Hjørne til støtte: 9,20
Remskive justeringshøjre hjørne 1: 9,20
Remskivens dia.: 56,00
Riller/remskive: 7
Radius: 87,00
Radius 2: 87,00
B+ Længde mm: 18,00
B+: M8
Position/B+ i min.: 50
Rotation: CW
Stik nr.: PL61
Total længde mm: 201,00
Remskive: SP
Regulator type: IR

Filer

Specifikation

B+ M8
Belt. adj. bracket hole 1 9.20
Plug no. PL61
Bracket hole 9.20
Position/B+ in min. 50
Pulley SP
Pulley dia. 56.00
Pulley dist. 76.70
Radius 87.00
Radius 2 87.00
Regulator type IR
Rotation CW
Grooves/pulley 7
Voltage 14
Total length 201.00 mm
Width/holder arm 80.00
Amp 190
B+ Length 18.00 mm

  • OEM
    AL9420X, F00E100564, F032116190, 10480435, 10480485, 94860301501, 94860301502, 94860301503

  • Konkurrentreferens
    A2129S, CAL12106, DRA0766, 28-4896, 485.401.190, 485.601.190, 511.104.1902, 113374, 553462RI, 12090436

  • NormaliseratArtNr
    a2129s, al9420x, cal12106, dra0766, f00e100564, f032116190, 113374, 284896, 553462ri, 10480435, 10480485, 12090436, 485401190, 485601190, 5111041902, 94860301501, 94860301502, 94860301503

  • Passar modeller
    Porsche Model: Cayenne Model series: Cayenne Model type: S Type of engine: Turbo Size of motor: 4.5 Brand of engine: M48.50 Type description: 955 Body: SUV From date: 01-03-2006 To date: 01-09-2007 Fuel: Gasoline Approved: Yes
    Porsche Model: Cayenne Model series: Cayenne Model type: S Type of engine: Turbo Size of motor: 4.5 Brand of engine: M48.50S Type description: 955 Body: SUV From date: 01-01-2004 To date: 01-09-2007 Fuel: Gasoline Approved: Yes
    Porsche Model: Cayenne Model series: Cayenne Type of engine: S Size of motor: 4.5 Brand of engine: M48.00 Body: SUV From date: 01-09-2002 To date: 01-09-2007 Fuel: Gasoline Approved: Yes
    Porsche Model: Cayenne Model series: Cayenne Type of engine: Turbo Size of motor: 4.5 Brand of engine: M48.50 Body: SUV From date: 01-09-2002 To date: 01-09-2007 Fuel: Gasoline Approved: Yes
  • Beskrivelse
    Spænding: 14
    Amp: 190
    Remskive dist.: 76,70
    Bredde/holderarm: 80,00
    Hjørne til støtte: 9,20
    Remskive justeringshøjre hjørne 1: 9,20
    Remskivens dia.: 56,00
    Riller/remskive: 7
    Radius: 87,00
    Radius 2: 87,00
    B+ Længde mm: 18,00
    B+: M8
    Position/B+ i min.: 50
    Rotation: CW
    Stik nr.: PL61
    Total længde mm: 201,00
    Remskive: SP
    Regulator type: IR

    Filer

  • Specifikation
    B+ M8
    Belt. adj. bracket hole 1 9.20
    Plug no. PL61
    Bracket hole 9.20
    Position/B+ in min. 50
    Pulley SP
    Pulley dia. 56.00
    Pulley dist. 76.70
    Radius 87.00
    Radius 2 87.00
    Regulator type IR
    Rotation CW
    Grooves/pulley 7
    Voltage 14
    Total length 201.00 mm
    Width/holder arm 80.00
    Amp 190
    B+ Length 18.00 mm
  • Køretøjsmatchning

    • OEM
      AL9420X, F00E100564, F032116190, 10480435, 10480485, 94860301501, 94860301502, 94860301503

    • Konkurrentreferens
      A2129S, CAL12106, DRA0766, 28-4896, 485.401.190, 485.601.190, 511.104.1902, 113374, 553462RI, 12090436

    • NormaliseratArtNr
      a2129s, al9420x, cal12106, dra0766, f00e100564, f032116190, 113374, 284896, 553462ri, 10480435, 10480485, 12090436, 485401190, 485601190, 5111041902, 94860301501, 94860301502, 94860301503

    • Passar modeller
      Porsche Model: Cayenne Model series: Cayenne Model type: S Type of engine: Turbo Size of motor: 4.5 Brand of engine: M48.50 Type description: 955 Body: SUV From date: 01-03-2006 To date: 01-09-2007 Fuel: Gasoline Approved: Yes
      Porsche Model: Cayenne Model series: Cayenne Model type: S Type of engine: Turbo Size of motor: 4.5 Brand of engine: M48.50S Type description: 955 Body: SUV From date: 01-01-2004 To date: 01-09-2007 Fuel: Gasoline Approved: Yes
      Porsche Model: Cayenne Model series: Cayenne Type of engine: S Size of motor: 4.5 Brand of engine: M48.00 Body: SUV From date: 01-09-2002 To date: 01-09-2007 Fuel: Gasoline Approved: Yes
      Porsche Model: Cayenne Model series: Cayenne Type of engine: Turbo Size of motor: 4.5 Brand of engine: M48.50 Body: SUV From date: 01-09-2002 To date: 01-09-2007 Fuel: Gasoline Approved: Yes
