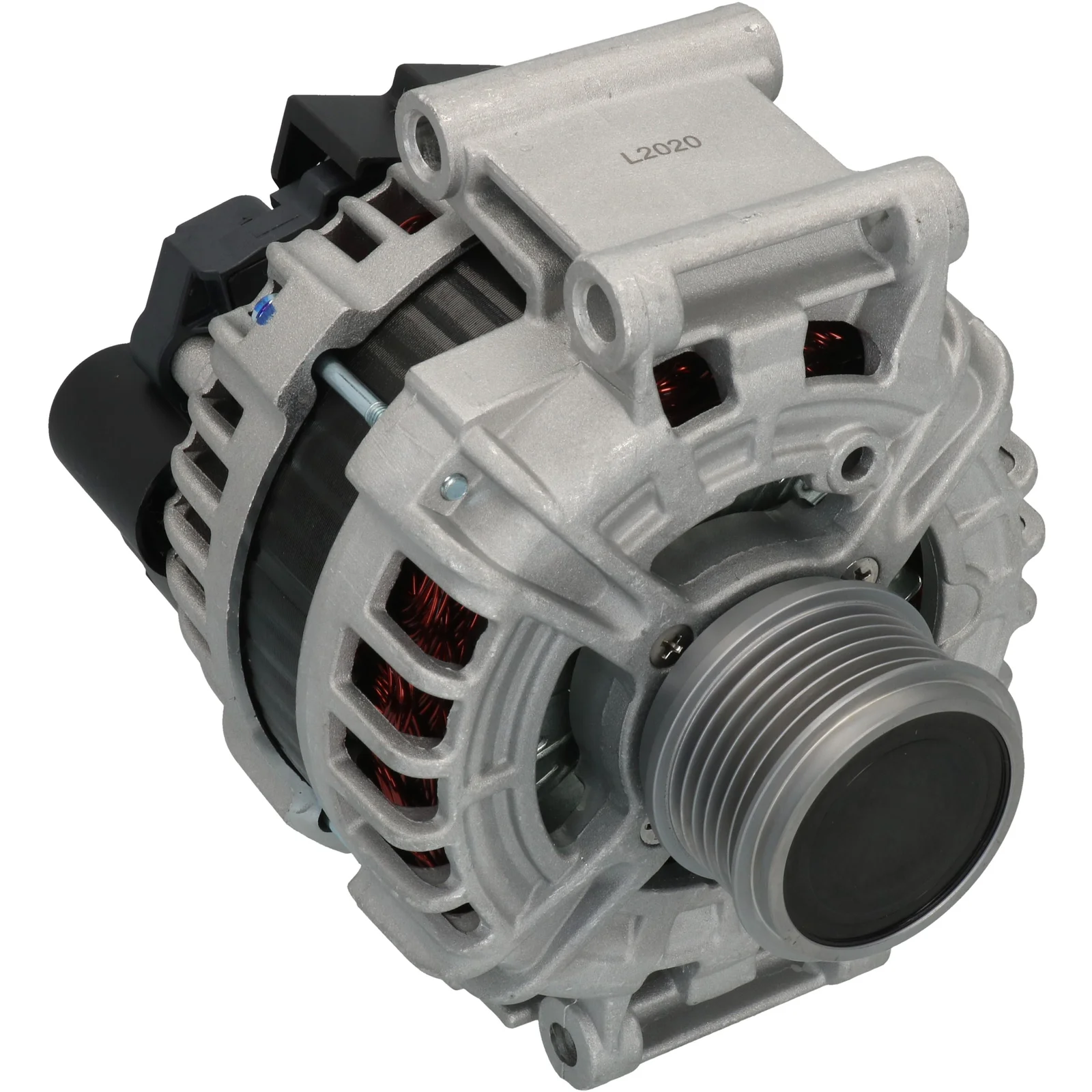

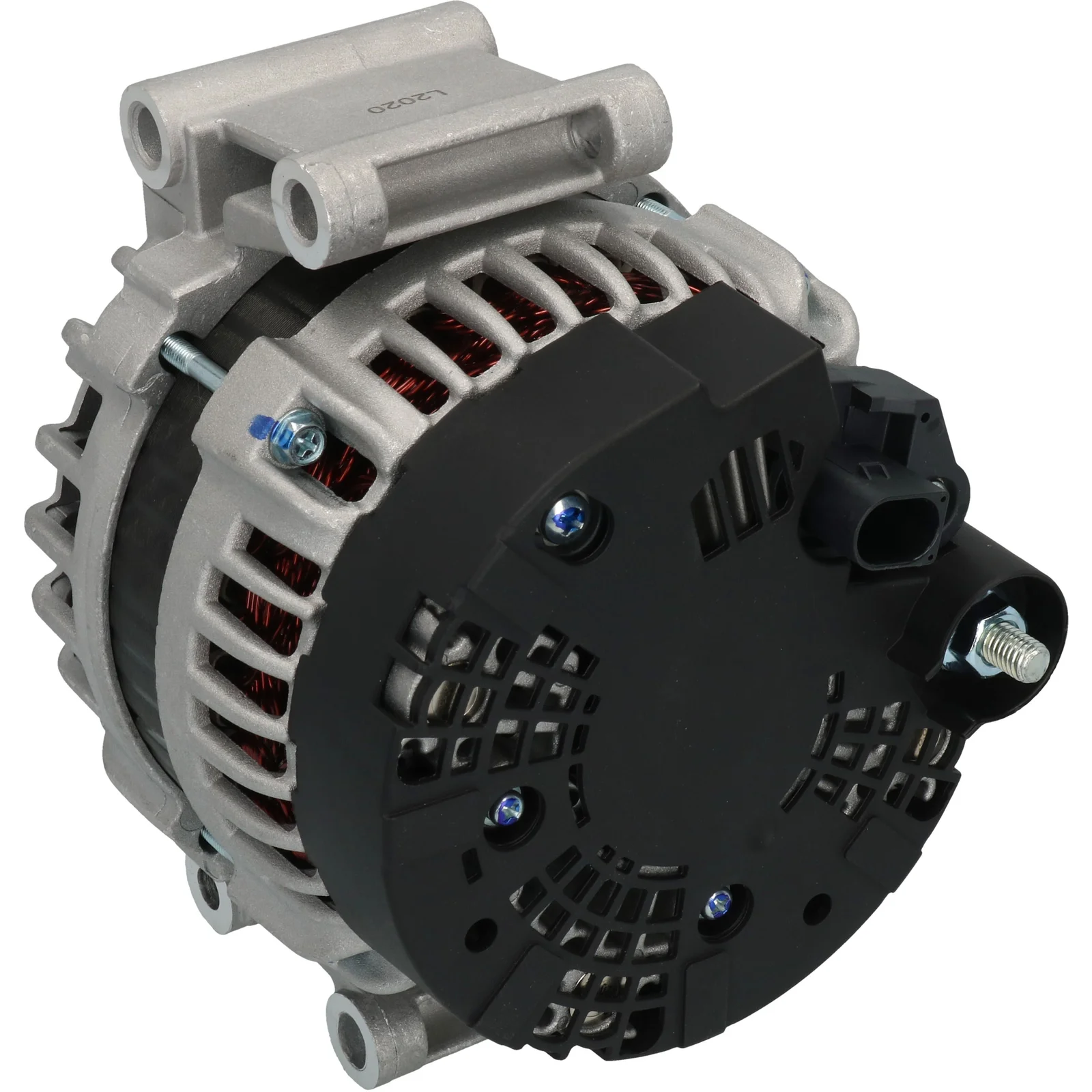

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032116201

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Afløb: 150, Rotation: CW, Monteringsbeslag Fordelerdæksel: 56.30

Beskrivelse

Spænding: 14
Amp: 150
Skive diameter: 29,50
Bredde/fæstearm: 70,00
Montagebeslag afstand: 56,30
Beslaghul: 10,20
Bæltejustering beslaghul 1: 10,20
Bæltejustering beslaghul 2: 10,20
Skivediameter: 56,00
Riller/skive: 6
radius: 81,50
radius 2: 81,50
B+: M8
Position/B+ i min.: 44
Rotation: CW
Stiknummer: PL86
Samlet længde mm: 192,50
Terminaltype: COM
Lampenstype: Aktiv
ID-kode: 64
Kommunikation: LIN
Skive: SP/FW
Regulator type: IR
Bemærkninger: Denne Generator har en COM-terminal på regulatoren. Det anbefales at anvende OEM-nummeret for at kontrollere egnethed, inden der bestilles.

Filer

Specifikation

B+ M8
Communication LIN
Mount. bracket dist. 56.30
Belt. adj. bracket hole 1 10.20
Belt. adj. bracket hole 2 10.20
Plug no. PL86
Bracket hole 10.20
Position/B+ in min. 44
Pulley SP/FW
Pulley dia. 56.00
Pulley dist. 29.50
Radius 81.50
Radius 2 81.50
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Grooves/pulley 6
ID Code 64
Lamp type Active
Terminal type COM
Voltage 14
Total length 192.50 mm
Width/holder arm 70.00
Amp 150

  • OEM
    F032116201, 06H903017J, 06H903017JX, 06H903017T, 06H903017TX, 06H903017X, 06H903018H, 06H903018HX, 06H903018P, 1986A01039, 0121711051, 0121711090, 0125711044, 0125711051, 0125711090, 0125711127, 0125711128, 0125711187, 0125711188

  • Konkurrentreferens
    A0566S, A0567PR, A0567S, A0567S2, CAL10004, DRA1029, DRA1397, 8EL015637-071, 28-7517, 11725N, 209254, 209254A, 442424, 443301, 444206, 12090694, 12090737, 0986083150, 0986083157

  • NormaliseratArtNr
    a0566s, a0567pr, a0567s, a0567s2, cal10004, dra1029, dra1397, f032116201, 06h903017j, 06h903017jx, 06h903017t, 06h903017tx, 06h903017x, 06h903018h, 06h903018hx, 06h903018p, 8el015637071, 1986a01039, 11725n, 209254, 209254a, 287517, 442424, 443301, 444206, 12090694, 12090737, 0121711051, 0121711090, 0125711044, 0125711051, 0125711090, 0125711127, 0125711128, 0125711187, 0125711188, 0986083150, 0986083157

  • Passar modeller
    Audi (FAW) Model: Q5 Model series: Q5 Model type: Quattro Type of engine: TSFi Size of motor: 2.0 Body: SUV From date: 01-04-2013 To date: 01-12-2015 Fuel: Gasoline Approved: Yes
    Audi Model: A4 Model series: A4 Model type: Quattro Type of engine: TFSi Size of motor: 1.8 Brand of engine: CJEB Type description: 8K2, B8 From date: 01-11-2011 To date: 01-12-2015 Fuel: Gasoline Approved: Yes
    Audi Model: A4 Model series: A4 Model type: Quattro Type of engine: TFSi Size of motor: 1.8 Brand of engine: CJEB Type description: 8K5, B8 Body: Estate From date: 01-11-2011 To date: 01-12-2015 Fuel: Gasoline Approved: Yes Manufacture type: Avant
    Audi Model: A4 Model series: A4 Model type: Quattro Type of engine: TFSi Size of motor: 2.0 Brand of engine: CAEB Type description: 8K5 Body: Estate From date: 01-06-2008 To date: 01-12-2015 Fuel: Gasoline Approved: Yes Manufacture type: AVANT
    Audi Model: A4 Model series: A4 Model type: Quattro Type of engine: TFSI Size of motor: 2.0 Brand of engine: CAED Type description: 8K2, B8 From date: 01-05-2013 To date: 01-12-2015 Fuel: Gasoline Approved: Yes
    Audi Model: A4 Model series: A4 Model type: Quattro Type of engine: TFSi Size of motor: 2.0 Brand of engine: CDNC Type description: 8K2 From date: 01-06-2008 To date: 01-12-2015 Fuel: Gasoline Approved: Yes
    Audi Model: A4 Model series: A4 Model type: Quattro Type of engine: TFSi Size of motor: 2.0 Brand of engine: CDNC Type description: 8K5 Body: Estate From date: 01-06-2008 To date: 01-12-2015 Fuel: Gasoline Approved: Yes Manufacture type: AVANT
    Audi Model: A4 Model series: A4 Model type: Quattro Type of engine: TFSi Size of motor: 2.0 Brand of engine: CDNC Type description: 8KH Body: Estate From date: 01-04-2009 To date: 01-05-2016 Fuel: Gasoline Approved: Yes
    Audi Model: A4 Model series: A4 Model type: Quattro Type of engine: TFSI Size of motor: 2.0 Brand of engine: CNCD Type description: 8K2, B8 From date: 01-05-2013 To date: 01-12-2015 Fuel: Gasoline Approved: Yes
    Audi Model: A4 Model series: A4 Model type: Quattro Type of engine: TFSI Size of motor: 2.0 Brand of engine: CNCD Type description: 8K5, B8 Body: Estate From date: 01-05-2013 To date: 01-12-2015 Fuel: Gasoline Approved: Yes Manufacture type: Avant
    Audi Model: A4 Model series: A4 Model type: Quattro Type of engine: TFSI Size of motor: 2.0 Brand of engine: CNCD Type description: 8KH, B8 Body: Estate From date: 01-05-2013 To date: 01-05-2016 Fuel: Gasoline Approved: Yes Manufacture type: Allroad
    Audi Model: A4 Model series: A4 Model type: Quattro Type of engine: TFSi Size of motor: 2.0 Brand of engine: CPMA Type description: 8K2 From date: 01-06-2008 To date: 01-12-2015 Fuel: Gasoline Approved: Yes
    Audi Model: A4 Model series: A4 Model type: Quattro Type of engine: TFSi Size of motor: 2.0 Brand of engine: CPMA Type description: 8KH Body: Estate From date: 01-04-2009 To date: 01-05-2016 Fuel: Gasoline Approved: Yes
    Audi Model: A4 Model series: A4 Model type: Quattro Type of engine: TFSI Size of motor: 2.0 Brand of engine: CPMB Type description: 8K2, B8 From date: 01-05-2013 To date: 01-12-2015 Fuel: Gasoline Approved: Yes
    Audi Model: A4 Model series: A4 Type of engine: FSi Size of motor: 1.8 Brand of engine: CDHA Type description: 8K5 Body: Estate From date: 01-04-2008 To date: 01-12-2015 Fuel: Gasoline Approved: Yes Manufacture type: AVANT
    Audi Model: A4 Model series: A4 Type of engine: TFSi Size of motor: 1.8 Brand of engine: CABA Type description: 8K2 From date: 01-01-2008 To date: 01-12-2015 Fuel: Gasoline Approved: Yes
    Audi Model: A4 Model series: A4 Type of engine: TFSi Size of motor: 1.8 Brand of engine: CDHA Type description: 8K2 From date: 01-01-2008 To date: 01-12-2015 Fuel: Gasoline Approved: Yes
    Audi Model: A4 Model series: A4 Type of engine: TFSi Size of motor: 1.8 Brand of engine: CJEB Type description: 8K2, B8 From date: 01-11-2011 To date: 01-12-2015 Fuel: Gasoline Approved: Yes
    Audi Model: A4 Model series: A4 Type of engine: TFSi Size of motor: 1.8 Brand of engine: CJEB Type description: 8K5, B8 Body: Estate From date: 01-11-2011 To date: 01-12-2015 Fuel: Gasoline Approved: Yes Manufacture type: Avant
    Audi Model: A4 Model series: A4 Type of engine: TFSi Size of motor: 2.0 Brand of engine: CADA Type description: 8K2 From date: 01-06-2008 To date: 01-05-2013 Fuel: Gasoline Approved: Yes
    Audi Model: A4 Model series: A4 Type of engine: TFSi Size of motor: 2.0 Brand of engine: CAEA Type description: 8K2 From date: 01-06-2008 To date: 01-12-2015 Fuel: Gasoline Approved: Yes
    Audi Model: A4 Model series: A4 Type of engine: TFSi Size of motor: 2.0 Brand of engine: CAEB Type description: 8K2 From date: 01-06-2008 To date: 01-05-2013 Fuel: Gasoline Approved: Yes
    Audi Model: A4 Model series: A4 Type of engine: TFSi Size of motor: 2.0 Brand of engine: CAEB Type description: 8K5 Body: Estate From date: 01-06-2008 To date: 01-05-2013 Fuel: Gasoline Approved: Yes Manufacture type: AVANT
    Audi Model: A4 Model series: A4 Type of engine: TFSI Size of motor: 2.0 Brand of engine: CAED Type description: 8K2, B8 From date: 01-05-2013 To date: 01-12-2015 Fuel: Gasoline Approved: Yes
    Audi Model: A4 Model series: A4 Type of engine: TFSi Size of motor: 2.0 Brand of engine: CDNB Type description: 8K2 From date: 01-06-2008 To date: 01-12-2015 Fuel: Gasoline Approved: Yes
    Audi Model: A4 Model series: A4 Type of engine: TFSi Size of motor: 2.0 Brand of engine: CDNB Type description: 8K5 Body: Estate From date: 01-06-2008 To date: 01-12-2015 Fuel: Gasoline Approved: Yes Manufacture type: AVANT
    Audi Model: A4 Model series: A4 Type of engine: TFSi Size of motor: 2.0 Brand of engine: CDNC Type description: 8K2 From date: 01-06-2008 To date: 01-05-2013 Fuel: Gasoline Approved: Yes
    Audi Model: A4 Model series: A4 Type of engine: TFSi Size of motor: 2.0 Brand of engine: CDNC Type description: 8K5 Body: Estate From date: 01-06-2008 To date: 01-05-2013 Fuel: Gasoline Approved: Yes Manufacture type: AVANT
    Audi Model: A4 Model series: A4 Type of engine: TFSi Size of motor: 2.0 Brand of engine: CFKA Type description: 8K2 From date: 01-06-2008 To date: 01-12-2015 Fuel: Gasoline Approved: Yes
    Audi Model: A4 Model series: A4 Type of engine: TFSi Size of motor: 2.0 Brand of engine: CFKA Type description: 8K5 Body: Estate From date: 01-06-2008 To date: 01-12-2015 Fuel: Gasoline Approved: Yes Manufacture type: AVANT
    Audi Model: A4 Model series: A4 Type of engine: TFSI Size of motor: 2.0 Brand of engine: CNCD Type description: 8K2, B8 From date: 01-05-2013 To date: 01-12-2015 Fuel: Gasoline Approved: Yes
    Audi Model: A4 Model series: A4 Type of engine: TFSI Size of motor: 2.0 Brand of engine: CNCD Type description: 8K5, B8 Body: Estate From date: 01-05-2013 To date: 01-12-2015 Fuel: Gasoline Approved: Yes Manufacture type: Avant
    Audi Model: A5 Model series: A5 Model type: Quattro Sportback Type of engine: TFSI Size of motor: 2.0 Brand of engine: CNCD Type description: 8TA Body: Hatchback From date: 01-05-2013 To date: 01-05-2016 Fuel: Gasoline Approved: Yes
    Audi Model: A5 Model series: A5 Model type: Quattro Type of engine: TFSi Size of motor: 2.0 Brand of engine: CAEB Type description: 8F Body: Convertible From date: 01-03-2009 To date: 01-01-2017 Fuel: Gasoline Approved: Yes
    Audi Model: A5 Model series: A5 Model type: Quattro Type of engine: TFSi Size of motor: 2.0 Brand of engine: CAEB Type description: 8T3 Body: Coupe From date: 01-06-2008 To date: 01-01-2017 Fuel: Gasoline Approved: Yes
    Audi Model: A5 Model series: A5 Model type: Quattro Type of engine: TFSI Size of motor: 2.0 Brand of engine: CAED Type description: 8T3 Body: Coupe From date: 01-03-2012 To date: 01-01-2017 Fuel: Gasoline Approved: Yes
    Audi Model: A5 Model series: A5 Model type: Quattro Type of engine: TFSi Size of motor: 2.0 Brand of engine: CDNC Type description: 8F Body: Convertible From date: 01-03-2009 To date: 01-01-2017 Fuel: Gasoline Approved: Yes
    Audi Model: A5 Model series: A5 Model type: Quattro Type of engine: TFSi Size of motor: 2.0 Brand of engine: CDNC Type description: 8T3 Body: Coupe From date: 01-06-2008 To date: 01-01-2017 Fuel: Gasoline Approved: Yes
    Audi Model: A5 Model series: A5 Model type: Quattro Type of engine: TFSI Size of motor: 2.0 Brand of engine: CNCD Type description: 8F7 Body: Convertible From date: 01-05-2013 To date: 01-05-2016 Fuel: Gasoline Approved: Yes
    Audi Model: A5 Model series: A5 Model type: Quattro Type of engine: TFSI Size of motor: 2.0 Brand of engine: CNCD Type description: 8T3 Body: Coupe From date: 01-05-2013 To date: 01-05-2016 Fuel: Gasoline Approved: Yes
    Audi Model: A5 Model series: A5 Model type: Quattro Type of engine: TFSI Size of motor: 2.0 Brand of engine: CPMB Type description: 8T3 Body: Coupe From date: 01-03-2012 To date: 01-01-2017 Fuel: Gasoline Approved: Yes
    Audi Model: A5 Model series: A5 Model type: Sportback Quattro Type of engine: TFSi Size of motor: 2.0 Brand of engine: CDNC Type description: 8TA Body: Hatchback From date: 01-09-2009 To date: 01-01-2017 Fuel: Gasoline Approved: Yes
    Audi Model: A5 Model series: A5 Model type: Sportback Type of engine: TFSi Size of motor: 1.8 Brand of engine: CJEB Type description: 8TA Body: Hatchback From date: 01-08-2011 To date: 01-01-2017 Fuel: Gasoline Approved: Yes
    Audi Model: A5 Model series: A5 Model type: Sportback Type of engine: TFSi Size of motor: 2.0 Brand of engine: CDNC Type description: 8TA Body: Hatchback From date: 01-09-2009 To date: 01-11-2013 Fuel: Gasoline Approved: Yes
    Audi Model: A5 Model series: A5 Model type: Sportback Type of engine: TFSI Size of motor: 2.0 Brand of engine: CNCD Type description: 8TA Body: Hatchback From date: 01-05-2013 To date: 01-05-2016 Fuel: Gasoline Approved: Yes
    Audi Model: A5 Model series: A5 Type of engine: TFSi Size of motor: 1.8 Brand of engine: CABD Type description: 8F7 Body: Convertible From date: 01-09-2011 To date: 01-03-2016 Fuel: Gasoline Approved: Yes
    Audi Model: A5 Model series: A5 Type of engine: TFSi Size of motor: 1.8 Brand of engine: CABD Type description: 8T3 Body: Coupe From date: 01-10-2007 To date: 01-01-2017 Fuel: Gasoline Approved: Yes
    Audi Model: A5 Model series: A5 Type of engine: TFSi Size of motor: 1.8 Brand of engine: CDHB Type description: 8F7 Body: Convertible From date: 01-09-2009 To date: 01-03-2012 Fuel: Gasoline Approved: Yes
    Audi Model: A5 Model series: A5 Type of engine: TFSi Size of motor: 1.8 Brand of engine: CJEB Type description: 8F7 Body: Convertible From date: 01-09-2011 To date: 01-03-2016 Fuel: Gasoline Approved: Yes
    Audi Model: A5 Model series: A5 Type of engine: TFSi Size of motor: 1.8 Brand of engine: CJEB Type description: 8T3 Body: Coupe From date: 01-10-2007 To date: 01-01-2017 Fuel: Gasoline Approved: Yes
    Audi Model: A5 Model series: A5 Type of engine: TFSi Size of motor: 2.0 Brand of engine: CAEB Type description: 8F Body: Convertible From date: 01-03-2009 To date: 01-06-2014 Fuel: Gasoline Approved: Yes
    Audi Model: A5 Model series: A5 Type of engine: TFSI Size of motor: 2.0 Brand of engine: CAED Type description: 8F7 Body: Convertible From date: 01-05-2013 To date: 01-12-2014 Fuel: Gasoline Approved: Yes
    Audi Model: A5 Model series: A5 Type of engine: TFSi Size of motor: 2.0 Brand of engine: CDNB Type description: 8T3 Body: Coupe From date: 01-11-2008 To date: 01-03-2012 Fuel: Gasoline Approved: Yes
    Audi Model: A5 Model series: A5 Type of engine: TFSi Size of motor: 2.0 Brand of engine: CDNB Type description: 8TA Body: Hatchback From date: 01-09-2009 To date: 01-06-2014 Fuel: Gasoline Approved: Yes
    Audi Model: A5 Model series: A5 Type of engine: TFSi Size of motor: 2.0 Brand of engine: CDNC Type description: 8F Body: Convertible From date: 01-03-2009 To date: 01-06-2014 Fuel: Gasoline Approved: Yes
    Audi Model: A5 Model series: A5 Type of engine: TFSi Size of motor: 2.0 Brand of engine: CDNC Type description: 8T3 Body: Coupe From date: 01-06-2008 To date: 01-11-2013 Fuel: Gasoline Approved: Yes
    Audi Model: A5 Model series: A5 Type of engine: TFSI Size of motor: 2.0 Brand of engine: CNCD Type description: 8F7 Body: Convertible From date: 01-05-2013 To date: 01-05-2016 Fuel: Gasoline Approved: Yes
    Audi Model: A5 Model series: A5 Type of engine: TFSI Size of motor: 2.0 Brand of engine: CNCD Type description: 8T3 Body: Coupe From date: 01-05-2013 To date: 01-05-2016 Fuel: Gasoline Approved: Yes
    Audi Model: Q5 Model series: Q5 Model type: Quattro Type of engine: TFSi Size of motor: 2.0 Brand of engine: CNCD Type description: 8R From date: 01-06-2012 To date: 01-05-2016 Fuel: Gasoline Approved: Yes
    Faw-Audi Model: A4 Model series: A4 Size of motor: 1.8 Type description: B8 From date: 01-08-2009 Fuel: Gasoline Approved: Yes
    Faw-Audi Model: A4 Model series: A4 Size of motor: 2.0 Brand of engine: CDZ Type description: B7 From date: 01-11-2008 To date: 01-12-2016 Fuel: Gasoline Approved: Yes
