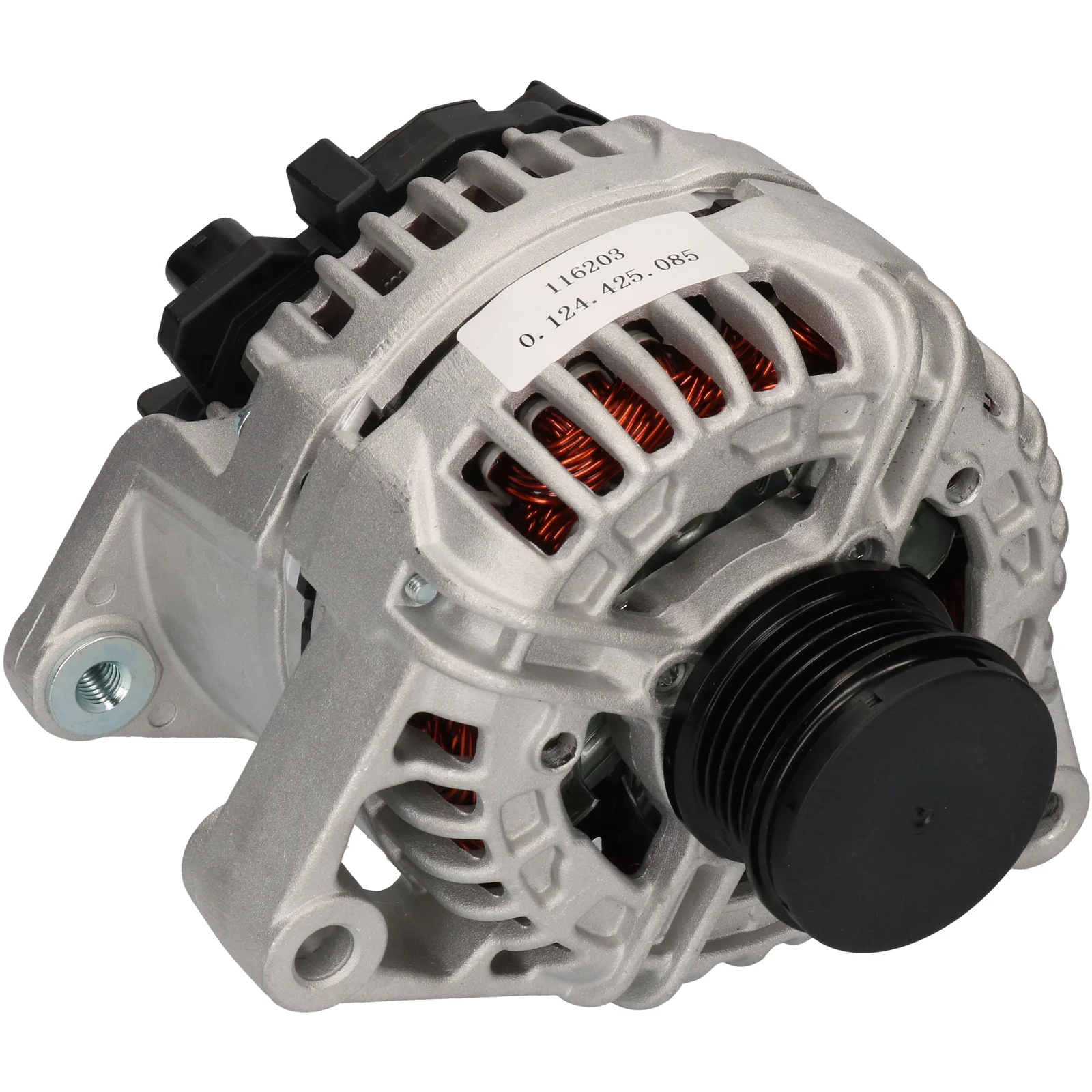

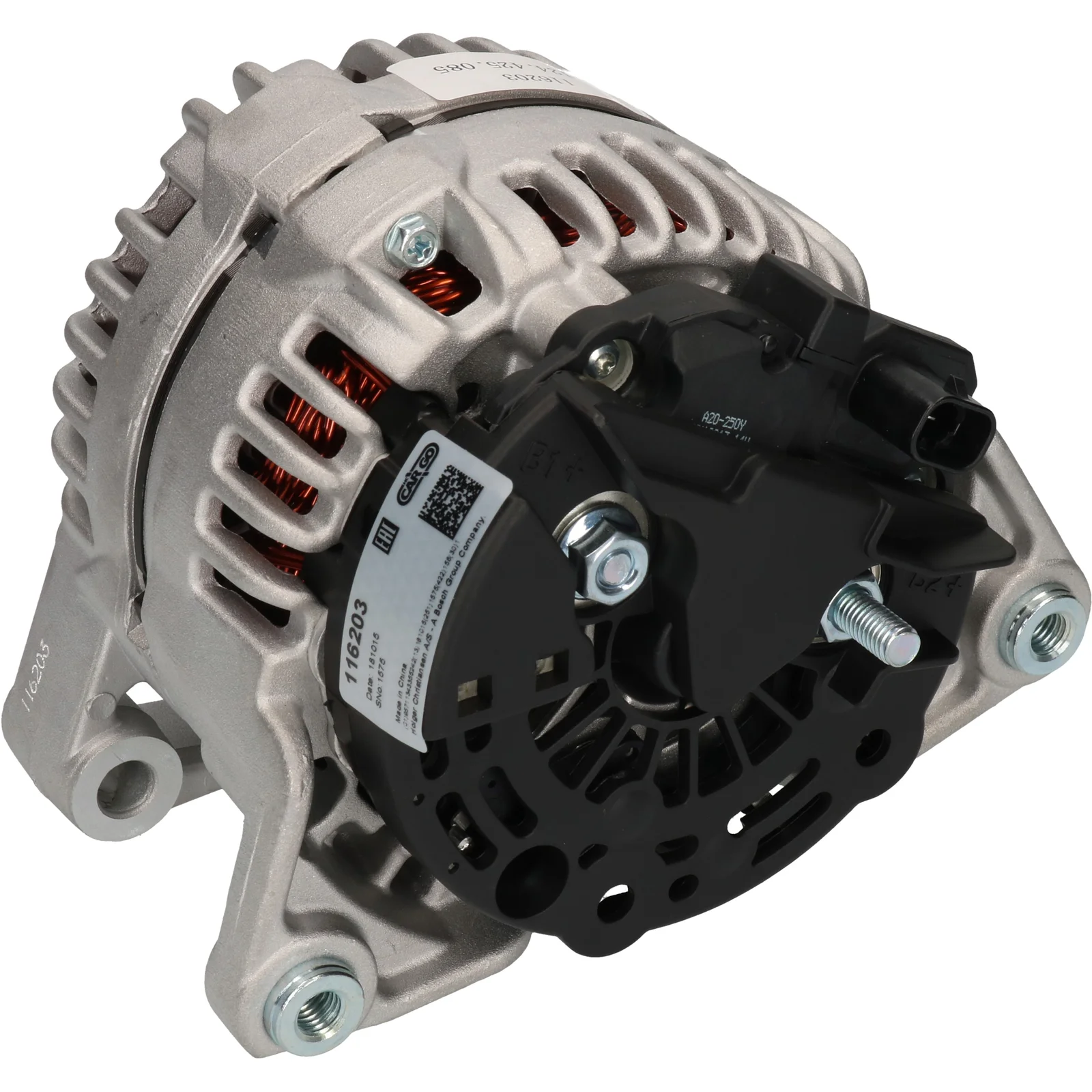

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032116203

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 100, Rotation: CW, Monteringsbeslag forfordelingsplade: 59,00

Beskrivelse

Spænding: 14
Amp: 100
Remskive fordeling: 55,00
Bredde/bærestang: 33,00
Monteringsbeslag afstanden: 59,00
Beslagshul: 10,50
Bælte justeringsbeslags hul position: 50
Bælte justeringsbeslags hul 1: 10,50
Remskive dia.: 53,50
Riller/remskive: 5
B+: M8
Position/B+ i min.: 8
D+ Størrelse: Stik
Rotation: med uret
Stik nr.: PL75
Samlet længde mm: 188,50
Terminaltype: L-DFM
Remskive: SP/FW
Regulator type: IR

Filer

Specifikation

B+ M8
Mount. bracket dist. 59.00
Belt. adj. bracket hole 1 10.50
Belt. adj. brackethole pos. 50
Plug no. PL75
Bracket hole 10.50
Position/B+ in min. 8
Pulley SP/FW
Pulley dia. 53.50
Pulley dist. 55.00
D+ Size Plug
Regulator type IR
Rotation CW
Grooves/pulley 5
Terminal type L-DFM
Voltage 14
Total length 188.50 mm
Width/holder arm 33.00
Amp 100

  • OEM
    F032116203, 1986A00827, 1986A01108, 1202194, 1202324, 6204144, 13266809, 95515954, 0124425085

  • Konkurrentreferens
    A0465, DRA1039, 28-6721, 24122N, 210356, 210356A, 440642, 440834, 12090487, 0986082370

  • NormaliseratArtNr
    a0465, dra1039, f032116203, 1986a00827, 1986a01108, 24122n, 210356, 210356a, 286721, 440642, 440834, 1202194, 1202324, 6204144, 12090487, 13266809, 95515954, 0124425085, 0986082370

  • Passar modeller
    Opel Model: Corsa Model series: Corsa D Model type: L08 Size of motor: 1.4 Brand of engine: A14XER Type description: S07 Body: Box From date: 01-07-2012 To date: 01-08-2014 Fuel: Gasoline Approved: Yes
    Opel Model: Corsa Model series: Corsa D Model type: S07 Size of motor: 1.4 Brand of engine: A14XEL Type description: L08.., L68.. Body: Hatchback From date: 01-09-2009 To date: 01-08-2014 Fuel: Gasoline Approved: Yes
    Opel Model: Corsa Model series: Corsa D Size of motor: 1.4 Brand of engine: A14XER Type description: F08, F68 Body: Hatchback From date: 01-12-2009 To date: 01-08-2014 Fuel: Gasoline Approved: Yes
    Opel Model: Meriva Model series: Meriva B Model type: Ecotec 75 Size of motor: 1.4 Brand of engine: A14XER Type description: S10 Body: Van From date: 01-01-2013 To date: 01-03-2017 Fuel: Petrol Approved: Yes
    Opel Model: Meriva Model series: Meriva B Model type: Ecotec Size of motor: 1.4 Brand of engine: A14NET Body: MPV From date: 01-06-2010 To date: 01-03-2017 Fuel: Gasoline Approved: Yes
    Opel Model: Meriva Model series: Meriva B Model type: Ecotec Size of motor: 1.4 Brand of engine: A14XER Body: MPV From date: 01-06-2010 To date: 01-03-2017 Fuel: Gasoline Approved: Yes
    Opel Model: Meriva Model series: Meriva B Model type: Ecotec Size of motor: 1.4 Brand of engine: B14NET Body: MPV From date: 01-06-2010 To date: 01-03-2017 Fuel: Gasoline Approved: Yes
    Opel Model: Meriva Model series: Meriva B Model type: Ecotec Size of motor: 1.4 Brand of engine: B14XER Body: MPV From date: 01-06-2010 To date: 01-03-2017 Fuel: Gasoline Approved: Yes
    Opel Model: Meriva Model series: Meriva B Size of motor: 1.4 Brand of engine: A14NEL Body: MPV From date: 01-06-2011 To date: 01-03-2017 Fuel: Bi-Fuel Approved: Yes
    Opel Model: Meriva Model series: Meriva B Size of motor: 1.4 Brand of engine: B14NEL Body: MPV From date: 01-06-2011 To date: 01-03-2017 Fuel: Bi-Fuel Approved: Yes
    Vauxhall Model: Corsa Model series: Corsa Mk III Type of engine: 16V Size of motor: 1.4 Brand of engine: A14XER Type description: F08, F68 Body: Hatchback From date: 01-01-2010 To date: 01-08-2014 Fuel: Gasoline Approved: Yes
    Vauxhall Model: Meriva Model series: Meriva Mk II Model type: LPG Type of engine: BiFuel Size of motor: 1.4 Brand of engine: A14NEL Type description: B Body: MPV From date: 01-06-2011 Fuel: Bi-Fuel Approved: Yes
    Vauxhall Model: Meriva Model series: Meriva MK II Type of engine: 16V Size of motor: 1.4 Brand of engine: A14XER Body: MPV From date: 01-06-2010 Fuel: Gasoline Approved: Yes
    Vauxhall Model: Meriva Model series: Meriva MK II Type of engine: 16V Turbo Size of motor: 1.4 Brand of engine: A14NEL Body: MPV From date: 01-06-2010 Fuel: Gasoline Approved: Yes
    Vauxhall Model: Meriva Model series: Meriva MK II Type of engine: 16V Turbo Size of motor: 1.4 Brand of engine: A14NET Body: MPV From date: 01-06-2010 Fuel: Gasoline Approved: Yes
