HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032116204

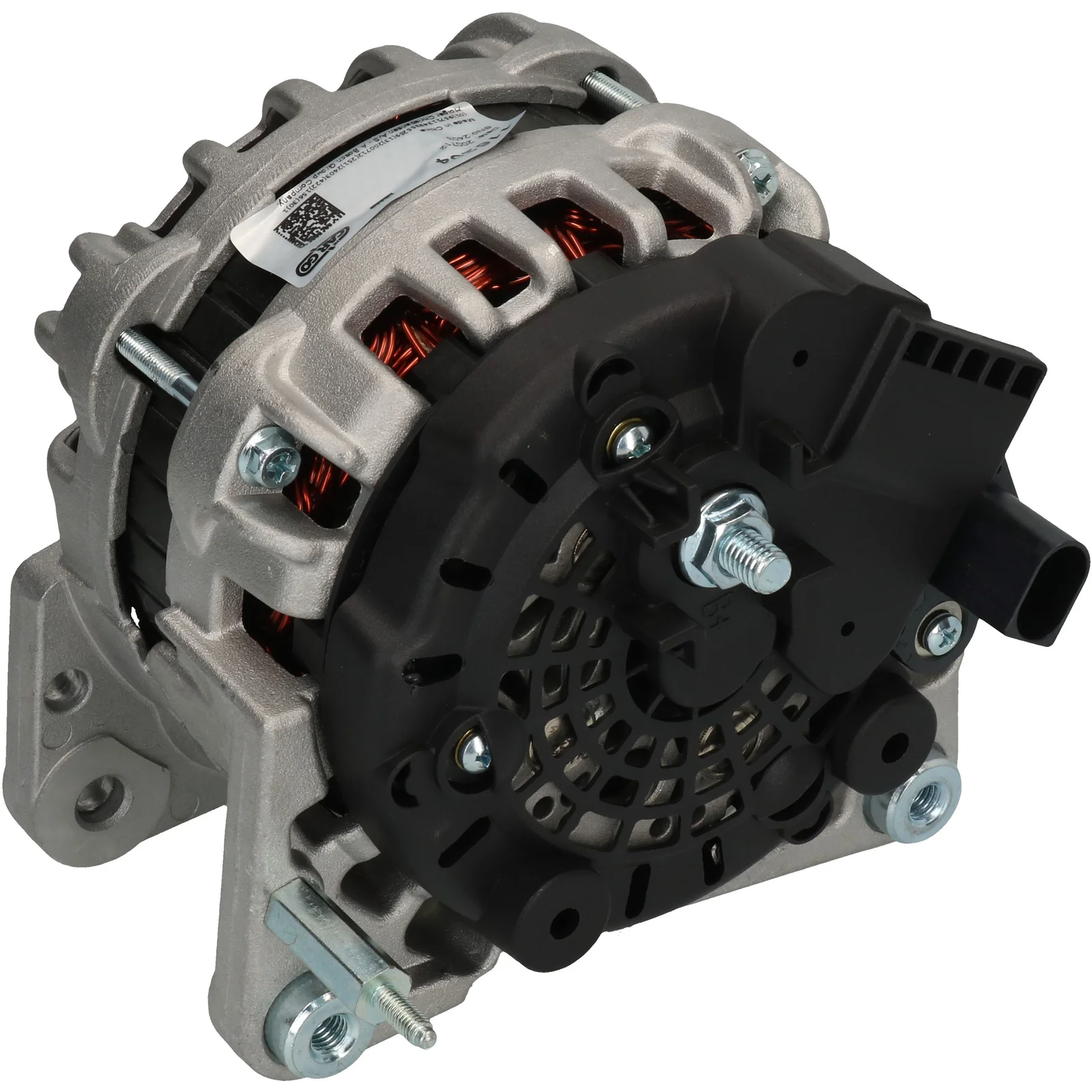

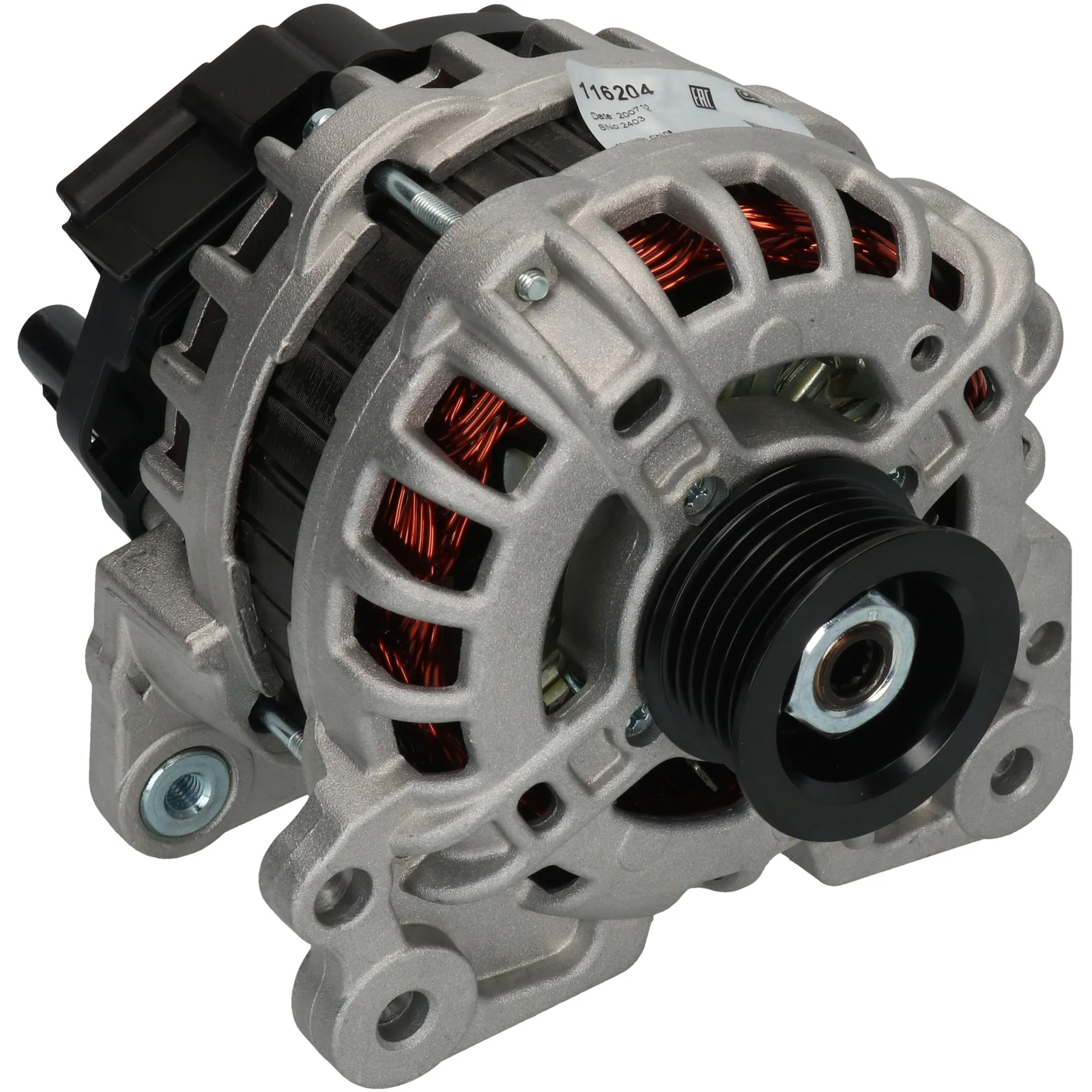

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Aflastning: 90, Rotation: CW, Monteringsbeslag afstand: 61,00

Beskrivelse

Spænding: 14
Amp: 90
Skive dist.: 30.00
Bredde/beslag arm: 14.00
Monteringsbeslag dist.: 61.00
Beslag hul: 8.50
Bælte justering beslaghul position: 45
Bælte justering beslaghul 1: 8.50
Skivediameter: 49.60
Riller/skive: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ i min.: 51
D+ Størrelse: Stik
Rotation: CW
Stik nr.: PL112
Samlet længde mm: 180.00
Terminaltype: L-DFM
Skive: SP
Fan: IF
Regulator type: IR

Filer

Specifikation

B+ M8
Mount. bracket dist. 61.00
Belt. adj. bracket hole 1 8.50
Belt. adj. brackethole pos. 45
Plug no. PL112
Bracket hole 8.50
Position/B+ in min. 51
Pulley SP
Pulley dia. 49.60
Pulley dist. 30.00
Radius 90.00
D+ Size Plug
Radius 2 90.00
Regulator type IR
Rotation CW
Fan IF
Grooves/pulley 6
Terminal type L-DFM
Voltage 14
Total length 180.00 mm
Width/holder arm 14.00
Amp 90

  • OEM
    F000BL0425, F000BL04A0, F032116204, X0039050000, X0841031000, 04C903023A, 04C903023AX, 1986A01065

  • Konkurrentreferens
    DRA1245, 8EL011712-871, 28-6980, 20800N, 456403, 12090775, 32000007, 0986083870

  • NormaliseratArtNr
    dra1245, f000bl0425, f000bl04a0, f032116204, x0039050000, x0841031000, 04c903023a, 04c903023ax, 8el011712871, 1986a01065, 20800n, 286980, 456403, 12090775, 32000007, 0986083870

  • Passar modeller
    Seat Model: Mii Model series: Mii Model type: EcoFuel Size of motor: 1.0 Brand of engine: CPGA Type description: KF1_ Body: Hatchback From date: 01-10-2012 To date: 01-07-2019 Fuel: Gas Approved: Yes
    Seat Model: Mii Model series: Mii Size of motor: 1.0 Brand of engine: CHYA Type description: KF1_ Body: Hatchback From date: 01-10-2011 To date: 01-07-2019 Fuel: Gasoline Approved: Yes
    Seat Model: Mii Model series: Mii Size of motor: 1.0 Brand of engine: CHYB Type description: KF1_ Body: Hatchback From date: 01-10-2011 To date: 01-07-2019 Fuel: Gasoline Approved: Yes
    Skoda Model: Citigo Model series: Citigo Model type: CNG Size of motor: 1.0 Brand of engine: CPGA Body: Hatchback From date: 01-11-2012 To date: 01-08-2019 Fuel: Gasoline/gas Approved: Yes
    Skoda Model: Citigo Model series: Citigo Size of motor: 1.0 Brand of engine: CHYA Body: Hatchback From date: 01-10-2011 To date: 01-08-2019 Fuel: Gasoline Approved: Yes
    Skoda Model: Citigo Model series: Citigo Size of motor: 1.0 Brand of engine: CHYB Body: Hatchback From date: 01-10-2011 To date: 01-08-2019 Fuel: Gasoline Approved: Yes
    VW Model: Fox Model series: Fox Model type: Flex Size of motor: 1.0 Body: Hatchback From date: 01-08-2014 Fuel: Diesel Approved: Yes
    VW Model: Fox Model series: Fox Model type: Flex Size of motor: 1.0 Brand of engine: CSEA Type description: 5Z1, 5Z3 Body: Hatchback From date: 01-07-2013 To date: 01-08-2014 Fuel: Diesel Approved: Yes
    VW Model: Fox Model series: Fox Model type: Flex Size of motor: 1.6 Body: Hatchback From date: 01-08-2014 To date: 01-12-2018 Fuel: Diesel Approved: Yes
    VW Model: GOL Model series: GOL VI Model type: Flex Size of motor: 1.6 Brand of engine: CNXA Body: Hatchback From date: 01-03-2014 To date: 01-12-2015 Fuel: Petrol/Ethanol Approved: Yes
    VW Model: Load Up Model series: Load Up Model type: BlueMotion Size of motor: 1.0 Brand of engine: CHYB Type description: 121, 122, BL1, BL2 Body: Box From date: 01-05-2016 To date: 01-11-2019 Fuel: Gasoline Approved: Yes
    VW Model: Load Up Model series: Load Up Model type: EcoFuel Size of motor: 1.0 Brand of engine: CPGA Body: Van From date: 01-12-2014 To date: 01-08-2020 Fuel: Gasoline Approved: Yes
    VW Model: Load Up Model series: Load Up Size of motor: 1.0 Brand of engine: CHYA Body: Van From date: 01-12-2014 To date: 01-11-2019 Fuel: Gasoline Approved: Yes
    VW Model: Spacefox / Spacecross Model series: Spacefox / Spacecross Model type: Total Flex 16V Size of motor: 1.6 Type description: 5Z6, 5Z7 Body: Estate From date: 01-10-2014 To date: 01-12-2018 Fuel: Diesel Approved: Yes
    VW Model: Spacefox Model series: Spacefox / Space Cross Model type: MSI Size of motor: 1.6 Brand of engine: CWSA Type description: 5Z6, 5Z7, 5Z9 Body: Estate From date: 01-04-2015 Fuel: Petrol Approved: Yes
    VW Model: Up Model series: Up Model type: EcoFuel Size of motor: 1.0 Brand of engine: CPGA Body: Hatchback From date: 01-11-2012 To date: 01-08-2020 Fuel: Gas Approved: Yes
    VW Model: Up Model series: Up Size of motor: 1.0 Brand of engine: CHYA Type description: 121 Body: Hatchback From date: 01-08-2011 To date: 01-08-2020 Fuel: Gasoline Approved: Yes
    VW Model: Up Model series: Up Size of motor: 1.0 Brand of engine: CHYB Type description: 121 Body: Hatchback From date: 01-08-2011 To date: 01-11-2019 Fuel: Gasoline Approved: Yes
    1 / 4
  • Beskrivelse
    Spænding: 14
    Amp: 90
    Skive dist.: 30.00
    Bredde/beslag arm: 14.00
    Monteringsbeslag dist.: 61.00
    Beslag hul: 8.50
    Bælte justering beslaghul position: 45
    Bælte justering beslaghul 1: 8.50
    Skivediameter: 49.60
    Riller/skive: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ i min.: 51
    D+ Størrelse: Stik
    Rotation: CW
    Stik nr.: PL112
    Samlet længde mm: 180.00
    Terminaltype: L-DFM
    Skive: SP
    Fan: IF
    Regulator type: IR

    Filer

  • Specifikation
    B+ M8
    Mount. bracket dist. 61.00
    Belt. adj. bracket hole 1 8.50
    Belt. adj. brackethole pos. 45
    Plug no. PL112
    Bracket hole 8.50
    Position/B+ in min. 51
    Pulley SP
    Pulley dia. 49.60
    Pulley dist. 30.00
    Radius 90.00
    D+ Size Plug
    Radius 2 90.00
    Regulator type IR
    Rotation CW
    Fan IF
    Grooves/pulley 6
    Terminal type L-DFM
    Voltage 14
    Total length 180.00 mm
    Width/holder arm 14.00
    Amp 90
  • Køretøjsmatchning

    • OEM
      F000BL0425, F000BL04A0, F032116204, X0039050000, X0841031000, 04C903023A, 04C903023AX, 1986A01065

    • Konkurrentreferens
      DRA1245, 8EL011712-871, 28-6980, 20800N, 456403, 12090775, 32000007, 0986083870

    • NormaliseratArtNr
      dra1245, f000bl0425, f000bl04a0, f032116204, x0039050000, x0841031000, 04c903023a, 04c903023ax, 8el011712871, 1986a01065, 20800n, 286980, 456403, 12090775, 32000007, 0986083870

    • Passar modeller
      Seat Model: Mii Model series: Mii Model type: EcoFuel Size of motor: 1.0 Brand of engine: CPGA Type description: KF1_ Body: Hatchback From date: 01-10-2012 To date: 01-07-2019 Fuel: Gas Approved: Yes
      Seat Model: Mii Model series: Mii Size of motor: 1.0 Brand of engine: CHYA Type description: KF1_ Body: Hatchback From date: 01-10-2011 To date: 01-07-2019 Fuel: Gasoline Approved: Yes
      Seat Model: Mii Model series: Mii Size of motor: 1.0 Brand of engine: CHYB Type description: KF1_ Body: Hatchback From date: 01-10-2011 To date: 01-07-2019 Fuel: Gasoline Approved: Yes
      Skoda Model: Citigo Model series: Citigo Model type: CNG Size of motor: 1.0 Brand of engine: CPGA Body: Hatchback From date: 01-11-2012 To date: 01-08-2019 Fuel: Gasoline/gas Approved: Yes
      Skoda Model: Citigo Model series: Citigo Size of motor: 1.0 Brand of engine: CHYA Body: Hatchback From date: 01-10-2011 To date: 01-08-2019 Fuel: Gasoline Approved: Yes
      Skoda Model: Citigo Model series: Citigo Size of motor: 1.0 Brand of engine: CHYB Body: Hatchback From date: 01-10-2011 To date: 01-08-2019 Fuel: Gasoline Approved: Yes
      VW Model: Fox Model series: Fox Model type: Flex Size of motor: 1.0 Body: Hatchback From date: 01-08-2014 Fuel: Diesel Approved: Yes
      VW Model: Fox Model series: Fox Model type: Flex Size of motor: 1.0 Brand of engine: CSEA Type description: 5Z1, 5Z3 Body: Hatchback From date: 01-07-2013 To date: 01-08-2014 Fuel: Diesel Approved: Yes
      VW Model: Fox Model series: Fox Model type: Flex Size of motor: 1.6 Body: Hatchback From date: 01-08-2014 To date: 01-12-2018 Fuel: Diesel Approved: Yes
      VW Model: GOL Model series: GOL VI Model type: Flex Size of motor: 1.6 Brand of engine: CNXA Body: Hatchback From date: 01-03-2014 To date: 01-12-2015 Fuel: Petrol/Ethanol Approved: Yes
      VW Model: Load Up Model series: Load Up Model type: BlueMotion Size of motor: 1.0 Brand of engine: CHYB Type description: 121, 122, BL1, BL2 Body: Box From date: 01-05-2016 To date: 01-11-2019 Fuel: Gasoline Approved: Yes
      VW Model: Load Up Model series: Load Up Model type: EcoFuel Size of motor: 1.0 Brand of engine: CPGA Body: Van From date: 01-12-2014 To date: 01-08-2020 Fuel: Gasoline Approved: Yes
      VW Model: Load Up Model series: Load Up Size of motor: 1.0 Brand of engine: CHYA Body: Van From date: 01-12-2014 To date: 01-11-2019 Fuel: Gasoline Approved: Yes
      VW Model: Spacefox / Spacecross Model series: Spacefox / Spacecross Model type: Total Flex 16V Size of motor: 1.6 Type description: 5Z6, 5Z7 Body: Estate From date: 01-10-2014 To date: 01-12-2018 Fuel: Diesel Approved: Yes
      VW Model: Spacefox Model series: Spacefox / Space Cross Model type: MSI Size of motor: 1.6 Brand of engine: CWSA Type description: 5Z6, 5Z7, 5Z9 Body: Estate From date: 01-04-2015 Fuel: Petrol Approved: Yes
      VW Model: Up Model series: Up Model type: EcoFuel Size of motor: 1.0 Brand of engine: CPGA Body: Hatchback From date: 01-11-2012 To date: 01-08-2020 Fuel: Gas Approved: Yes
      VW Model: Up Model series: Up Size of motor: 1.0 Brand of engine: CHYA Type description: 121 Body: Hatchback From date: 01-08-2011 To date: 01-08-2020 Fuel: Gasoline Approved: Yes
      VW Model: Up Model series: Up Size of motor: 1.0 Brand of engine: CHYB Type description: 121 Body: Hatchback From date: 01-08-2011 To date: 01-11-2019 Fuel: Gasoline Approved: Yes
      1 / 4
