HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032116222

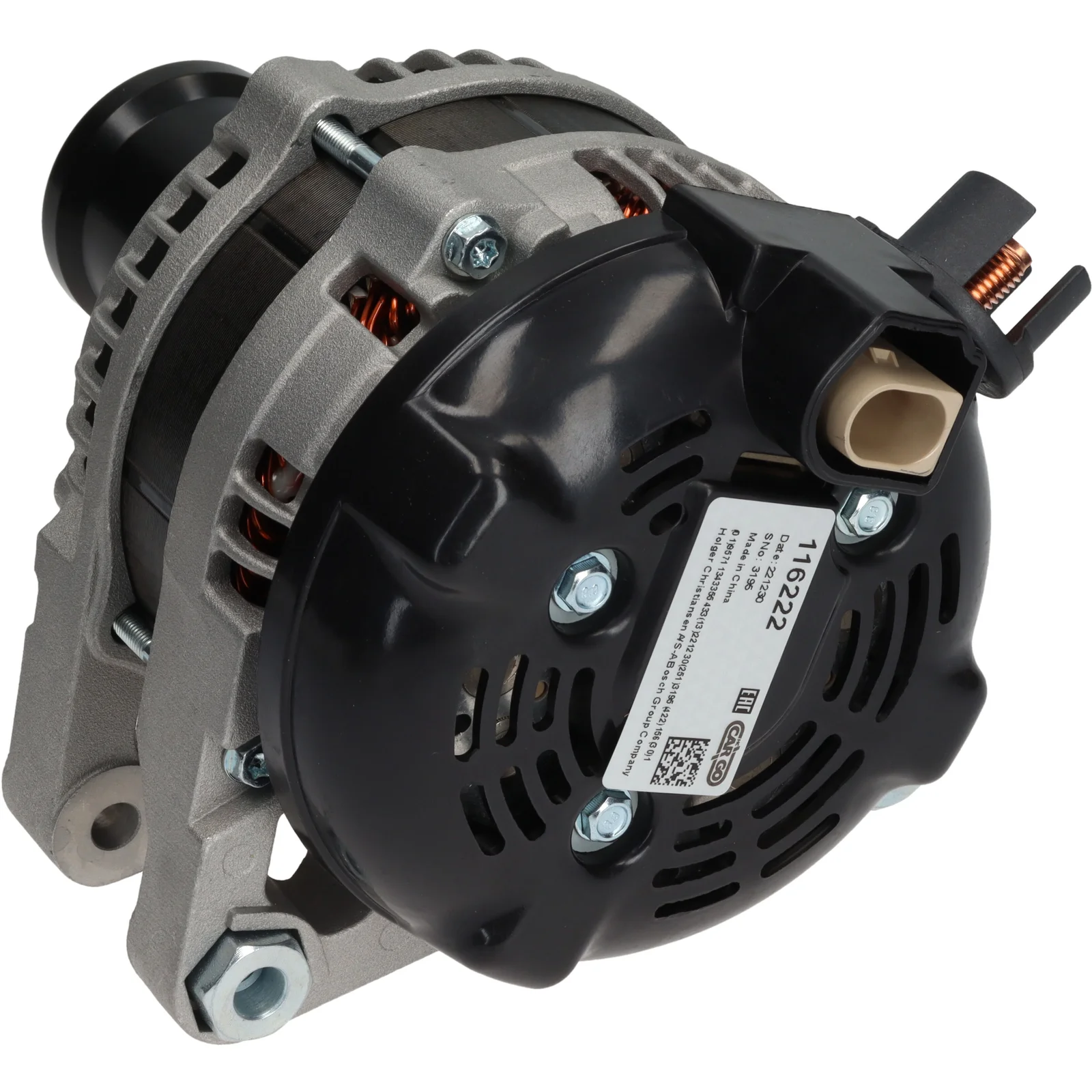

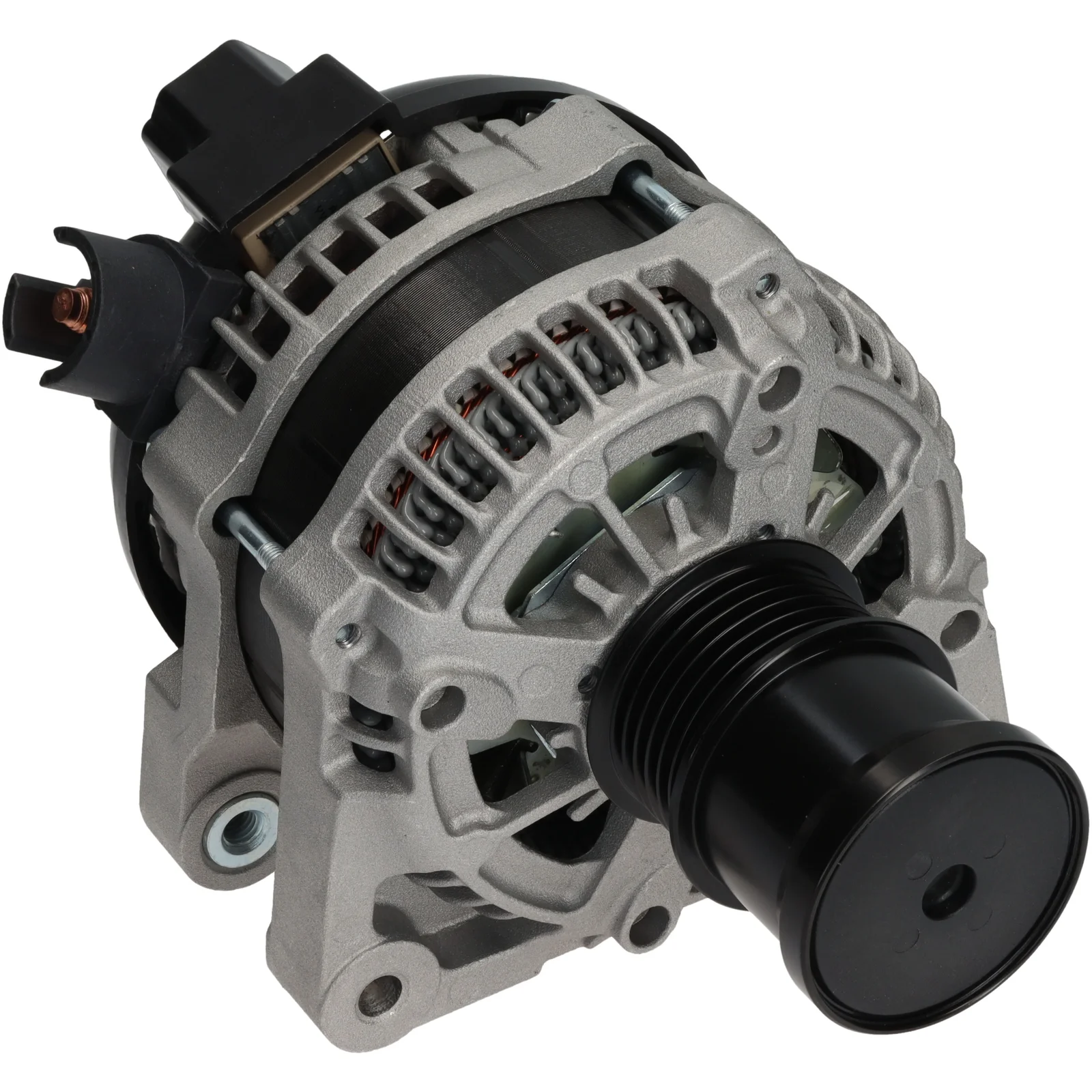

HC-Cargo Generator

Tekniske oplysninger:

Voltage: 14, Amp: 120, Rotation: CW, Mount. bøsning dist.: 31.00

Beskrivelse

Strømstyrke: 14
Amp: 120
Bæltespind: 41,50
Bredde/holderarm: 21,50
Monteringsbeslag afstand: 31,00
Beslagshul: 8,50
Bæltejustering beslaghul position: 46
Bæltejustering beslag hul 1: 8,00
Bæltediameter: 48,50
Riller/bæltehjul: 6
Radius: 87,00
Radius 2: 80,50
B+ længde mm: 14,50
B+: M8
Position/B+ i min.: 5
Rotation: med uret
Ledningsnummer: PL174
Samlet længde mm: 204,00
Terminaltype: COM
Kommunikation: LIN
Bæltehjul: SP/FW
Blæser: IF
Regulator type: IR
Bemærkninger: Denne generator har en COM-terminal på regulatoren. Det anbefales at bruge OEM-nummeret til at kontrollere egnetheden, før der bestilles.

Filer

Specifikation

B+ M8
Communication LIN
Mount. bracket dist. 31.00
Belt. adj. bracket hole 1 8.00
Belt. adj. brackethole pos. 46
Plug no. PL174
Bracket hole 8.50
Position/B+ in min. 5
Pulley SP/FW
Pulley dia. 48.50
Pulley dist. 41.50
Radius 87.00
Radius 2 80.50
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Fan IF
Grooves/pulley 6
Terminal type COM
Voltage 14
Total length 204.00 mm
Width/holder arm 21.50
Amp 120
B+ Length 14.50 mm

  • OEM
    CV6T10300GA, F032116222, 1986A01500, 104211-3330, 1781479

  • Konkurrentreferens
    A6435S, DAN1313, DRA1482, LRA03821, 28-6931, 20502, 210874, 210874A, 444213, 12090765, 0986084670

  • NormaliseratArtNr
    a6435s, cv6t10300ga, dan1313, dra1482, f032116222, lra03821, 1986a01500, 20502, 210874, 210874a, 286931, 444213, 1781479, 12090765, 0986084670, 1042113330

  • Passar modeller
    Ford Model: C-Max Model series: C-Max Model type: Ecoboost Size of motor: 1.0 Brand of engine: M1DA Body: MPV From date: 01-10-2012 Fuel: Gasoline Approved: Yes
    Ford Model: C-Max Model series: C-Max Model type: EcoBoost Size of motor: 1.0 Brand of engine: M1DA Body: Van From date: 01-10-2012 Fuel: Gasoline Approved: Yes
    Ford Model: C-Max Model series: C-Max Model type: Ecoboost Size of motor: 1.0 Brand of engine: M2DA Body: MPV From date: 01-10-2012 Fuel: Gasoline Approved: Yes
    Ford Model: C-Max Model series: C-Max Model type: EcoBoost Size of motor: 1.0 Brand of engine: M2DA Body: Van From date: 01-10-2012 Fuel: Gasoline Approved: Yes
    Ford Model: C-Max Model series: C-Max Model type: Ecoboost Size of motor: 1.0 Brand of engine: SFDA Body: MPV From date: 01-10-2012 Fuel: Gasoline Approved: Yes
    Ford Model: C-Max Model series: C-Max Model type: EcoBoost Size of motor: 1.0 Brand of engine: SFDA Body: Van From date: 01-10-2012 Fuel: Gasoline Approved: Yes
    Ford Model: C-Max Model series: Grand C-Max Model type: EcoBoost Size of motor: 1.0 Brand of engine: M1DA Body: MPV From date: 01-10-2012 Fuel: Gasoline Approved: Yes
    Ford Model: C-Max Model series: Grand C-Max Model type: EcoBoost Size of motor: 1.0 Brand of engine: M2DA Body: MPV From date: 01-10-2012 Fuel: Gasoline Approved: Yes
    Ford Model: C-Max Model series: Grand C-Max Model type: EcoBoost Size of motor: 1.0 Brand of engine: SFDA Body: MPV From date: 01-10-2012 Fuel: Gasoline Approved: Yes
    Ford Model: Fiesta Model series: Fiesta Model type: EcoBoost Size of motor: 1.0 Brand of engine: SFJA Body: Hatchback From date: 01-01-2013 Fuel: Gasoline Approved: Yes
    Ford Model: Fiesta Model series: Fiesta Model type: EcoBoost Size of motor: 1.0 Brand of engine: SFJB Body: Hatchback From date: 01-01-2013 Fuel: Gasoline Approved: Yes
    Ford Model: Fiesta Model series: Fiesta Model type: EcoBoost Size of motor: 1.0 Brand of engine: SFJB Body: Van From date: 01-01-2013 Fuel: Gasoline Approved: Yes
    Ford Model: Fiesta Model series: Fiesta Model type: EcoBoost Size of motor: 1.0 Brand of engine: SFJC Body: Van From date: 01-01-2013 Fuel: Gasoline Approved: Yes
    Ford Model: Fiesta Model series: Fiesta Van Model type: EcoBoost Size of motor: 1.0 Brand of engine: SFJA Body: Van From date: 01-01-2013 Fuel: Gasoline Approved: Yes
    Ford Model: Fiesta Model series: Fiesta Van Model type: EcoBoost Size of motor: 1.0 Brand of engine: SFJD Body: Van From date: 01-01-2013 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Model type: EcoBoost Size of motor: 1.0 Brand of engine: M1DA Body: Estate From date: 01-02-2012 Fuel: Gasoline Approved: Yes Manufacture type: Turnier
    Ford Model: Focus Model series: Focus Model type: EcoBoost Size of motor: 1.0 Brand of engine: M1DA Body: Hatchback From date: 01-02-2012 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Model type: EcoBoost Size of motor: 1.0 Brand of engine: M1DA From date: 01-02-2012 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Model type: EcoBoost Size of motor: 1.0 Brand of engine: M1DH Body: Estate From date: 01-10-2017 Fuel: Gasoline Approved: Yes Manufacture type: Turnier
    Ford Model: Focus Model series: Focus Model type: EcoBoost Size of motor: 1.0 Brand of engine: M1DH Body: Hatchback From date: 01-10-2017 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Model type: EcoBoost Size of motor: 1.0 Brand of engine: M1DH From date: 01-10-2017 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Van Model type: EcoBoost Size of motor: 1.0 Brand of engine: M1DA Body: Van From date: 01-02-2012 Fuel: Gasoline Approved: Yes
    Ford Model: Grand C-Max Model series: Grand C-Max Model type: EcoBoost Size of motor: 1.0 Brand of engine: SFDA Body: Van From date: 01-10-2012 Fuel: Gasoline Approved: Yes
    Ford Model: Grand C-Max Model series: Grand C-Max Van Model type: EcoBoost Size of motor: 1.0 Brand of engine: M1DA Body: Van From date: 01-10-2012 Fuel: Gasoline Approved: Yes
    Ford Model: Grand C-Max Model series: Grand C-Max Van Model type: EcoBoost Size of motor: 1.0 Brand of engine: M2DA Body: Van From date: 01-10-2012 Fuel: Gasoline Approved: Yes
    Ford Model: Tourneo Model series: Tourneo Connect Model type: EcoBoost Size of motor: 1.0 Brand of engine: M2GA Body: MPV From date: 01-11-2013 Fuel: Gasoline Approved: Yes
    Ford Model: Transit Model series: Transit Connect Model type: EcoBoost Size of motor: 1.0 Brand of engine: M2GA Body: Van From date: 01-02-2013 Fuel: Gasoline Approved: Yes
    1 / 6
  • Beskrivelse
    Strømstyrke: 14
    Amp: 120
    Bæltespind: 41,50
    Bredde/holderarm: 21,50
    Monteringsbeslag afstand: 31,00
    Beslagshul: 8,50
    Bæltejustering beslaghul position: 46
    Bæltejustering beslag hul 1: 8,00
    Bæltediameter: 48,50
    Riller/bæltehjul: 6
    Radius: 87,00
    Radius 2: 80,50
    B+ længde mm: 14,50
    B+: M8
    Position/B+ i min.: 5
    Rotation: med uret
    Ledningsnummer: PL174
    Samlet længde mm: 204,00
    Terminaltype: COM
    Kommunikation: LIN
    Bæltehjul: SP/FW
    Blæser: IF
    Regulator type: IR
    Bemærkninger: Denne generator har en COM-terminal på regulatoren. Det anbefales at bruge OEM-nummeret til at kontrollere egnetheden, før der bestilles.

    Filer

  • Specifikation
    B+ M8
    Communication LIN
    Mount. bracket dist. 31.00
    Belt. adj. bracket hole 1 8.00
    Belt. adj. brackethole pos. 46
    Plug no. PL174
    Bracket hole 8.50
    Position/B+ in min. 5
    Pulley SP/FW
    Pulley dia. 48.50
    Pulley dist. 41.50
    Radius 87.00
    Radius 2 80.50
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Fan IF
    Grooves/pulley 6
    Terminal type COM
    Voltage 14
    Total length 204.00 mm
    Width/holder arm 21.50
    Amp 120
    B+ Length 14.50 mm
  • Køretøjsmatchning

    • OEM
      CV6T10300GA, F032116222, 1986A01500, 104211-3330, 1781479

    • Konkurrentreferens
      A6435S, DAN1313, DRA1482, LRA03821, 28-6931, 20502, 210874, 210874A, 444213, 12090765, 0986084670

    • NormaliseratArtNr
      a6435s, cv6t10300ga, dan1313, dra1482, f032116222, lra03821, 1986a01500, 20502, 210874, 210874a, 286931, 444213, 1781479, 12090765, 0986084670, 1042113330

    • Passar modeller
      Ford Model: C-Max Model series: C-Max Model type: Ecoboost Size of motor: 1.0 Brand of engine: M1DA Body: MPV From date: 01-10-2012 Fuel: Gasoline Approved: Yes
      Ford Model: C-Max Model series: C-Max Model type: EcoBoost Size of motor: 1.0 Brand of engine: M1DA Body: Van From date: 01-10-2012 Fuel: Gasoline Approved: Yes
      Ford Model: C-Max Model series: C-Max Model type: Ecoboost Size of motor: 1.0 Brand of engine: M2DA Body: MPV From date: 01-10-2012 Fuel: Gasoline Approved: Yes
      Ford Model: C-Max Model series: C-Max Model type: EcoBoost Size of motor: 1.0 Brand of engine: M2DA Body: Van From date: 01-10-2012 Fuel: Gasoline Approved: Yes
      Ford Model: C-Max Model series: C-Max Model type: Ecoboost Size of motor: 1.0 Brand of engine: SFDA Body: MPV From date: 01-10-2012 Fuel: Gasoline Approved: Yes
      Ford Model: C-Max Model series: C-Max Model type: EcoBoost Size of motor: 1.0 Brand of engine: SFDA Body: Van From date: 01-10-2012 Fuel: Gasoline Approved: Yes
      Ford Model: C-Max Model series: Grand C-Max Model type: EcoBoost Size of motor: 1.0 Brand of engine: M1DA Body: MPV From date: 01-10-2012 Fuel: Gasoline Approved: Yes
      Ford Model: C-Max Model series: Grand C-Max Model type: EcoBoost Size of motor: 1.0 Brand of engine: M2DA Body: MPV From date: 01-10-2012 Fuel: Gasoline Approved: Yes
      Ford Model: C-Max Model series: Grand C-Max Model type: EcoBoost Size of motor: 1.0 Brand of engine: SFDA Body: MPV From date: 01-10-2012 Fuel: Gasoline Approved: Yes
      Ford Model: Fiesta Model series: Fiesta Model type: EcoBoost Size of motor: 1.0 Brand of engine: SFJA Body: Hatchback From date: 01-01-2013 Fuel: Gasoline Approved: Yes
      Ford Model: Fiesta Model series: Fiesta Model type: EcoBoost Size of motor: 1.0 Brand of engine: SFJB Body: Hatchback From date: 01-01-2013 Fuel: Gasoline Approved: Yes
      Ford Model: Fiesta Model series: Fiesta Model type: EcoBoost Size of motor: 1.0 Brand of engine: SFJB Body: Van From date: 01-01-2013 Fuel: Gasoline Approved: Yes
      Ford Model: Fiesta Model series: Fiesta Model type: EcoBoost Size of motor: 1.0 Brand of engine: SFJC Body: Van From date: 01-01-2013 Fuel: Gasoline Approved: Yes
      Ford Model: Fiesta Model series: Fiesta Van Model type: EcoBoost Size of motor: 1.0 Brand of engine: SFJA Body: Van From date: 01-01-2013 Fuel: Gasoline Approved: Yes
      Ford Model: Fiesta Model series: Fiesta Van Model type: EcoBoost Size of motor: 1.0 Brand of engine: SFJD Body: Van From date: 01-01-2013 Fuel: Gasoline Approved: Yes
      Ford Model: Focus Model series: Focus Model type: EcoBoost Size of motor: 1.0 Brand of engine: M1DA Body: Estate From date: 01-02-2012 Fuel: Gasoline Approved: Yes Manufacture type: Turnier
      Ford Model: Focus Model series: Focus Model type: EcoBoost Size of motor: 1.0 Brand of engine: M1DA Body: Hatchback From date: 01-02-2012 Fuel: Gasoline Approved: Yes
      Ford Model: Focus Model series: Focus Model type: EcoBoost Size of motor: 1.0 Brand of engine: M1DA From date: 01-02-2012 Fuel: Gasoline Approved: Yes
      Ford Model: Focus Model series: Focus Model type: EcoBoost Size of motor: 1.0 Brand of engine: M1DH Body: Estate From date: 01-10-2017 Fuel: Gasoline Approved: Yes Manufacture type: Turnier
      Ford Model: Focus Model series: Focus Model type: EcoBoost Size of motor: 1.0 Brand of engine: M1DH Body: Hatchback From date: 01-10-2017 Fuel: Gasoline Approved: Yes
      Ford Model: Focus Model series: Focus Model type: EcoBoost Size of motor: 1.0 Brand of engine: M1DH From date: 01-10-2017 Fuel: Gasoline Approved: Yes
      Ford Model: Focus Model series: Focus Van Model type: EcoBoost Size of motor: 1.0 Brand of engine: M1DA Body: Van From date: 01-02-2012 Fuel: Gasoline Approved: Yes
      Ford Model: Grand C-Max Model series: Grand C-Max Model type: EcoBoost Size of motor: 1.0 Brand of engine: SFDA Body: Van From date: 01-10-2012 Fuel: Gasoline Approved: Yes
      Ford Model: Grand C-Max Model series: Grand C-Max Van Model type: EcoBoost Size of motor: 1.0 Brand of engine: M1DA Body: Van From date: 01-10-2012 Fuel: Gasoline Approved: Yes
      Ford Model: Grand C-Max Model series: Grand C-Max Van Model type: EcoBoost Size of motor: 1.0 Brand of engine: M2DA Body: Van From date: 01-10-2012 Fuel: Gasoline Approved: Yes
      Ford Model: Tourneo Model series: Tourneo Connect Model type: EcoBoost Size of motor: 1.0 Brand of engine: M2GA Body: MPV From date: 01-11-2013 Fuel: Gasoline Approved: Yes
      Ford Model: Transit Model series: Transit Connect Model type: EcoBoost Size of motor: 1.0 Brand of engine: M2GA Body: Van From date: 01-02-2013 Fuel: Gasoline Approved: Yes
      1 / 6
