HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032116232

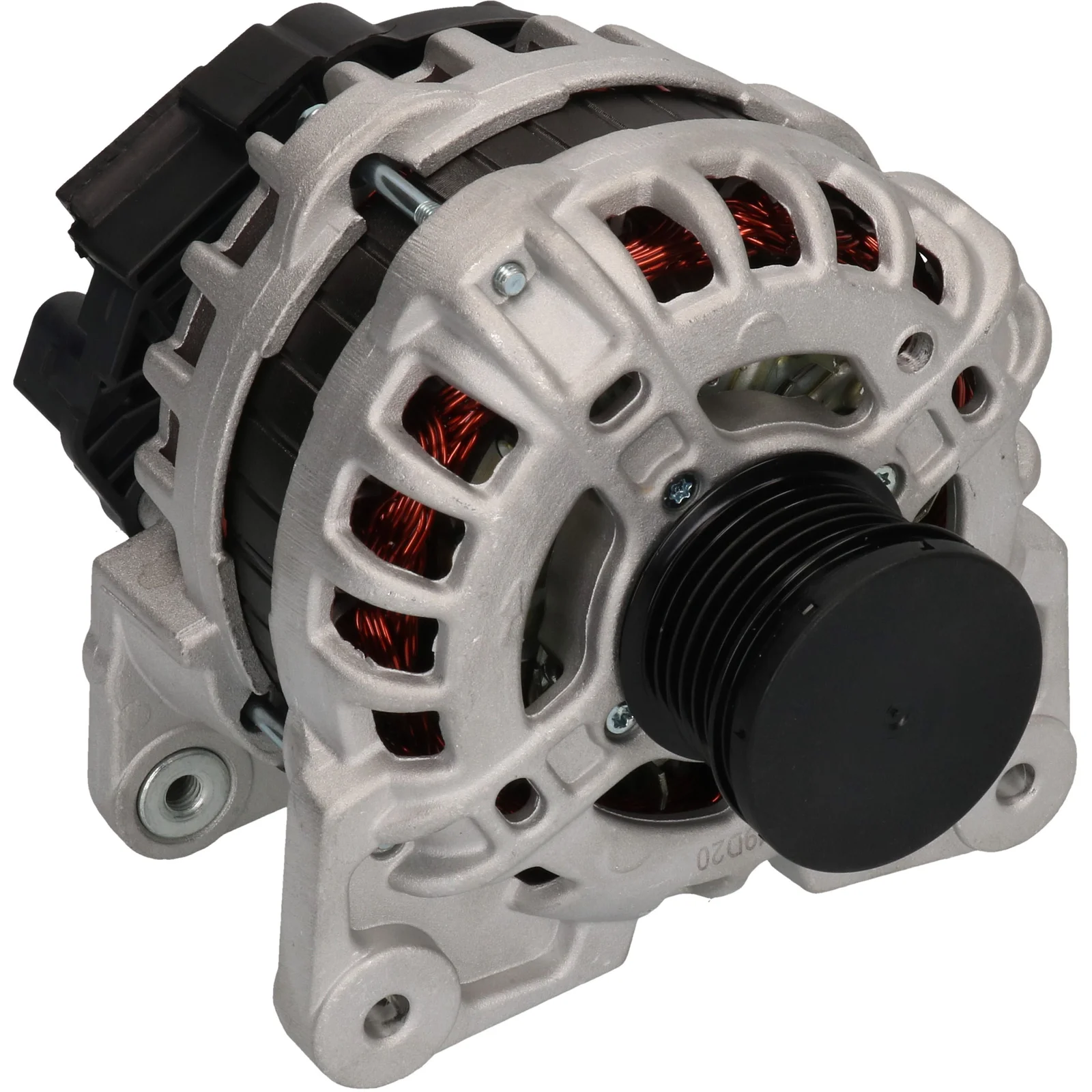

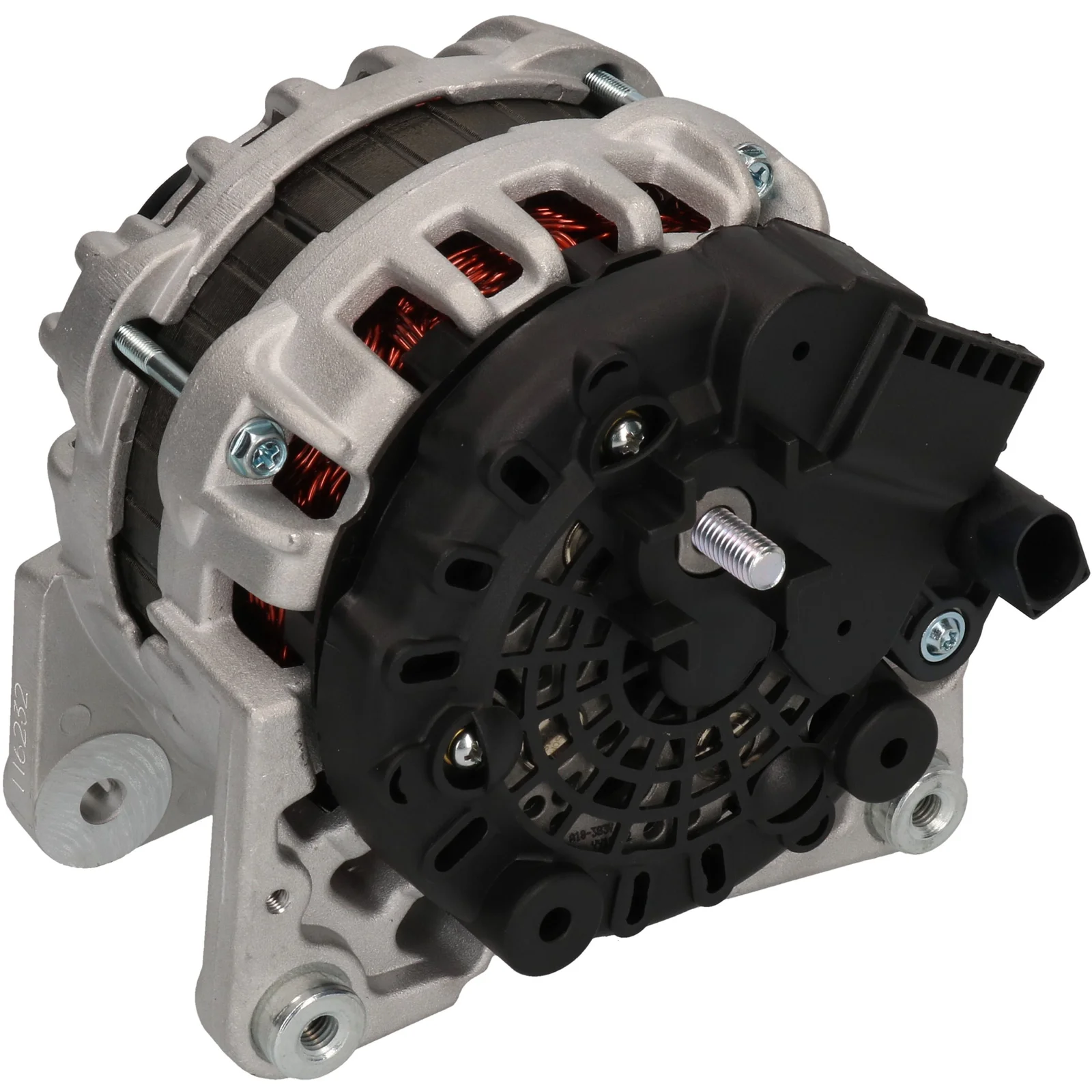

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Strøm: 110, Rotation: CW, Monteringsbeslag afstanden: 60,60

Beskrivelse

Spænding: 14
Amp: 110
Skivefordeling: 29.00
Bredde/holderarm: 14.50
Montagebeslagets afstand: 60.60
Beslagshul: 8.50
Bælte justering beslag hul position: 45
Bælte justering beslag hul 1: 8.50
Skivediameter: 49.30
Riller/skive: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ i min.: 50
Rotation: CW
Stiknummer: PL125
Total længde mm: 174.50
Terminaltype: COM
Kommunikation: LIN
Skive: SP/FW
Blæser: IF
Regulator type: IR
Bemærkninger: Denne generator har en COM-terminal på regulatoren. Det anbefales at anvende OEM-nummeret for at kontrollere egnethed, før der bestilles.

Filer

Specifikation

B+ M8
Communication LIN
Mount. bracket dist. 60.60
Belt. adj. bracket hole 1 8.50
Belt. adj. brackethole pos. 45
Plug no. PL125
Bracket hole 8.50
Position/B+ in min. 50
Pulley SP/FW
Pulley dia. 49.30
Pulley dist. 29.00
Radius 90.00
Radius 2 90.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Fan IF
Grooves/pulley 6
Terminal type COM
Voltage 14
Total length 174.50 mm
Width/holder arm 14.50
Amp 110

  • OEM
    F000BL0603, F000BL0664, F032116232, 04C903023D, 04C903023DX, 04C903023J, 04C903023JX, 1986A01069

  • Konkurrentreferens
    A0474, A0474PR, A0513, CAL10017, CAL10544, DRA1248, 8EL011713-391, 28-6976, 211.519.1102, 24117N, 24118N, 456405, 12090698, 12090909, 32080001, 0986085030

  • NormaliseratArtNr
    a0474, a0474pr, a0513, cal10017, cal10544, dra1248, f000bl0603, f000bl0664, f032116232, 04c903023d, 04c903023dx, 04c903023j, 04c903023jx, 8el011713391, 1986a01069, 24117n, 24118n, 286976, 456405, 12090698, 12090909, 32080001, 0986085030, 2115191102

  • Passar modeller
    Seat Model: Ibiza Model series: Ibiza Model type: Sportcoupe Size of motor: 1.0 Brand of engine: CHYB Type description: 6J1, 6P1 Body: Coupe From date: 01-05-2015 To date: 01-12-2016 Fuel: Gasoline Approved: Yes
    Seat Model: Ibiza Model series: Ibiza Size of motor: 1.0 Brand of engine: CHYB Type description: 6J5, 6P5 Body: Hatchback From date: 01-05-2015 To date: 01-06-2017 Fuel: Gasoline Approved: Yes
    Seat Model: Ibiza Model series: Ibiza Size of motor: 1.0 Brand of engine: CHYB Type description: 6J8, 6P8 Body: Estate From date: 01-05-2015 To date: 01-07-2016 Fuel: Gasoline Approved: Yes
    Seat Model: Ibiza Model series: Ibiza Size of motor: 1.0 Brand of engine: CHYB Type description: KJ1, KJG Body: Hatchback From date: 01-01-2017 Fuel: Petrol Approved: Yes
    Seat Model: Ibiza Model series: Ibiza Type of engine: MPi Size of motor: 1.0 Brand of engine: DFNA Type description: KJ1 Body: Hatchback From date: 01-07-2018 Fuel: Gasoline Approved: Yes
    Seat Model: Mii Model series: Mii Model type: EcoFuel Size of motor: 1.0 Brand of engine: CPGA Type description: KF1_ Body: Hatchback From date: 01-10-2012 To date: 01-07-2019 Fuel: Gas Approved: Yes
    Seat Model: Mii Model series: Mii Size of motor: 1.0 Brand of engine: CHYA Type description: KF1_ Body: Hatchback From date: 01-10-2011 To date: 01-07-2019 Fuel: Gasoline Approved: Yes
    Seat Model: Mii Model series: Mii Size of motor: 1.0 Brand of engine: CHYB Type description: KF1_ Body: Hatchback From date: 01-10-2011 To date: 01-07-2019 Fuel: Gasoline Approved: Yes
    Seat Model: Toledo Model series: Toledo Size of motor: 1.6 Brand of engine: CWVA Type description: KG3 Body: Hatchback From date: 01-05-2015 To date: 01-04-2019 Fuel: Gasoline Approved: Yes
    Skoda Model: Citigo Model series: Citigo Model type: CNG Size of motor: 1.0 Brand of engine: CPGA Body: Hatchback From date: 01-11-2012 To date: 01-08-2019 Fuel: Gasoline/gas Approved: Yes
    Skoda Model: Citigo Model series: Citigo Size of motor: 1.0 Brand of engine: CHYA Body: Hatchback From date: 01-10-2011 To date: 01-08-2019 Fuel: Gasoline Approved: Yes
    Skoda Model: Citigo Model series: Citigo Size of motor: 1.0 Brand of engine: CHYB Body: Hatchback From date: 01-10-2011 To date: 01-08-2019 Fuel: Gasoline Approved: Yes
    Skoda Model: Fabia Model series: Fabia Size of motor: 1.6 Brand of engine: CWVA Type description: NJ3 Body: Hatchback From date: 01-01-2015 Fuel: Gasoline Approved: Yes
    Skoda Model: Fabia Model series: Fabia Size of motor: 1.6 Brand of engine: CWVA Type description: NJ5 Body: Estate From date: 01-01-2015 Fuel: Gasoline Approved: Yes Manufacture type: Kombi
    Skoda Model: Kamiq Model series: Kamiq Model type: SRE Size of motor: 1.6 Brand of engine: CWVA Type description: NW4 Body: SUV From date: 01-07-2019 Fuel: Petrol Approved: Yes
    Skoda Model: Karoq Model series: Karoq Model type: SRE Size of motor: 1.6 Brand of engine: CWVA Type description: NU7 Body: SUV From date: 01-06-2020 Fuel: Petrol Approved: Yes
    Skoda Model: Octavia Model series: Octavia Model type: SRE Size of motor: 1.6 Brand of engine: CWVA Type description: NX3 Body: Hatchback From date: 01-07-2020 Fuel: Petrol Approved: Yes
    Skoda Model: Scala Model series: Scala Model type: SRE Size of motor: 1.6 Brand of engine: CWVA Type description: NW1 Body: Hatchback From date: 01-02-2019 Fuel: Petrol Approved: Yes
    VW Model: Load Up Model series: Load Up Model type: BlueMotion Size of motor: 1.0 Brand of engine: CHYB Type description: 121, 122, BL1, BL2 Body: Box From date: 01-05-2016 To date: 01-11-2019 Fuel: Gasoline Approved: Yes
    VW Model: Load Up Model series: Load Up Model type: EcoFuel Size of motor: 1.0 Brand of engine: CPGA Body: Van From date: 01-12-2014 To date: 01-08-2020 Fuel: Gasoline Approved: Yes
    VW Model: Load Up Model series: Load Up Size of motor: 1.0 Brand of engine: CHYA Body: Van From date: 01-12-2014 To date: 01-11-2019 Fuel: Gasoline Approved: Yes
    VW Model: Polo Model series: Polo Size of motor: 1.0 Brand of engine: CHYB Type description: AW1, BZ1, AE1 Body: Hatchback From date: 01-06-2017 To date: 01-08-2021 Fuel: Petrol Approved: Yes
    VW Model: Polo Model series: Polo Size of motor: 1.0 Brand of engine: CHYC Type description: AW1 Body: Hatchback From date: 01-08-2017 Fuel: Gasoline Approved: Yes
    VW Model: Polo Model series: Polo Type of engine: MPi Size of motor: 1.0 Brand of engine: DFNA Type description: AW1, BZ1 Body: Hatchback From date: 01-09-2018 Fuel: Gasoline Approved: Yes
    VW Model: Up Model series: Up Model type: EcoFuel Size of motor: 1.0 Brand of engine: CPGA Body: Hatchback From date: 01-11-2012 To date: 01-08-2020 Fuel: Gas Approved: Yes
    VW Model: Up Model series: Up Size of motor: 1.0 Brand of engine: CHYA Type description: 121 Body: Hatchback From date: 01-08-2011 To date: 01-08-2020 Fuel: Gasoline Approved: Yes
    VW Model: Up Model series: Up Size of motor: 1.0 Brand of engine: CHYB Type description: 121 Body: Hatchback From date: 01-08-2011 To date: 01-11-2019 Fuel: Gasoline Approved: Yes
    1 / 6
  • Beskrivelse
    Spænding: 14
    Amp: 110
    Skivefordeling: 29.00
    Bredde/holderarm: 14.50
    Montagebeslagets afstand: 60.60
    Beslagshul: 8.50
    Bælte justering beslag hul position: 45
    Bælte justering beslag hul 1: 8.50
    Skivediameter: 49.30
    Riller/skive: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ i min.: 50
    Rotation: CW
    Stiknummer: PL125
    Total længde mm: 174.50
    Terminaltype: COM
    Kommunikation: LIN
    Skive: SP/FW
    Blæser: IF
    Regulator type: IR
    Bemærkninger: Denne generator har en COM-terminal på regulatoren. Det anbefales at anvende OEM-nummeret for at kontrollere egnethed, før der bestilles.

    Filer

  • Specifikation
    B+ M8
    Communication LIN
    Mount. bracket dist. 60.60
    Belt. adj. bracket hole 1 8.50
    Belt. adj. brackethole pos. 45
    Plug no. PL125
    Bracket hole 8.50
    Position/B+ in min. 50
    Pulley SP/FW
    Pulley dia. 49.30
    Pulley dist. 29.00
    Radius 90.00
    Radius 2 90.00
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Fan IF
    Grooves/pulley 6
    Terminal type COM
    Voltage 14
    Total length 174.50 mm
    Width/holder arm 14.50
    Amp 110
  • Køretøjsmatchning

    • OEM
      F000BL0603, F000BL0664, F032116232, 04C903023D, 04C903023DX, 04C903023J, 04C903023JX, 1986A01069

    • Konkurrentreferens
      A0474, A0474PR, A0513, CAL10017, CAL10544, DRA1248, 8EL011713-391, 28-6976, 211.519.1102, 24117N, 24118N, 456405, 12090698, 12090909, 32080001, 0986085030

    • NormaliseratArtNr
      a0474, a0474pr, a0513, cal10017, cal10544, dra1248, f000bl0603, f000bl0664, f032116232, 04c903023d, 04c903023dx, 04c903023j, 04c903023jx, 8el011713391, 1986a01069, 24117n, 24118n, 286976, 456405, 12090698, 12090909, 32080001, 0986085030, 2115191102

    • Passar modeller
      Seat Model: Ibiza Model series: Ibiza Model type: Sportcoupe Size of motor: 1.0 Brand of engine: CHYB Type description: 6J1, 6P1 Body: Coupe From date: 01-05-2015 To date: 01-12-2016 Fuel: Gasoline Approved: Yes
      Seat Model: Ibiza Model series: Ibiza Size of motor: 1.0 Brand of engine: CHYB Type description: 6J5, 6P5 Body: Hatchback From date: 01-05-2015 To date: 01-06-2017 Fuel: Gasoline Approved: Yes
      Seat Model: Ibiza Model series: Ibiza Size of motor: 1.0 Brand of engine: CHYB Type description: 6J8, 6P8 Body: Estate From date: 01-05-2015 To date: 01-07-2016 Fuel: Gasoline Approved: Yes
      Seat Model: Ibiza Model series: Ibiza Size of motor: 1.0 Brand of engine: CHYB Type description: KJ1, KJG Body: Hatchback From date: 01-01-2017 Fuel: Petrol Approved: Yes
      Seat Model: Ibiza Model series: Ibiza Type of engine: MPi Size of motor: 1.0 Brand of engine: DFNA Type description: KJ1 Body: Hatchback From date: 01-07-2018 Fuel: Gasoline Approved: Yes
      Seat Model: Mii Model series: Mii Model type: EcoFuel Size of motor: 1.0 Brand of engine: CPGA Type description: KF1_ Body: Hatchback From date: 01-10-2012 To date: 01-07-2019 Fuel: Gas Approved: Yes
      Seat Model: Mii Model series: Mii Size of motor: 1.0 Brand of engine: CHYA Type description: KF1_ Body: Hatchback From date: 01-10-2011 To date: 01-07-2019 Fuel: Gasoline Approved: Yes
      Seat Model: Mii Model series: Mii Size of motor: 1.0 Brand of engine: CHYB Type description: KF1_ Body: Hatchback From date: 01-10-2011 To date: 01-07-2019 Fuel: Gasoline Approved: Yes
      Seat Model: Toledo Model series: Toledo Size of motor: 1.6 Brand of engine: CWVA Type description: KG3 Body: Hatchback From date: 01-05-2015 To date: 01-04-2019 Fuel: Gasoline Approved: Yes
      Skoda Model: Citigo Model series: Citigo Model type: CNG Size of motor: 1.0 Brand of engine: CPGA Body: Hatchback From date: 01-11-2012 To date: 01-08-2019 Fuel: Gasoline/gas Approved: Yes
      Skoda Model: Citigo Model series: Citigo Size of motor: 1.0 Brand of engine: CHYA Body: Hatchback From date: 01-10-2011 To date: 01-08-2019 Fuel: Gasoline Approved: Yes
      Skoda Model: Citigo Model series: Citigo Size of motor: 1.0 Brand of engine: CHYB Body: Hatchback From date: 01-10-2011 To date: 01-08-2019 Fuel: Gasoline Approved: Yes
      Skoda Model: Fabia Model series: Fabia Size of motor: 1.6 Brand of engine: CWVA Type description: NJ3 Body: Hatchback From date: 01-01-2015 Fuel: Gasoline Approved: Yes
      Skoda Model: Fabia Model series: Fabia Size of motor: 1.6 Brand of engine: CWVA Type description: NJ5 Body: Estate From date: 01-01-2015 Fuel: Gasoline Approved: Yes Manufacture type: Kombi
      Skoda Model: Kamiq Model series: Kamiq Model type: SRE Size of motor: 1.6 Brand of engine: CWVA Type description: NW4 Body: SUV From date: 01-07-2019 Fuel: Petrol Approved: Yes
      Skoda Model: Karoq Model series: Karoq Model type: SRE Size of motor: 1.6 Brand of engine: CWVA Type description: NU7 Body: SUV From date: 01-06-2020 Fuel: Petrol Approved: Yes
      Skoda Model: Octavia Model series: Octavia Model type: SRE Size of motor: 1.6 Brand of engine: CWVA Type description: NX3 Body: Hatchback From date: 01-07-2020 Fuel: Petrol Approved: Yes
      Skoda Model: Scala Model series: Scala Model type: SRE Size of motor: 1.6 Brand of engine: CWVA Type description: NW1 Body: Hatchback From date: 01-02-2019 Fuel: Petrol Approved: Yes
      VW Model: Load Up Model series: Load Up Model type: BlueMotion Size of motor: 1.0 Brand of engine: CHYB Type description: 121, 122, BL1, BL2 Body: Box From date: 01-05-2016 To date: 01-11-2019 Fuel: Gasoline Approved: Yes
      VW Model: Load Up Model series: Load Up Model type: EcoFuel Size of motor: 1.0 Brand of engine: CPGA Body: Van From date: 01-12-2014 To date: 01-08-2020 Fuel: Gasoline Approved: Yes
      VW Model: Load Up Model series: Load Up Size of motor: 1.0 Brand of engine: CHYA Body: Van From date: 01-12-2014 To date: 01-11-2019 Fuel: Gasoline Approved: Yes
      VW Model: Polo Model series: Polo Size of motor: 1.0 Brand of engine: CHYB Type description: AW1, BZ1, AE1 Body: Hatchback From date: 01-06-2017 To date: 01-08-2021 Fuel: Petrol Approved: Yes
      VW Model: Polo Model series: Polo Size of motor: 1.0 Brand of engine: CHYC Type description: AW1 Body: Hatchback From date: 01-08-2017 Fuel: Gasoline Approved: Yes
      VW Model: Polo Model series: Polo Type of engine: MPi Size of motor: 1.0 Brand of engine: DFNA Type description: AW1, BZ1 Body: Hatchback From date: 01-09-2018 Fuel: Gasoline Approved: Yes
      VW Model: Up Model series: Up Model type: EcoFuel Size of motor: 1.0 Brand of engine: CPGA Body: Hatchback From date: 01-11-2012 To date: 01-08-2020 Fuel: Gas Approved: Yes
      VW Model: Up Model series: Up Size of motor: 1.0 Brand of engine: CHYA Type description: 121 Body: Hatchback From date: 01-08-2011 To date: 01-08-2020 Fuel: Gasoline Approved: Yes
      VW Model: Up Model series: Up Size of motor: 1.0 Brand of engine: CHYB Type description: 121 Body: Hatchback From date: 01-08-2011 To date: 01-11-2019 Fuel: Gasoline Approved: Yes
