HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032116296

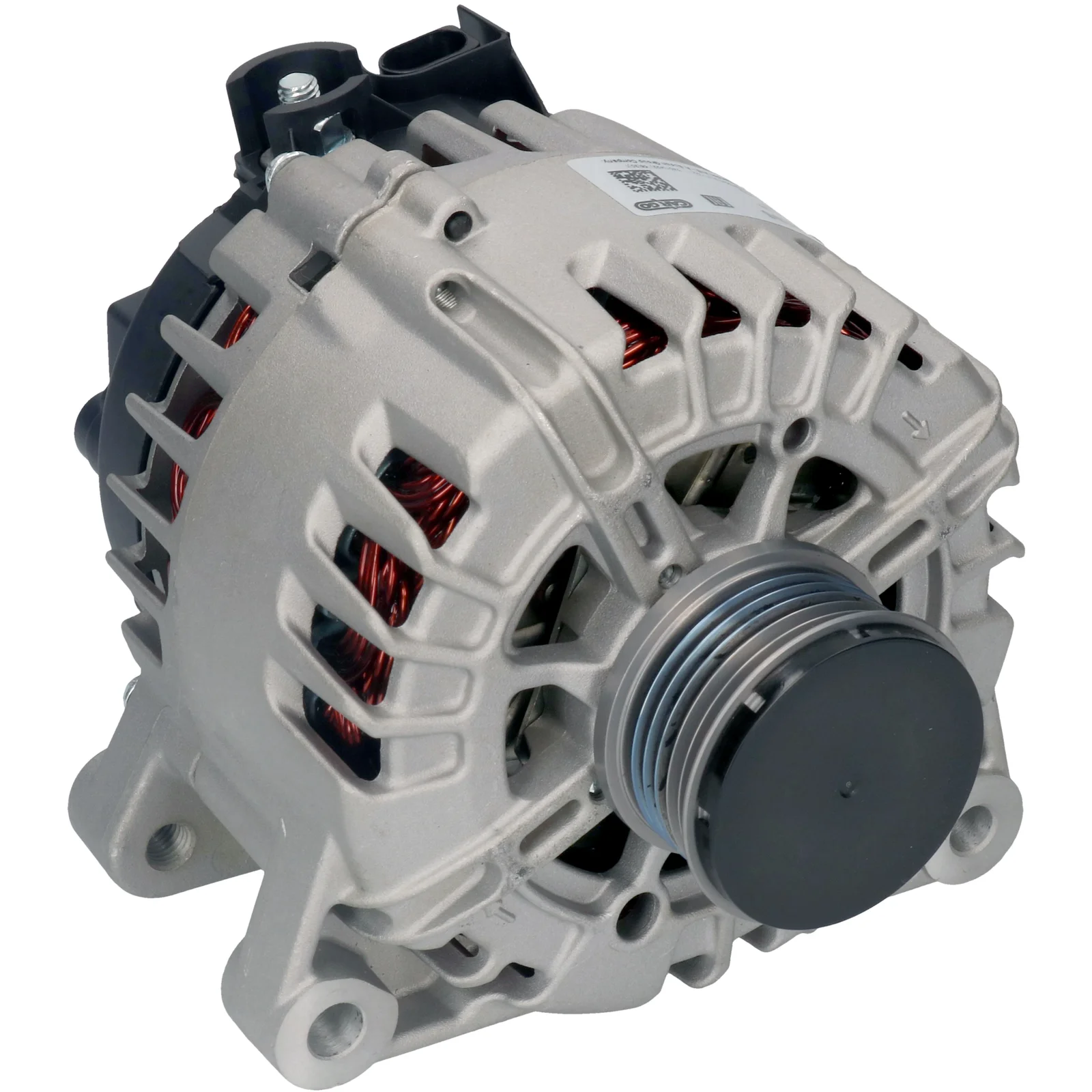

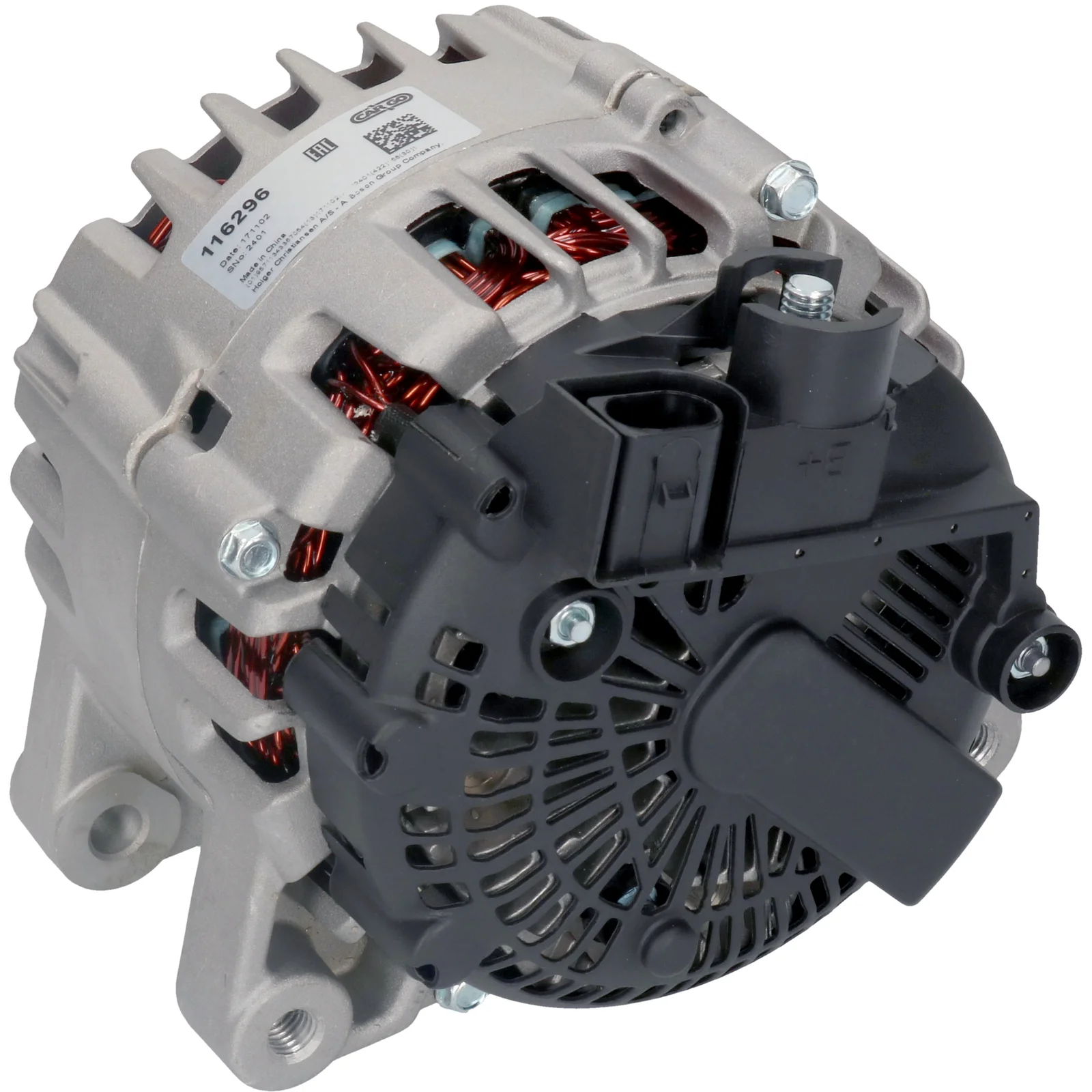

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 150, Rotation: CW, Monteringsbøjle fordeler: 45,00

Beskrivelse

HC-Cargo Generator 14V - 150A, 6gr

Voltage: 14
Ampere: 150
Bøsningsafstand: 42.50
Bredde/holderarms: 21.00
Monteringsbeslag afstand: 45.00
Beslaghul: 10.70
Beltskifte justering af mountingshul pos.: 48
Beltskifte justering af mountingshul 1: 10.00
Bøsningsdia.: 53.50
Grooves/bøsnings: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ i min.: 10
D+ Størrelse: Stik
Rotation: CW
Stik nr.: PL174
Total længde mm: 190.00
Terminaltype: COM
Kommunikation: LIN
Bøsningshjul: SP/FW
Regulator type: IR
Produktinfo: BN
Bemærkninger: Denne Generator har en COM terminal på regulatoren. Det anbefales at bruge OEM nummeret til at kontrollere egnethed inden bestilling.

Filer

Specifikation

B+ M8
Communication LIN
Mount. bracket dist. 45.00
Belt. adj. bracket hole 1 10.00
Belt. adj. brackethole pos. 48
Plug no. PL174
Bracket hole 10.70
Position/B+ in min. 10
Prod. info BN
Pulley SP/FW
Pulley dia. 53.50
Pulley dist. 42.50
Radius 90.00
D+ Size Plug
Radius 2 90.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Grooves/pulley 6
Terminal type COM
Voltage 14
Total length 190.00 mm
Width/holder arm 21.00
Amp 150

  • OEM
    AG9T-10300AA, AG9T-10300CA, AG9T10300AA, AG9T10300CA, F032116296, TG15C174, TG15C176, 116296, 1678607, 1678608, 31419219

  • Konkurrentreferens
    A3274(VALEO), A3318, CAL15520, DRA1239, LRA03555, 8EL011713-421, 28-6665, 219.141.1502, 595.560.150, 20716N, 210878, 210878A, 439907, 439912, 439913, 440588, 553944RI, 12090520, 0986083620, 0986084940

  • Bilmärken
    Ford EU

  • NormaliseratArtNr
    a3274valeo, a3318, ag9t10300aa, ag9t10300ca, cal15520, dra1239, f032116296, lra03555, tg15c174, tg15c176, 8el011713421, 20716n, 116296, 210878, 210878a, 286665, 439907, 439912, 439913, 440588, 553944ri, 1678607, 1678608, 12090520, 31419219, 595560150, 0986083620, 0986084940, 2191411502

  • Passar modeller
    Ford EU Series: GALAXY II Model: 2.0 TDCi Engine volume: 2.0 Engine type: TXWA Year: 03.10-06.15
    Ford EU Series: GALAXY MK II VAN Model: TDCi Engine volume: 2.0 Engine type: QXWA/QXWB/QXWC/UFWA Year: 05.06-06.15
    Ford EU Series: MONDEO IV Sedan Model: 2.0 TDCi Engine volume: 2.0 Engine type: AZBC/UKBA/UKBB Year: 08.08-12.14
    Ford EU Series: MONDEO IV Sedan Model: 2.0 TDCi Engine volume: 2.0 Engine type: TXBA/TXBB Year: 03.10-01.15
    Ford EU Series: MONDEO IV Van Model: 2.0 TDCi Engine volume: 2 Engine type: TXBA Year: 03.10-09.14
    Ford EU Series: S-MAX Model: 2.0 TDCi Engine volume: 2.0 Engine type: TXWA Year: 03.10-12.14
    Ford EU Series: S-MAX VAN (WA6) Model: 2.0 TDCi Engine volume: 2.0 Engine type: KLWA/TYWA Year: 01.07-12.14
    Ford EU Series: S-MAX VAN (WA6) Model: 2.0 TDCi Engine volume: 2.0 Engine type: QXWA/QXWB/QXWC/UFWA Year: 03.10-12.14
    Ford EU Series: S-MAX VAN (WA6) Model: 2.0 TDCi Engine volume: 2.0 Engine type: TXWA Year: 03.10-12.14
    Ford Model: Galaxy Model series: Galaxy Type of engine: TDCi Size of motor: 2.0 Brand of engine: QXWB,QXWA,QXWC,UFWA Type description: WA6 Body: Van From date: 01-05-2006 To date: 01-06-2015 Fuel: Diesel Approved: Yes
    Ford Model: Galaxy Model series: Galaxy Type of engine: TDCi Size of motor: 2.0 Brand of engine: TXWA Body: MPV From date: 01-03-2010 To date: 01-06-2015 Fuel: Diesel Approved: Yes
    Ford Model: Galaxy Model series: Galaxy Type of engine: TDCi Size of motor: 2.0 Brand of engine: TXWA Type description: WA6 Body: Van From date: 01-03-2010 To date: 01-06-2015 Fuel: Diesel Approved: Yes
    Ford Model: Galaxy Model series: Galaxy Type of engine: TDCi Size of motor: 2.0 Brand of engine: TYWA,KLWA Type description: WA6 Body: Van From date: 01-01-2007 To date: 01-06-2015 Fuel: Diesel Approved: Yes
    Ford Model: Mondeo Model series: Mondeo Saloon Type of engine: TDCi Size of motor: 2.0 Brand of engine: AZBC Type description: BA7 Body: Saloon From date: 01-08-2008 To date: 01-12-2014 Fuel: Diesel Approved: Yes
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: TXBA Body: Box Body / Estate From date: 01-03-2010 To date: 01-09-2014 Fuel: Diesel Approved: Yes
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: TXBA From date: 01-03-2010 To date: 01-01-2015 Fuel: Diesel Approved: Yes
    Ford Model: S-Max Model series: S-Max Type of engine: TDCi Size of motor: 2.0 Brand of engine: TXWA Type description: WA6 Body: MPV From date: 01-03-2010 To date: 01-12-2014 Fuel: Diesel Approved: Yes
    Ford Model: S-Max Model series: S-Max Type of engine: TDCi Size of motor: 2.0 Brand of engine: TXWA Type description: WA6 Body: Van From date: 01-03-2010 To date: 01-12-2014 Fuel: Diesel Approved: Yes
    Ford Model: S-Max Model series: S-Max Type of engine: TDCi Size of motor: 2.0 Brand of engine: TYWA,KLWA Type description: WA6 Body: Van From date: 01-01-2007 To date: 01-12-2014 Fuel: Diesel Approved: Yes
    Ford Model: S-Max Model series: S-Max Type of engine: TDCi Size of motor: 2.0 Brand of engine: UFWA,QXWA,QXWC,QXWB Type description: WA6 Body: Van From date: 01-03-2010 To date: 01-12-2014 Fuel: Diesel Approved: Yes
