HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032116301

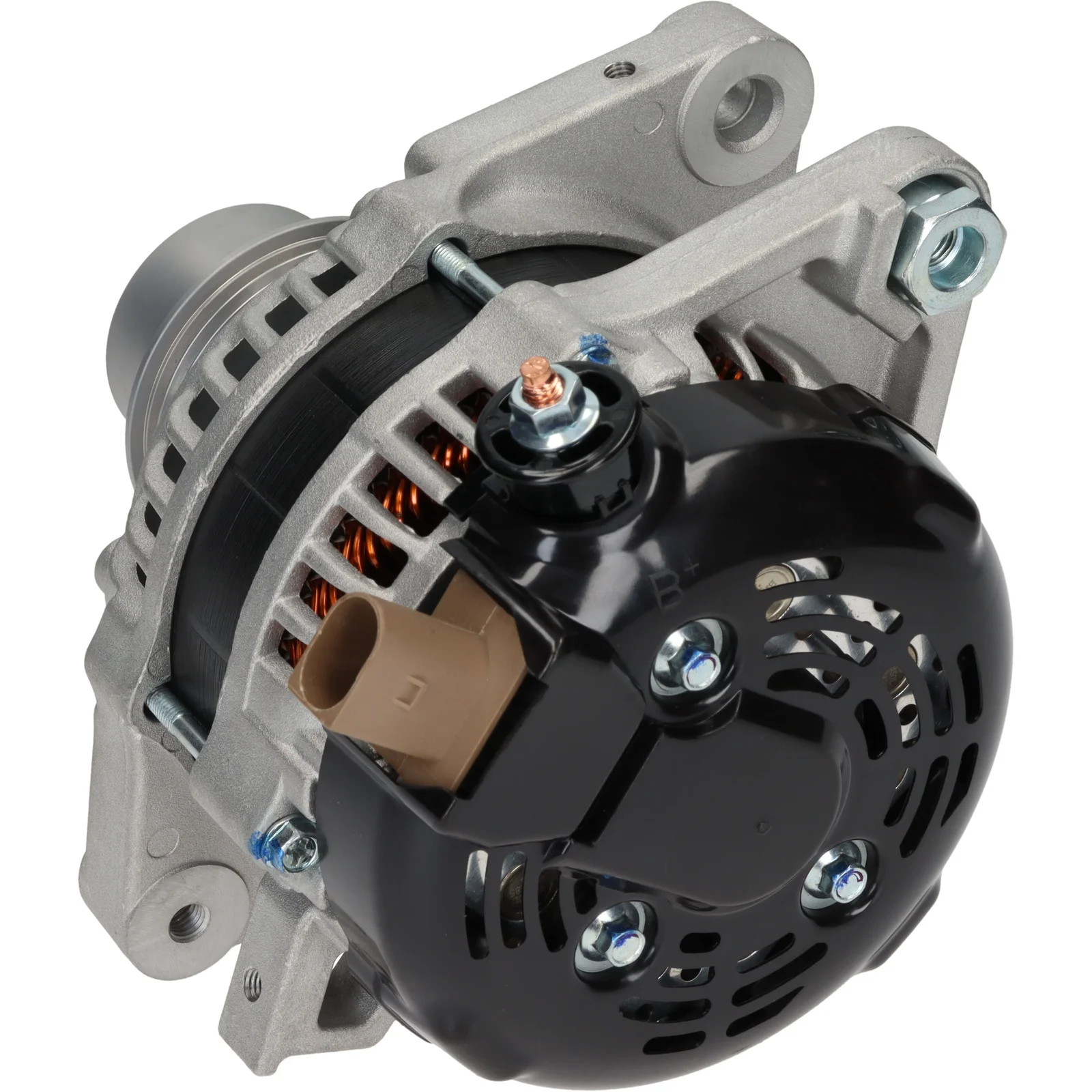

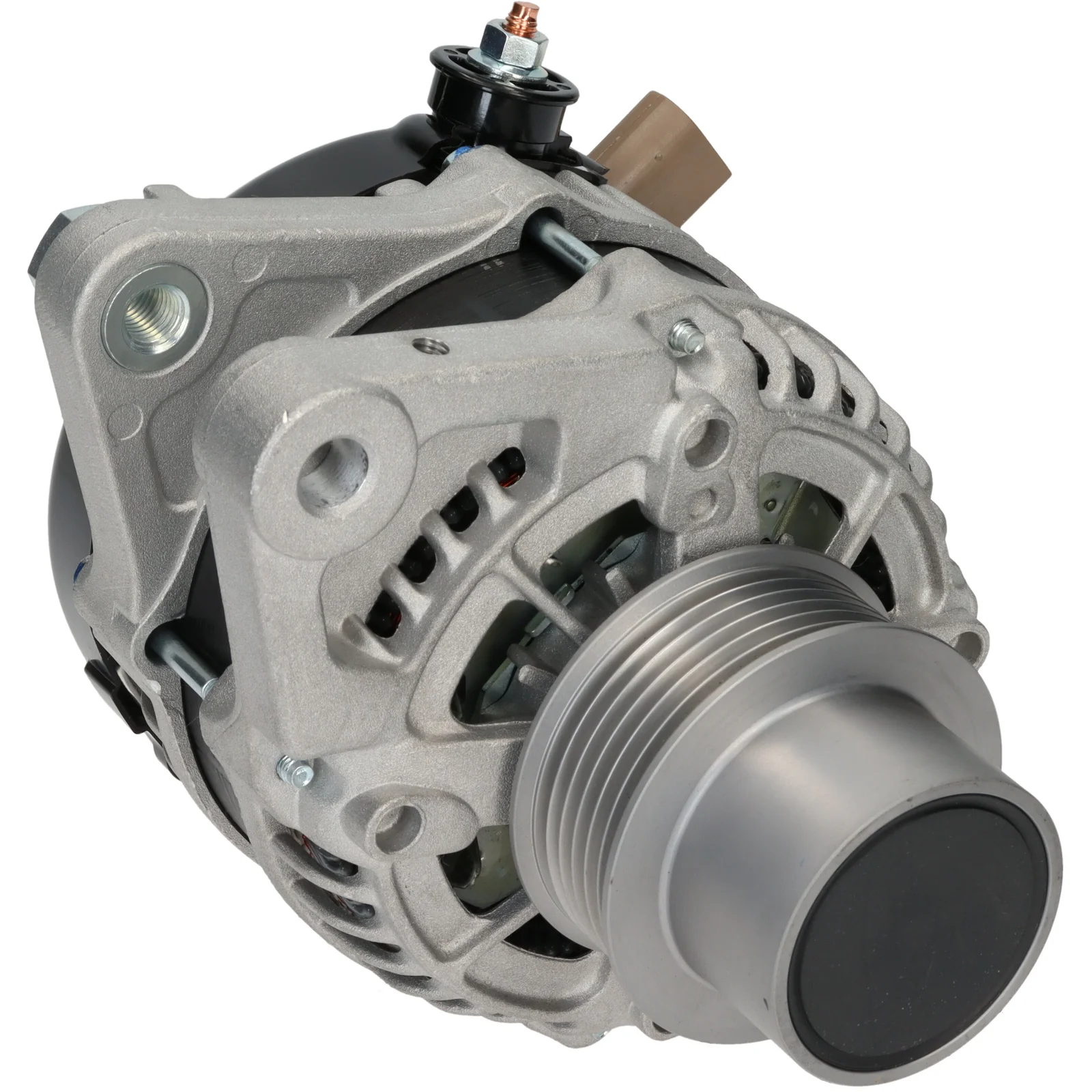

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 100, Rotation: CW, Monteringsbeslag for fordeling: 37.00

Beskrivelse

Spænding: 14
Amp: 100
Remskive dist.: 29.00
Bredde/holderarms: 18.00
Monteringsbeslag dist.: 37.00
Beslagshul: 11.00
Bæltejustering beslaghul 1: M8
Remskive dia.: 67.00
Riller/remskive: 6
Radius: 89.00
Radius 2: 82.00
B+: M6
Position/B+ i min.: 20
D+ Størrelse: Stik
Rotation: med uret
Stik nr.: PL61
Samlet længde mm: 181.00
Lampetype: Inaktiv
Remskive: SP/FW
Vifte: IF

Filer

Specifikation

B+ M6
Mount. bracket dist. 37.00
Belt. adj. bracket hole 1 M8
Plug no. PL61
Bracket hole 11.00
Position/B+ in min. 20
Pulley SP/FW
Pulley dia. 67.00
Pulley dist. 29.00
Radius 89.00
D+ Size Plug
Radius 2 82.00
Rotation CW
Fan IF
Grooves/pulley 6
Lamp type Inactive
Voltage 14
Total length 181.00 mm
Width/holder arm 18.00
Amp 100

  • OEM
    b000911980, F032116301, 1986A01659, 021080-2380, 27060-0Q190, 104210-3490, 104211-3490

  • Konkurrentreferens
    A6599S, CAL40484, DAN1320, DRA1459, 28-7557, 195.987.100, 554356RI, 12090791

  • NormaliseratArtNr
    a6599s, b000911980, cal40484, dan1320, dra1459, f032116301, 1986a01659, 270600q190, 287557, 554356ri, 12090791, 195987100, 0210802380, 1042103490, 1042113490

  • Passar modeller
    Citroen Model: C1 Model series: C1 Model type: 68 Size of motor: 1.0 Brand of engine: 1KR-FE Body: Hatchback From date: 01-04-2014 Fuel: Gasoline Approved: Yes
    Citroen Model: C1 Model series: C1 Model type: 72 Type of engine: VTI Size of motor: 1.0 Brand of engine: CFB (1KR) Type description: PA_, PS_ Body: Hatchback From date: 01-06-2018 Fuel: Gasoline Approved: Yes
    Peugeot Model: 108 Model series: 108 Model type: 72 Type of engine: VTI Size of motor: 1.0 Brand of engine: CFB (1KR) Body: Hatchback From date: 01-05-2018 Fuel: Gasoline Approved: Yes
    Peugeot Model: 108 Model series: 108 Type of engine: VTi Size of motor: 1.0 Brand of engine: 1KR-FE Body: Hatchback From date: 01-05-2014 Fuel: Gasoline Approved: Yes
    Toyota Model: Aygo Model series: Aygo Size of motor: 1.0 Brand of engine: 1KR-FE Type description: PAB4_, KGB4_ Body: Hatchback From date: 01-05-2014 Fuel: Gasoline Approved: Yes
    Toyota Model: Aygo Model series: Aygo Type of engine: VVTi Size of motor: 1.0 Brand of engine: 1KR-FE Type description: _B4_ Body: Hatchback From date: 01-03-2018 Fuel: Gasoline Approved: Yes
    1 / 2
  • Beskrivelse
    Spænding: 14
    Amp: 100
    Remskive dist.: 29.00
    Bredde/holderarms: 18.00
    Monteringsbeslag dist.: 37.00
    Beslagshul: 11.00
    Bæltejustering beslaghul 1: M8
    Remskive dia.: 67.00
    Riller/remskive: 6
    Radius: 89.00
    Radius 2: 82.00
    B+: M6
    Position/B+ i min.: 20
    D+ Størrelse: Stik
    Rotation: med uret
    Stik nr.: PL61
    Samlet længde mm: 181.00
    Lampetype: Inaktiv
    Remskive: SP/FW
    Vifte: IF

    Filer

  • Specifikation
    B+ M6
    Mount. bracket dist. 37.00
    Belt. adj. bracket hole 1 M8
    Plug no. PL61
    Bracket hole 11.00
    Position/B+ in min. 20
    Pulley SP/FW
    Pulley dia. 67.00
    Pulley dist. 29.00
    Radius 89.00
    D+ Size Plug
    Radius 2 82.00
    Rotation CW
    Fan IF
    Grooves/pulley 6
    Lamp type Inactive
    Voltage 14
    Total length 181.00 mm
    Width/holder arm 18.00
    Amp 100
  • Køretøjsmatchning

    • OEM
      b000911980, F032116301, 1986A01659, 021080-2380, 27060-0Q190, 104210-3490, 104211-3490

    • Konkurrentreferens
      A6599S, CAL40484, DAN1320, DRA1459, 28-7557, 195.987.100, 554356RI, 12090791

    • NormaliseratArtNr
      a6599s, b000911980, cal40484, dan1320, dra1459, f032116301, 1986a01659, 270600q190, 287557, 554356ri, 12090791, 195987100, 0210802380, 1042103490, 1042113490

    • Passar modeller
      Citroen Model: C1 Model series: C1 Model type: 68 Size of motor: 1.0 Brand of engine: 1KR-FE Body: Hatchback From date: 01-04-2014 Fuel: Gasoline Approved: Yes
      Citroen Model: C1 Model series: C1 Model type: 72 Type of engine: VTI Size of motor: 1.0 Brand of engine: CFB (1KR) Type description: PA_, PS_ Body: Hatchback From date: 01-06-2018 Fuel: Gasoline Approved: Yes
      Peugeot Model: 108 Model series: 108 Model type: 72 Type of engine: VTI Size of motor: 1.0 Brand of engine: CFB (1KR) Body: Hatchback From date: 01-05-2018 Fuel: Gasoline Approved: Yes
      Peugeot Model: 108 Model series: 108 Type of engine: VTi Size of motor: 1.0 Brand of engine: 1KR-FE Body: Hatchback From date: 01-05-2014 Fuel: Gasoline Approved: Yes
      Toyota Model: Aygo Model series: Aygo Size of motor: 1.0 Brand of engine: 1KR-FE Type description: PAB4_, KGB4_ Body: Hatchback From date: 01-05-2014 Fuel: Gasoline Approved: Yes
      Toyota Model: Aygo Model series: Aygo Type of engine: VVTi Size of motor: 1.0 Brand of engine: 1KR-FE Type description: _B4_ Body: Hatchback From date: 01-03-2018 Fuel: Gasoline Approved: Yes
