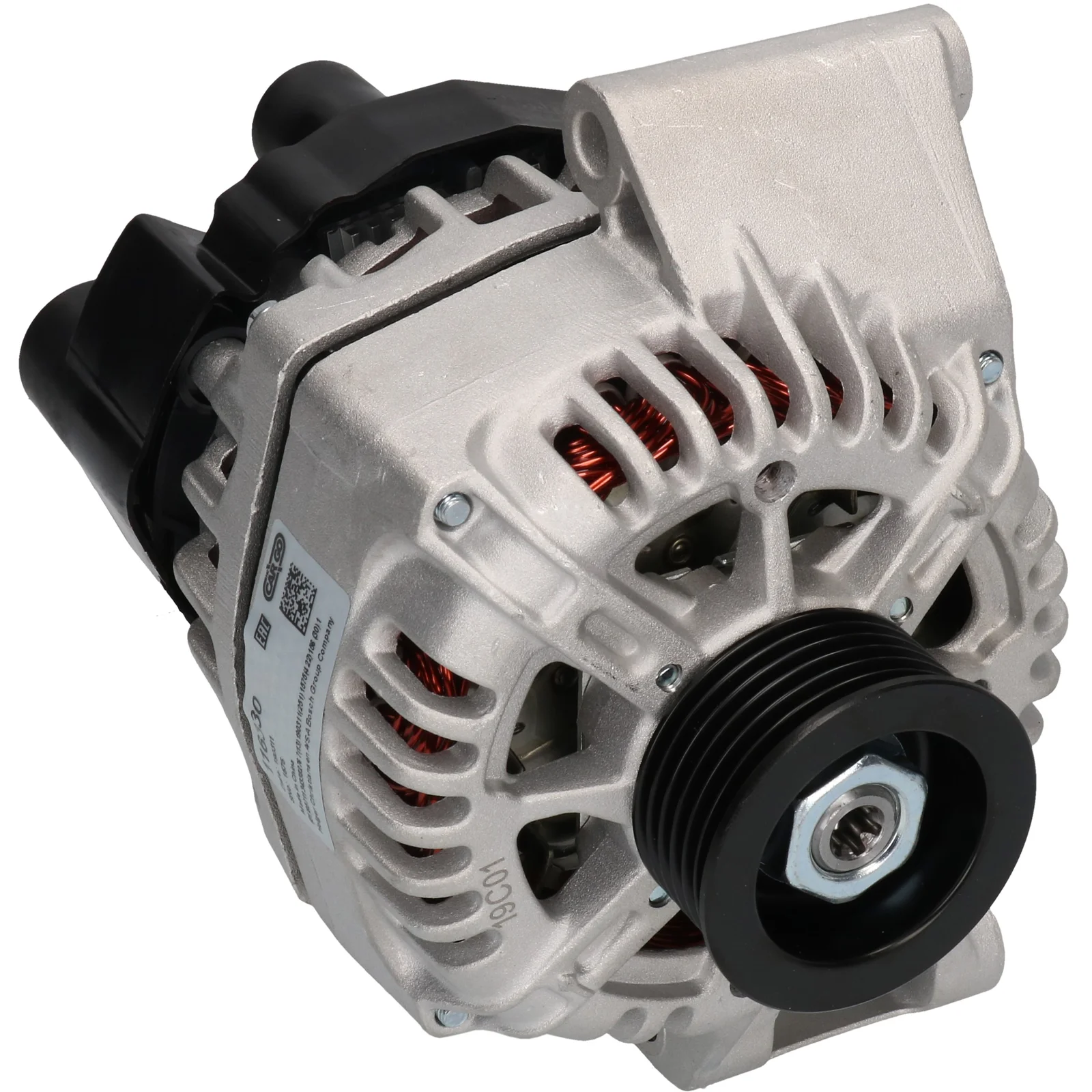

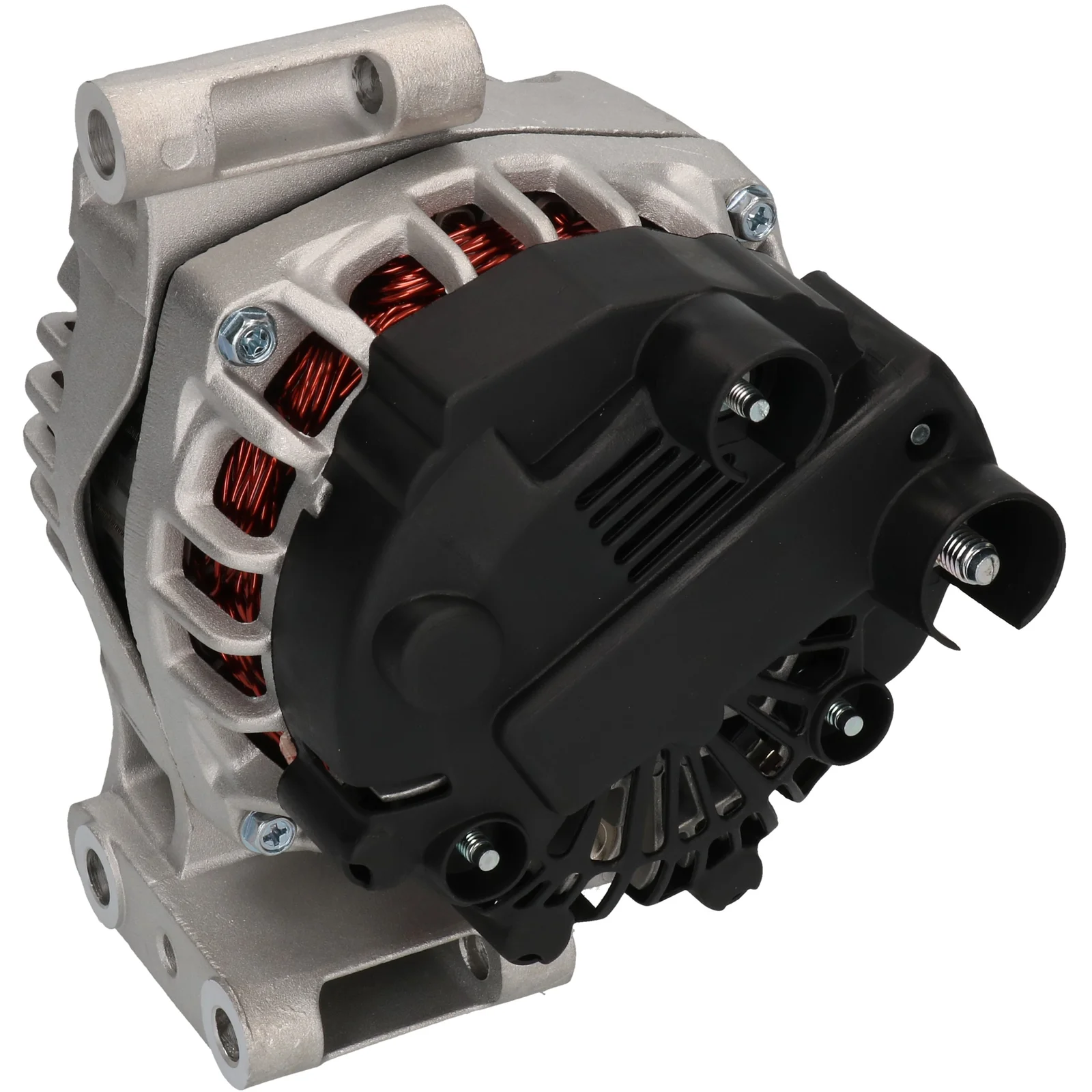

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032116330

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 75, Rotation: CW, Mount. bøjle afstand: 55,00

Beskrivelse

Spænding: 14
Amp: 75
Remskive dist.: 40.50
Bredde/beslag arm: 64.00
Monteringsbeslag dist.: 55.00
Beslagshul: 10.50
Bælte justering beslaghul 1: 10.50
Remskive dia.: 54.00
Riller/remskive: 6
Radius: 76.50
Radius 2: 77.00
B+: M8
Position/B+ i min.: 13
D+ Størrelse: M5
Rotation: med uret
Total længde mm: 175.00
Lampetype: Aktiv
Remskive: SP
Kølevifte: IF
Regulator type: IR

Filer

Specifikation

B+ M8
Mount. bracket dist. 55.00
Belt. adj. bracket hole 1 10.50
Bracket hole 10.50
Position/B+ in min. 13
Pulley SP
Pulley dia. 54.00
Pulley dist. 40.50
Radius 76.50
D+ Size M5
Radius 2 77.00
Regulator type IR
Rotation CW
Fan IF
Grooves/pulley 6
Lamp type Active
Voltage 14
Total length 175.00 mm
Width/holder arm 64.00
Amp 75

  • OEM
    F032116330, tg8s010, TG8S021, 101210-1210, 101210-1211, 101211-1211, 2542671, 2542671A, 2542671B, 2543484, 2543484A, 46823546, 51784847, 51805803, 51984050, 52003511, 52092133, 468235460

  • Konkurrentreferens
    A3104(VALEO), A3104PR, A6086, A6086(DENSO), ALT-H152, CAL15124, CAL30200, DAN1003, DENDAN1003, DRA4249, F042A0H152, LRA02797, 28-4914, 112367, 112902, 210406, 210406A, 301856RI, 439506, 747036, 12090026, 063358062, 943358062, 063358062010, 063377024010, 943358062010, 944390902100

  • NormaliseratArtNr
    a3104pr, a3104valeo, a6086, a6086denso, alth152, cal15124, cal30200, dan1003, dendan1003, dra4249, f032116330, f042a0h152, lra02797, tg8s010, tg8s021, 112367, 112902, 210406, 210406a, 284914, 301856ri, 439506, 747036, 2542671, 2542671a, 2542671b, 2543484, 2543484a, 12090026, 46823546, 51784847, 51805803, 51984050, 52003511, 52092133, 063358062, 468235460, 943358062, 1012101210, 1012101211, 1012111211, 063358062010, 063377024010, 943358062010, 944390902100

  • Passar modeller
    Fiat Model: 500 Model series: 500 Type of engine: Multijet Size of motor: 1.3 Brand of engine: 169A1.000 Body: Hatchback From date: 01-10-2007 Fuel: Diesel Approved: Yes
    Fiat Model: Doblo Model series: Doblo Type of engine: JTD 16V Size of motor: 1.3 Brand of engine: 188A8.000 Body: Van From date: 01-05-2004 To date: 01-12-2006 Fuel: Diesel Approved: Yes Manufacture type: Cargo
    Fiat Model: Doblo Model series: Doblo Type of engine: JTD 16V Size of motor: 1.3 Brand of engine: 188A9.000 Body: Van From date: 01-05-2004 To date: 01-12-2006 Fuel: Diesel Approved: Yes Manufacture type: Cargo
    Fiat Model: Doblo Model series: Doblo Type of engine: Multijet Size of motor: 1.2 Brand of engine: 199A3.000 Type description: 263 Body: Platform / Chassis From date: 01-02-2010 Fuel: Diesel Approved: Yes
    Fiat Model: Doblo Model series: Doblo Type of engine: Multijet Size of motor: 1.3 Brand of engine: 199A3.000 Type description: 152 Body: MPV From date: 01-02-2010 Fuel: Diesel Approved: Yes
    Fiat Model: Doblo Model series: Doblo Type of engine: Multijet Size of motor: 1.3 Brand of engine: 199A3.000 Type description: 263 Body: Van From date: 01-02-2010 Fuel: Diesel Approved: Yes
    Fiat Model: Fiorino Model series: Fiorino Model type: QUBO Type of engine: Multijet Size of motor: 1.3 Brand of engine: 199A2.000 Type description: 300 Body: MPV From date: 01-02-2008 Fuel: Diesel Approved: Yes
    Fiat Model: Fiorino Model series: Fiorino MPV Type of engine: Multijet Size of motor: 1.2 Brand of engine: 199A2.000,199A9.000 Type description: 225_ Body: MPV From date: 01-11-2007 Fuel: Diesel Approved: Yes
    Fiat Model: Fiorino Model series: Fiorino MPV Type of engine: Multijet Size of motor: 1.2 Brand of engine: 199B1.000 Type description: 225_ Body: MPV From date: 01-01-2011 Fuel: Diesel Approved: Yes
    Fiat Model: Fiorino Model series: Fiorino Type of engine: Multijet Size of motor: 1.3 Brand of engine: 199A2.000 Type description: 225 Body: Van From date: 01-11-2007 Fuel: Diesel Approved: Yes
    Fiat Model: Fiorino Model series: Fiorino Type of engine: Multijet Size of motor: 1.3 Brand of engine: 199A9.000 Type description: 225 Body: Van From date: 01-11-2007 Fuel: Diesel Approved: Yes
    Fiat Model: Idea Model series: Idea Type of engine: JTD Size of motor: 1.3 Brand of engine: 188A9.000 Body: MPV From date: 01-01-2004 Fuel: Diesel Approved: Yes
    Fiat Model: Idea Model series: Idea Type of engine: Multijet Size of motor: 1.3 Brand of engine: 199A3.000 Type description: 135_ Body: MPV From date: 01-10-2005 Fuel: Diesel Approved: Yes
    Fiat Model: Linea Model series: Linea Type of engine: Multijet Size of motor: 1.3 Brand of engine: 199A3.000 From date: 01-06-2007 Fuel: Diesel Approved: Yes
    Fiat Model: Panda Model series: Panda Model type: 4x4 Type of engine: JTD Size of motor: 1.3 Brand of engine: 188A8.000 Type description: 169 Body: Hatchback From date: 01-10-2004 Fuel: Diesel Approved: Yes
    Fiat Model: Panda Model series: Panda Model type: 4x4 Type of engine: JTD Size of motor: 1.3 Brand of engine: 188A9.000 Type description: 169 Body: Hatchback From date: 01-10-2004 Fuel: Diesel Approved: Yes
    Fiat Model: Panda Model series: Panda Model type: 4x4 Type of engine: Multijet Size of motor: 1.3 Brand of engine: 169A1.000 Type description: 169 Body: Twin Cab From date: 01-01-2006 Fuel: Diesel Approved: Yes
    Fiat Model: Panda Model series: Panda Type of engine: JTD Size of motor: 1.3 Brand of engine: 188A8.000 Type description: 169 Body: Hatchback From date: 01-09-2003 Fuel: Diesel Approved: Yes
    Fiat Model: Panda Model series: Panda Type of engine: JTD Size of motor: 1.3 Brand of engine: 188A9.000 Type description: 169 Body: Hatchback From date: 01-09-2003 Fuel: Diesel Approved: Yes
    Fiat Model: Panda Model series: Panda Type of engine: Multijet Size of motor: 1.2 Brand of engine: 169A1.000 Type description: 169 Body: Hatchback From date: 01-06-2006 To date: 01-08-2013 Fuel: Diesel Approved: Yes
    Fiat Model: Punto Model series: Grande Punto Type of engine: Multijet Size of motor: 1.2 Brand of engine: 199A2.000 Type description: 199 Body: Van From date: 01-04-2008 Fuel: Diesel Approved: Yes
    Fiat Model: Punto Model series: Grande Punto Type of engine: Multijet Size of motor: 1.3 Brand of engine: 199A2.000 Type description: 199 Body: Hatchback From date: 01-10-2005 Fuel: Diesel Approved: Yes
    Fiat Model: Punto Model series: Grande Punto Type of engine: Multijet Size of motor: 1.3 Brand of engine: 199A3.000 Type description: 199 Body: Hatchback From date: 01-10-2005 To date: 01-12-2010 Fuel: Diesel Approved: Yes
    Fiat Model: Punto Model series: Punto Evo Type of engine: MultiJet Size of motor: 1.3 Brand of engine: 199A2.000 Type description: 199_ Body: Hatchback From date: 01-09-2010 Fuel: Diesel Approved: Yes
    Fiat Model: Punto Model series: Punto Evo Type of engine: Multijet Size of motor: 1.3 Brand of engine: 199A3.000 Type description: 199 Body: Hatchback From date: 01-10-2009 To date: 01-02-2012 Fuel: Diesel Approved: Yes
    Fiat Model: Punto Model series: Punto Type of engine: JTD Size of motor: 1.3 Brand of engine: 188A9.000 Body: Hatchback From date: 01-06-2003 To date: 01-03-2012 Fuel: Diesel Approved: Yes
    Fiat Model: Punto Model series: Punto Type of engine: Multijet Size of motor: 1.3 Brand of engine: 199A2.000 Type description: 199 Body: Hatchback From date: 01-03-2012 Fuel: Diesel Approved: Yes
    Fiat Model: Punto Model series: Punto Type of engine: Multijet Size of motor: 1.3 Brand of engine: 199A9.000 Type description: 199 Body: Hatchback From date: 01-03-2012 Fuel: Diesel Approved: Yes
    Fiat Model: Strada Model series: Strada Type of engine: Multijet Size of motor: 1.3 Brand of engine: 223A9.000 Type description: 178 Body: Pick Up From date: 01-05-2006 Fuel: Diesel Approved: Yes
    Lancia Model: Musa Model series: Musa Type of engine: Multijet Size of motor: 1.3 Brand of engine: 188A9.000 Body: MPV From date: 01-10-2004 To date: 01-09-2012 Fuel: Diesel Approved: Yes
    Lancia Model: Musa Model series: Musa Type of engine: Multijet Size of motor: 1.3 Brand of engine: 199A3.000 Body: MPV From date: 01-09-2006 To date: 01-09-2012 Fuel: Diesel Approved: Yes
    Lancia Model: Ypsilon Model series: Ypsilon Type of engine: JTD Size of motor: 1.3 Brand of engine: 188A9.000 Body: Hatchback From date: 01-10-2003 To date: 01-12-2011 Fuel: Diesel Approved: Yes
    Lancia Model: Ypsilon Model series: Ypsilon Type of engine: Multijet Size of motor: 1.3 Brand of engine: 199A2.000 Body: Hatchback From date: 01-09-2006 To date: 01-12-2011 Fuel: Diesel Approved: Yes
    Lancia Model: Ypsilon Model series: Ypsilon Type of engine: Multijet Size of motor: 1.3 Brand of engine: 199A3.000 Body: Hatchback From date: 01-09-2006 To date: 01-12-2011 Fuel: Diesel Approved: Yes
    1 / 7
  • Beskrivelse
    Spænding: 14
    Amp: 75
    Remskive dist.: 40.50
    Bredde/beslag arm: 64.00
    Monteringsbeslag dist.: 55.00
    Beslagshul: 10.50
    Bælte justering beslaghul 1: 10.50
    Remskive dia.: 54.00
    Riller/remskive: 6
    Radius: 76.50
    Radius 2: 77.00
    B+: M8
    Position/B+ i min.: 13
    D+ Størrelse: M5
    Rotation: med uret
    Total længde mm: 175.00
    Lampetype: Aktiv
    Remskive: SP
    Kølevifte: IF
    Regulator type: IR

    Filer

  • Specifikation
    B+ M8
    Mount. bracket dist. 55.00
    Belt. adj. bracket hole 1 10.50
    Bracket hole 10.50
    Position/B+ in min. 13
    Pulley SP
    Pulley dia. 54.00
    Pulley dist. 40.50
    Radius 76.50
    D+ Size M5
    Radius 2 77.00
    Regulator type IR
    Rotation CW
    Fan IF
    Grooves/pulley 6
    Lamp type Active
    Voltage 14
    Total length 175.00 mm
    Width/holder arm 64.00
    Amp 75
  • Køretøjsmatchning

    • OEM
      F032116330, tg8s010, TG8S021, 101210-1210, 101210-1211, 101211-1211, 2542671, 2542671A, 2542671B, 2543484, 2543484A, 46823546, 51784847, 51805803, 51984050, 52003511, 52092133, 468235460

    • Konkurrentreferens
      A3104(VALEO), A3104PR, A6086, A6086(DENSO), ALT-H152, CAL15124, CAL30200, DAN1003, DENDAN1003, DRA4249, F042A0H152, LRA02797, 28-4914, 112367, 112902, 210406, 210406A, 301856RI, 439506, 747036, 12090026, 063358062, 943358062, 063358062010, 063377024010, 943358062010, 944390902100

    • NormaliseratArtNr
      a3104pr, a3104valeo, a6086, a6086denso, alth152, cal15124, cal30200, dan1003, dendan1003, dra4249, f032116330, f042a0h152, lra02797, tg8s010, tg8s021, 112367, 112902, 210406, 210406a, 284914, 301856ri, 439506, 747036, 2542671, 2542671a, 2542671b, 2543484, 2543484a, 12090026, 46823546, 51784847, 51805803, 51984050, 52003511, 52092133, 063358062, 468235460, 943358062, 1012101210, 1012101211, 1012111211, 063358062010, 063377024010, 943358062010, 944390902100

    • Passar modeller
      Fiat Model: 500 Model series: 500 Type of engine: Multijet Size of motor: 1.3 Brand of engine: 169A1.000 Body: Hatchback From date: 01-10-2007 Fuel: Diesel Approved: Yes
      Fiat Model: Doblo Model series: Doblo Type of engine: JTD 16V Size of motor: 1.3 Brand of engine: 188A8.000 Body: Van From date: 01-05-2004 To date: 01-12-2006 Fuel: Diesel Approved: Yes Manufacture type: Cargo
      Fiat Model: Doblo Model series: Doblo Type of engine: JTD 16V Size of motor: 1.3 Brand of engine: 188A9.000 Body: Van From date: 01-05-2004 To date: 01-12-2006 Fuel: Diesel Approved: Yes Manufacture type: Cargo
      Fiat Model: Doblo Model series: Doblo Type of engine: Multijet Size of motor: 1.2 Brand of engine: 199A3.000 Type description: 263 Body: Platform / Chassis From date: 01-02-2010 Fuel: Diesel Approved: Yes
      Fiat Model: Doblo Model series: Doblo Type of engine: Multijet Size of motor: 1.3 Brand of engine: 199A3.000 Type description: 152 Body: MPV From date: 01-02-2010 Fuel: Diesel Approved: Yes
      Fiat Model: Doblo Model series: Doblo Type of engine: Multijet Size of motor: 1.3 Brand of engine: 199A3.000 Type description: 263 Body: Van From date: 01-02-2010 Fuel: Diesel Approved: Yes
      Fiat Model: Fiorino Model series: Fiorino Model type: QUBO Type of engine: Multijet Size of motor: 1.3 Brand of engine: 199A2.000 Type description: 300 Body: MPV From date: 01-02-2008 Fuel: Diesel Approved: Yes
      Fiat Model: Fiorino Model series: Fiorino MPV Type of engine: Multijet Size of motor: 1.2 Brand of engine: 199A2.000,199A9.000 Type description: 225_ Body: MPV From date: 01-11-2007 Fuel: Diesel Approved: Yes
      Fiat Model: Fiorino Model series: Fiorino MPV Type of engine: Multijet Size of motor: 1.2 Brand of engine: 199B1.000 Type description: 225_ Body: MPV From date: 01-01-2011 Fuel: Diesel Approved: Yes
      Fiat Model: Fiorino Model series: Fiorino Type of engine: Multijet Size of motor: 1.3 Brand of engine: 199A2.000 Type description: 225 Body: Van From date: 01-11-2007 Fuel: Diesel Approved: Yes
      Fiat Model: Fiorino Model series: Fiorino Type of engine: Multijet Size of motor: 1.3 Brand of engine: 199A9.000 Type description: 225 Body: Van From date: 01-11-2007 Fuel: Diesel Approved: Yes
      Fiat Model: Idea Model series: Idea Type of engine: JTD Size of motor: 1.3 Brand of engine: 188A9.000 Body: MPV From date: 01-01-2004 Fuel: Diesel Approved: Yes
      Fiat Model: Idea Model series: Idea Type of engine: Multijet Size of motor: 1.3 Brand of engine: 199A3.000 Type description: 135_ Body: MPV From date: 01-10-2005 Fuel: Diesel Approved: Yes
      Fiat Model: Linea Model series: Linea Type of engine: Multijet Size of motor: 1.3 Brand of engine: 199A3.000 From date: 01-06-2007 Fuel: Diesel Approved: Yes
      Fiat Model: Panda Model series: Panda Model type: 4x4 Type of engine: JTD Size of motor: 1.3 Brand of engine: 188A8.000 Type description: 169 Body: Hatchback From date: 01-10-2004 Fuel: Diesel Approved: Yes
      Fiat Model: Panda Model series: Panda Model type: 4x4 Type of engine: JTD Size of motor: 1.3 Brand of engine: 188A9.000 Type description: 169 Body: Hatchback From date: 01-10-2004 Fuel: Diesel Approved: Yes
      Fiat Model: Panda Model series: Panda Model type: 4x4 Type of engine: Multijet Size of motor: 1.3 Brand of engine: 169A1.000 Type description: 169 Body: Twin Cab From date: 01-01-2006 Fuel: Diesel Approved: Yes
      Fiat Model: Panda Model series: Panda Type of engine: JTD Size of motor: 1.3 Brand of engine: 188A8.000 Type description: 169 Body: Hatchback From date: 01-09-2003 Fuel: Diesel Approved: Yes
      Fiat Model: Panda Model series: Panda Type of engine: JTD Size of motor: 1.3 Brand of engine: 188A9.000 Type description: 169 Body: Hatchback From date: 01-09-2003 Fuel: Diesel Approved: Yes
      Fiat Model: Panda Model series: Panda Type of engine: Multijet Size of motor: 1.2 Brand of engine: 169A1.000 Type description: 169 Body: Hatchback From date: 01-06-2006 To date: 01-08-2013 Fuel: Diesel Approved: Yes
      Fiat Model: Punto Model series: Grande Punto Type of engine: Multijet Size of motor: 1.2 Brand of engine: 199A2.000 Type description: 199 Body: Van From date: 01-04-2008 Fuel: Diesel Approved: Yes
      Fiat Model: Punto Model series: Grande Punto Type of engine: Multijet Size of motor: 1.3 Brand of engine: 199A2.000 Type description: 199 Body: Hatchback From date: 01-10-2005 Fuel: Diesel Approved: Yes
      Fiat Model: Punto Model series: Grande Punto Type of engine: Multijet Size of motor: 1.3 Brand of engine: 199A3.000 Type description: 199 Body: Hatchback From date: 01-10-2005 To date: 01-12-2010 Fuel: Diesel Approved: Yes
      Fiat Model: Punto Model series: Punto Evo Type of engine: MultiJet Size of motor: 1.3 Brand of engine: 199A2.000 Type description: 199_ Body: Hatchback From date: 01-09-2010 Fuel: Diesel Approved: Yes
      Fiat Model: Punto Model series: Punto Evo Type of engine: Multijet Size of motor: 1.3 Brand of engine: 199A3.000 Type description: 199 Body: Hatchback From date: 01-10-2009 To date: 01-02-2012 Fuel: Diesel Approved: Yes
      Fiat Model: Punto Model series: Punto Type of engine: JTD Size of motor: 1.3 Brand of engine: 188A9.000 Body: Hatchback From date: 01-06-2003 To date: 01-03-2012 Fuel: Diesel Approved: Yes
      Fiat Model: Punto Model series: Punto Type of engine: Multijet Size of motor: 1.3 Brand of engine: 199A2.000 Type description: 199 Body: Hatchback From date: 01-03-2012 Fuel: Diesel Approved: Yes
      Fiat Model: Punto Model series: Punto Type of engine: Multijet Size of motor: 1.3 Brand of engine: 199A9.000 Type description: 199 Body: Hatchback From date: 01-03-2012 Fuel: Diesel Approved: Yes
      Fiat Model: Strada Model series: Strada Type of engine: Multijet Size of motor: 1.3 Brand of engine: 223A9.000 Type description: 178 Body: Pick Up From date: 01-05-2006 Fuel: Diesel Approved: Yes
      Lancia Model: Musa Model series: Musa Type of engine: Multijet Size of motor: 1.3 Brand of engine: 188A9.000 Body: MPV From date: 01-10-2004 To date: 01-09-2012 Fuel: Diesel Approved: Yes
      Lancia Model: Musa Model series: Musa Type of engine: Multijet Size of motor: 1.3 Brand of engine: 199A3.000 Body: MPV From date: 01-09-2006 To date: 01-09-2012 Fuel: Diesel Approved: Yes
      Lancia Model: Ypsilon Model series: Ypsilon Type of engine: JTD Size of motor: 1.3 Brand of engine: 188A9.000 Body: Hatchback From date: 01-10-2003 To date: 01-12-2011 Fuel: Diesel Approved: Yes
      Lancia Model: Ypsilon Model series: Ypsilon Type of engine: Multijet Size of motor: 1.3 Brand of engine: 199A2.000 Body: Hatchback From date: 01-09-2006 To date: 01-12-2011 Fuel: Diesel Approved: Yes
      Lancia Model: Ypsilon Model series: Ypsilon Type of engine: Multijet Size of motor: 1.3 Brand of engine: 199A3.000 Body: Hatchback From date: 01-09-2006 To date: 01-12-2011 Fuel: Diesel Approved: Yes
      1 / 7
