Vare nr.: F032116366

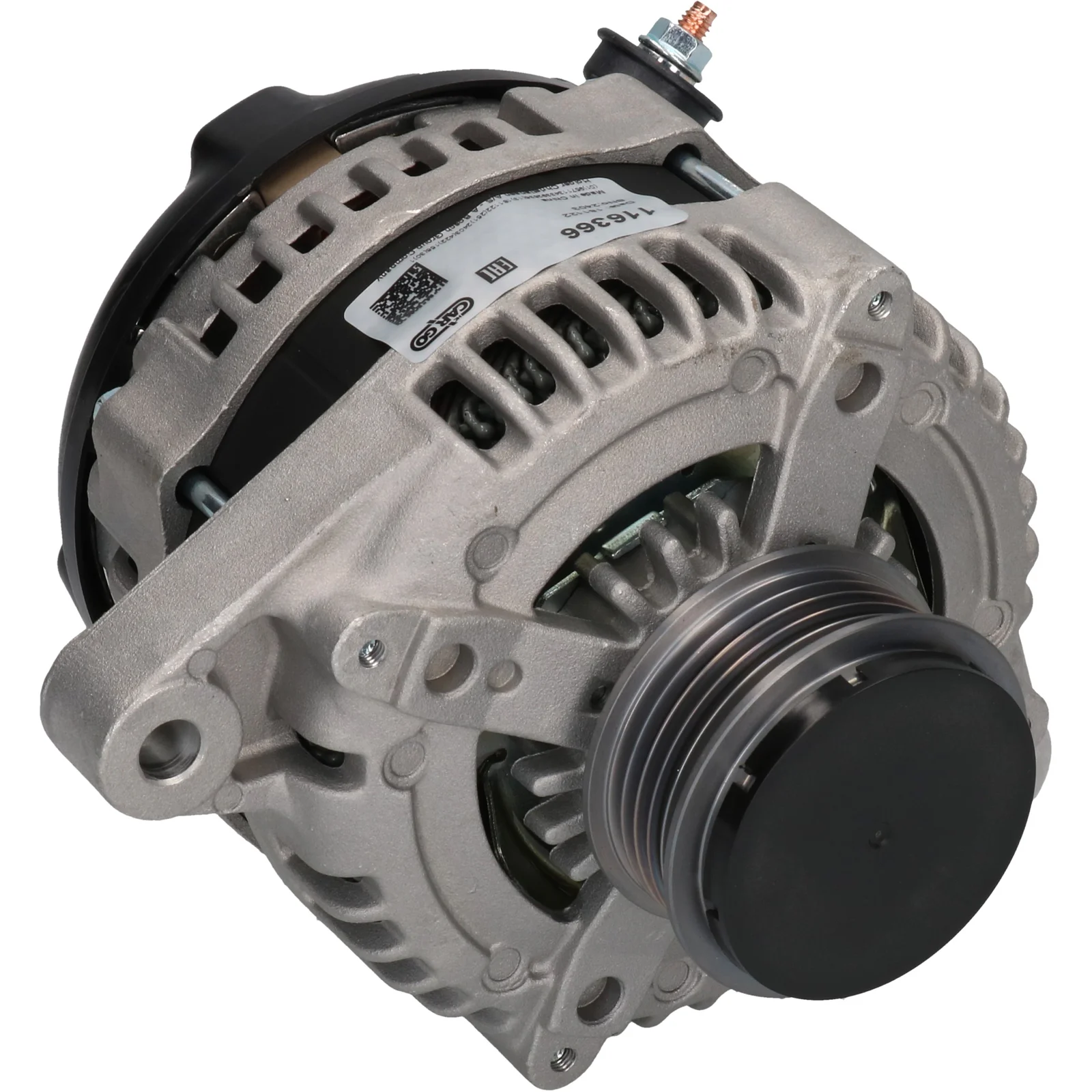

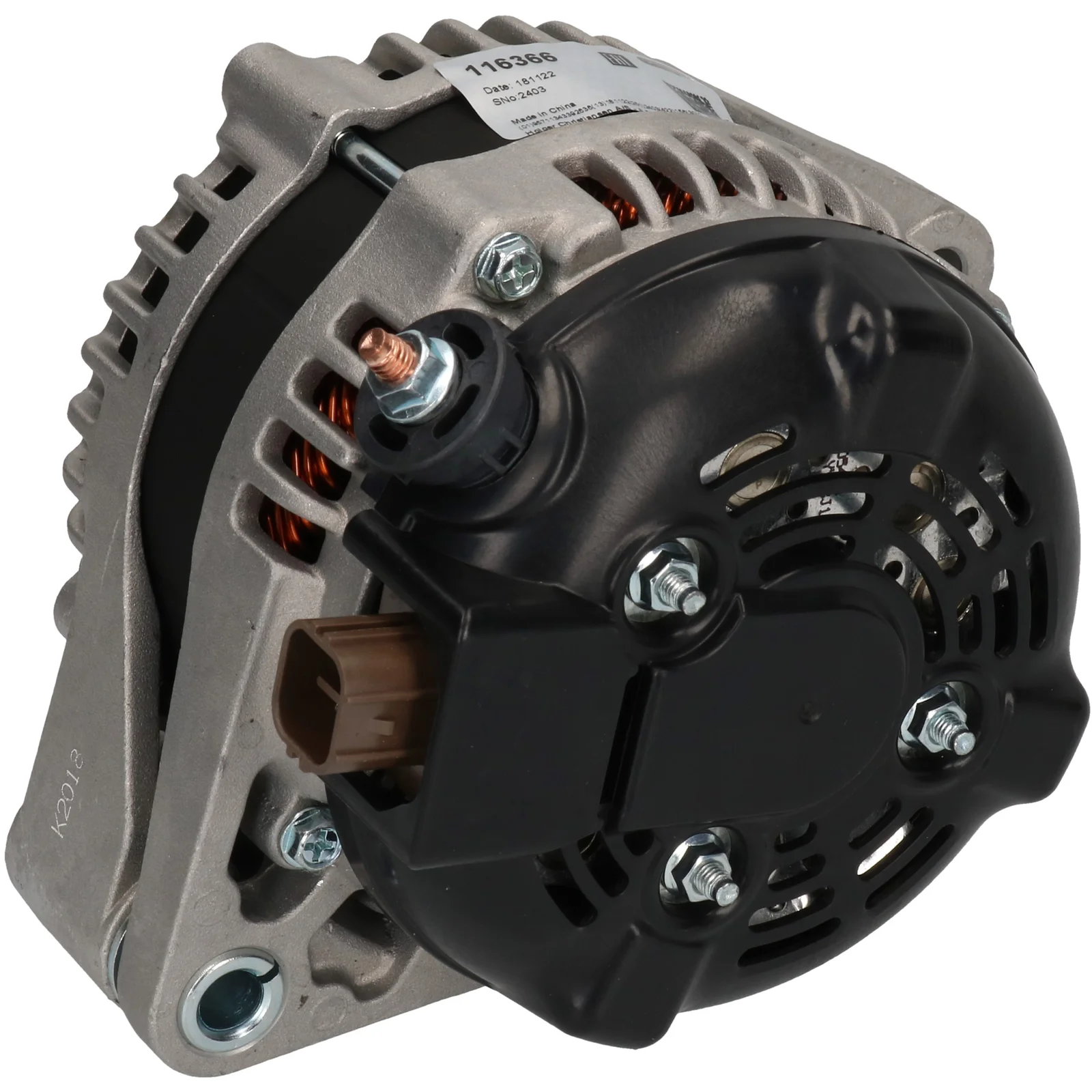

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 130, Rotation: CW, Remskive dia.: 58,20

Beskrivelse

Spænding: 14
Amp: 130
Drevskive diff.: 92,50
Bredde/beslag arm: 53,00
Bøjlehull: 10,20
Bælte. just. bøjlehull pos.: 55
Bælte. just. bøjlehull 1: 9,80
Drevskive dia.: 58,20
Riller/drevskive: 5
Radius: 90,00
Radius 2: 86,00
B+: M6
Position/B+ i min.: 44
D+ Størrelse: Stik
Rotationsretning: med uret
Stik no.: PL78
Total længde mm: 165,00
Terminaltype: S-IG-L-DF/DFM
Drevskive: FW
Kølevifte: IF
Regulator type: IR

Specifikation

B+ M6
Belt. adj. bracket hole 1 9.80
Belt. adj. brackethole pos. 55
Plug no. PL78
Bracket hole 10.20
Position/B+ in min. 44
Pulley FW
Pulley dia. 58.20
Pulley dist. 92.50
Radius 90.00
D+ Size Plug
Radius 2 86.00
Regulator type IR
Rotation CW
Fan IF
Grooves/pulley 5
Terminal type S-IG-L-DF/DFM
Voltage 14
Total length 165.00 mm
Width/holder arm 53.00
Amp 130
  • OEM

    F032116366, 1986A01192, 27060-27040, 104210-3050, 104210-3051, 104210-3052
  • Konkurrentreferens

    A6027, A6027(DENSO), A6027PR, A6676S, CAL40147, DAN1345, DRA0857, DRA4275, J5112132, LRA02298, 8EL011711-281, 28-5852, 235.190.1302, 235.328.1302, 112297, 210859, 210859A, 401721RI, 9212488, 12060813, 944390904070
  • NormaliseratArtNr

    a6027, a6027denso, a6027pr, a6676s, cal40147, dan1345, dra0857, dra4275, f032116366, j5112132, lra02298, 8el011711281, 1986a01192, 112297, 210859, 210859a, 285852, 401721ri, 9212488, 12060813, 1042103050, 1042103051, 1042103052, 2351901302, 2353281302, 2706027040, 944390904070
  • Passar modeller

    Toyota Model: Avensis Model series: Avensis Model type: Verso Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1CD-FTV Type description: AC_ Body: MPV From date: 01-08-2001 To date: 01-08-2005 Fuel: Diesel Approved: Yes
    Toyota Model: Corolla Model series: Corolla Model type: Verso Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1CD-FTV Type description: E12 Body: MPV From date: 01-01-2002 To date: 01-05-2004 Fuel: Diesel Approved: Yes Manufacture type: verso
    Toyota Model: Corolla Model series: Corolla Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1CD-FTV Type description: E12_, 12J_ Body: Estate From date: 01-01-2002 To date: 01-02-2007 Fuel: Diesel Approved: Yes
    Toyota Model: Corolla Model series: Corolla Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1CD-FTV Type description: E12_, 12J_ Body: Hatchback From date: 01-01-2002 To date: 01-12-2006 Fuel: Diesel Approved: Yes
    Toyota Model: Corolla Model series: Corolla Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1CD-FTV Type description: _E12U_, _E12J_ Body: Hatchback From date: 01-05-2003 To date: 01-02-2007 Fuel: Diesel Approved: Yes
    Toyota Model: RAV 4 Model series: RAV 4 Model type: 4WD Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1CD-FTV Type description: XA2 From date: 01-05-2001 To date: 01-11-2005 Fuel: Diesel Approved: Yes
