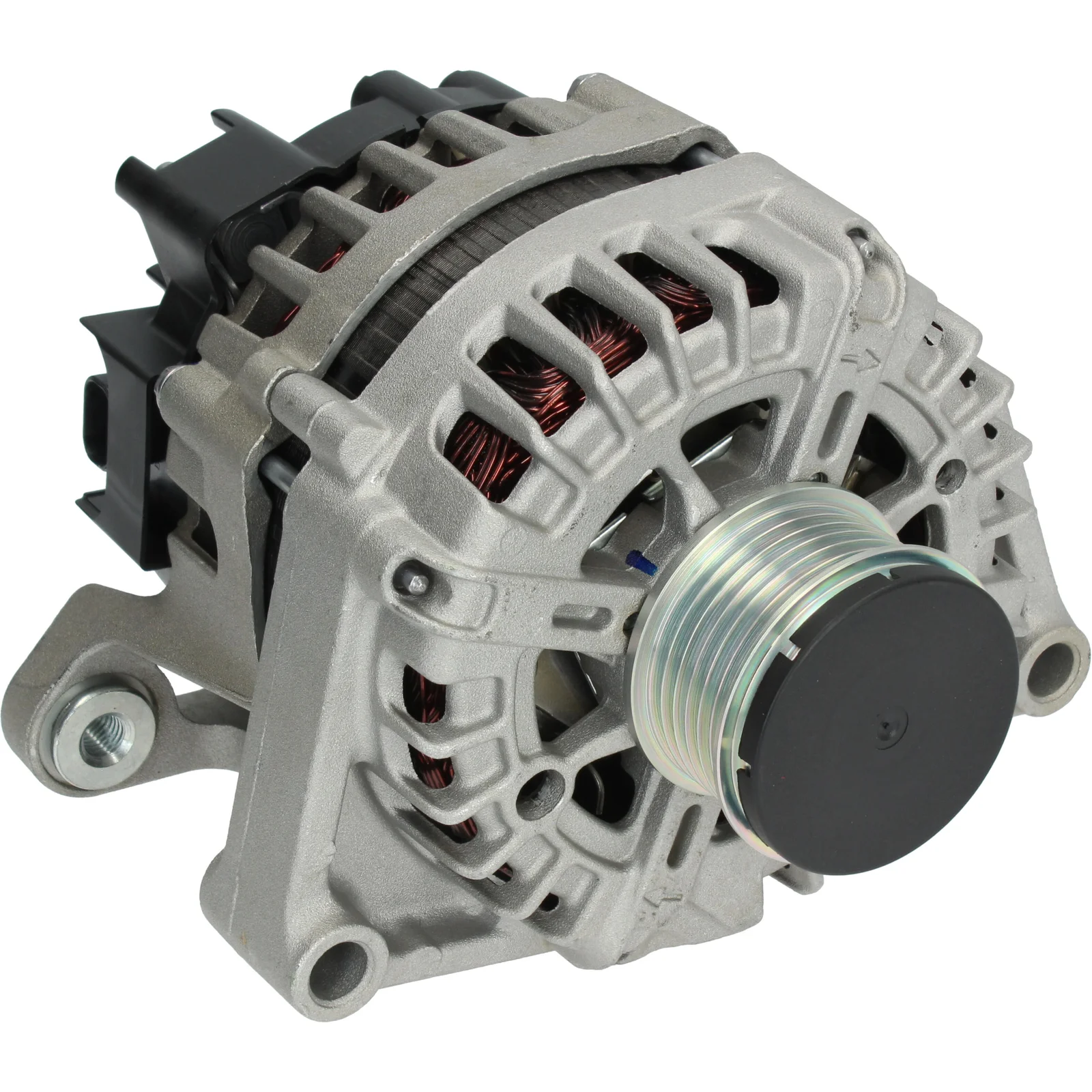

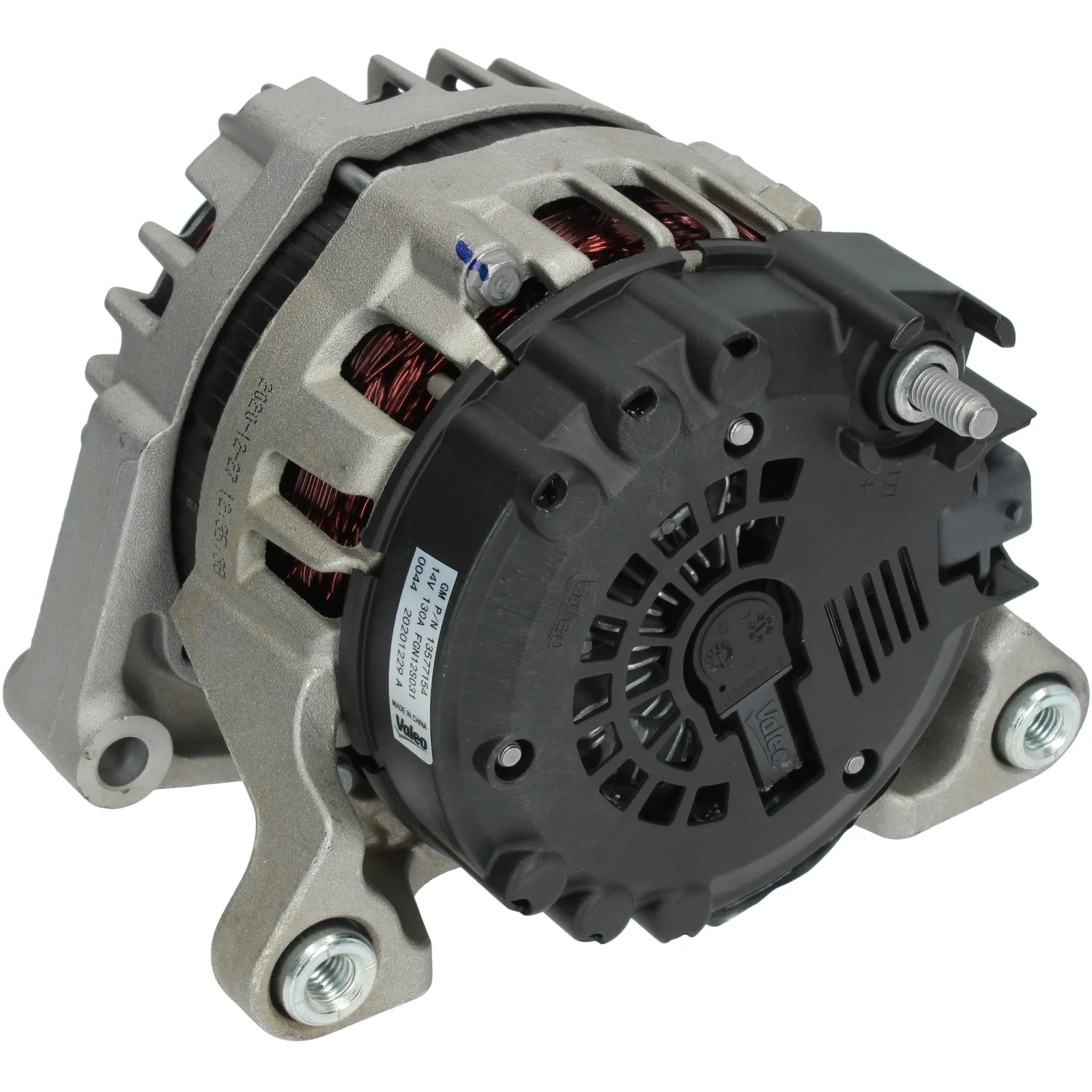

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032116389

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, A: 120, Rotation: CW, Monteringsbeslag afstand: 60,50

Beskrivelse

Spænding: 14
Amp: 120
Remskive placering: 54,40
Bredde/beslagarm: 33,40
Mount. beslagdist.: 60,50
Beslagshul: 10,70
Bæltejustering beslaghul pos.: 50
Bæltejustering beslaghul 1: 10,60
Remskive dia.: 53,60
Riller/remskive: 6
Radius: 92,00
Radius 2: 92,00
B+: M8
Position/B+ i min.: 56
D+ Størrelse: Stik
Rotation: CW
Stik nr.: PL180
Total længde mm: 187,00
Terminaltype: L-F
Kommunikation: PWM
Remskive: SP/FW
Ventilator: IF
Regulator type: IR
Bemærkninger: Denne generator har en PWM-terminal på regulatoren. Det anbefales at bruge OEM-nummeret til at kontrollere egnethed, inden der bestilles.

Filer

Specifikation

B+ M8
Communication PWM
Mount. bracket dist. 60.50
Belt. adj. bracket hole 1 10.60
Belt. adj. brackethole pos. 50
Plug no. PL180
Bracket hole 10.70
Position/B+ in min. 56
Pulley SP/FW
Pulley dia. 53.60
Pulley dist. 54.40
Radius 92.00
D+ Size Plug
Radius 2 92.00
Regulator type IR
Remarks This Alternator has a PWM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Fan IF
Grooves/pulley 6
Terminal type L-F
Voltage 14
Total length 187.00 mm
Width/holder arm 33.40
Amp 120

  • OEM
    F032116389, TG12C072, 2605854A, 13500583

  • Konkurrentreferens
    LRA04423, 28-8532, 40729, 89216847

  • NormaliseratArtNr
    f032116389, lra04423, tg12c072, 40729, 288532, 2605854a, 13500583, 89216847

  • Passar modeller
    Opel Model: Astra Model series: Astra J Model type: ecoFlex Size of motor: 1.4 Brand of engine: A14XEL Body: Hatchback From date: 01-12-2009 To date: 01-10-2015 Fuel: Gasoline Approved: Yes
    Opel Model: Astra Model series: Astra J Model type: Ecoflex Size of motor: 1.4 Brand of engine: A14XER Body: Estate From date: 01-10-2010 To date: 01-10-2015 Fuel: Gasoline Approved: Yes Manufacture type: SPORTS TOU
    Opel Model: Astra Model series: Astra J Model type: ecoFlex Size of motor: 1.4 Brand of engine: A14XER Body: Hatchback From date: 01-12-2009 To date: 01-10-2015 Fuel: Gasoline Approved: Yes
    Opel Model: Astra Model series: Astra J Model type: GTC Size of motor: 1.4 Brand of engine: A14NET Body: Hatchback From date: 01-10-2011 Fuel: Gasoline Approved: Yes
    Opel Model: Astra Model series: Astra J Model type: LPG Size of motor: 1.4 Brand of engine: A14NET From date: 01-07-2014 Fuel: Bi-Fuel Approved: Yes
    Opel Model: Astra Model series: Astra J Model type: LPG Type of engine: BiFuel Size of motor: 1.4 Brand of engine: A14NET Body: Hatchback From date: 01-01-2012 To date: 01-10-2015 Fuel: Bi-Fuel Approved: Yes
    Opel Model: Astra Model series: Astra J Size of motor: 1.4 Brand of engine: A14NEL Body: Hatchback From date: 01-10-2011 Fuel: Gasoline Approved: Yes
    Opel Model: Astra Model series: Astra J Size of motor: 1.4 Brand of engine: A14XER Body: Hatchback From date: 01-10-2011 To date: 01-10-2015 Fuel: Gasoline Approved: Yes
    Opel Model: Astra Model series: Astra J Size of motor: 1.4 Brand of engine: A14XER From date: 01-06-2012 To date: 01-10-2015 Fuel: Gasoline Approved: Yes
    Opel Model: Astra Model series: Astra J Type of engine: Turbo Size of motor: 1.4 Brand of engine: A14NEL Body: Estate From date: 01-10-2010 To date: 01-10-2015 Fuel: Gasoline Approved: Yes Manufacture type: SPORTS TOU
    Opel Model: Astra Model series: Astra J Type of engine: Turbo Size of motor: 1.4 Brand of engine: A14NEL Body: Hatchback From date: 01-10-2010 To date: 01-10-2015 Fuel: Gasoline Approved: Yes
    Opel Model: Astra Model series: Astra J Type of engine: Turbo Size of motor: 1.4 Brand of engine: A14NET Body: Estate From date: 01-10-2010 To date: 01-10-2015 Fuel: Gasoline Approved: Yes Manufacture type: SPORTS TOU
    Opel Model: Astra Model series: Astra J Type of engine: Turbo Size of motor: 1.4 Brand of engine: A14NET Body: Hatchback From date: 01-12-2009 To date: 01-10-2015 Fuel: Gasoline Approved: Yes
    Opel Model: Astra Model series: Astra J Type of engine: Turbo Size of motor: 1.4 Brand of engine: A14NET From date: 01-06-2012 Fuel: Gasoline Approved: Yes
    Opel Model: Astra Model series: Astra Sports Tourer Model type: LPG Type of engine: BiFuel Size of motor: 1.4 Brand of engine: A14NET Type description: J Body: Estate From date: 01-12-2011 To date: 01-10-2015 Fuel: Bi-Fuel Approved: Yes
    Vauxhall Model: Astra Model series: Astra MK V Type of engine: Turbo Size of motor: 1.4 Brand of engine: A14NEL Body: Hatchback From date: 01-08-2010 To date: 01-10-2015 Fuel: Gasoline Approved: Yes
    Vauxhall Model: Astra Model series: Astra MK VI Size of motor: 1.4 Brand of engine: A14NEL Body: Hatchback From date: 01-10-2011 To date: 01-10-2015 Fuel: Gasoline Approved: Yes
    Vauxhall Model: Astra Model series: Astra MK VI Size of motor: 1.4 Brand of engine: A14NET Body: Hatchback From date: 01-10-2011 To date: 01-10-2015 Fuel: Gasoline Approved: Yes
    Vauxhall Model: Astra Model series: Astra MK VI Type of engine: 16V Size of motor: 1.4 Brand of engine: A14NET Body: Estate From date: 01-10-2010 To date: 01-10-2015 Fuel: Gasoline Approved: Yes Manufacture type: SPORTS TOU
    Vauxhall Model: Astra Model series: Astra MK VI Type of engine: 16V Size of motor: 1.4 Brand of engine: A14XER Body: Estate From date: 01-10-2010 To date: 01-10-2015 Fuel: Gasoline Approved: Yes Manufacture type: SPORTS TOU
    Vauxhall Model: Astra Model series: Astra MK VI Type of engine: 16V VVT Size of motor: 1.4 Brand of engine: A14NET Body: Hatchback From date: 01-12-2009 To date: 01-10-2015 Fuel: Gasoline Approved: Yes
    Vauxhall Model: Astra Model series: Astra MK VI Type of engine: 16V VVT Size of motor: 1.4 Brand of engine: A14XEL Body: Hatchback From date: 01-12-2009 To date: 01-10-2015 Fuel: Gasoline Approved: Yes
    Vauxhall Model: Astra Model series: Astra MK VI Type of engine: 16V VVT Size of motor: 1.4 Brand of engine: A14XER Body: Hatchback From date: 01-12-2009 To date: 01-10-2015 Fuel: Gasoline Approved: Yes
    1 / 5
  • Beskrivelse
    Spænding: 14
    Amp: 120
    Remskive placering: 54,40
    Bredde/beslagarm: 33,40
    Mount. beslagdist.: 60,50
    Beslagshul: 10,70
    Bæltejustering beslaghul pos.: 50
    Bæltejustering beslaghul 1: 10,60
    Remskive dia.: 53,60
    Riller/remskive: 6
    Radius: 92,00
    Radius 2: 92,00
    B+: M8
    Position/B+ i min.: 56
    D+ Størrelse: Stik
    Rotation: CW
    Stik nr.: PL180
    Total længde mm: 187,00
    Terminaltype: L-F
    Kommunikation: PWM
    Remskive: SP/FW
    Ventilator: IF
    Regulator type: IR
    Bemærkninger: Denne generator har en PWM-terminal på regulatoren. Det anbefales at bruge OEM-nummeret til at kontrollere egnethed, inden der bestilles.

    Filer

  • Specifikation
    B+ M8
    Communication PWM
    Mount. bracket dist. 60.50
    Belt. adj. bracket hole 1 10.60
    Belt. adj. brackethole pos. 50
    Plug no. PL180
    Bracket hole 10.70
    Position/B+ in min. 56
    Pulley SP/FW
    Pulley dia. 53.60
    Pulley dist. 54.40
    Radius 92.00
    D+ Size Plug
    Radius 2 92.00
    Regulator type IR
    Remarks This Alternator has a PWM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Fan IF
    Grooves/pulley 6
    Terminal type L-F
    Voltage 14
    Total length 187.00 mm
    Width/holder arm 33.40
    Amp 120
  • Køretøjsmatchning

    • OEM
      F032116389, TG12C072, 2605854A, 13500583

    • Konkurrentreferens
      LRA04423, 28-8532, 40729, 89216847

    • NormaliseratArtNr
      f032116389, lra04423, tg12c072, 40729, 288532, 2605854a, 13500583, 89216847

    • Passar modeller
      Opel Model: Astra Model series: Astra J Model type: ecoFlex Size of motor: 1.4 Brand of engine: A14XEL Body: Hatchback From date: 01-12-2009 To date: 01-10-2015 Fuel: Gasoline Approved: Yes
      Opel Model: Astra Model series: Astra J Model type: Ecoflex Size of motor: 1.4 Brand of engine: A14XER Body: Estate From date: 01-10-2010 To date: 01-10-2015 Fuel: Gasoline Approved: Yes Manufacture type: SPORTS TOU
      Opel Model: Astra Model series: Astra J Model type: ecoFlex Size of motor: 1.4 Brand of engine: A14XER Body: Hatchback From date: 01-12-2009 To date: 01-10-2015 Fuel: Gasoline Approved: Yes
      Opel Model: Astra Model series: Astra J Model type: GTC Size of motor: 1.4 Brand of engine: A14NET Body: Hatchback From date: 01-10-2011 Fuel: Gasoline Approved: Yes
      Opel Model: Astra Model series: Astra J Model type: LPG Size of motor: 1.4 Brand of engine: A14NET From date: 01-07-2014 Fuel: Bi-Fuel Approved: Yes
      Opel Model: Astra Model series: Astra J Model type: LPG Type of engine: BiFuel Size of motor: 1.4 Brand of engine: A14NET Body: Hatchback From date: 01-01-2012 To date: 01-10-2015 Fuel: Bi-Fuel Approved: Yes
      Opel Model: Astra Model series: Astra J Size of motor: 1.4 Brand of engine: A14NEL Body: Hatchback From date: 01-10-2011 Fuel: Gasoline Approved: Yes
      Opel Model: Astra Model series: Astra J Size of motor: 1.4 Brand of engine: A14XER Body: Hatchback From date: 01-10-2011 To date: 01-10-2015 Fuel: Gasoline Approved: Yes
      Opel Model: Astra Model series: Astra J Size of motor: 1.4 Brand of engine: A14XER From date: 01-06-2012 To date: 01-10-2015 Fuel: Gasoline Approved: Yes
      Opel Model: Astra Model series: Astra J Type of engine: Turbo Size of motor: 1.4 Brand of engine: A14NEL Body: Estate From date: 01-10-2010 To date: 01-10-2015 Fuel: Gasoline Approved: Yes Manufacture type: SPORTS TOU
      Opel Model: Astra Model series: Astra J Type of engine: Turbo Size of motor: 1.4 Brand of engine: A14NEL Body: Hatchback From date: 01-10-2010 To date: 01-10-2015 Fuel: Gasoline Approved: Yes
      Opel Model: Astra Model series: Astra J Type of engine: Turbo Size of motor: 1.4 Brand of engine: A14NET Body: Estate From date: 01-10-2010 To date: 01-10-2015 Fuel: Gasoline Approved: Yes Manufacture type: SPORTS TOU
      Opel Model: Astra Model series: Astra J Type of engine: Turbo Size of motor: 1.4 Brand of engine: A14NET Body: Hatchback From date: 01-12-2009 To date: 01-10-2015 Fuel: Gasoline Approved: Yes
      Opel Model: Astra Model series: Astra J Type of engine: Turbo Size of motor: 1.4 Brand of engine: A14NET From date: 01-06-2012 Fuel: Gasoline Approved: Yes
      Opel Model: Astra Model series: Astra Sports Tourer Model type: LPG Type of engine: BiFuel Size of motor: 1.4 Brand of engine: A14NET Type description: J Body: Estate From date: 01-12-2011 To date: 01-10-2015 Fuel: Bi-Fuel Approved: Yes
      Vauxhall Model: Astra Model series: Astra MK V Type of engine: Turbo Size of motor: 1.4 Brand of engine: A14NEL Body: Hatchback From date: 01-08-2010 To date: 01-10-2015 Fuel: Gasoline Approved: Yes
      Vauxhall Model: Astra Model series: Astra MK VI Size of motor: 1.4 Brand of engine: A14NEL Body: Hatchback From date: 01-10-2011 To date: 01-10-2015 Fuel: Gasoline Approved: Yes
      Vauxhall Model: Astra Model series: Astra MK VI Size of motor: 1.4 Brand of engine: A14NET Body: Hatchback From date: 01-10-2011 To date: 01-10-2015 Fuel: Gasoline Approved: Yes
      Vauxhall Model: Astra Model series: Astra MK VI Type of engine: 16V Size of motor: 1.4 Brand of engine: A14NET Body: Estate From date: 01-10-2010 To date: 01-10-2015 Fuel: Gasoline Approved: Yes Manufacture type: SPORTS TOU
      Vauxhall Model: Astra Model series: Astra MK VI Type of engine: 16V Size of motor: 1.4 Brand of engine: A14XER Body: Estate From date: 01-10-2010 To date: 01-10-2015 Fuel: Gasoline Approved: Yes Manufacture type: SPORTS TOU
      Vauxhall Model: Astra Model series: Astra MK VI Type of engine: 16V VVT Size of motor: 1.4 Brand of engine: A14NET Body: Hatchback From date: 01-12-2009 To date: 01-10-2015 Fuel: Gasoline Approved: Yes
      Vauxhall Model: Astra Model series: Astra MK VI Type of engine: 16V VVT Size of motor: 1.4 Brand of engine: A14XEL Body: Hatchback From date: 01-12-2009 To date: 01-10-2015 Fuel: Gasoline Approved: Yes
      Vauxhall Model: Astra Model series: Astra MK VI Type of engine: 16V VVT Size of motor: 1.4 Brand of engine: A14XER Body: Hatchback From date: 01-12-2009 To date: 01-10-2015 Fuel: Gasoline Approved: Yes
