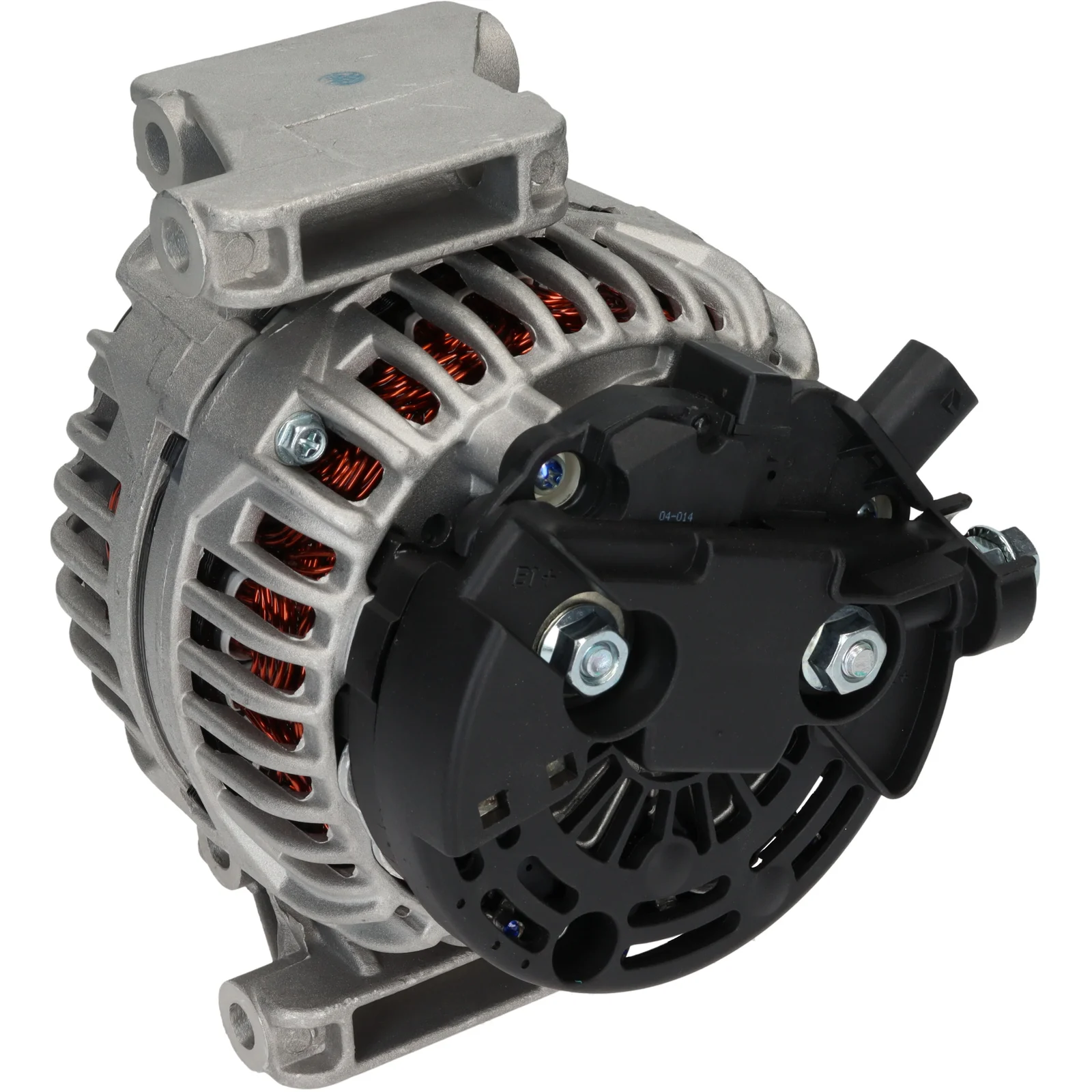

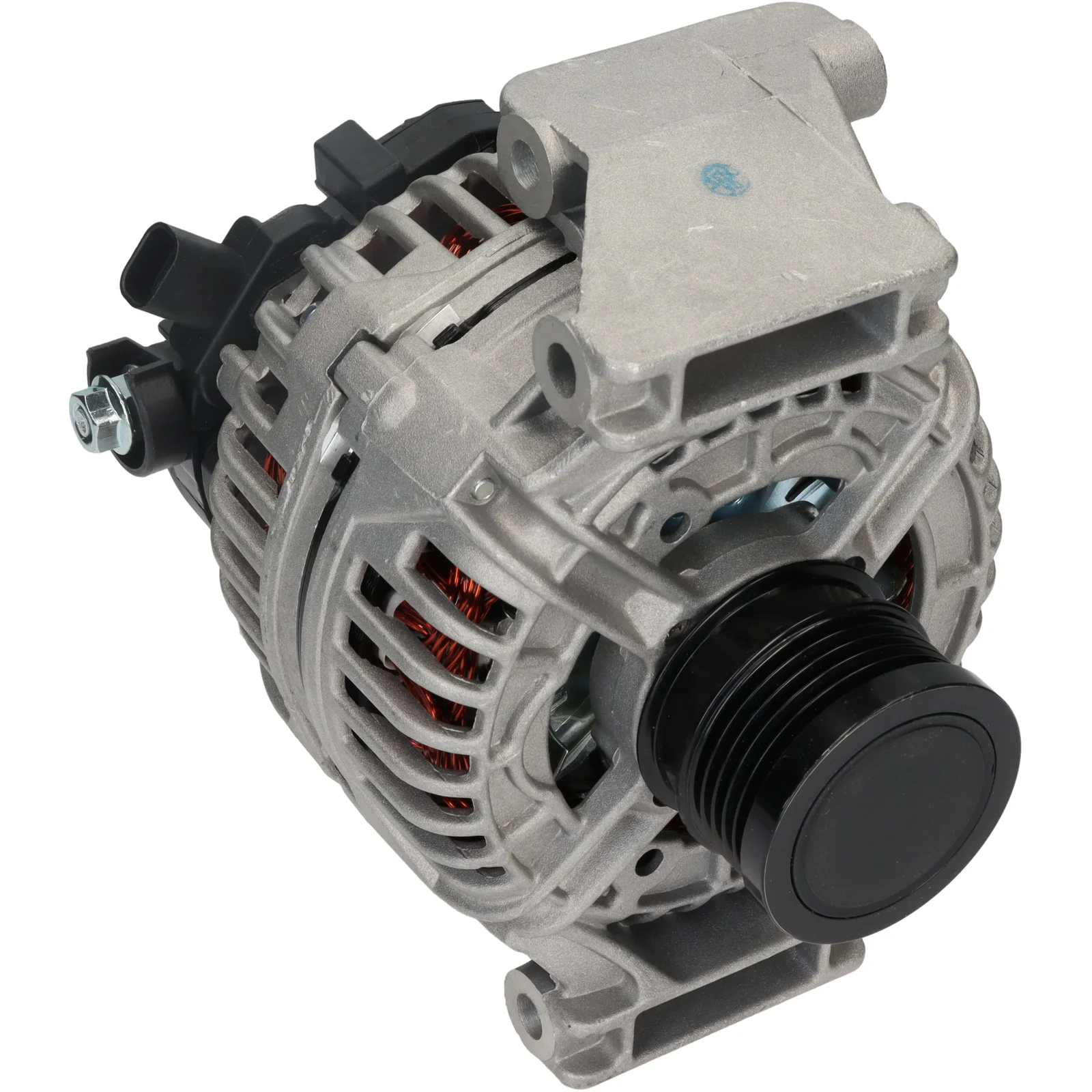

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032116468

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 100, Rotation: CW, Monteringsbeslag forfordeling: 56,00

Beskrivelse

Spænding: 14
Amp: 100
Remskive afstand: 32,00
Bredde/holderarm: 79,00
Mount. beslag afstand: 56,00
Beslaghul: 9,00
Bæltejust. beslag hul 1: 9,00
Bæltejust. beslag hul 2: 9,00
Remskive dia.: 56,80
Riller/remskive: 5
Radius: 83,00
Radius 2: 83,00
B+: M8
Position/B+ i min.: 13
D+ Størrelse: Stik
Rotation: med uret
Stik nr.: PL75
Total længde mm: 191,00
Terminaltype: L-DFM
Lagntype: Aktiv
Remskive: SP/FW
Ventilator: IF
Regulator type: IR

Filer

Specifikation

B+ M8
Mount. bracket dist. 56.00
Belt. adj. bracket hole 1 9.00
Belt. adj. bracket hole 2 9.00
Plug no. PL75
Bracket hole 9.00
Position/B+ in min. 13
Pulley SP/FW
Pulley dia. 56.80
Pulley dist. 32.00
Radius 83.00
D+ Size Plug
Radius 2 83.00
Regulator type IR
Rotation CW
Fan IF
Grooves/pulley 5
Lamp type Active
Terminal type L-DFM
Voltage 14
Total length 191.00 mm
Width/holder arm 79.00
Amp 100

  • OEM
    F032116468, 1858ir, 24455913, 93172075, 0124415026

  • Konkurrentreferens
    A0640PR, A0640S, CAL10299, DRB4011, 28-4715, 135.541.100, 209078, 209078A, 301858RI, 12090482

  • NormaliseratArtNr
    a0640pr, a0640s, cal10299, drb4011, f032116468, 1858ir, 209078, 209078a, 284715, 301858ri, 12090482, 24455913, 93172075, 0124415026, 135541100

  • Passar modeller
    Chevrolet Model: Astra Model series: Astra Size of motor: 2.2 Brand of engine: Z22SE Body: Hatchback From date: 01-08-2000 To date: 01-08-2004 Fuel: Gasoline Approved: Yes
    Chevrolet Model: Vectra Model series: Vectra Size of motor: 2.2 Brand of engine: Z22SE From date: 01-04-2002 To date: 01-04-2004 Fuel: Gasoline Approved: Yes
    Chevrolet Model: Vectra Model series: Vectra Size of motor: 2.2 Brand of engine: Z22YH From date: 01-01-2005 To date: 01-07-2006 Fuel: Gasoline Approved: Yes
    Holden Model: Astra Model series: Astra Size of motor: 1.8 Brand of engine: Z22E Type description: AH Body: Convertible From date: 01-06-2002 To date: 01-12-2006 Fuel: Gasoline Approved: Yes
    Holden Model: Astra Model series: Astra Size of motor: 2.2 Brand of engine: Z22SE Type description: TS Body: Hatchback From date: 01-09-2000 To date: 01-07-2004 Fuel: Gasoline Approved: Yes
    Opel Model: Astra Model series: Astra G Type of engine: i 16V Size of motor: 2.2 Brand of engine: Z22SE Body: Convertible From date: 01-03-2001 To date: 01-10-2005 Fuel: Gasoline Approved: Yes
    Opel Model: Astra Model series: Astra G Type of engine: i 16V Size of motor: 2.2 Brand of engine: Z22SE Body: Coupe From date: 01-09-2000 To date: 01-05-2005 Fuel: Gasoline Approved: Yes
    Opel Model: Astra Model series: Astra G Type of engine: i 16V Size of motor: 2.2 Brand of engine: Z22SE Body: Estate From date: 01-03-2001 To date: 01-07-2004 Fuel: Gasoline Approved: Yes Manufacture type: Caravan
    Opel Model: Astra Model series: Astra G Type of engine: i 16V Size of motor: 2.2 Brand of engine: Z22SE Body: Hatchback From date: 01-06-2000 To date: 01-01-2005 Fuel: Gasoline Approved: Yes
    Opel Model: Astra Model series: Astra G Type of engine: i 16V Size of motor: 2.2 Brand of engine: Z22SE From date: 01-03-2001 To date: 01-01-2005 Fuel: Gasoline Approved: Yes
    Opel Model: Signum Model series: Signum Size of motor: 2.2 Brand of engine: Z22YH Body: Hatchback From date: 01-05-2003 To date: 01-09-2008 Fuel: Gasoline Approved: Yes
    Opel Model: Vectra Model series: Vectra C Model type: Direct Size of motor: 2.2 Brand of engine: Z22YH Body: Estate From date: 01-10-2003 To date: 01-08-2008 Fuel: Gasoline Approved: Yes Manufacture type: CARAVAN
    Opel Model: Vectra Model series: Vectra C Model type: Direct Size of motor: 2.2 Brand of engine: Z22YH From date: 01-10-2003 To date: 01-08-2008 Fuel: Gasoline Approved: Yes
    Opel Model: Vectra Model series: Vectra C Model type: GTS Direct Size of motor: 2.2 Brand of engine: Z22YH Body: Hatchback From date: 01-10-2003 To date: 01-08-2008 Fuel: Gasoline Approved: Yes
    Opel Model: Vectra Model series: Vectra C Model type: GTS Type of engine: i 16V Size of motor: 2.2 Brand of engine: Z22SE Body: Hatchback From date: 01-08-2002 To date: 01-08-2008 Fuel: Gasoline Approved: Yes
    Opel Model: Vectra Model series: Vectra C Type of engine: i 16V Size of motor: 2.2 Brand of engine: Z22SE From date: 01-04-2002 To date: 01-12-2008 Fuel: Gasoline Approved: Yes
    Opel Model: Vectra Model series: Vectra C Type of engine: Turbo 16V Size of motor: 2.0 Brand of engine: Z20NET From date: 01-03-2003 To date: 01-08-2008 Fuel: Gasoline Approved: Yes
    Opel Model: Vectra Model series: Vectra C Type of engine: Turbo Size of motor: 2.0 Brand of engine: Z20NET Body: Estate From date: 01-10-2003 To date: 01-08-2008 Fuel: Gasoline Approved: Yes Manufacture type: CARAVAN
    Opel Model: Zafira Model series: Zafira A Type of engine: 16V Size of motor: 2.2 Brand of engine: Z22SE Body: MPV From date: 01-09-2000 To date: 01-06-2005 Fuel: Gasoline Approved: Yes
    Vauxhall Model: Signum Model series: Signum Type of engine: i Turbo Size of motor: 2.0 Brand of engine: Z20NET Body: Hatchback From date: 01-03-2003 To date: 01-10-2008 Fuel: Gasoline Approved: Yes
    Vauxhall Model: Vectra Model series: Vectra Model type: Direct GTS Size of motor: 2.2 Brand of engine: Z22YH Body: Hatchback From date: 01-10-2003 To date: 01-08-2005 Fuel: Gasoline Approved: Yes
    Vauxhall Model: Vectra Model series: Vectra Model type: Direct Size of motor: 2.2 Brand of engine: Z22YH Body: Estate From date: 01-10-2003 To date: 01-07-2008 Fuel: Gasoline Approved: Yes Manufacture type: estate
    Vauxhall Model: Vectra Model series: Vectra Model type: Direct Size of motor: 2.2 Brand of engine: Z22YH From date: 01-01-2002 To date: 01-10-2008 Fuel: Gasoline Approved: Yes
    Vauxhall Model: Vectra Model series: Vectra Model type: GTS Type of engine: i 16V Size of motor: 2.2 Brand of engine: Z22SE Body: Hatchback From date: 01-08-2002 To date: 01-07-2008 Fuel: Gasoline Approved: Yes
    Vauxhall Model: Vectra Model series: Vectra Type of engine: i 16V Size of motor: 2.2 Brand of engine: Z22SE From date: 01-01-2002 To date: 01-10-2008 Fuel: Gasoline Approved: Yes
    Vauxhall Model: Vectra Model series: Vectra Type of engine: Turbo 16V Size of motor: 2.0 Brand of engine: Z20NET Body: Estate From date: 01-10-2003 To date: 01-07-2008 Fuel: Gasoline Approved: Yes Manufacture type: estate
    1 / 6
