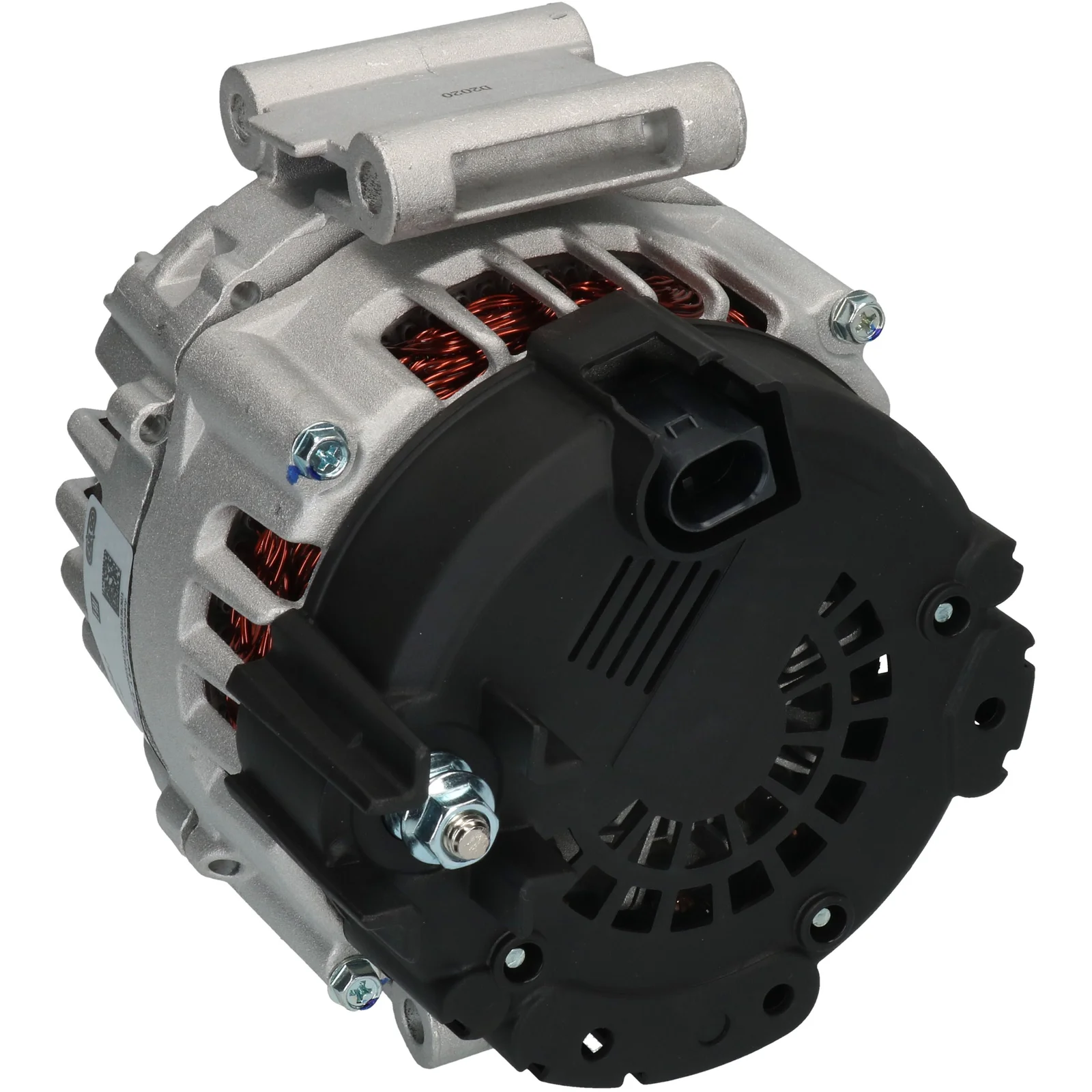

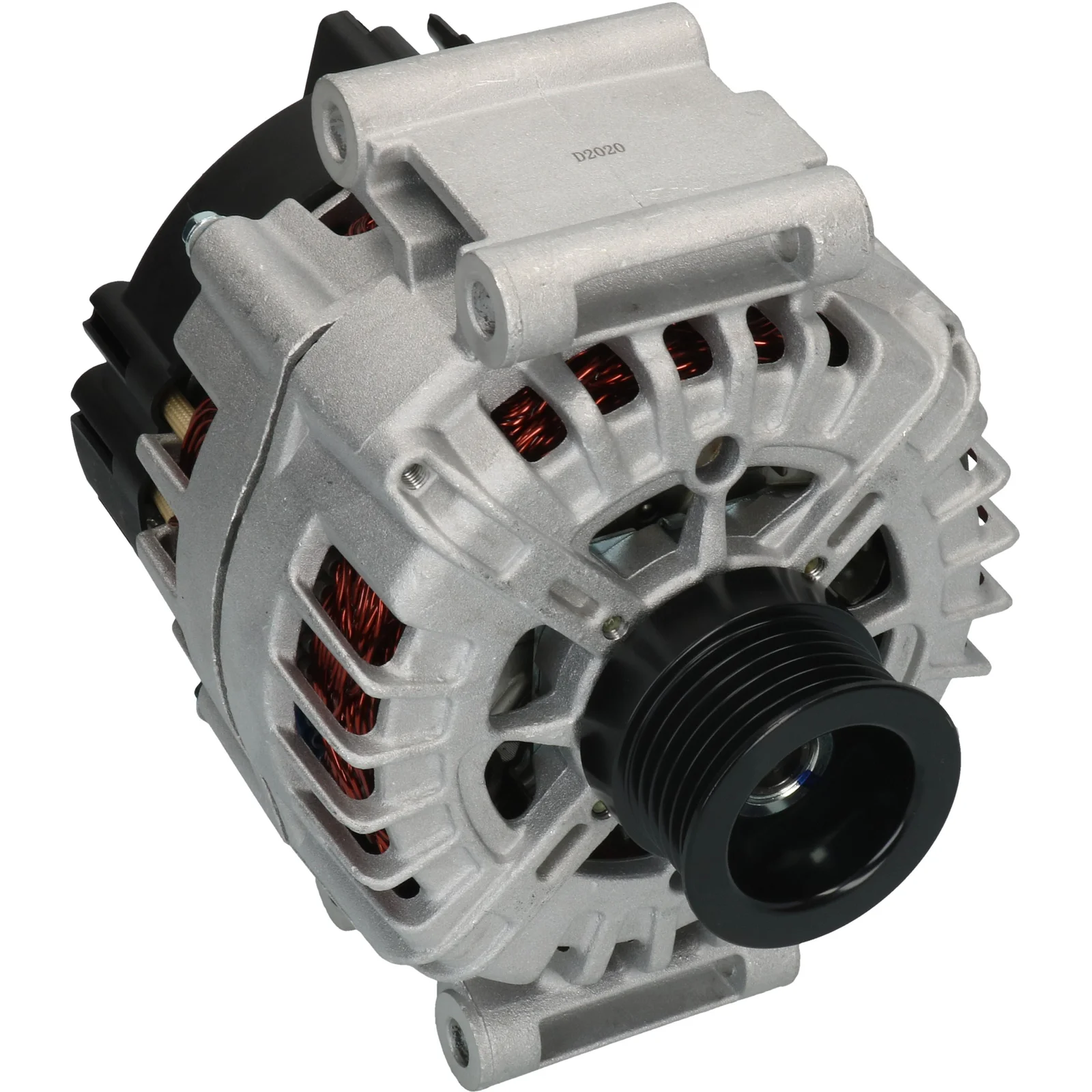

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032116487

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 180, Montering. bøjle afstand: 56.00, Kædespindel diameter: 49.50

Beskrivelse

Spænding: 14
Amp: 180
Remskive dist.: 31.50
Bredde/holder arm: 70.00
Monteringsbeslag dist.: 56.00
Beslagshul: 9.20
Remskive justering beslagshul 1: 9.20
Remskive dia.: 49.50
Riller/remskive: 6
Radius: 77.50
Radius 2: 85.00
B+: M8
Position/B+ i min.: 45
Stik nr.: PL125
Total længde mm: 191.00
Terminaltype: COM
Kommunikation: LIN
Remskive: SP
Køler: IF
Regulator type: IR
Bemærkninger: Denne generator har en COM terminal på regulatoren. Det anbefales at bruge OEM-nummeret til at kontrollere egnethed inden bestilling.

Filer

Specifikation

B+ M8
Communication LIN
Mount. bracket dist. 56.00
Belt. adj. bracket hole 1 9.20
Plug no. PL125
Bracket hole 9.20
Position/B+ in min. 45
Pulley SP
Pulley dia. 49.50
Pulley dist. 31.50
Radius 77.50
Radius 2 85.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Fan IF
Grooves/pulley 6
Terminal type COM
Voltage 14
Total length 191.00 mm
Width/holder arm 70.00
Amp 180

  • OEM
    a0141540402, F00E100550, F032116487, FG18S016, FGN18S016, 1986A00041, 2543467A, 0141540402

  • Konkurrentreferens
    A3430S, CAL15384, DRA1269, LRA03435, 28-6547, 225.301.1802, 555.973.180, 200221, 439649, 440219, 12091048, 0986047651

  • NormaliseratArtNr
    a0141540402, a3430s, cal15384, dra1269, f00e100550, f032116487, fg18s016, fgn18s016, lra03435, 1986a00041, 200221, 286547, 439649, 440219, 2543467a, 12091048, 0141540402, 555973180, 0986047651, 2253011802

  • Passar modeller
    Mercedes-Benz Model: 280 Model series: R 280 Size of motor: 3.0 Brand of engine: M272.945 Type description: W251 Body: MPV From date: 01-01-2007 To date: 01-12-2014 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 300 Model series: R 300 Size of motor: 3.0 Brand of engine: M272.945 Type description: W251 Body: MPV From date: 01-07-2009 To date: 01-12-2014 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 350 Model series: ML 350 Model type: 4 Matic Size of motor: 3.5 Brand of engine: M272.967 Type description: 164 From date: 01-02-2005 To date: 01-12-2011 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 350 Model series: R 350 Model type: 4 Matic Size of motor: 3.5 Brand of engine: M272.967 Type description: 251 Body: MPV From date: 01-08-2005 To date: 01-12-2012 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 350 Model series: R 350 Size of motor: 3.5 Brand of engine: M272.967 Type description: W251 Body: MPV From date: 01-01-2007 To date: 01-12-2012 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 350 Model series: SL 350 Size of motor: 3.5 Brand of engine: M272.968 Type description: R230 Body: Convertible From date: 01-04-2008 To date: 01-01-2012 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 350 Model series: SLK 350 Size of motor: 3.5 Brand of engine: M272.969 Type description: R171 Body: Convertible From date: 01-01-2008 To date: 01-02-2011 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 350 Model series: SLK 350 Size of motor: 3.5 Brand of engine: M276.956 Type description: R172 Body: Convertible From date: 01-02-2011 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 450 Model series: GL 450 Size of motor: 4.7 Brand of engine: M273.923 Type description: 164 From date: 01-09-2006 To date: 01-08-2012 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 500 Model series: GL 500 Size of motor: 5.5 Brand of engine: M273.963 Type description: 164 From date: 01-09-2006 To date: 01-12-2012 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 500 Model series: ML 500 Model type: 4 Matic Size of motor: 5.5 Brand of engine: M273.963 Type description: W164 From date: 01-12-2007 To date: 01-12-2011 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 500 Model series: R 500 Model type: 4 Matic Size of motor: 5.5 Brand of engine: M273.963 Type description: W251 Body: MPV From date: 01-05-2007 To date: 01-12-2014 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: R-Class Model series: R-Class Model type: 4 Matic Size of motor: 3.0 Brand of engine: M272.945 Type description: W251 Body: MPV From date: 01-05-2007 To date: 01-12-2011 Fuel: Gasoline Approved: Yes
    1 / 3
  • Beskrivelse
    Spænding: 14
    Amp: 180
    Remskive dist.: 31.50
    Bredde/holder arm: 70.00
    Monteringsbeslag dist.: 56.00
    Beslagshul: 9.20
    Remskive justering beslagshul 1: 9.20
    Remskive dia.: 49.50
    Riller/remskive: 6
    Radius: 77.50
    Radius 2: 85.00
    B+: M8
    Position/B+ i min.: 45
    Stik nr.: PL125
    Total længde mm: 191.00
    Terminaltype: COM
    Kommunikation: LIN
    Remskive: SP
    Køler: IF
    Regulator type: IR
    Bemærkninger: Denne generator har en COM terminal på regulatoren. Det anbefales at bruge OEM-nummeret til at kontrollere egnethed inden bestilling.

    Filer

  • Specifikation
    B+ M8
    Communication LIN
    Mount. bracket dist. 56.00
    Belt. adj. bracket hole 1 9.20
    Plug no. PL125
    Bracket hole 9.20
    Position/B+ in min. 45
    Pulley SP
    Pulley dia. 49.50
    Pulley dist. 31.50
    Radius 77.50
    Radius 2 85.00
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Fan IF
    Grooves/pulley 6
    Terminal type COM
    Voltage 14
    Total length 191.00 mm
    Width/holder arm 70.00
    Amp 180
  • Køretøjsmatchning

    • OEM
      a0141540402, F00E100550, F032116487, FG18S016, FGN18S016, 1986A00041, 2543467A, 0141540402

    • Konkurrentreferens
      A3430S, CAL15384, DRA1269, LRA03435, 28-6547, 225.301.1802, 555.973.180, 200221, 439649, 440219, 12091048, 0986047651

    • NormaliseratArtNr
      a0141540402, a3430s, cal15384, dra1269, f00e100550, f032116487, fg18s016, fgn18s016, lra03435, 1986a00041, 200221, 286547, 439649, 440219, 2543467a, 12091048, 0141540402, 555973180, 0986047651, 2253011802

    • Passar modeller
      Mercedes-Benz Model: 280 Model series: R 280 Size of motor: 3.0 Brand of engine: M272.945 Type description: W251 Body: MPV From date: 01-01-2007 To date: 01-12-2014 Fuel: Gasoline Approved: Yes
      Mercedes-Benz Model: 300 Model series: R 300 Size of motor: 3.0 Brand of engine: M272.945 Type description: W251 Body: MPV From date: 01-07-2009 To date: 01-12-2014 Fuel: Gasoline Approved: Yes
      Mercedes-Benz Model: 350 Model series: ML 350 Model type: 4 Matic Size of motor: 3.5 Brand of engine: M272.967 Type description: 164 From date: 01-02-2005 To date: 01-12-2011 Fuel: Gasoline Approved: Yes
      Mercedes-Benz Model: 350 Model series: R 350 Model type: 4 Matic Size of motor: 3.5 Brand of engine: M272.967 Type description: 251 Body: MPV From date: 01-08-2005 To date: 01-12-2012 Fuel: Gasoline Approved: Yes
      Mercedes-Benz Model: 350 Model series: R 350 Size of motor: 3.5 Brand of engine: M272.967 Type description: W251 Body: MPV From date: 01-01-2007 To date: 01-12-2012 Fuel: Gasoline Approved: Yes
      Mercedes-Benz Model: 350 Model series: SL 350 Size of motor: 3.5 Brand of engine: M272.968 Type description: R230 Body: Convertible From date: 01-04-2008 To date: 01-01-2012 Fuel: Gasoline Approved: Yes
      Mercedes-Benz Model: 350 Model series: SLK 350 Size of motor: 3.5 Brand of engine: M272.969 Type description: R171 Body: Convertible From date: 01-01-2008 To date: 01-02-2011 Fuel: Gasoline Approved: Yes
      Mercedes-Benz Model: 350 Model series: SLK 350 Size of motor: 3.5 Brand of engine: M276.956 Type description: R172 Body: Convertible From date: 01-02-2011 Fuel: Gasoline Approved: Yes
      Mercedes-Benz Model: 450 Model series: GL 450 Size of motor: 4.7 Brand of engine: M273.923 Type description: 164 From date: 01-09-2006 To date: 01-08-2012 Fuel: Gasoline Approved: Yes
      Mercedes-Benz Model: 500 Model series: GL 500 Size of motor: 5.5 Brand of engine: M273.963 Type description: 164 From date: 01-09-2006 To date: 01-12-2012 Fuel: Gasoline Approved: Yes
      Mercedes-Benz Model: 500 Model series: ML 500 Model type: 4 Matic Size of motor: 5.5 Brand of engine: M273.963 Type description: W164 From date: 01-12-2007 To date: 01-12-2011 Fuel: Gasoline Approved: Yes
      Mercedes-Benz Model: 500 Model series: R 500 Model type: 4 Matic Size of motor: 5.5 Brand of engine: M273.963 Type description: W251 Body: MPV From date: 01-05-2007 To date: 01-12-2014 Fuel: Gasoline Approved: Yes
      Mercedes-Benz Model: R-Class Model series: R-Class Model type: 4 Matic Size of motor: 3.0 Brand of engine: M272.945 Type description: W251 Body: MPV From date: 01-05-2007 To date: 01-12-2011 Fuel: Gasoline Approved: Yes
