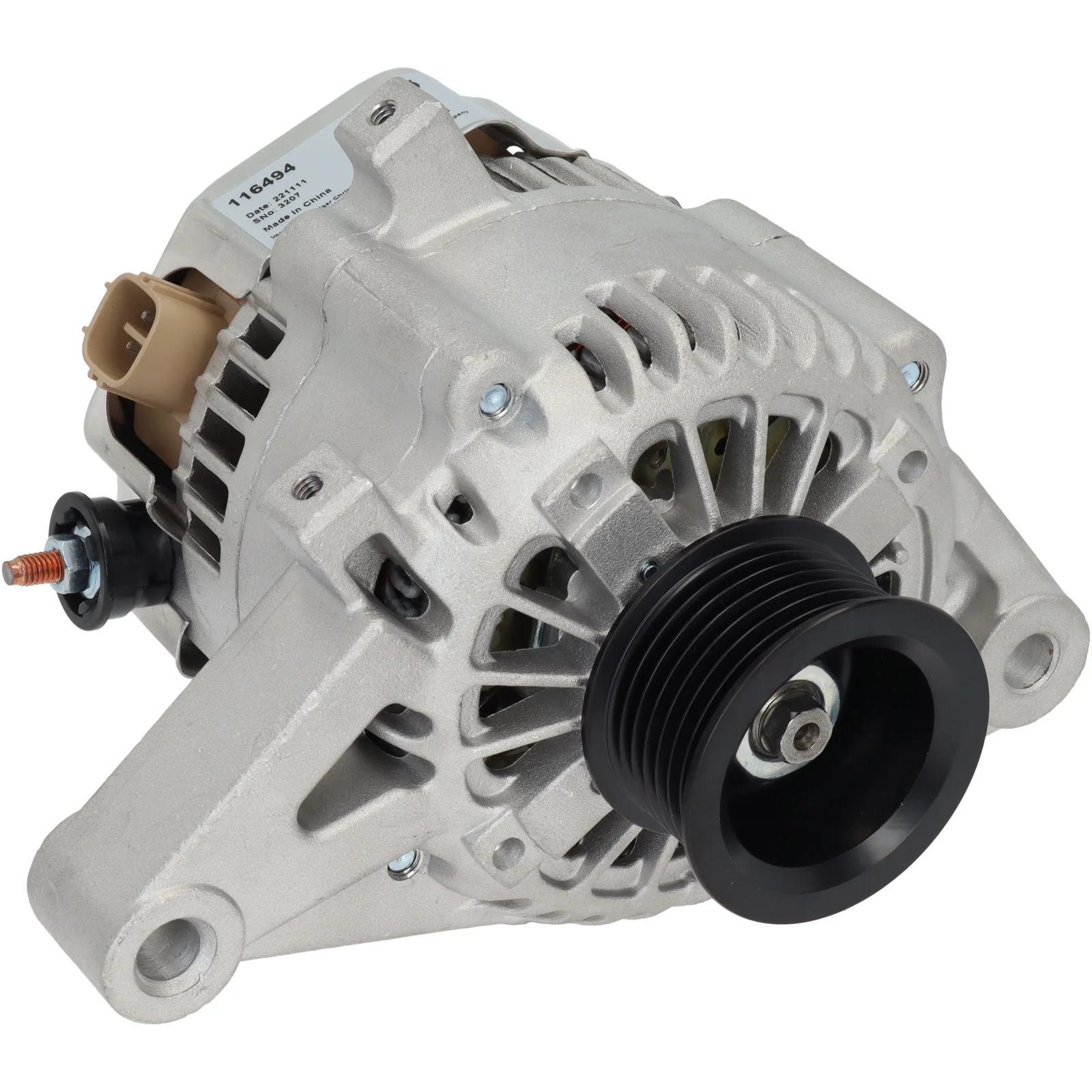

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032116494

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 80, Rotation: CW, Mount. bøjle fordeling: 32,00

Beskrivelse

Spænding: 14
Amp: 80
Remskive dist.: 40,00
Bredde/holder arm: 18,00
Monteringsbeslag dist.: 32,00
Beslaghul: 11,00
Bæltejustering beslags hul pos.: 54
Bæltejustering beslags hul 1: 11,00
Remskive dia.: 52,00
Umløb/Remskive: 7
Radius: 84,50
Radius 2: 102,50
B+: M6
Position/B+ i min.: 50
D+ Størrelse: komplet
Rotation: med uret
Komplet nr.: PL78
Samlet længde mm: 162,00
Remskive: SP
Køler: IF
Regulator type: IR

Filer

Specifikation

B+ M6
Mount. bracket dist. 32.00
Belt. adj. bracket hole 1 11.00
Belt. adj. brackethole pos. 54
Plug no. PL78
Bracket hole 11.00
Position/B+ in min. 50
Pulley SP
Pulley dia. 52.00
Pulley dist. 40.00
Radius 84.50
D+ Size Plug
Radius 2 102.50
Regulator type IR
Rotation CW
Fan IF
Grooves/pulley 7
Voltage 14
Total length 162.00 mm
Width/holder arm 18.00
Amp 80

  • OEM
    F032116494, 27060-31010, 27060-31011, 104210-8040, 104210-8410, 104210-8411

  • Konkurrentreferens
    A6439S, CAL40383, CAL40391, DAN1080, J5112156, 28-7544, 195.960.080, 235.352.802, 209427, 209427A, 12061153

  • NormaliseratArtNr
    a6439s, cal40383, cal40391, dan1080, f032116494, j5112156, 209427, 209427a, 287544, 12061153, 195960080, 235352802, 1042108040, 1042108410, 1042108411, 2706031010, 2706031011

  • Passar modeller
    Toyota Model: FJ Cruiser Model series: FJ Cruiser Model type: 4WD Size of motor: 4.0 Brand of engine: 1GR-FE Type description: GSJ1_ Body: SUV From date: 01-01-2007 To date: 01-06-2014 Fuel: Petrol Approved: Yes
    Toyota Model: FJ CRUISER Model series: FJ CRUISER Type of engine: V6 Size of motor: 4.0 Brand of engine: 1GR-FE Type description: GSJ1_ From date: 01-01-2010 To date: 01-06-2014 Fuel: Gasoline Approved: Yes
    Toyota Model: FJ CRUISER Model series: FJ CRUISER Type of engine: VVTi Size of motor: 4.0 Brand of engine: 1GR-FE Type description: GSJ1_ From date: 01-01-2006 To date: 01-01-2018 Fuel: Gasoline Approved: Yes
    Toyota Model: Hilux Model series: Hilux Model type: 4x4 Size of motor: 4.0 Brand of engine: 1GR-FE Body: Pick Up From date: 01-08-2005 Fuel: Gasoline Approved: Yes
    Toyota Model: Land Cruiser Model series: Land Cruiser Model type: 4x4 Size of motor: 4.0 Brand of engine: 1GR-FE Type description: _J7_ Body: Platform / Chassis From date: 01-03-2007 Fuel: Gasoline Approved: Yes
    Toyota Model: Land Cruiser Model series: Land Cruiser Prado Size of motor: 4.0 Brand of engine: 1GR-FE Type description: _J12_ Body: Closed Off-Road Vehicle From date: 01-11-2004 To date: 01-06-2009 Fuel: Petrol Approved: Yes
    Toyota Model: Land Cruiser Model series: Land Cruiser Prado Type of engine: V6 Size of motor: 4.0 Brand of engine: 1GR-FE Type description: _J12_ From date: 01-01-2003 To date: 01-07-2009 Fuel: Gasoline Approved: Yes
    Toyota Model: Land Cruiser Model series: Land Cruiser Size of motor: 4.0 Brand of engine: 1GR-FE From date: 01-12-2002 To date: 01-12-2010 Fuel: Gasoline Approved: Yes
    Toyota Model: Land Cruiser Model series: Land Cruiser Size of motor: 4.0 Brand of engine: 1GR-FE Type description: KDJ12_, GRJ12_ From date: 01-08-2005 To date: 01-07-2009 Fuel: Gasoline Approved: Yes
    Toyota Model: Land Cruiser Model series: Land Cruiser Size of motor: 4.0 Type description: J12 From date: 01-09-2002 To date: 01-08-2010 Fuel: Gasoline Approved: Yes
    1 / 2
  • Beskrivelse
    Spænding: 14
    Amp: 80
    Remskive dist.: 40,00
    Bredde/holder arm: 18,00
    Monteringsbeslag dist.: 32,00
    Beslaghul: 11,00
    Bæltejustering beslags hul pos.: 54
    Bæltejustering beslags hul 1: 11,00
    Remskive dia.: 52,00
    Umløb/Remskive: 7
    Radius: 84,50
    Radius 2: 102,50
    B+: M6
    Position/B+ i min.: 50
    D+ Størrelse: komplet
    Rotation: med uret
    Komplet nr.: PL78
    Samlet længde mm: 162,00
    Remskive: SP
    Køler: IF
    Regulator type: IR

    Filer

  • Specifikation
    B+ M6
    Mount. bracket dist. 32.00
    Belt. adj. bracket hole 1 11.00
    Belt. adj. brackethole pos. 54
    Plug no. PL78
    Bracket hole 11.00
    Position/B+ in min. 50
    Pulley SP
    Pulley dia. 52.00
    Pulley dist. 40.00
    Radius 84.50
    D+ Size Plug
    Radius 2 102.50
    Regulator type IR
    Rotation CW
    Fan IF
    Grooves/pulley 7
    Voltage 14
    Total length 162.00 mm
    Width/holder arm 18.00
    Amp 80
  • Køretøjsmatchning

    • OEM
      F032116494, 27060-31010, 27060-31011, 104210-8040, 104210-8410, 104210-8411

    • Konkurrentreferens
      A6439S, CAL40383, CAL40391, DAN1080, J5112156, 28-7544, 195.960.080, 235.352.802, 209427, 209427A, 12061153

    • NormaliseratArtNr
      a6439s, cal40383, cal40391, dan1080, f032116494, j5112156, 209427, 209427a, 287544, 12061153, 195960080, 235352802, 1042108040, 1042108410, 1042108411, 2706031010, 2706031011

    • Passar modeller
      Toyota Model: FJ Cruiser Model series: FJ Cruiser Model type: 4WD Size of motor: 4.0 Brand of engine: 1GR-FE Type description: GSJ1_ Body: SUV From date: 01-01-2007 To date: 01-06-2014 Fuel: Petrol Approved: Yes
      Toyota Model: FJ CRUISER Model series: FJ CRUISER Type of engine: V6 Size of motor: 4.0 Brand of engine: 1GR-FE Type description: GSJ1_ From date: 01-01-2010 To date: 01-06-2014 Fuel: Gasoline Approved: Yes
      Toyota Model: FJ CRUISER Model series: FJ CRUISER Type of engine: VVTi Size of motor: 4.0 Brand of engine: 1GR-FE Type description: GSJ1_ From date: 01-01-2006 To date: 01-01-2018 Fuel: Gasoline Approved: Yes
      Toyota Model: Hilux Model series: Hilux Model type: 4x4 Size of motor: 4.0 Brand of engine: 1GR-FE Body: Pick Up From date: 01-08-2005 Fuel: Gasoline Approved: Yes
      Toyota Model: Land Cruiser Model series: Land Cruiser Model type: 4x4 Size of motor: 4.0 Brand of engine: 1GR-FE Type description: _J7_ Body: Platform / Chassis From date: 01-03-2007 Fuel: Gasoline Approved: Yes
      Toyota Model: Land Cruiser Model series: Land Cruiser Prado Size of motor: 4.0 Brand of engine: 1GR-FE Type description: _J12_ Body: Closed Off-Road Vehicle From date: 01-11-2004 To date: 01-06-2009 Fuel: Petrol Approved: Yes
      Toyota Model: Land Cruiser Model series: Land Cruiser Prado Type of engine: V6 Size of motor: 4.0 Brand of engine: 1GR-FE Type description: _J12_ From date: 01-01-2003 To date: 01-07-2009 Fuel: Gasoline Approved: Yes
      Toyota Model: Land Cruiser Model series: Land Cruiser Size of motor: 4.0 Brand of engine: 1GR-FE From date: 01-12-2002 To date: 01-12-2010 Fuel: Gasoline Approved: Yes
      Toyota Model: Land Cruiser Model series: Land Cruiser Size of motor: 4.0 Brand of engine: 1GR-FE Type description: KDJ12_, GRJ12_ From date: 01-08-2005 To date: 01-07-2009 Fuel: Gasoline Approved: Yes
      Toyota Model: Land Cruiser Model series: Land Cruiser Size of motor: 4.0 Type description: J12 From date: 01-09-2002 To date: 01-08-2010 Fuel: Gasoline Approved: Yes
