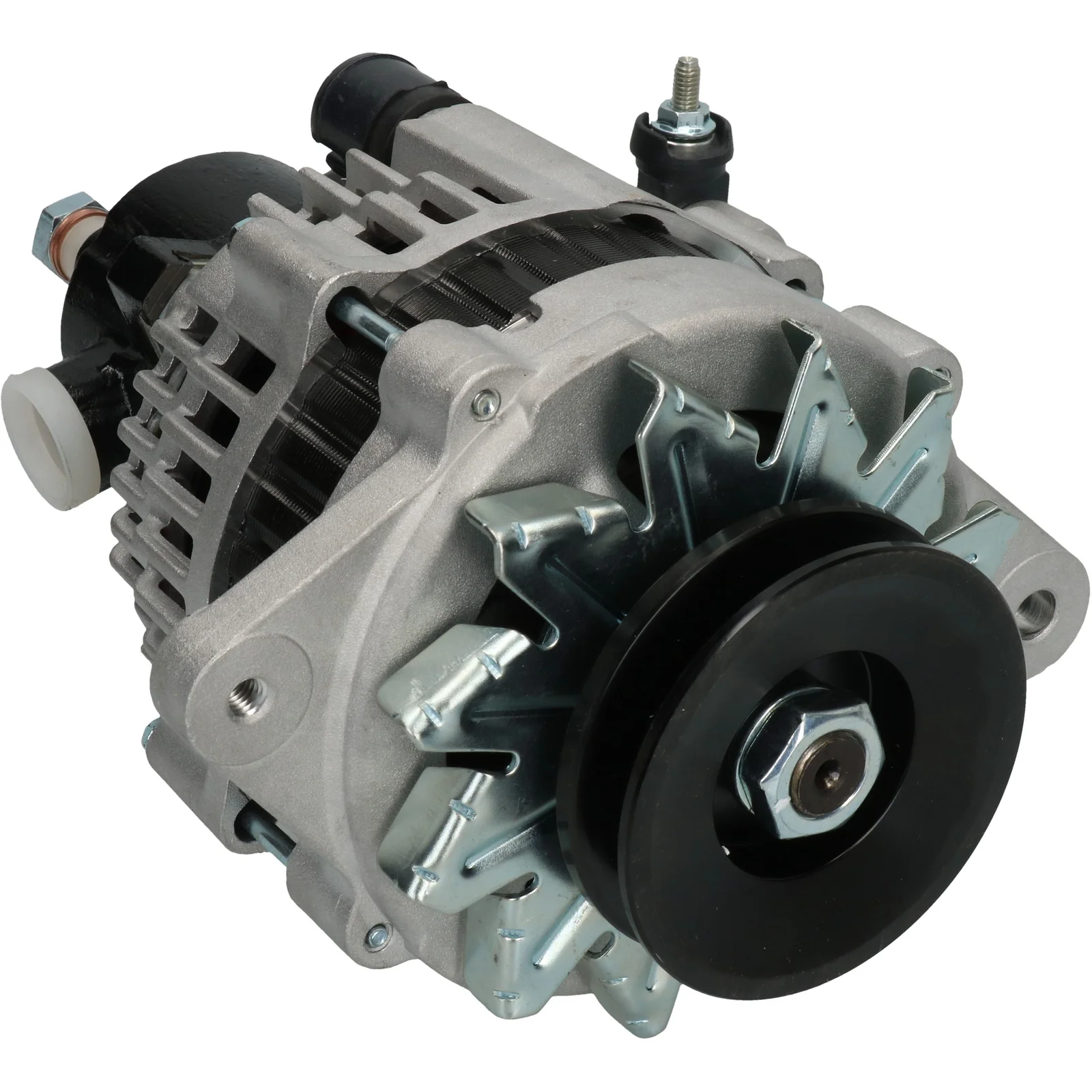

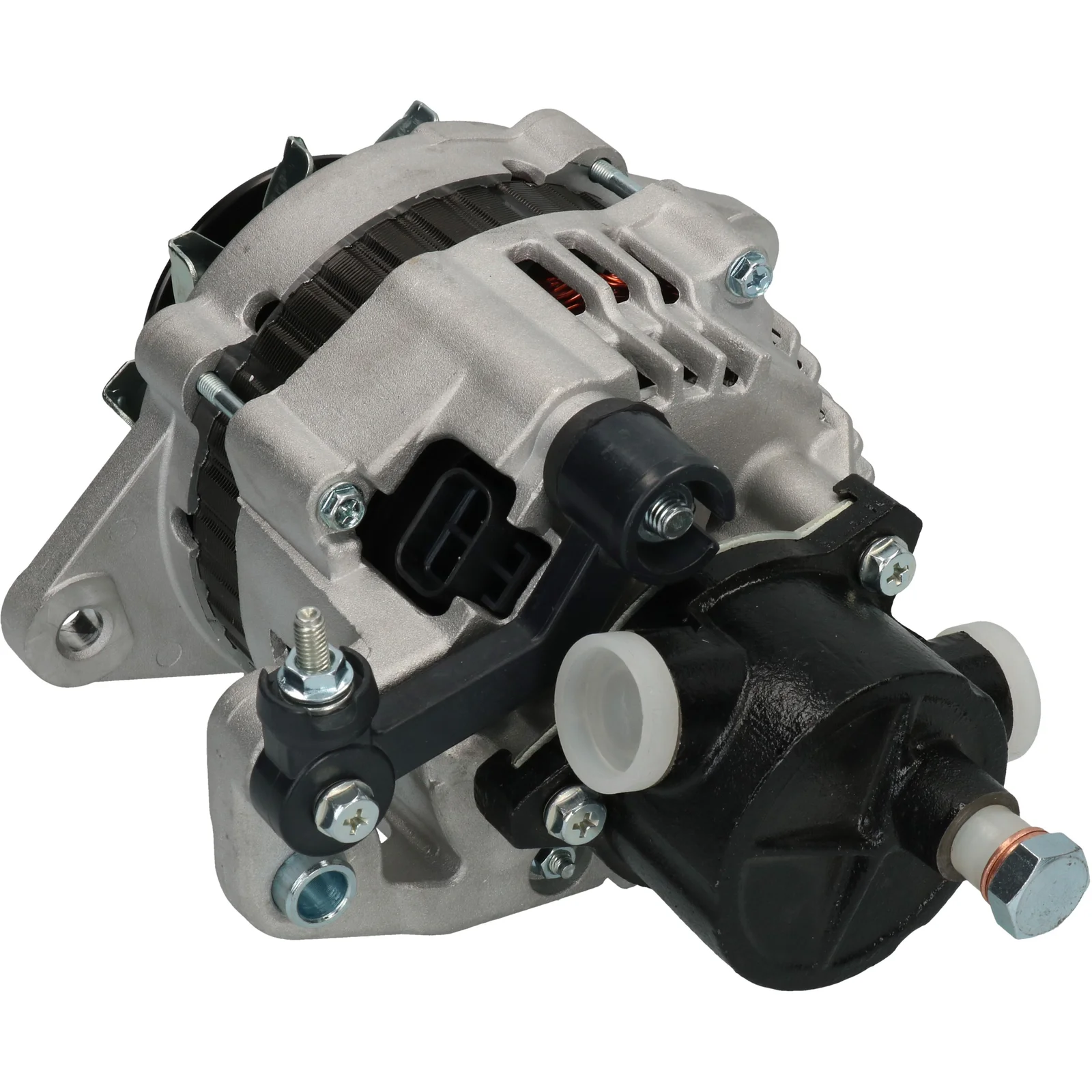

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032116495

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 70, Rotation: CW, Monteringsbeslag dist.: 84,50

Beskrivelse

Spænding: 14
Amp: 70
Remskive dist.: 50.60
Bredde/holderarm: 12.70
Montagebeslag dist.: 84.50
Beslagshul: 10.30
Bæltejustering beslaghul pos.: 60
Bæltejustering beslaghul 1: 10.50
Remskive dia.: 84.00
Riller/remskive: 1
Radius: 90.00
Radius 2: 85.00
B+: M6
Position/B+ i min.: 37
Rotation: CW
Stik nr.: PL07
Samlet længde mm: 258.00
Remskive: P
Blæser: EF
Regulator type: IR
Vakuumpumpe: Ja

Filer

Specifikation

B+ M6
Mount. bracket dist. 84.50
Belt. adj. bracket hole 1 10.50
Belt. adj. brackethole pos. 60
Plug no. PL07
Bracket hole 10.30
Position/B+ in min. 37
Pulley P
Pulley dia. 84.00
Pulley dist. 50.60
Radius 90.00
Radius 2 85.00
Regulator type IR
Rotation CW
Fan EF
Grooves/pulley 1
Vac. pump Yes
Voltage 14
Total length 258.00 mm
Width/holder arm 12.70
Amp 70

  • OEM
    F032116495, LR170-510, LR170-510B, R2S2-18-300, R2S2-18-300B

  • Konkurrentreferens
    A2078S, CAL20230, LRA02029, 28-3942, 145.811.070, 553926RI, 12060882

  • NormaliseratArtNr
    a2078s, cal20230, f032116495, lr170510, lr170510b, lra02029, r2s218300, r2s218300b, 283942, 553926ri, 12060882, 145811070

  • Passar modeller
    Mazda Model: E Model series: E 2000 Model type: 4WD Type of engine: Diesel Size of motor: 2.2 Brand of engine: R2 Type description: SR2 Body: Van From date: 01-02-1997 To date: 01-05-2003 Fuel: Diesel Approved: Yes
    Mazda Model: E Model series: E 2000 Type of engine: Diesel Size of motor: 2.2 Brand of engine: R2 Type description: SR2 Body: Van From date: 01-02-1997 To date: 01-08-2002 Fuel: Diesel Approved: Yes
    Mazda Model: E Model series: E 2200 Model type: 4WD Type of engine: Diesel Size of motor: 2.2 Brand of engine: R2 Type description: SR2 Body: Van From date: 01-02-1997 To date: 01-05-2003 Fuel: Diesel Approved: Yes
    Mazda Model: E Model series: E 2200 Type of engine: Diesel Size of motor: 2.2 Brand of engine: R2 Type description: SR2 Body: Van From date: 01-02-1997 To date: 01-08-2002 Fuel: Diesel Approved: Yes
    Mazda Model: E-Serie Model series: E-Serie Model type: E2200 Type of engine: Diesel Size of motor: 2.2 Brand of engine: R21N Type description: SD1, SL Body: Platform / Chassis From date: 01-09-1999 To date: 01-07-2004 Fuel: Diesel Approved: Yes
  • Beskrivelse
    Spænding: 14
    Amp: 70
    Remskive dist.: 50.60
    Bredde/holderarm: 12.70
    Montagebeslag dist.: 84.50
    Beslagshul: 10.30
    Bæltejustering beslaghul pos.: 60
    Bæltejustering beslaghul 1: 10.50
    Remskive dia.: 84.00
    Riller/remskive: 1
    Radius: 90.00
    Radius 2: 85.00
    B+: M6
    Position/B+ i min.: 37
    Rotation: CW
    Stik nr.: PL07
    Samlet længde mm: 258.00
    Remskive: P
    Blæser: EF
    Regulator type: IR
    Vakuumpumpe: Ja

    Filer

  • Specifikation
    B+ M6
    Mount. bracket dist. 84.50
    Belt. adj. bracket hole 1 10.50
    Belt. adj. brackethole pos. 60
    Plug no. PL07
    Bracket hole 10.30
    Position/B+ in min. 37
    Pulley P
    Pulley dia. 84.00
    Pulley dist. 50.60
    Radius 90.00
    Radius 2 85.00
    Regulator type IR
    Rotation CW
    Fan EF
    Grooves/pulley 1
    Vac. pump Yes
    Voltage 14
    Total length 258.00 mm
    Width/holder arm 12.70
    Amp 70
  • Køretøjsmatchning

    • OEM
      F032116495, LR170-510, LR170-510B, R2S2-18-300, R2S2-18-300B

    • Konkurrentreferens
      A2078S, CAL20230, LRA02029, 28-3942, 145.811.070, 553926RI, 12060882

    • NormaliseratArtNr
      a2078s, cal20230, f032116495, lr170510, lr170510b, lra02029, r2s218300, r2s218300b, 283942, 553926ri, 12060882, 145811070

    • Passar modeller
      Mazda Model: E Model series: E 2000 Model type: 4WD Type of engine: Diesel Size of motor: 2.2 Brand of engine: R2 Type description: SR2 Body: Van From date: 01-02-1997 To date: 01-05-2003 Fuel: Diesel Approved: Yes
      Mazda Model: E Model series: E 2000 Type of engine: Diesel Size of motor: 2.2 Brand of engine: R2 Type description: SR2 Body: Van From date: 01-02-1997 To date: 01-08-2002 Fuel: Diesel Approved: Yes
      Mazda Model: E Model series: E 2200 Model type: 4WD Type of engine: Diesel Size of motor: 2.2 Brand of engine: R2 Type description: SR2 Body: Van From date: 01-02-1997 To date: 01-05-2003 Fuel: Diesel Approved: Yes
      Mazda Model: E Model series: E 2200 Type of engine: Diesel Size of motor: 2.2 Brand of engine: R2 Type description: SR2 Body: Van From date: 01-02-1997 To date: 01-08-2002 Fuel: Diesel Approved: Yes
      Mazda Model: E-Serie Model series: E-Serie Model type: E2200 Type of engine: Diesel Size of motor: 2.2 Brand of engine: R21N Type description: SD1, SL Body: Platform / Chassis From date: 01-09-1999 To date: 01-07-2004 Fuel: Diesel Approved: Yes
