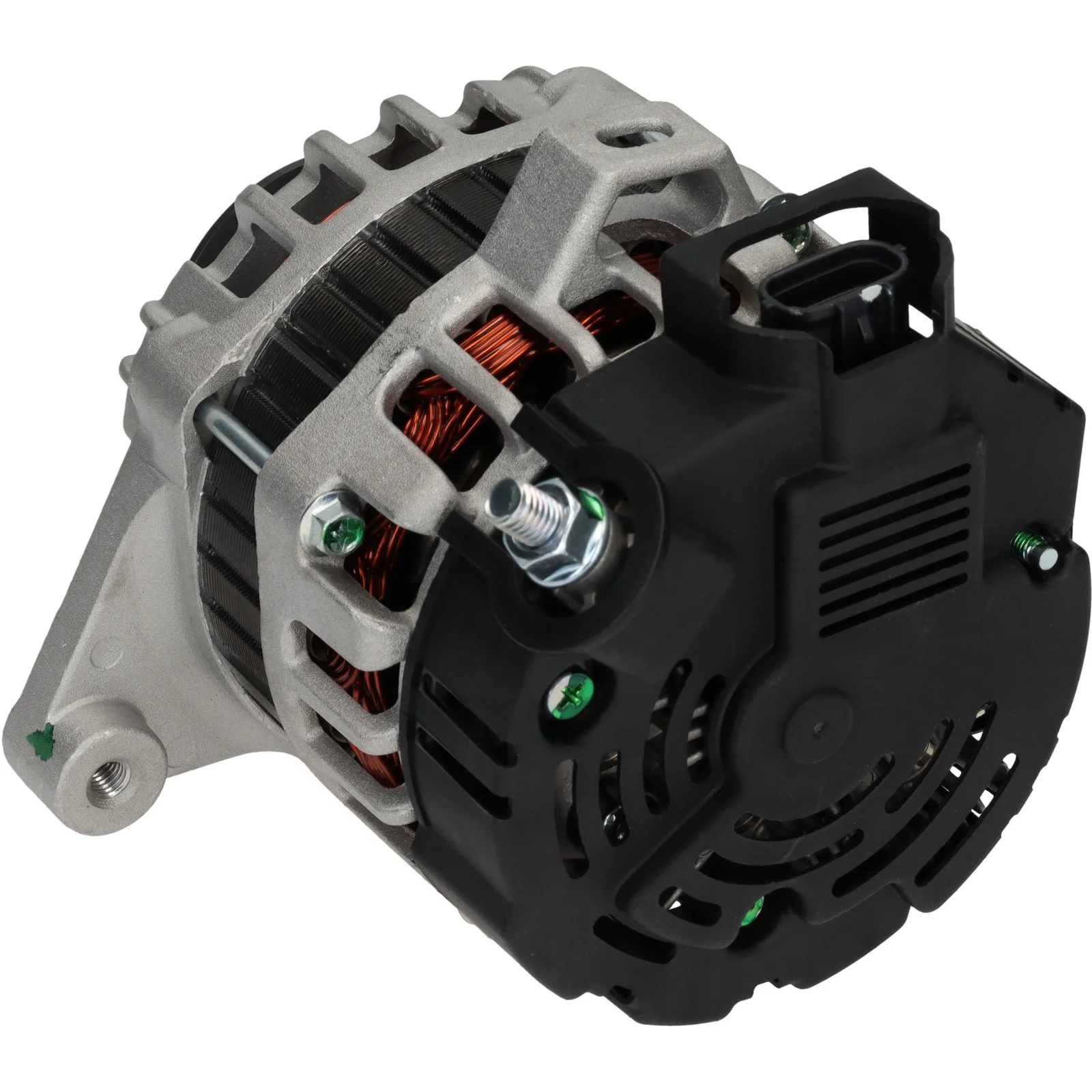

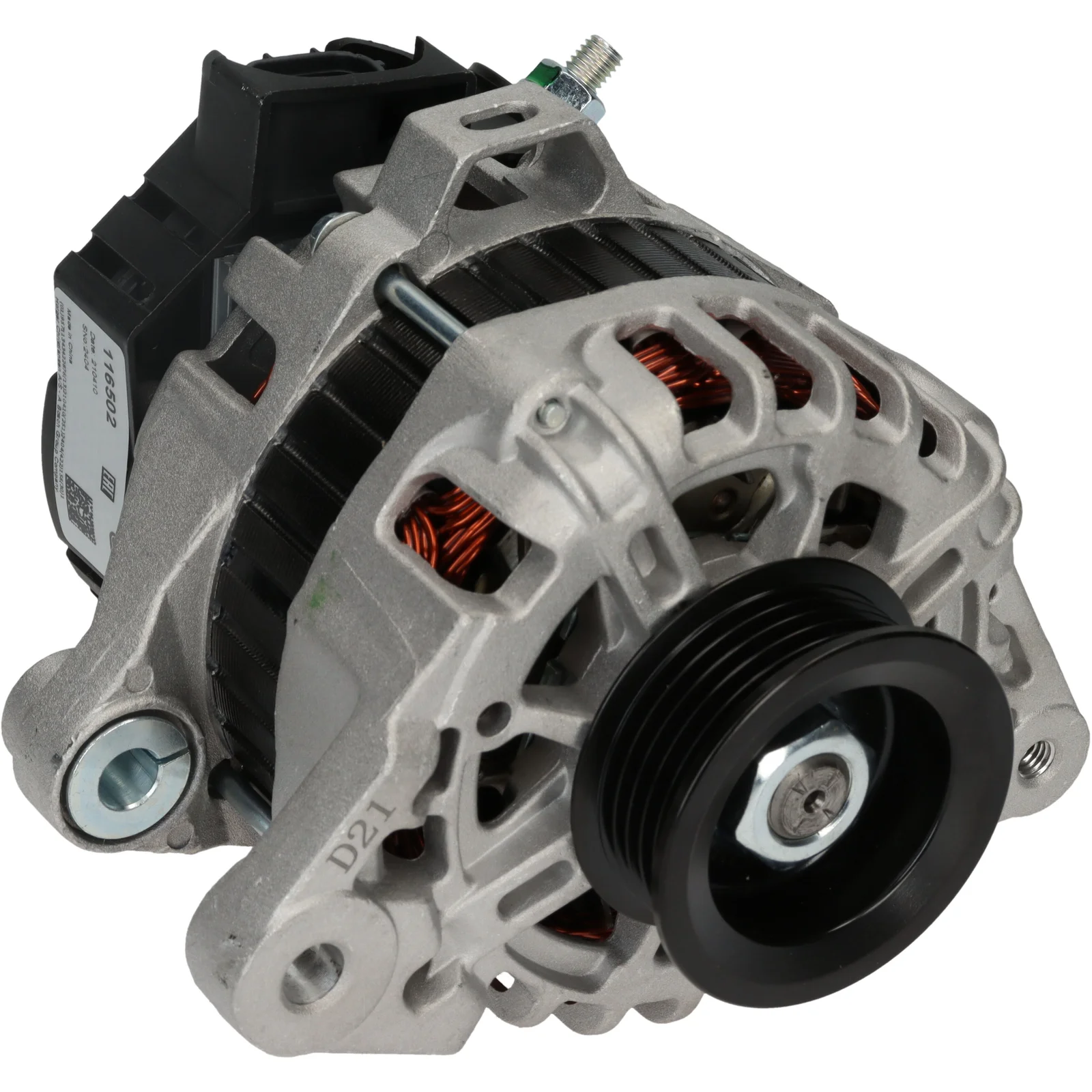

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032116502

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 70, Rotation: CW, Mount. bøjle fordele.ark: 42,60

Beskrivelse

Spænding: 14
Amp: 70
Remskive dist.: 20.00
Bredde/holderarm: 16.00
Montagebeslag dist.: 42.60
Beslagshul: M8
Bælteindst. bremsehul pos.: 6
Remskive dia.: 58.00
Riller/remskive: 5
Radius: 78.00
Radius 2: 85.50
B+: M8
Position/B+ i min.: 5
Rotation: med uret
Stik nr.: PL176
Total længde mm: 166.00
Remskive: SP
Vifte: IF

Filer

Specifikation

B+ M8
Mount. bracket dist. 42.60
Belt. adj. brackethole pos. 6
Plug no. PL176
Bracket hole M8
Position/B+ in min. 5
Pulley SP
Pulley dia. 58.00
Pulley dist. 20.00
Radius 78.00
Radius 2 85.50
Rotation CW
Fan IF
Grooves/pulley 5
Voltage 14
Total length 166.00 mm
Width/holder arm 16.00
Amp 70

  • OEM
    F032116502, 37300-04310, 2607775

  • Konkurrentreferens
    A9362S, CAL32164, LRA03681, 28-6742, 224.308.702, 255.515.070, 20884N, 209124, 209124A, 444355, 554218RI, 600383, 12061147, 0986084040

  • NormaliseratArtNr
    a9362s, cal32164, f032116502, lra03681, 20884n, 209124, 209124a, 286742, 444355, 554218ri, 600383, 2607775, 12061147, 224308702, 255515070, 0986084040, 3730004310

  • Passar modeller
    Hyundai Model: i10 Model series: i10 Size of motor: 1.0 Brand of engine: G3LA Body: Hatchback From date: 01-01-2011 To date: 01-12-2017 Fuel: Gasoline Approved: Yes
    Kia Model: Picanto Model series: Picanto Model type: Bi-Fuel Size of motor: 1.0 Brand of engine: B3LA Type description: TA Body: Hatchback From date: 01-05-2011 Fuel: Diesel Approved: Yes
    Kia Model: Picanto Model series: Picanto Model type: LPG Size of motor: 1.0 Brand of engine: B3LA Type description: TA Body: Hatchback From date: 01-08-2013 Fuel: Bi-Fuel Approved: Yes
    Kia Model: Picanto Model series: Picanto Size of motor: 1.0 Brand of engine: G3LA Type description: TA Body: Hatchback From date: 01-04-2015 Fuel: Gasoline Approved: Yes
    Kia Model: Picanto Model series: Picanto Size of motor: 1.0 Brand of engine: G3LA Type description: TA Body: Hatchback From date: 01-05-2011 Fuel: Gasoline Approved: Yes
  • Beskrivelse
    Spænding: 14
    Amp: 70
    Remskive dist.: 20.00
    Bredde/holderarm: 16.00
    Montagebeslag dist.: 42.60
    Beslagshul: M8
    Bælteindst. bremsehul pos.: 6
    Remskive dia.: 58.00
    Riller/remskive: 5
    Radius: 78.00
    Radius 2: 85.50
    B+: M8
    Position/B+ i min.: 5
    Rotation: med uret
    Stik nr.: PL176
    Total længde mm: 166.00
    Remskive: SP
    Vifte: IF

    Filer

  • Specifikation
    B+ M8
    Mount. bracket dist. 42.60
    Belt. adj. brackethole pos. 6
    Plug no. PL176
    Bracket hole M8
    Position/B+ in min. 5
    Pulley SP
    Pulley dia. 58.00
    Pulley dist. 20.00
    Radius 78.00
    Radius 2 85.50
    Rotation CW
    Fan IF
    Grooves/pulley 5
    Voltage 14
    Total length 166.00 mm
    Width/holder arm 16.00
    Amp 70
  • Køretøjsmatchning

    • OEM
      F032116502, 37300-04310, 2607775

    • Konkurrentreferens
      A9362S, CAL32164, LRA03681, 28-6742, 224.308.702, 255.515.070, 20884N, 209124, 209124A, 444355, 554218RI, 600383, 12061147, 0986084040

    • NormaliseratArtNr
      a9362s, cal32164, f032116502, lra03681, 20884n, 209124, 209124a, 286742, 444355, 554218ri, 600383, 2607775, 12061147, 224308702, 255515070, 0986084040, 3730004310

    • Passar modeller
      Hyundai Model: i10 Model series: i10 Size of motor: 1.0 Brand of engine: G3LA Body: Hatchback From date: 01-01-2011 To date: 01-12-2017 Fuel: Gasoline Approved: Yes
      Kia Model: Picanto Model series: Picanto Model type: Bi-Fuel Size of motor: 1.0 Brand of engine: B3LA Type description: TA Body: Hatchback From date: 01-05-2011 Fuel: Diesel Approved: Yes
      Kia Model: Picanto Model series: Picanto Model type: LPG Size of motor: 1.0 Brand of engine: B3LA Type description: TA Body: Hatchback From date: 01-08-2013 Fuel: Bi-Fuel Approved: Yes
      Kia Model: Picanto Model series: Picanto Size of motor: 1.0 Brand of engine: G3LA Type description: TA Body: Hatchback From date: 01-04-2015 Fuel: Gasoline Approved: Yes
      Kia Model: Picanto Model series: Picanto Size of motor: 1.0 Brand of engine: G3LA Type description: TA Body: Hatchback From date: 01-05-2011 Fuel: Gasoline Approved: Yes
