HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032116512

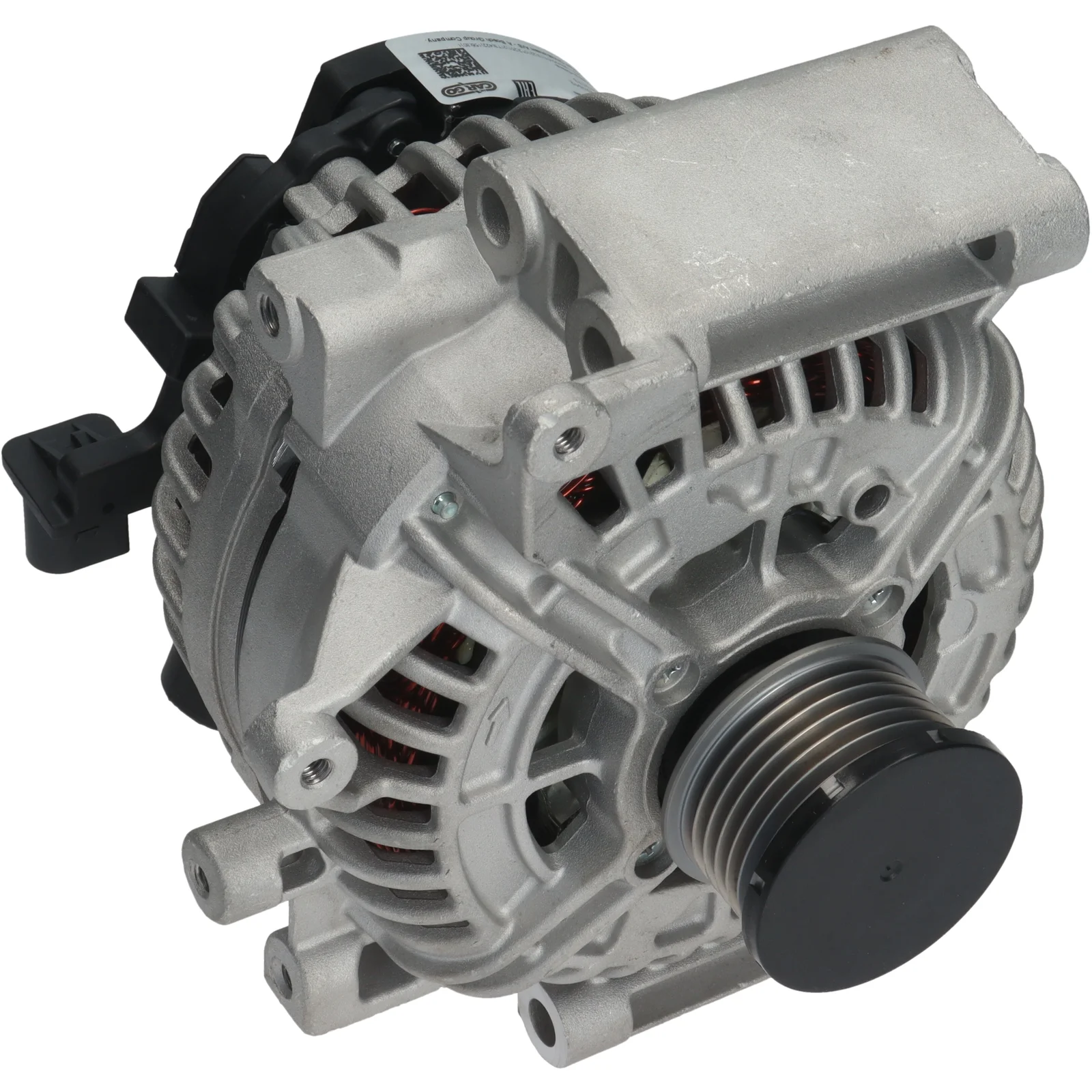

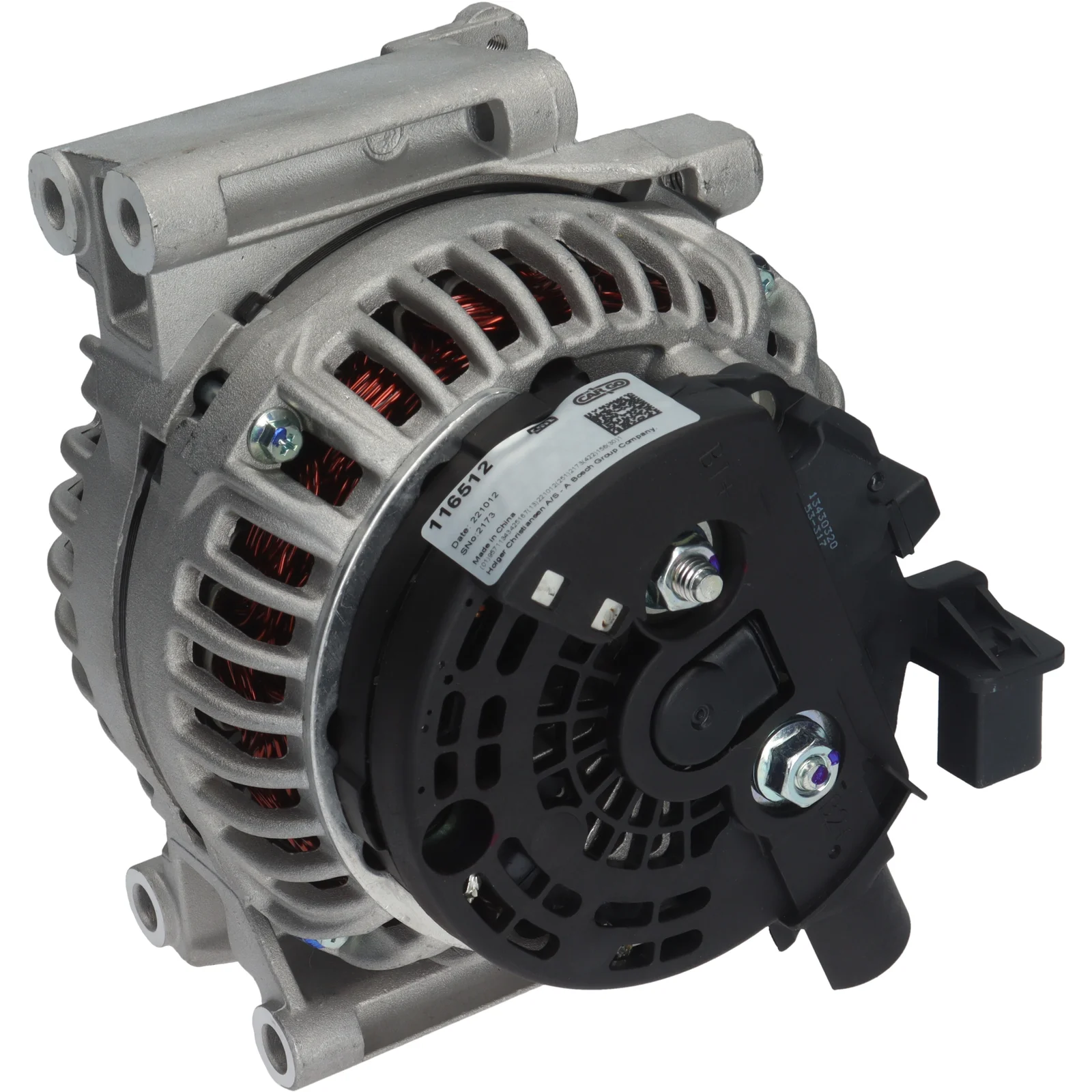

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 200, Rotation: R, Monteringsbeslag afstand: 56,00

Beskrivelse

Spænding: 14
Amp: 200
Remskive dist.: 31.50
Bredde / holderarm: 97.40
Monteringsbeslag dist.: 56.00
Beslagshul: 9.00
Bæltejustering. beslagshul 1: 9.00
Bæltejustering. beslagshul 2: 8.00
Remskive dia.: 50.00
Riller/remskive: 6
Radius: 81.50
Radius 2: 81.50
B+: M8
Position/B+ i min.: 23
Rotation: CW
Stik nr.: PL166
Total længde mm: 186.00
Terminaltype: COM
Kommunikation: LIN
Remskive: SP/FW
Fan: IF
Regulator type: IR
Bemærkninger: Denne Generator har en COM-terminal på regulatoren. Det anbefales at anvende OEM-nummeret for at kontrollere egnetheden inden bestilling.

Filer

Specifikation

B+ M8
Communication LIN
Mount. bracket dist. 56.00
Belt. adj. bracket hole 1 9.00
Belt. adj. bracket hole 2 8.00
Plug no. PL166
Bracket hole 9.00
Position/B+ in min. 23
Pulley SP/FW
Pulley dia. 50.00
Pulley dist. 31.50
Radius 81.50
Radius 2 81.50
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Fan IF
Grooves/pulley 6
Terminal type COM
Voltage 14
Total length 186.00 mm
Width/holder arm 97.40
Amp 200

  • OEM
    A0131545902, A013154590280, F032116512, 0124625033, 0131545902, 013154590280

  • Konkurrentreferens
    A0503, CAL10416, DRA0804, LRA03313, 28-5925, 225.190.2002, 555.586.200, 113213, 210712, 210712A, 553629RI, 9090665, 12090302, 32002316, 0986047883

  • NormaliseratArtNr
    a0131545902, a013154590280, a0503, cal10416, dra0804, f032116512, lra03313, 113213, 210712, 210712a, 285925, 553629ri, 9090665, 12090302, 32002316, 0124625033, 0131545902, 555586200, 0986047883, 2251902002, 013154590280

  • Passar modeller
    Mercedes-Benz Model: 200 Model series: E 200 Type of engine: CDi Size of motor: 2.1 Brand of engine: OM646.820 Type description: 211 From date: 01-04-2006 To date: 01-12-2008 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 220 Model series: E 220 T Type of engine: CDi Size of motor: 2.2 Brand of engine: OM646.821 Type description: S211 Body: Estate From date: 01-03-2003 To date: 01-07-2009 Fuel: Diesel Approved: Yes Manufacture type: T-Model
    Mercedes-Benz Model: 220 Model series: E 220 Type of engine: CDi Size of motor: 2.1 Brand of engine: OM646.821 Type description: 211 Body: Estate From date: 01-04-2006 To date: 01-07-2009 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 220 Model series: E 220 Type of engine: CDi Size of motor: 2.1 Brand of engine: OM646.821 Type description: 211 From date: 01-04-2006 To date: 01-12-2008 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 220 Model series: E 220 Type of engine: CDI Size of motor: 2.1 Brand of engine: OM646.821 Type description: VF211 Body: Platform / Chassis From date: 01-04-2006 To date: 01-07-2009 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 220 Model series: E 220 Type of engine: CDi Size of motor: 2.2 Brand of engine: OM646.821 Type description: W211 From date: 01-03-2003 To date: 01-12-2008 Fuel: Diesel Approved: Yes
    1 / 2
  • Beskrivelse
    Spænding: 14
    Amp: 200
    Remskive dist.: 31.50
    Bredde / holderarm: 97.40
    Monteringsbeslag dist.: 56.00
    Beslagshul: 9.00
    Bæltejustering. beslagshul 1: 9.00
    Bæltejustering. beslagshul 2: 8.00
    Remskive dia.: 50.00
    Riller/remskive: 6
    Radius: 81.50
    Radius 2: 81.50
    B+: M8
    Position/B+ i min.: 23
    Rotation: CW
    Stik nr.: PL166
    Total længde mm: 186.00
    Terminaltype: COM
    Kommunikation: LIN
    Remskive: SP/FW
    Fan: IF
    Regulator type: IR
    Bemærkninger: Denne Generator har en COM-terminal på regulatoren. Det anbefales at anvende OEM-nummeret for at kontrollere egnetheden inden bestilling.

    Filer

  • Specifikation
    B+ M8
    Communication LIN
    Mount. bracket dist. 56.00
    Belt. adj. bracket hole 1 9.00
    Belt. adj. bracket hole 2 8.00
    Plug no. PL166
    Bracket hole 9.00
    Position/B+ in min. 23
    Pulley SP/FW
    Pulley dia. 50.00
    Pulley dist. 31.50
    Radius 81.50
    Radius 2 81.50
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Fan IF
    Grooves/pulley 6
    Terminal type COM
    Voltage 14
    Total length 186.00 mm
    Width/holder arm 97.40
    Amp 200
  • Køretøjsmatchning

    • OEM
      A0131545902, A013154590280, F032116512, 0124625033, 0131545902, 013154590280

    • Konkurrentreferens
      A0503, CAL10416, DRA0804, LRA03313, 28-5925, 225.190.2002, 555.586.200, 113213, 210712, 210712A, 553629RI, 9090665, 12090302, 32002316, 0986047883

    • NormaliseratArtNr
      a0131545902, a013154590280, a0503, cal10416, dra0804, f032116512, lra03313, 113213, 210712, 210712a, 285925, 553629ri, 9090665, 12090302, 32002316, 0124625033, 0131545902, 555586200, 0986047883, 2251902002, 013154590280

    • Passar modeller
      Mercedes-Benz Model: 200 Model series: E 200 Type of engine: CDi Size of motor: 2.1 Brand of engine: OM646.820 Type description: 211 From date: 01-04-2006 To date: 01-12-2008 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 220 Model series: E 220 T Type of engine: CDi Size of motor: 2.2 Brand of engine: OM646.821 Type description: S211 Body: Estate From date: 01-03-2003 To date: 01-07-2009 Fuel: Diesel Approved: Yes Manufacture type: T-Model
      Mercedes-Benz Model: 220 Model series: E 220 Type of engine: CDi Size of motor: 2.1 Brand of engine: OM646.821 Type description: 211 Body: Estate From date: 01-04-2006 To date: 01-07-2009 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 220 Model series: E 220 Type of engine: CDi Size of motor: 2.1 Brand of engine: OM646.821 Type description: 211 From date: 01-04-2006 To date: 01-12-2008 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 220 Model series: E 220 Type of engine: CDI Size of motor: 2.1 Brand of engine: OM646.821 Type description: VF211 Body: Platform / Chassis From date: 01-04-2006 To date: 01-07-2009 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 220 Model series: E 220 Type of engine: CDi Size of motor: 2.2 Brand of engine: OM646.821 Type description: W211 From date: 01-03-2003 To date: 01-12-2008 Fuel: Diesel Approved: Yes
      1 / 2
