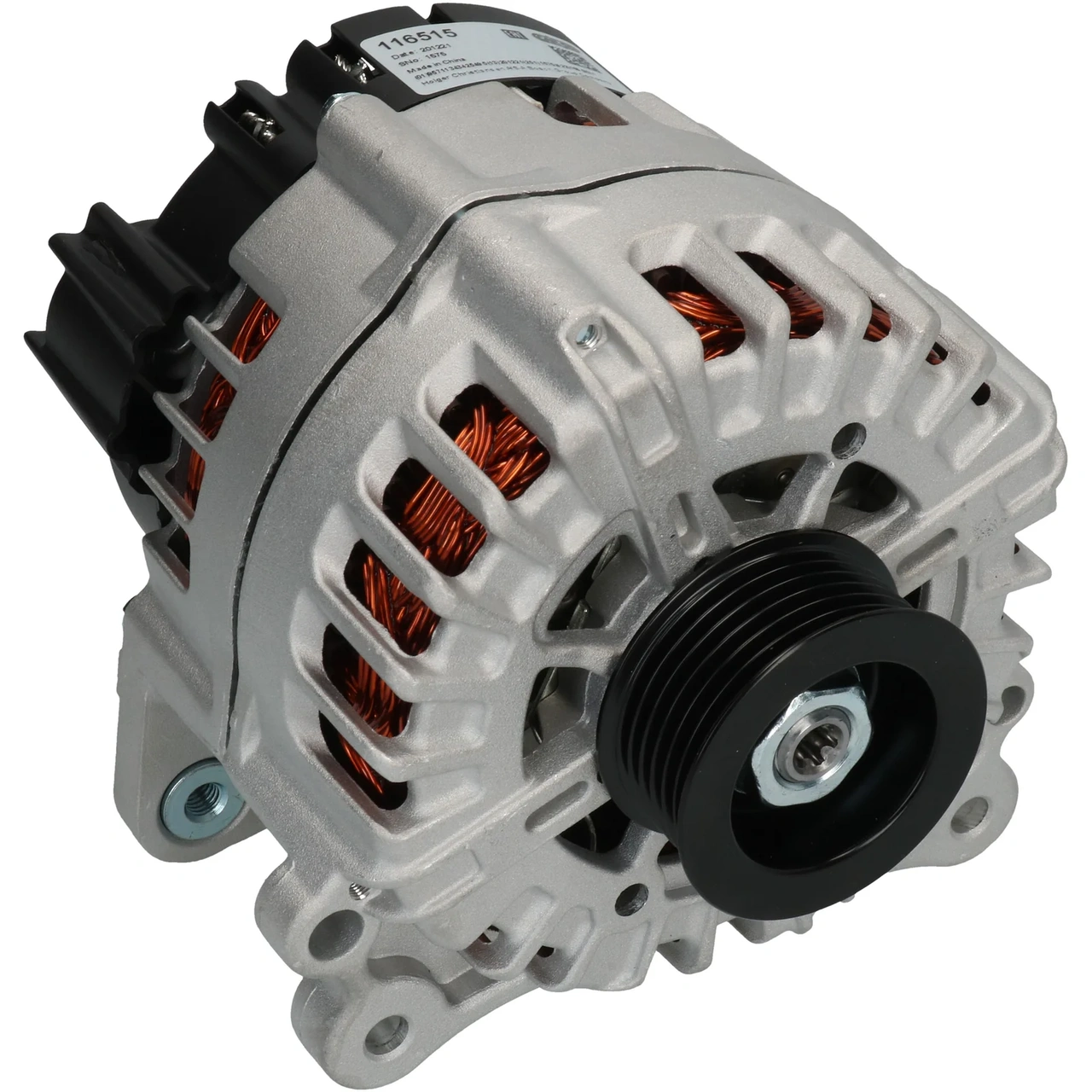

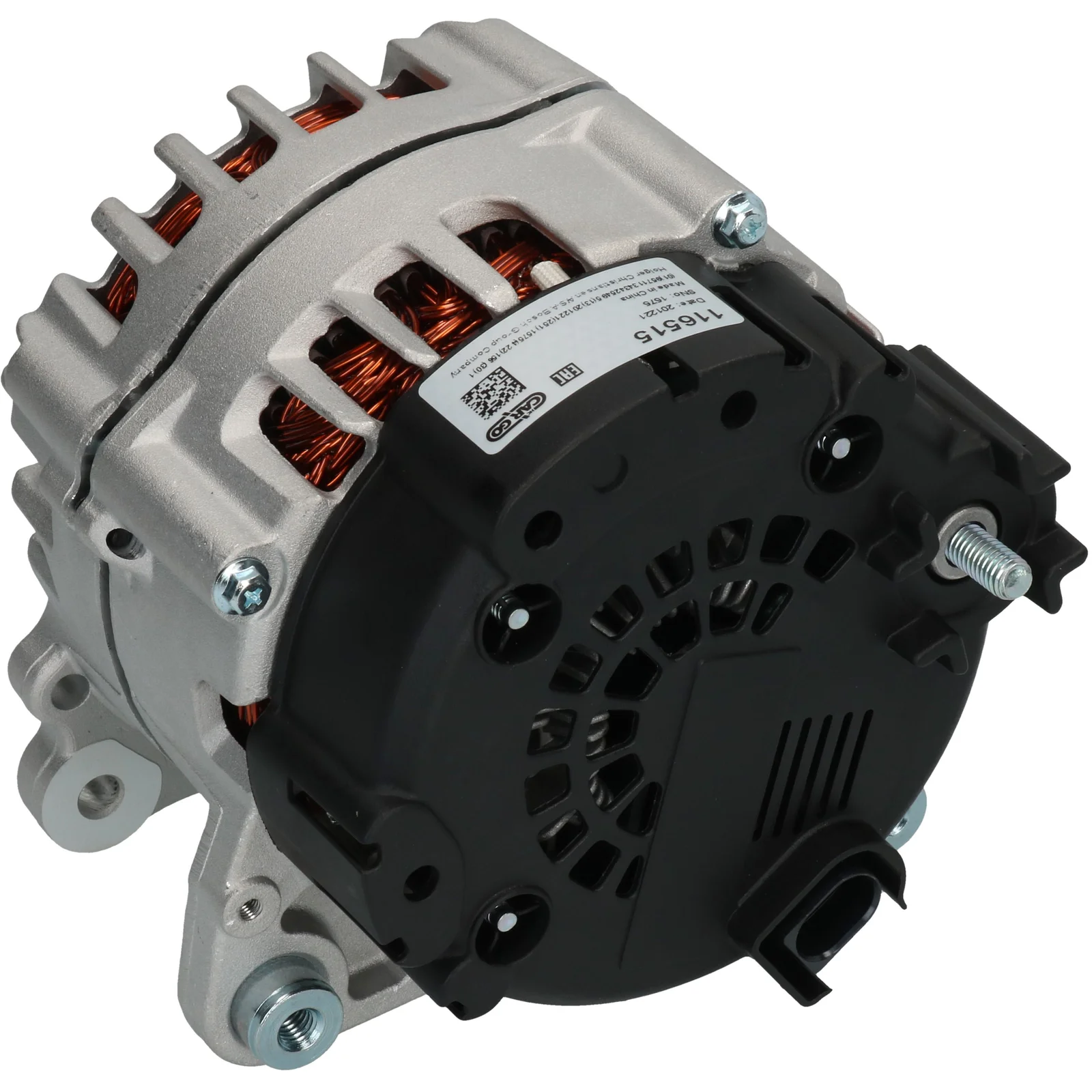

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032116515

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 220, Rotation: CW, Monteringsbeslag forfordeling: 60,40

Beskrivelse

Volt: 14
Amp: 220
Remskive dist.: 29,70
Bredde/fæstearm: 14,00
Montagebeslag dist.: 60,40
Bespændelseshul: 8,50
Bæltejustering brace hole pos.: 45
Remskive dia.: 60,00
Groove/rimskive: 6
Radie: 90,00
Radie 2: 90,00
B+: M8
Position/B+ i min.: 5
Rotation: CW
Stik nr.: PL86
Samlet længde mm: 177,00
Terminaltype: COM
ID-kode: 57
Kommunikation: LIN
Remskive: SP
Fan: IF
Regulator type: IR
Bemærkninger: Denne generator har en COM-terminal på regulatoren. Det anbefales at bruge OEM-nummeret til at tjekke egnetheden før bestilling.

Filer

Specifikation

B+ M8
Communication LIN
Mount. bracket dist. 60.40
Belt. adj. brackethole pos. 45
Plug no. PL86
Bracket hole 8.50
Position/B+ in min. 5
Pulley SP
Pulley dia. 60.00
Pulley dist. 29.70
Radius 90.00
Radius 2 90.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Fan IF
Grooves/pulley 6
ID Code 57
Terminal type COM
Voltage 14
Total length 177.00 mm
Width/holder arm 14.00
Amp 220

  • OEM
    F032116515, FG23S031, FGN23S031, 2608240, 2608240A, 059903023j, 059903023JX, 95860312200

  • Konkurrentreferens
    A3194(VALEO), A3194PR, A3194S, CAL15436, DRA0811, LRA03322, 28-5934, 211.355.2202, 305.589.220, 209205, 209205A, 439716, 440306, 553443RI, 12090639

  • NormaliseratArtNr
    a3194pr, a3194s, a3194valeo, cal15436, dra0811, f032116515, fg23s031, fgn23s031, lra03322, 209205, 209205a, 285934, 439716, 440306, 553443ri, 2608240, 2608240a, 12090639, 059903023j, 059903023jx, 305589220, 2113552202, 95860312200

  • Passar modeller
    Porsche Model: Cayenne Model series: Cayenne Size of motor: 3.0 Brand of engine: M06.EC,MCJ.TB From date: 01-04-2011 Fuel: Gasoline Approved: Yes
    Porsche Model: Cayenne Model series: Cayenne Type of engine: TDi Size of motor: 3.0 Brand of engine: M05.9D Type description: 955 Body: SUV From date: 01-02-2009 To date: 01-09-2010 Fuel: Diesel Approved: Yes
    VW Model: Touareg Model series: Touareg Type of engine: TDi Size of motor: 3.0 Brand of engine: CASD Type description: 7P5 From date: 01-01-2010 To date: 01-03-2018 Fuel: Diesel Approved: Yes
    VW Model: Touareg Model series: Touareg Type of engine: TDi Size of motor: 3.0 Brand of engine: CJMA Type description: 7P5 From date: 01-01-2010 To date: 01-03-2018 Fuel: Diesel Approved: Yes
    VW Model: Touareg Model series: Touareg Type of engine: TDi Size of motor: 3.0 Brand of engine: CVWA Type description: 7P5 From date: 01-01-2010 To date: 01-03-2018 Fuel: Diesel Approved: Yes
    VW Model: Touareg Model series: Touareg Type of engine: V6 TDi Size of motor: 3.0 Brand of engine: CASA Type description: 7P5 From date: 01-01-2010 To date: 01-03-2018 Fuel: Diesel Approved: Yes
    VW Model: Touareg Model series: Touareg Type of engine: V6 TDI Size of motor: 3.0 Brand of engine: CATA Type description: 7P5 From date: 01-06-2010 To date: 01-03-2018 Fuel: Diesel Approved: Yes
    VW Model: Touareg Model series: Touareg Type of engine: V6 TDi Size of motor: 3.0 Brand of engine: CNRB Type description: 7P5 From date: 01-01-2010 To date: 01-03-2018 Fuel: Diesel Approved: Yes
    1 / 2
  • Beskrivelse
    Volt: 14
    Amp: 220
    Remskive dist.: 29,70
    Bredde/fæstearm: 14,00
    Montagebeslag dist.: 60,40
    Bespændelseshul: 8,50
    Bæltejustering brace hole pos.: 45
    Remskive dia.: 60,00
    Groove/rimskive: 6
    Radie: 90,00
    Radie 2: 90,00
    B+: M8
    Position/B+ i min.: 5
    Rotation: CW
    Stik nr.: PL86
    Samlet længde mm: 177,00
    Terminaltype: COM
    ID-kode: 57
    Kommunikation: LIN
    Remskive: SP
    Fan: IF
    Regulator type: IR
    Bemærkninger: Denne generator har en COM-terminal på regulatoren. Det anbefales at bruge OEM-nummeret til at tjekke egnetheden før bestilling.

    Filer

  • Specifikation
    B+ M8
    Communication LIN
    Mount. bracket dist. 60.40
    Belt. adj. brackethole pos. 45
    Plug no. PL86
    Bracket hole 8.50
    Position/B+ in min. 5
    Pulley SP
    Pulley dia. 60.00
    Pulley dist. 29.70
    Radius 90.00
    Radius 2 90.00
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Fan IF
    Grooves/pulley 6
    ID Code 57
    Terminal type COM
    Voltage 14
    Total length 177.00 mm
    Width/holder arm 14.00
    Amp 220
  • Køretøjsmatchning

    • OEM
      F032116515, FG23S031, FGN23S031, 2608240, 2608240A, 059903023j, 059903023JX, 95860312200

    • Konkurrentreferens
      A3194(VALEO), A3194PR, A3194S, CAL15436, DRA0811, LRA03322, 28-5934, 211.355.2202, 305.589.220, 209205, 209205A, 439716, 440306, 553443RI, 12090639

    • NormaliseratArtNr
      a3194pr, a3194s, a3194valeo, cal15436, dra0811, f032116515, fg23s031, fgn23s031, lra03322, 209205, 209205a, 285934, 439716, 440306, 553443ri, 2608240, 2608240a, 12090639, 059903023j, 059903023jx, 305589220, 2113552202, 95860312200

    • Passar modeller
      Porsche Model: Cayenne Model series: Cayenne Size of motor: 3.0 Brand of engine: M06.EC,MCJ.TB From date: 01-04-2011 Fuel: Gasoline Approved: Yes
      Porsche Model: Cayenne Model series: Cayenne Type of engine: TDi Size of motor: 3.0 Brand of engine: M05.9D Type description: 955 Body: SUV From date: 01-02-2009 To date: 01-09-2010 Fuel: Diesel Approved: Yes
      VW Model: Touareg Model series: Touareg Type of engine: TDi Size of motor: 3.0 Brand of engine: CASD Type description: 7P5 From date: 01-01-2010 To date: 01-03-2018 Fuel: Diesel Approved: Yes
      VW Model: Touareg Model series: Touareg Type of engine: TDi Size of motor: 3.0 Brand of engine: CJMA Type description: 7P5 From date: 01-01-2010 To date: 01-03-2018 Fuel: Diesel Approved: Yes
      VW Model: Touareg Model series: Touareg Type of engine: TDi Size of motor: 3.0 Brand of engine: CVWA Type description: 7P5 From date: 01-01-2010 To date: 01-03-2018 Fuel: Diesel Approved: Yes
      VW Model: Touareg Model series: Touareg Type of engine: V6 TDi Size of motor: 3.0 Brand of engine: CASA Type description: 7P5 From date: 01-01-2010 To date: 01-03-2018 Fuel: Diesel Approved: Yes
      VW Model: Touareg Model series: Touareg Type of engine: V6 TDI Size of motor: 3.0 Brand of engine: CATA Type description: 7P5 From date: 01-06-2010 To date: 01-03-2018 Fuel: Diesel Approved: Yes
      VW Model: Touareg Model series: Touareg Type of engine: V6 TDi Size of motor: 3.0 Brand of engine: CNRB Type description: 7P5 From date: 01-01-2010 To date: 01-03-2018 Fuel: Diesel Approved: Yes
      1 / 2
